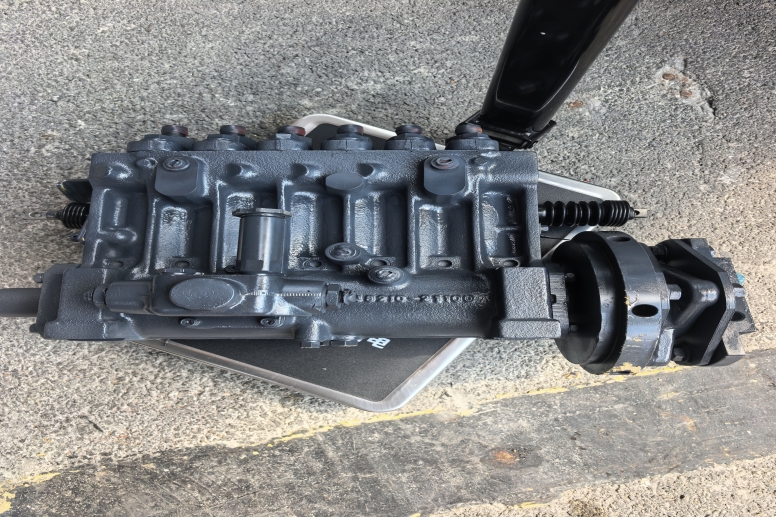

Mitsubishi PS6-HL-40 Diesel Pump Guide: 48270-00004
When maintaining heavy-duty diesel engines, precision is paramount. The fuel injection system is the heart of the engine, and few components are as critical—or as specific—as the injection pump.
For Mitsubishi 6D16 and 6D22 series engines, the PS6-HL-40 pump is the gold standard. However, procuring this part often requires navigating a complex web of part numbers. Are 48270-00004 and 48270-00001 interchangeable? What is the difference?
This guide provides a deep dive into the specifications, applications, and compatibility of the Mitsubishi PS6-HL-40 diesel pump, helping you make the right purchasing decision.
What is the Mitsubishi PS6-HL-40?

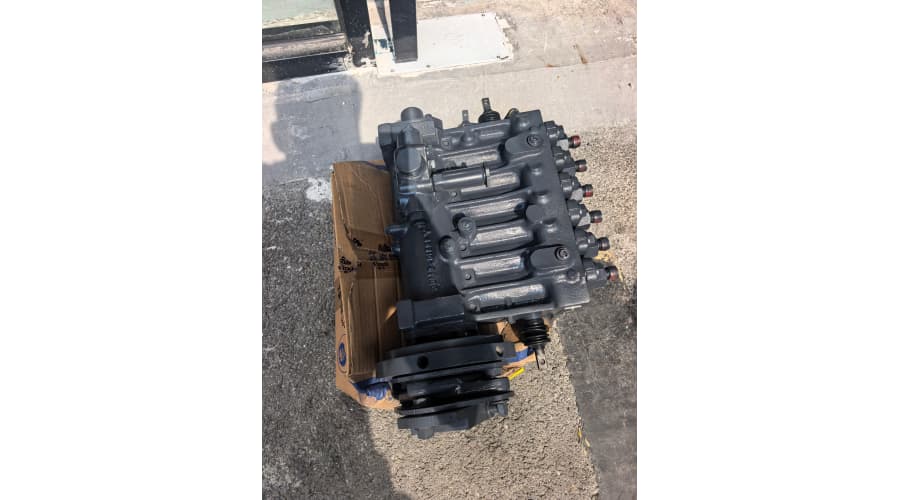

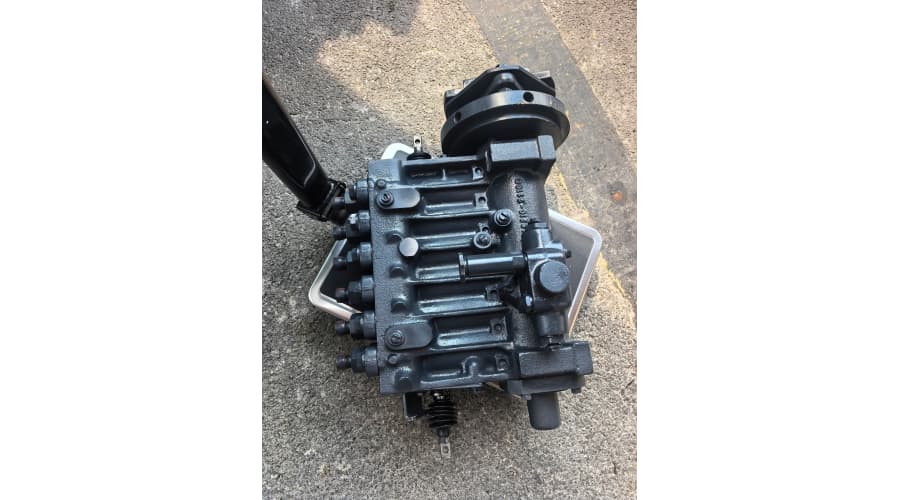

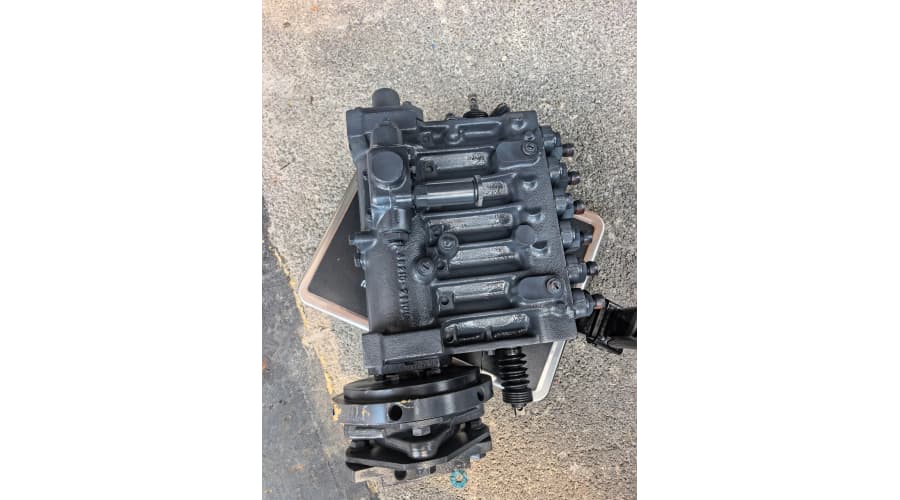

The PS6-HL-40 is an in-line fuel injection pump manufactured by Mitsubishi Heavy Industries. It is a mechanical, inline plunger pump designed specifically for high-torque, high-reliability diesel applications.
Key Specifications
Type: In-line, 6-cylinder plunger pump.
Engine Compatibility: Primarily used with Mitsubishi 6D16 (Turbo) and 6D22 engines.
Drive: Gear-driven, mounted on the engine timing case.
Governor: Often fitted with a mechanical or pneumatic governor for precise RPM control under varying loads.
These pumps are renowned for their durability, but they are precision instruments. A failure often results in hard starting, excessive smoke, or a complete inability to run.
Decoding the Part Numbers: 48270-00004 vs 48270-00001
At first glance, the numbers 48270-00004 and 48270-00001 look nearly identical. However, using the wrong one can lead to timing issues and catastrophic engine damage.
Here is the critical distinction:
| Feature | Part Number: 48270-00001 | Part Number: 48270-00004 |
|---|---|---|
| Primary Application | Early model Mitsubishi 6D16 engines. | Later model 6D16 and 6D22 engines (often with higher HP ratings). |
| Plunger Size | Generally features a specific plunger diameter suited to standard output. | Often features a larger capacity plunger or modified camshaft profile for increased fuel delivery. |
| Timing Setting | Utilizes a specific static injection timing (usually measured in degrees BTDC). | Features an advance mechanism or timing setting adjusted for emissions compliance and power. |
| Governor Setup | Standard mechanical governor. | Sometimes equipped with a more sensitive governor spring setup. |
Important Warning: While the mounting flanges are the same, swapping a 48270-00001 with a 48270-00004 without adjusting the fuel limits or timing calibration will result in excessive exhaust temperatures (EGT) and potential piston melting.
Applications: Which Engine Uses Which?
To ensure you order the correct part for your machinery, match the part number to the specific vehicle or equipment model.
Part Number 48270-00001: Commonly found in earlier 6D16 engines used in Mitsubishi Fuso FG Series (pre-1995) and early FD Series trucks.
Part Number 48270-00004: This is the more common modern variant. It is used extensively in:
Mitsubishi Fuso FK/FM Series (mid-1990s to 2000s).
Mitsubishi 6D22 engines found in heavy-duty construction equipment.
TCM and Komatsu Forklifts (when using the Mitsubishi 6D16 power unit).
Pro Tip: Always cross-reference your Engine Serial Number (found on the block) with the pump part number. If you have a 6D16-xxxxx series, ensure the pump designation matches the engine spec plate.
Why Replacing Your PS6-HL-40 Pump Requires Expertise
You cannot simply install a new PS6-HL-40 pump "out of the box." Unlike common rail systems, these mechanical pumps require precise calibration.
1. Static Timing Adjustment
The gear marks on the pump flange must align perfectly with the engine timing marks. A misalignment of even one gear tooth will throw off the fuel injection timing, leading to a "knocking" sound or white smoke.
2. Fuel Delivery Calibration (Rack Setting)
The difference between 48270-00004 and 48270-00001 often lies in the rack travel limit. You must set the "smoke limit" and "maximum speed" according to the specific engine specification.
3. Plunger and Barrel Wear
If you are rebuilding an old pump, look for scoring on the plunger. If the pump has been sitting for years, the internals may be seized due to old diesel residue.
Signs Your Pump Needs Attention
If you are experiencing performance issues, check these symptoms:
Hard Starting: Especially when hot, indicating a worn plunger or delivery valve.
Black Smoke: Excessive smoke under load often points to a stuck rack or incorrect calibration (common with mismatched 48270-00001/00004 parts).
Loss of Power: If the fuel isn't reaching the injectors at the right pressure, your equipment will lack torque.
