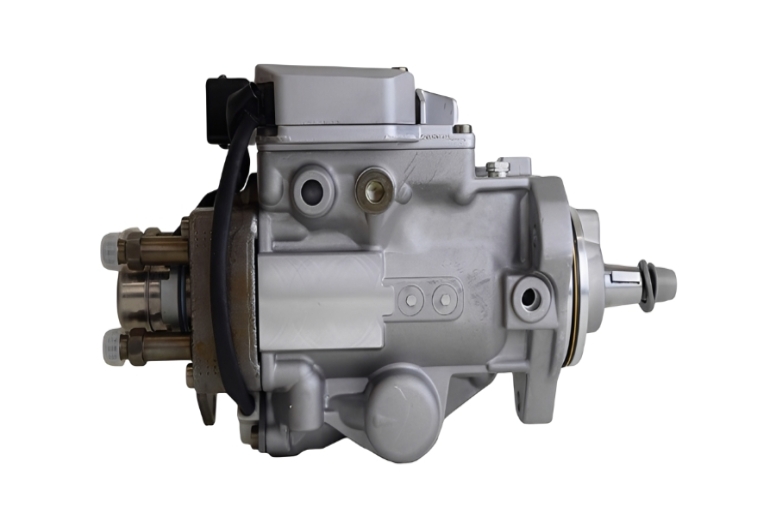

VP30 Diesel Fuel Pump Compatible with Cummins: Complete Guide
What Is VP30 Diesel Fuel Pump Compatible with Cummins?
The VP30 diesel fuel pump compatible with Cummins is a high-pressure distribution-type injection pump originally designed by Bosch, now adapted or remanufactured to work seamlessly with certain Cummins diesel engines. This pump plays a critical role in delivering precisely metered fuel at extremely high pressure to the injectors. While the VP30 is traditionally found in European passenger car diesel engines (such as those from BMW, PSA, and GM), specialized engineering has made it possible for a VP30 diesel fuel pump compatible with Cummins to serve as a reliable alternative or replacement in specific Cummins power units, especially in light-duty industrial, agricultural, or marine applications where compact size and precise electronic control are required.
How Does VP30 Diesel Fuel Pump Compatible with Cummins Work?
The VP30 diesel fuel pump compatible with Cummins operates using a radial piston distributor design combined with an electronic control system. Inside the pump, a cam plate drives several plungers to generate high pressure. The integrated solenoid valves and timing control unit regulate the start and end of injection based on real-time signals from the engine’s ECU (Engine Control Unit). When installed on a Cummins engine, the pump draws fuel from the tank, pressurises it to over 1,200 bar, and distributes it sequentially to each cylinder’s injector. A built-in feed pump and pressure control valve maintain stable flow. The electronic governor ensures precise injection timing and quantity, which is essential for meeting emission standards and achieving smooth combustion. Adaptation kits or recalibrated ECU mappings are often used to make the VP30 diesel fuel pump compatible with Cummins for optimal performance.
Advantages of VP30 Diesel Fuel Pump Compatible with Cummins
Choosing a VP30 diesel fuel pump compatible with Cummins offers several key benefits:
High-Pressure Precision – Delivers injection pressures up to 1,200 bar, enabling finer fuel atomisation and more complete combustion, which translates to higher power output and lower fuel consumption.
Electronic Control – Fully ECU-managed timing and fuel quantity allow for real-time adjustments, improving throttle response and reducing emissions (CO₂, NOx, and particulates).
Compact and Lightweight – The distributor-type design is significantly smaller and lighter than inline pumps, saving valuable space on Cummins engines in tight engine bays.
Cost-Effective Replacement – For older Cummins engines that originally used mechanical pumps, retrofitting a VP30 diesel fuel pump compatible with Cummins can be a budget-friendly upgrade to electronic injection without replacing the entire engine.
Good Low-Speed Torque – The VP30’s rapid pressure build-up ensures strong torque at low RPMs, ideal for generators, pumps, and off-road equipment powered by Cummins diesels.
Application of VP30 Diesel Fuel Pump Compatible with Cummins
The VP30 diesel fuel pump compatible with Cummins is widely used in scenarios where a compact, electronically controlled injection system is beneficial. Typical applications include:
Light‑duty Cummins industrial engines – Such as the B3.3, QSB3.3, or 4BT models, when modified for electronic fuel control.
Agricultural machinery – Tractors, harvesters, and irrigation pumps that require reliable fuel delivery under varying loads and dusty conditions.
Marine auxiliary engines – Small Cummins‑powered boats or generator sets needing stable and efficient fuel injection.
Construction equipment – Skid steer loaders, mini excavators, and compressors where space is limited but performance is critical.
Generator sets (gensets) – Standby or prime power units demanding low fuel consumption and steady voltage output.
In each case, the VP30 diesel fuel pump compatible with Cummins must be paired with the appropriate adaptor plate, ECU calibration, and injector setup to ensure seamless integration.
Specifications (Types) of VP30 Diesel Fuel Pump Compatible with Cummins
The VP30 diesel fuel pump compatible with Cummins is available in several variants based on plunger diameter, cam profile, and electronic actuator configuration. Common specifications include:
| Type | Plunger Diameter | Max Pressure | Typical Cummins Application |
|---|---|---|---|
| VP30‑8.5 | 8.5 mm | 1,200 bar | 3.3L – 4.5L industrial engines |
| VP30‑9.0 | 9.0 mm | 1,250 bar | 4BT, 6BT (modified) |
| VP30‑9.5 | 9.5 mm | 1,300 bar | Higher output agricultural use |
| VP30‑R | Remanufactured (OEM spec) | 1,200 bar | Direct replacement for failed units |
Other technical features common to all types:
Inlet pressure – 0.3 to 0.6 bar (gravity or lift pump supplied)
Fuel viscosity – 1.5 to 6.0 cSt at 40°C (diesel fuel)
Electrical connector – 6‑pin or 8‑pin AMP-style
Mounting flange – SAE or custom pattern for Cummins bell housing
Governor type – Electronic with integrated cold start advance
When selecting a VP30 diesel fuel pump compatible with Cummins, always verify the pump’s part number and compare the plunger size against your engine’s original injection requirements.
