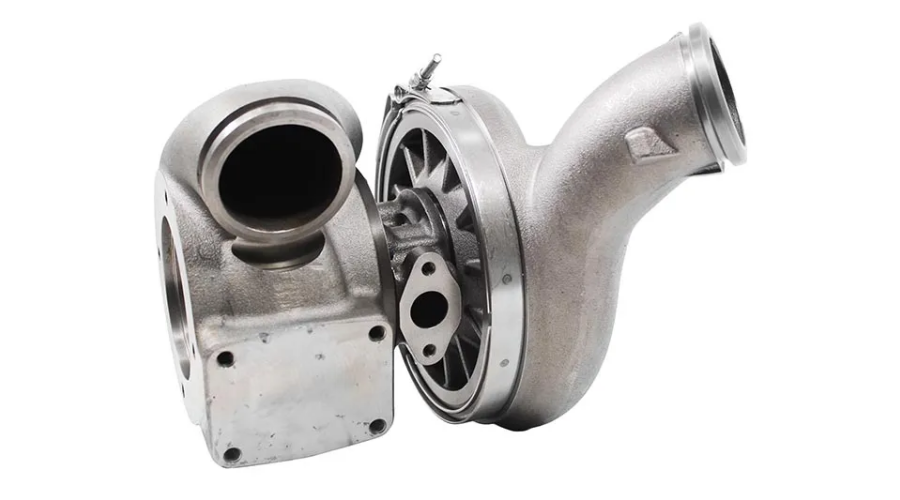

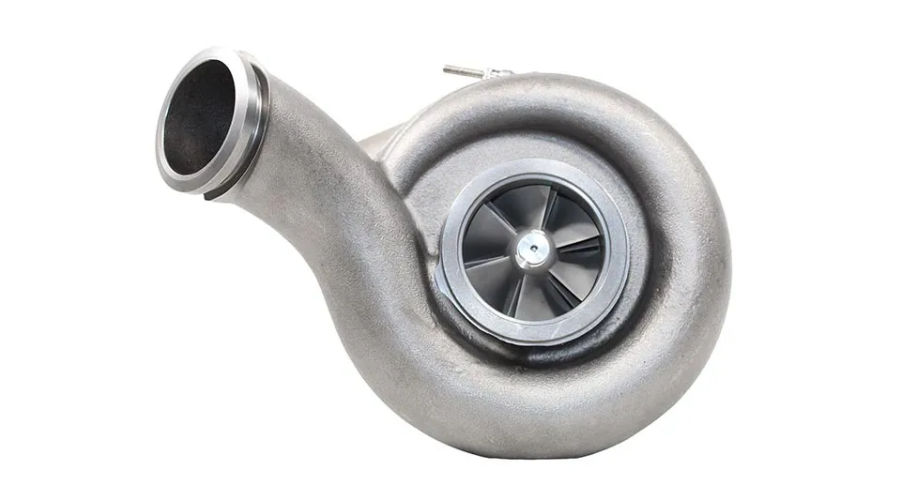

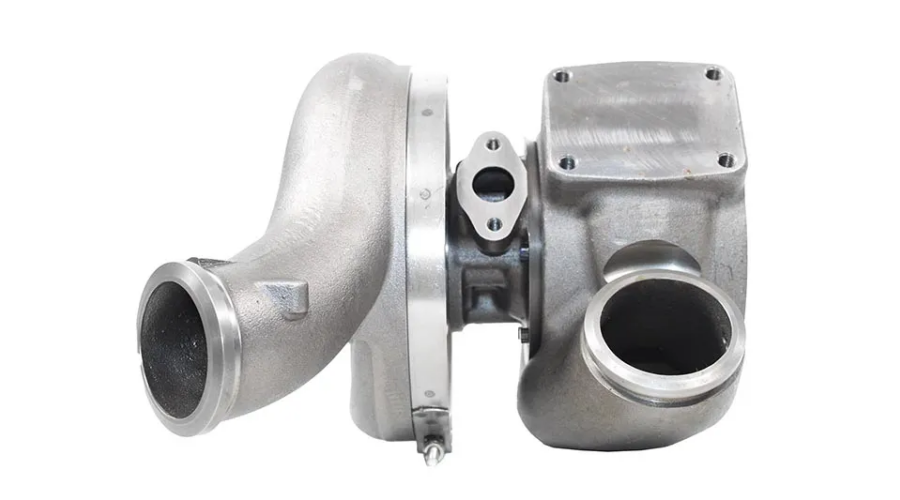

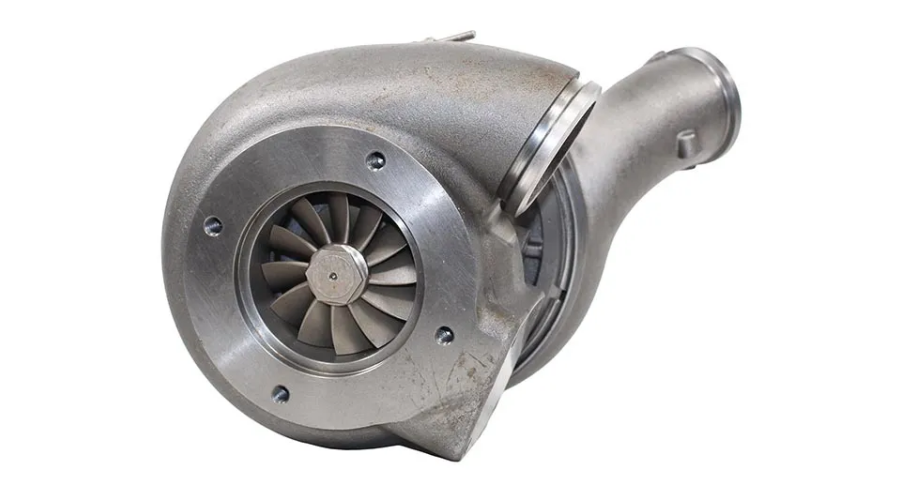

10R2027 Turbocharger for Caterpillar C13 Engine: Performance, Reliability, and Expert Repair Guide
The 10R2027 turbocharger is a critical performance component designed specifically for the Caterpillar C13 engine, a heavy-duty powerplant widely used in commercial trucks, construction machinery, and industrial applications.
1. Structural Features & Advantages of the 10R2027 Turbocharger
The 10R2027 turbocharger is engineered for durability and efficiency under extreme conditions. Its key structural advantages include:
Robust Cast Iron Housing: Provides excellent heat resistance and mechanical strength, reducing the risk of cracking under high exhaust temperatures.

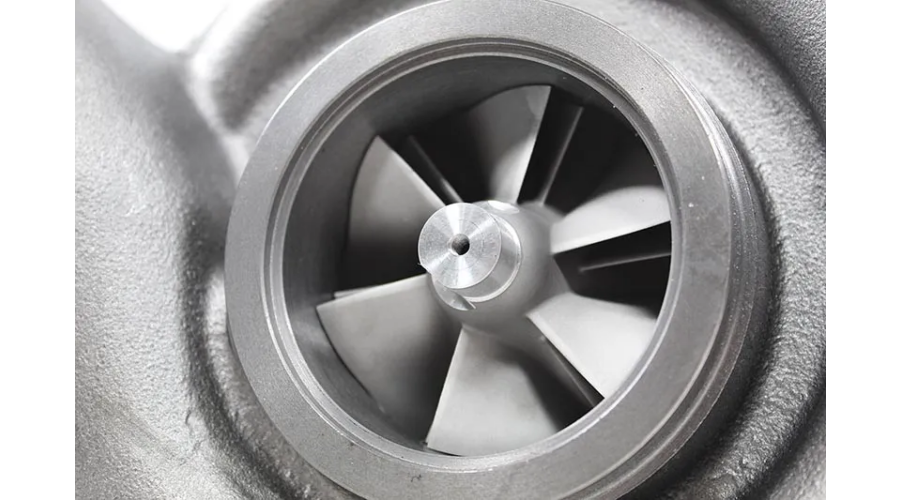

High-Flow Compressor Wheel: Precision-cast from aluminum or upgraded billet material (in aftermarket versions) to improve airflow and throttle response.
Wastegate-Integrated Design: Helps control boost pressure precisely, preventing over-boosting and protecting the Caterpillar C13 engine from excessive cylinder pressure.
Journal Bearing System: Offers reliable lubrication and long service life when proper oil supply is maintained. Some upgraded models feature semi-floating bearings for reduced friction.
Corrosion-Resistant Turbine Wheel: Made from Inconel or high-nickel alloy steel to withstand thermal fatigue and oxidation.
These structural features translate into tangible benefits: improved fuel efficiency, lower exhaust emissions, enhanced low-end torque, and extended engine life for your Caterpillar C13.
2. Core Working Principle of the 10R2027 Turbocharger
The 10R2027 turbocharger operates on the principle of exhaust gas energy recovery. Here’s a step-by-step explanation:
Exhaust Gas Entry: Exhaust gases from the Caterpillar C13 engine enter the turbine housing at high speed and temperature.
Turbine Wheel Rotation: The gas flow spins the turbine wheel, converting thermal and kinetic energy into rotational mechanical energy.
Compressor Induction: The turbine wheel is connected via a common shaft to the compressor wheel. As the turbine spins, the compressor draws in ambient air through the air filter.
Air Compression & Cooling: The compressor wheel pressurizes the intake air before it passes through an aftercooler (charge air cooler) to increase density.
Cylinder Delivery: Dense, cool air enters the cylinders, allowing more fuel to be burned efficiently, which boosts power output by 30–40% compared to naturally aspirated operation.
This continuous cycle ensures that your Caterpillar C13 engine delivers maximum power without increasing displacement.
3. Main Applications of the 10R2027 Turbocharger
The 10R2027 turbocharger is a direct-fit replacement for engines and vehicles equipped with the Caterpillar C13 diesel engine. Common applications include:
Heavy-Duty Trucks: Caterpillar CT660, CT680, and other vocational trucks.
Construction Equipment: Caterpillar 14M, 16M motor graders; 950K, 962K wheel loaders; D6K, D6N track-type tractors.
Industrial Machinery: Generator sets (C13 gensets), compressors, and irrigation pumps.
Agricultural Equipment: Large tractors and harvesters using the C13 power unit.
Always verify your engine serial number (ESN) and original turbo part number before purchasing. The 10R2027 is often interchangeable with other CAT turbo part numbers like 10R2026 or 259-5147, but confirmation is essential.
4. Common Failure Symptoms & Repair/Replacement Tips
Symptoms of a Failing 10R2027 Turbocharger
| Symptom | Possible Cause |
|---|
| Loss of power / poor acceleration | Worn compressor/turbine wheels, boost leak |
| Excessive black or blue exhaust smoke | Oil seal failure, internal oil leakage |
| Whining or grinding noises | Bearing damage, foreign object damage |
| High oil consumption | Damaged piston ring seal in turbo center housing |
| Check engine light (low boost code) | Wastegate stuck open, cracked housing |
Repair & Replacement Key Points
Inspection Before Removal: Check for shaft play (axial and radial). Acceptable radial play is usually <0.5mm. Any contact between wheel and housing means replacement is required.
Oil Supply Check: A failed turbocharger often results from contaminated or low oil pressure. Always replace engine oil, filter, and inspect the oil feed line before installing a new 10R2027 turbo.
Use Genuine or High-Quality Aftermarket Parts: Substandard turbos can fail within months. Rsolid engine parts offers OE-spec or better alternatives.
Proper Priming: Fill the turbocharger with clean engine oil through the oil inlet before starting the engine to prevent dry-start damage.
Torque Specifications: Follow Caterpillar guidelines for mounting bolts and exhaust manifold hardware to prevent leaks and warping.

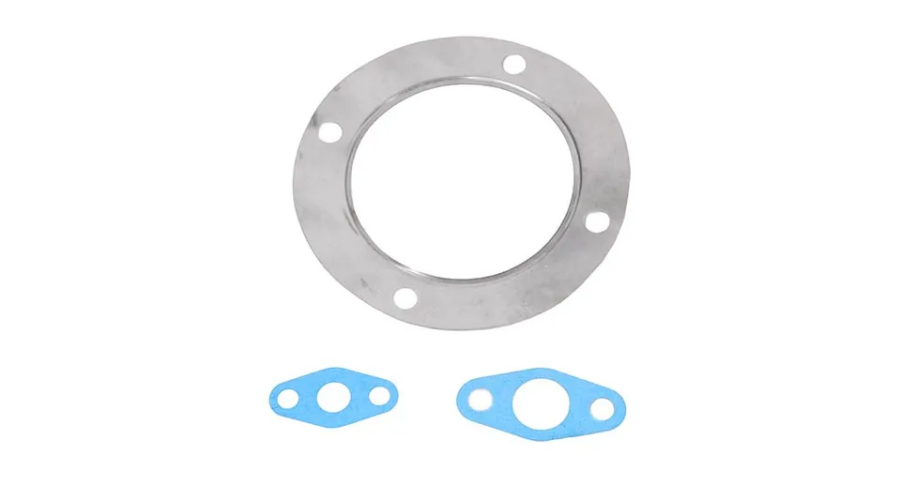

Recommendation: Always replace gaskets, mounting studs, and oil drain tube O-rings when installing a new 10R2027 turbocharger.
5. Why Choose Rsolid Engine Parts as Your 10R2027 Turbocharger Supplier?
Rsolid engine parts (website: www.rinjector.com) is a professional diesel engine parts supplier with years of experience in the heavy-duty aftermarket. Here’s why customers trust us for their Caterpillar C13 turbocharger needs:
Premium Quality Assurance: Every 10R2027 turbocharger undergoes 100% dynamic balancing and leak testing before shipment. We use high-temperature bearings and OEM-grade seals.
Direct Factory Pricing: By manufacturing and sourcing directly, we eliminate middlemen, offering competitive prices without compromising quality.
Exact Fit Guarantee: Our 10R2027 turbochargers are built to match OEM dimensions, ensuring bolt-on installation with no modifications required.
Global Fast Shipping: We ship worldwide from our warehouses with tracking. Express delivery available for urgent orders.
Expert Technical Support: Our team can help you verify compatibility, diagnose turbo issues, and provide installation guidance.
Reliable After-Sales Service: 12-month warranty against manufacturing defects. Customer satisfaction is our top priority.
📞 Contact Rsolid Engine Parts Today
Whether you need one 10R2027 turbocharger for a single truck or a bulk order for a fleet, we are ready to serve you with fast quotes and professional service.
