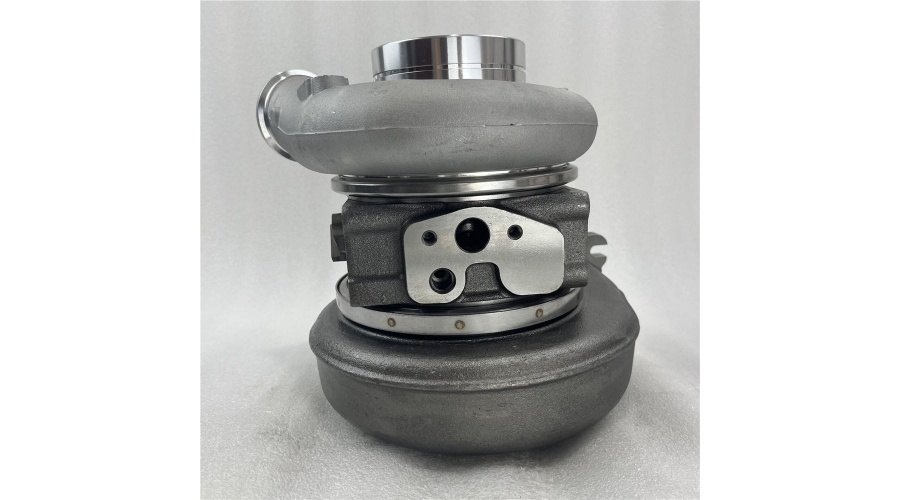

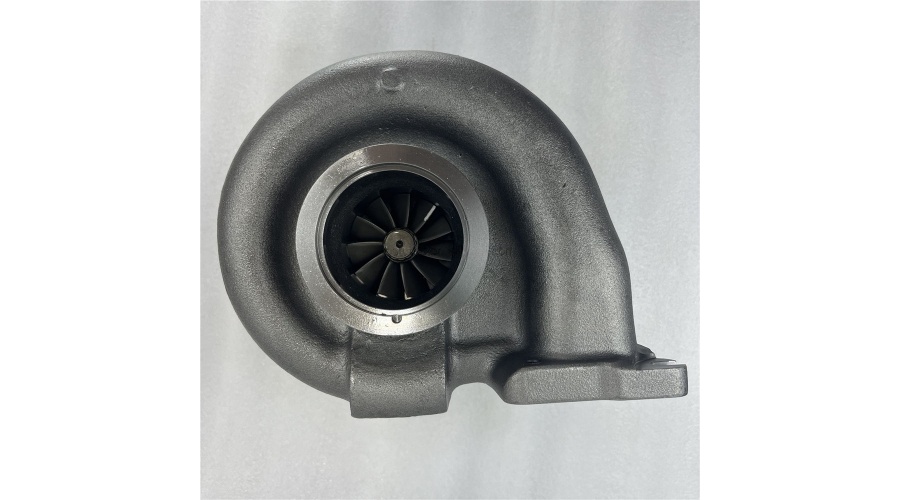

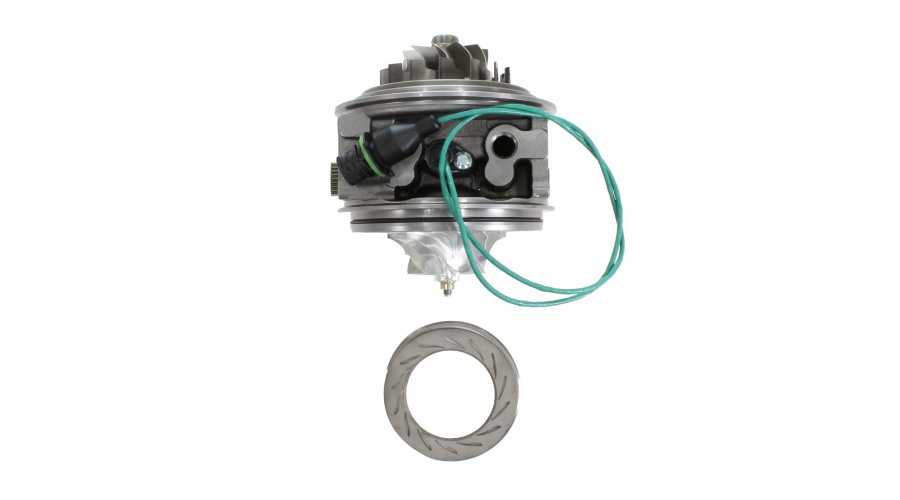

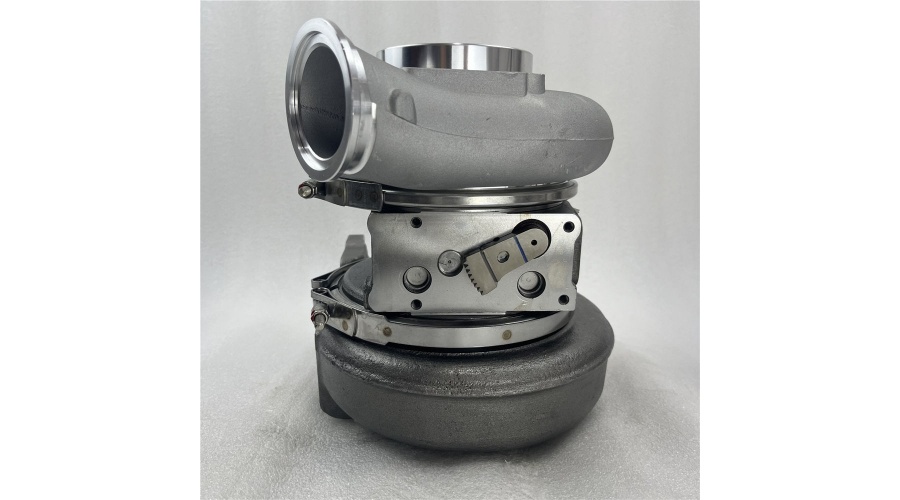

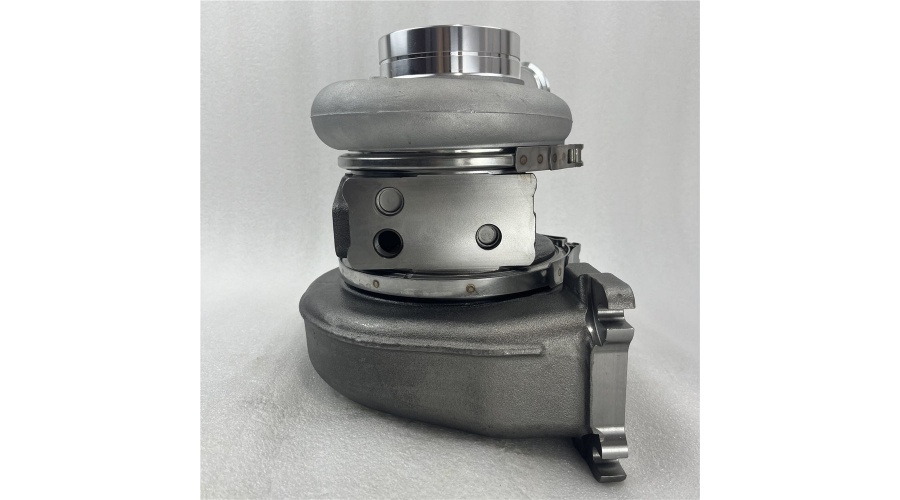

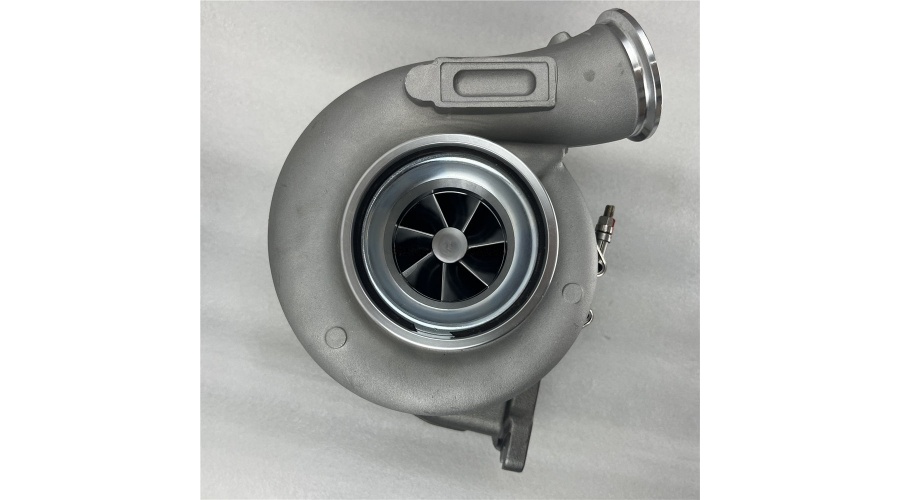

Looking for a reliable turbocharger to restore your heavy-duty truck’s power and efficiency? The 3784777 Turbocharger (compatible with HE400VG and HE451VE models) is engineered for Volvo D13 and Mack MP8 diesel engines.
1. Structural Features & Advantages of 3784777 Turbocharger
The 3784777 turbocharger combines advanced VGT (Variable Geometry Turbocharger) technology with robust construction. Here’s what makes it stand out:
Variable Turbine Geometry (VTG / VGT) – Optimizes exhaust gas flow across all RPM ranges, reducing turbo lag and improving low-end torque. Ideal for demanding highway and off-highway conditions.
High-Temperature Alloy Turbine Wheel – Cast from Inconel or similar heat-resistant materials, ensuring durability under extreme exhaust temperatures (up to 950°C).
Dual-Scroll or Single-Scroll Housing (depending on variant) – Minimizes pulse interference between cylinders, boosting scavenging efficiency.
Fully Floating Journal Bearings – Reduces friction, supports high rotational speed (up to 120,000–150,000 rpm), and extends service life.
Compressor Map Optimization – Delivers high pressure ratio (up to 3.5:1) while maintaining surge margin, resulting in better fuel economy and lower emissions.
Direct Bolt-On Fitment – Designed to match OEM mounting points, oil lines, and charge air cooler connections for Volvo D13 and Mack MP8 engines.
These features translate into improved throttle response, lower exhaust gas temperature (EGT), and compliance with Euro 4/5/6 emission standards.
2. Main Application Equipment
The 3784777 turbocharger (HE400VG / HE451VE) is primarily used in heavy-duty commercial vehicles equipped with Volvo D13 and Mack MP8 engines. Specific applications include:
| Vehicle Brand | Engine Model | Typical Truck Models |
|---|
| Volvo Trucks | D13A, D13C, D13K (Euro 4/5/6) | FH, FM, FMX, VN series |
| Mack Trucks | MP8 (300–505 hp) | Anthem, Pinnacle, Granite, Titan |
Other compatible equipment:
Coach buses with Volvo D13 engines
Construction machinery (wheel loaders, excavators) using MP8 derivatives
Stationary industrial engines (power generation, pumping sets)
⚠️ Always verify your engine serial number and turbo mounting pattern. The HE400VG and HE451VE are interchangeable in most D13/MP8 setups, but confirm the correct actuator type (pneumatic or electronic).
3. Common Failure Symptoms & Repair/Replacement Points
🔧 Typical Failure Symptoms
| Symptom | Possible Cause |
|---|
| Loss of power / slow acceleration | Stuck VGT vanes, worn bearings, or compressor wheel damage |
| Excessive black smoke | Insufficient boost pressure (air-fuel ratio too rich) |
| Whining or grinding noise | Turbine/shaft imbalance or bearing failure |
| Oil leak from turbo housing | Damaged piston ring seal or clogged oil drain line |
| Boost pressure below spec (e.g., <1.5 bar) | Wastegate/actuator malfunction or exhaust leak |
| High oil consumption | Turbo seal leaking into intake or exhaust |
| Check engine light with P0299 / P0234 | Underboost / overboost condition |
🔩 Repair & Replacement Key Points
Before removal:
Diagnose thoroughly – Use a scan tool to read boost pressure, VGT duty cycle, and compare with OEM specs.
Inspect related systems – Check for exhaust restrictions (DPF, muffler), intake leaks, and oil contamination.
Replacement procedure:
Remove and clean – Unbolt heat shields, oil supply/return lines, and exhaust connections. Clean mating surfaces.
Pre-lube the new turbo – Fill the oil inlet port with clean engine oil before installing to prevent dry start.
Use new gaskets & fasteners – Replace oil feed line crush washers, exhaust manifold gasket, and V-band clamps.
Torque to specification – Follow OEM values (e.g., manifold nuts: 45 Nm; oil line banjo bolt: 25 Nm).
Program actuator (if electronic) – Some HE451VE variants require recalibration of the VGT position sensor.
Post-installation:
Crank the engine with fuel pump disabled (or injector cut) for 10 seconds to prime the turbo with oil.
Start engine, idle for 2 minutes before revving.
Perform boost leak test and road test under load.
🚨 Do not reuse old oil feed lines if they show coking or restriction – this is the #1 cause of premature turbo failure.
