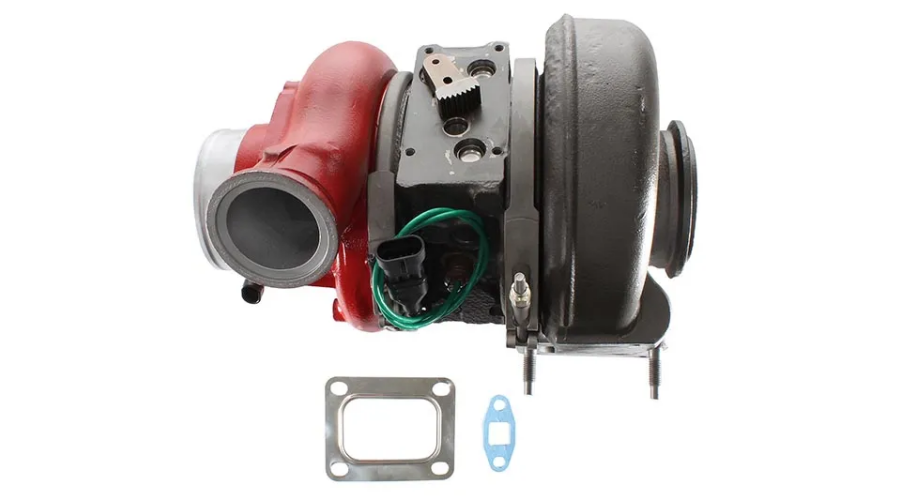

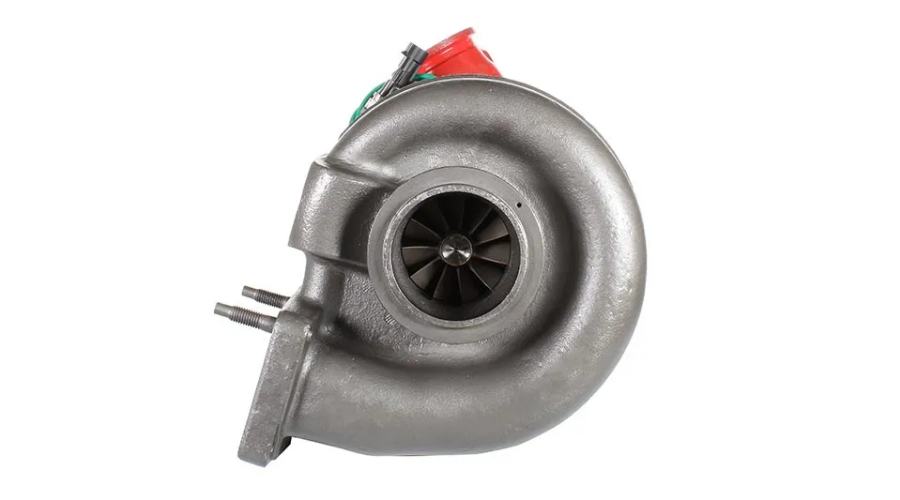

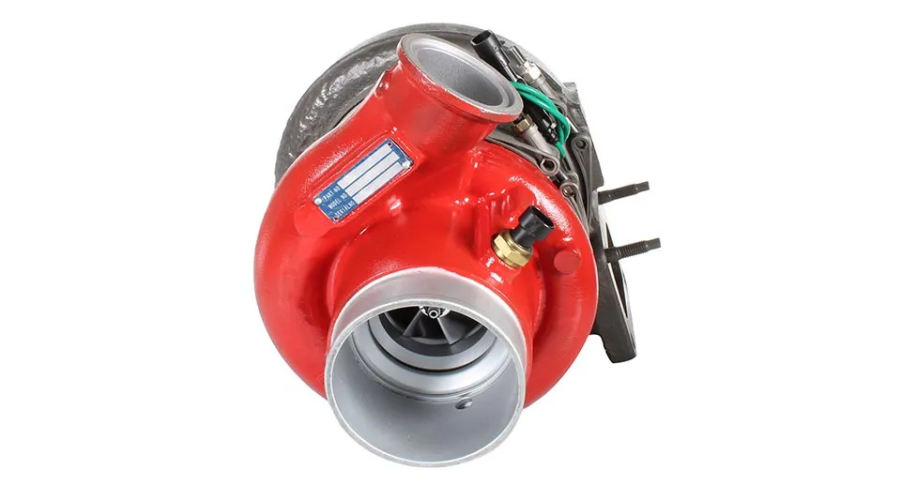

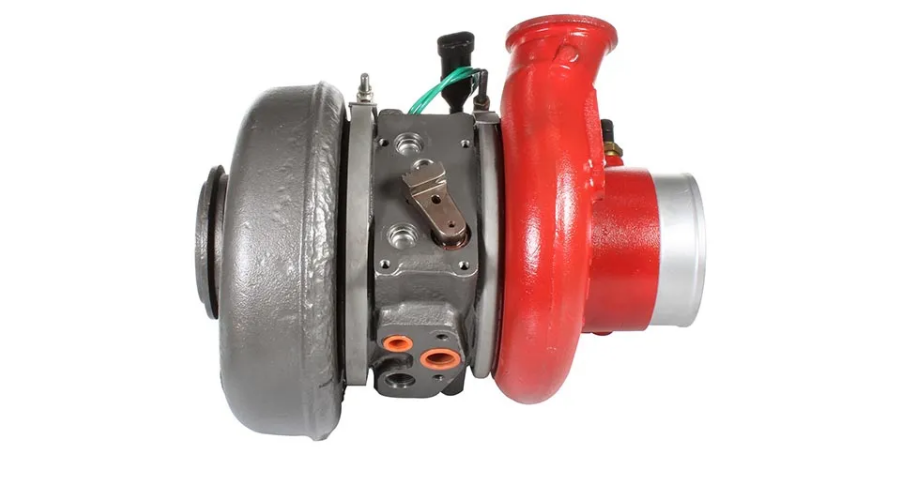

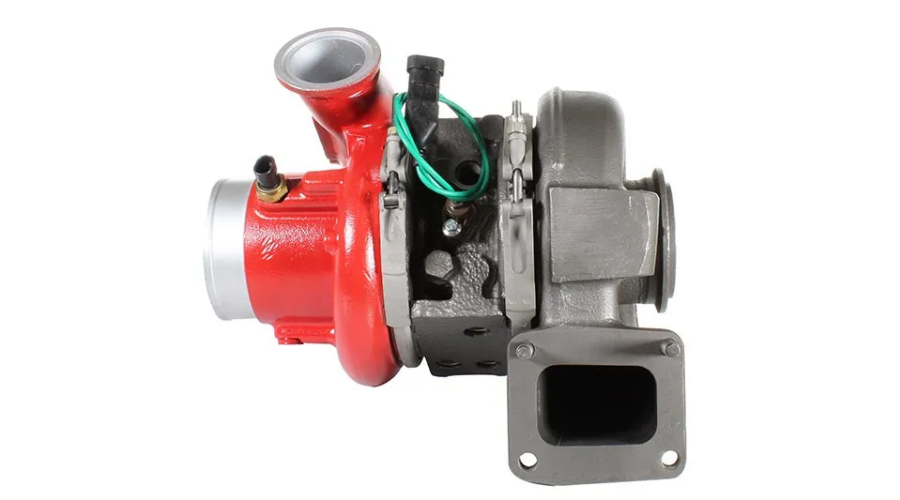

If you are looking for a high-performance turbocharger for your Cummins diesel engine, the 4309124 Turbo (compatible with HE400VG / HE451VE) is a reliable and powerful choice.
1. Structural Features & Advantages of 4309124 Turbocharger
The 4309124 Turbocharger is designed to match or exceed OEM specifications for Cummins diesel engines using HE400VG or HE451VE turbo housings. Below are its key structural strengths:
Advanced Bearing System – Uses high-precision floating bearings or journal bearings to reduce friction and improve rotor stability, ensuring long service life even under high boost pressure.
Heat-Resistant Turbine Housing – Cast from high-nickel alloy (e.g., Ni-resist) to withstand extreme exhaust temperatures (up to 950°C), preventing cracking and warping.
Aerodynamic Compressor Wheel – CNC-machined or cast from high-strength aluminum alloy, optimizing airflow for faster spool-up and reduced turbo lag.
Wastegate Actuator (if applicable) – Precisely calibrated to regulate boost pressure, protecting the engine from overboost while maintaining power delivery.
Direct Fitment – Designed as a direct replacement for HE400VG and HE451VE turbo units, requiring no modifications to exhaust manifolds or oil lines.
✅ Advantages Summary
2. Main Application Equipment
The 4309124 Turbocharger is widely used in Cummins diesel engines that originally use HE400VG or HE451VE turbochargers. Typical applications include:
| Equipment Category | Specific Models / Uses |
|---|
| Heavy-Duty Trucks | Cummins ISL, ISLe, QSL9 engines (e.g., in Freightliner, International, Kenworth, Peterbilt) |
| Buses & Coaches | City buses, tourist coaches with Cummins 8.9L diesel engines |
| Construction Machinery | Excavators, loaders, bulldozers (e.g., Komatsu, Caterpillar with Cummins power) |
| Agricultural Equipment | Large tractors and harvesters using Cummins diesel |
| Marine & Generator Sets | Auxiliary marine engines and standby generator sets (400–450 HP range) |
Note: Always confirm your engine’s turbo model (HE400VG or HE451VE) before ordering.
3. Common Failure Symptoms & Repair/Replacement Tips
🔧 Common Symptoms of a Failing 4309124 Turbo
Loss of engine power – Sluggish acceleration, especially under load.
Excessive black/white smoke – Incomplete combustion due to low boost pressure.
Whistling or grinding noise – Damaged compressor/turbine wheel or bearing failure.
Oil leaks from turbo – Worn seals or clogged oil return line.
Check engine light / overboost codes – Wastegate stuck or boost sensor issues.
High oil consumption – Oil passing through turbo seals into intake or exhaust.
🛠️ Repair & Replacement Key Points
Inspect before removal – Check for shaft play (axial & radial). Maximum allowable radial play is usually <0.5mm.
Clean oil supply – Replace engine oil and filter; flush the oil feed line to avoid contamination killing the new turbo.
Use genuine gaskets & fasteners – Reuse of old gaskets causes exhaust leaks.
Proper torque – Tighten turbo mounting bolts to OEM specs (typically 40–55 Nm for M8/M10 bolts).
Prime the turbo – Fill the bearing housing with clean oil before first start to prevent dry start damage.
Post-installation check – Run engine at idle for 2–3 minutes to ensure oil pressure is established, then test under no load before full operation.
⚠️ Safety reminder: Turbocharger housings get extremely hot. Always work on a cooled engine.
4. Why Choose Rsolid Engine Parts as Your Supplier
When buying a 4309124 Turbocharger for your HE400VG/HE451VE engine, Rsolid Engine Parts offers unmatched advantages:
| Supplier Advantage | Description |
|---|
| OEM-grade quality | Every turbo is manufactured to match or exceed original Cummins/Holset specifications. |
| 100% tested | Each unit undergoes dynamic balancing and leak testing before shipping. |
| Competitive pricing | Direct factory partnership eliminates middlemen – save 20–30% compared to dealer prices. |
| Fast worldwide shipping | Ready stock; express delivery via DHL/FedEx/UPS. |
| Technical support | Expert team helps with fitment confirmation and troubleshooting. |
| Warranty | 12-month warranty against manufacturing defects. |
🌐 Website: www.rinjector.com
📞 WhatsApp (24/7 support): +86 15975376778
Whether you need one unit for a single truck or bulk order for a fleet, Rsolid Engine Parts provides fast quotes and reliable logistics.
