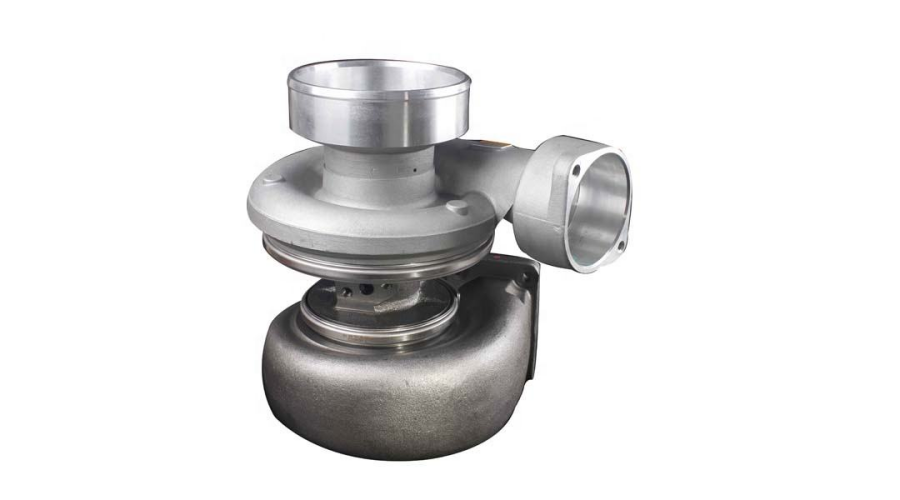

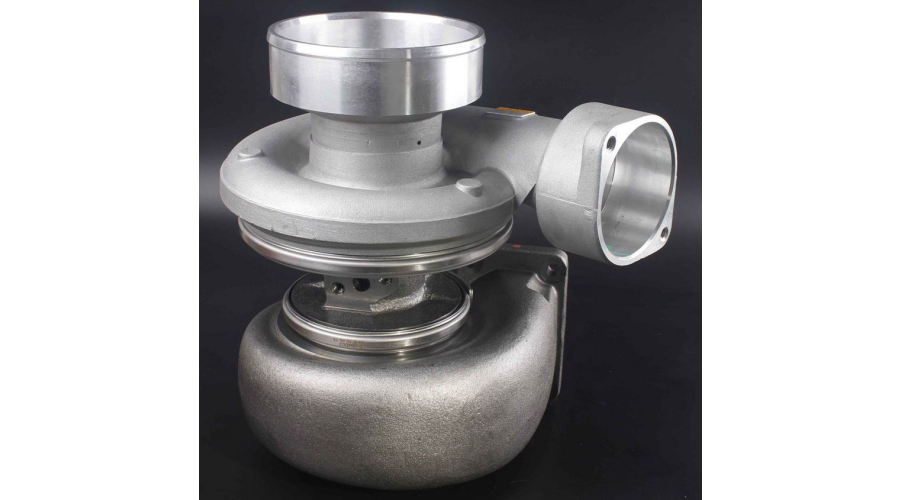

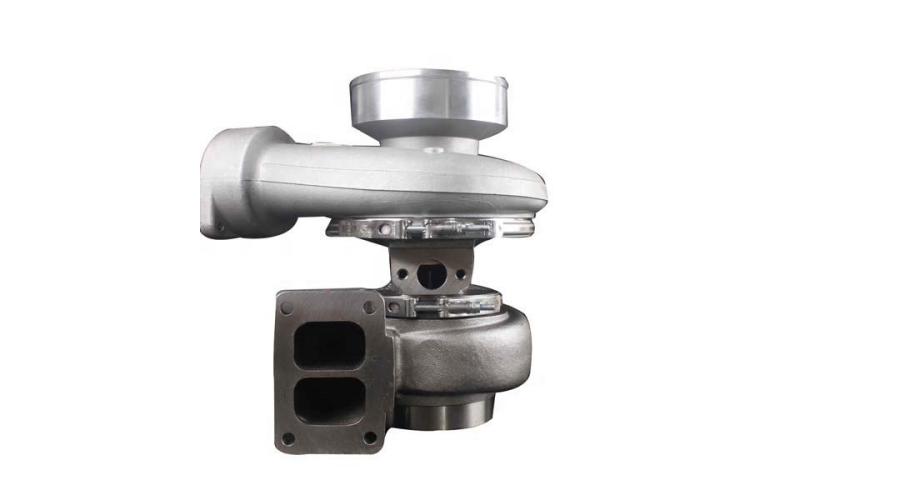

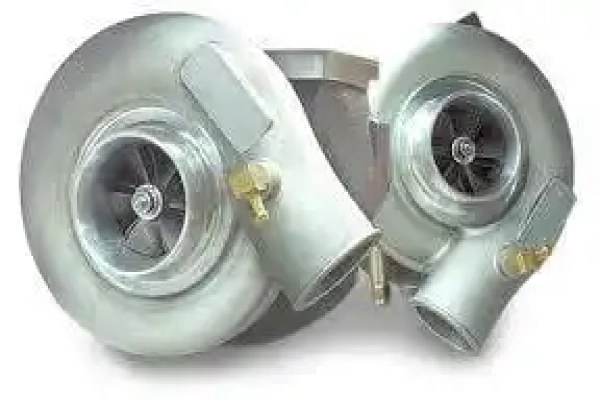

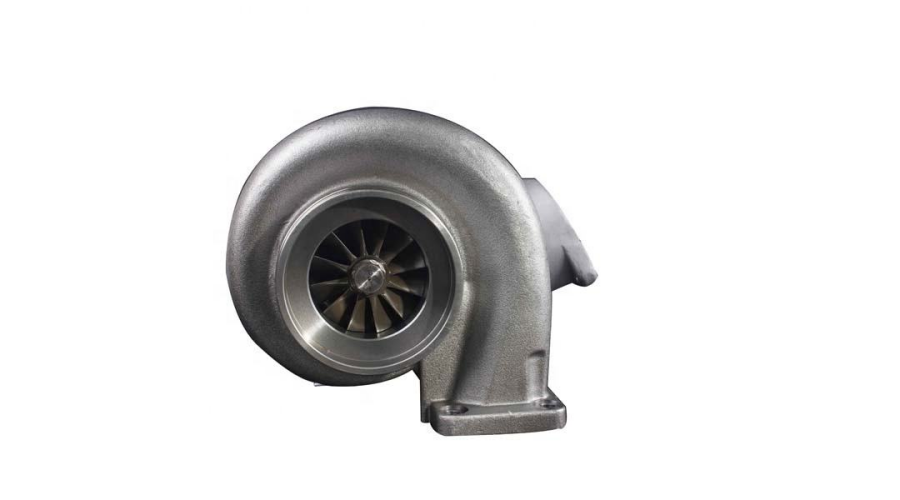

1. Structural Features and Advantages of the 9Y9198 Turbocharger
The 9Y9198 turbocharger is engineered with precision to meet Caterpillar’s rigorous standards. Here are its key structural benefits:
Robust Cast Iron Housing
The turbocharger features a high-strength cast iron housing that withstands extreme thermal stress and vibration, ensuring long service life even under heavy loads.
Advanced Bearing System
Equipped with a floating bearing design, the 9Y9198 reduces friction between the shaft and housing, allowing for higher rotational speeds with minimal wear. This leads to improved throttle response and reduced turbo lag.
Optimized Compressor and Turbine Wheels
The compressor wheel uses aerodynamically designed blades to maximize air intake efficiency, while the turbine wheel is made from heat-resistant alloys to handle exhaust gas temperatures up to 750°C. This combination boosts engine output by up to 30% in some applications.
Direct Bolt-On Replacement
Designed as an OEM replacement (OEM part number 9Y-9198), this turbocharger requires no modifications to the exhaust manifold or intake system, saving installation time and costs.
Sealed Cartridge Assembly
Many versions come with a pre-balanced cartridge assembly, which simplifies replacement and ensures factory-specified rotor balance for smooth, reliable operation.
2. Primary Applications of the 9Y9198 Turbocharger
The 9Y9198 turbocharger is widely used in heavy-duty equipment powered by the Caterpillar 3406C engine. Common applications include:
Heavy-Duty Trucks: Kenworth, Peterbilt, Freightliner models equipped with CAT 3406C engines (e.g., W900, 379).
Construction Machinery: Caterpillar excavators, bulldozers, and wheel loaders such as the CAT 966F, 970F, and D8N.
Marine Engines: Auxiliary power units and small to medium vessels using CAT 3406C marine propulsion.
Agricultural Equipment: Large tractors and harvesters requiring sustained high torque.
Industrial Generators: Standby and prime power generators where reliability is critical.
Wherever the CAT 3406C engine operates in demanding conditions, the 9Y9198 turbocharger ensures optimal combustion and power delivery.
3. Key Points for Repair and Replacement
Proper handling during repair or replacement is essential to avoid premature failure. Follow these guidelines:
Pre-Installation Inspection
Replacement Steps
Remove the old turbocharger after disconnecting the battery and draining coolant (if water-cooled).
Clean mounting surfaces on the exhaust manifold and oil drain flange.
Prime the new turbocharger with clean engine oil through the oil inlet port before installation.
Use new gaskets and fasteners to prevent exhaust and oil leaks.
Torque bolts to Caterpillar specifications (typically 35–40 Nm for manifold studs).
Post-Installation Checks
Start the engine and let it idle for 2–3 minutes to establish oil pressure before revving.
Check for unusual noises, smoke, or oil leakage.
Perform a boost pressure test to confirm proper operation.
Common Mistakes to Avoid
Do not reuse old oil feed pipes without cleaning.
Never run the engine with the air filter disconnected – debris will destroy the compressor wheel.
Avoid over-tightening the center housing mounting bolts, which can distort the bearing housing.
4. Why Choose Rsolid Engine Parts as Your Supplier?
At Rsolid engine parts, we specialize in high-quality aftermarket and OEM-grade turbochargers for Caterpillar, Cummins, Detroit, and other diesel engines. Here is why customers worldwide trust us:
✅ Strict Quality Control
Every 9Y9198 turbocharger is tested for balance, sealing, and boost pressure before shipment. We match or exceed OEM standards.
✅ Competitive Pricing
By sourcing directly from ISO9001-certified factories, we eliminate middlemen, offering you factory-direct savings without compromising quality.
✅ Fast Global Shipping
With warehouses strategically located and partnerships with major carriers, we ensure 3–7 day delivery to most countries.
✅ Technical Support
Our team of diesel engine specialists provides free pre-sales and after-sales guidance – from part matching to installation troubleshooting.
✅ Warranty & Return Policy
All turbochargers come with a 12-month warranty against manufacturing defects. Return or exchange is hassle-free.
Contact Rsolid Engine Parts Today:
Request a quote for the 9Y9198 turbocharger or browse our full catalog for injectors, pumps, and turbo parts.
