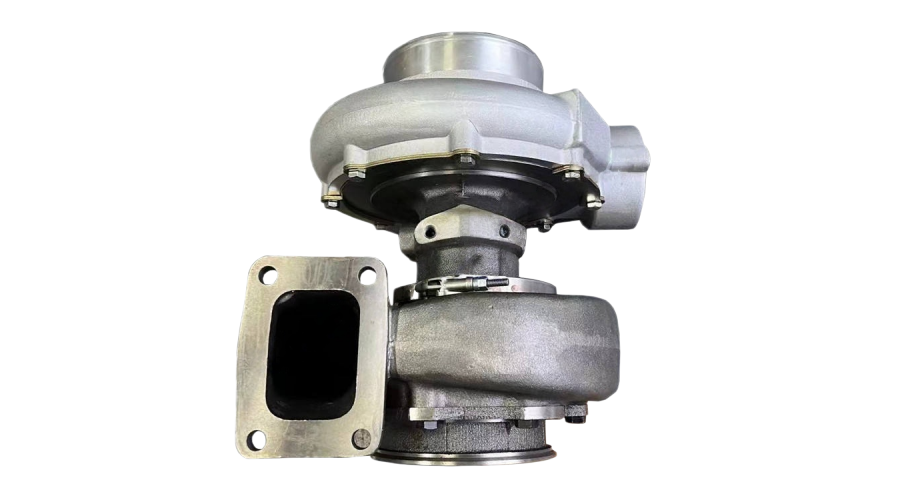

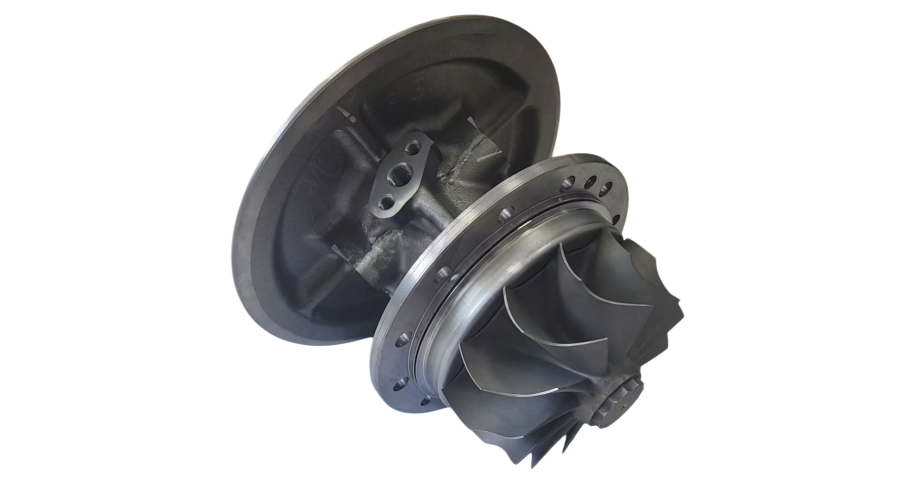

What is 49182-04912 Turbocharger for Mitsubishi S16R Diesel Engine?
The 49182-04912 turbocharger for Mitsubishi S16R diesel engine is a critical forced induction device designed specifically for the Mitsubishi S16R series, a heavy-duty, V16, four-stroke diesel engine widely used in industrial and marine applications. This turbocharger is manufactured to precise specifications to deliver high volumes of compressed air into the engine’s combustion chambers, enabling the engine to burn more fuel efficiently and produce significantly greater power output without increasing engine displacement.
The Mitsubishi S16R engine is known for its robustness, reliability, and ability to operate continuously under extreme loads. To match these characteristics, the 49182-04912 turbocharger employs advanced aerodynamics and heat-resistant materials. It is a single-entry, wastegate-free design (in most configurations) with a fixed geometry turbine housing, optimized for medium to high engine speeds. The part number 49182-04912 often crosses with other OEM references, but it is specifically calibrated for the S16R’s airflow and exhaust gas volume.
This turbocharger works as an exhaust gas-driven air pump. By recovering wasted energy from exhaust gases, it compresses intake air to a higher density before it enters the cylinders. The result is a denser air-fuel mixture, which leads to more complete combustion, reduced smoke, lower exhaust gas temperatures, and improved thermal efficiency. For operators of Mitsubishi S16R-powered generators, pumps, tractors, or vessels, the 49182-04912 turbocharger for Mitsubishi S16R diesel engine is not just a replacement part – it is essential for maintaining rated power and meeting emission standards.
In the aftermarket, genuine or high-quality replacement 49182-04912 turbochargers are sought after because they directly influence engine durability. A failing or mismatched turbocharger can cause black smoke, loss of power, excessive oil consumption, and even catastrophic engine damage. Understanding this component’s role is the first step toward proper maintenance and repair.
How Does the 49182-04912 Turbocharger for Mitsubishi S16R Diesel Engine Work?
The working principle of the 49182-04912 turbocharger for Mitsubishi S16R diesel engine follows the basic laws of fluid dynamics and thermodynamics, but with specific tuning for the S16R’s characteristics. It consists of two main sections connected by a common shaft: the turbine housing (hot side) and the compressor housing (cold side).
When the Mitsubishi S16R engine runs, exhaust gases exit the cylinders at high pressure and temperature. These gases enter the turbine housing through an inlet flange matched to the engine’s exhaust manifold. The gases then pass through a set of turbine blades (a radial inflow turbine). The kinetic and thermal energy of the exhaust jet causes the turbine wheel to spin at speeds that can exceed 100,000 revolutions per minute (RPM). After driving the turbine, the exhaust gases exit through the turbine outlet and proceed to the exhaust system.
On the same shaft, the compressor wheel (located in the compressor housing) rotates simultaneously. As it spins, it draws ambient air through an air filter and accelerates it outward by centrifugal force. The high-speed air then enters a diffuser section where velocity is converted into pressure. This pressurized, denser air is then discharged into the engine’s charge air cooler (intercooler) and finally into the intake manifold. For the Mitsubishi S16R, the 49182-04912 turbocharger typically provides a boost pressure between 1.5 and 2.5 bar (absolute) depending on engine load and speed.
One important aspect of the 49182-04912 turbocharger for Mitsubishi S16R diesel engine is that it does not rely on any external power source – it is entirely driven by waste exhaust energy. This makes it highly efficient. However, the turbocharger’s shaft rotates on floating or ball bearings that are lubricated by the engine’s oil system. A constant supply of clean, cooled oil is vital to prevent metal-to-metal contact and overheating. Moreover, the turbocharger uses piston rings or labyrinth seals to prevent oil leakage into the turbine or compressor housings.
Understanding this operation helps technicians diagnose issues: low boost often points to a leak or damaged wheel; excessive oil consumption may indicate seal failure; and unusual noises can be from bearing wear or foreign object damage.
Advantages of Using the 49182-04912 Turbocharger for Mitsubishi S16R Diesel Engine
Choosing the correct 49182-04912 turbocharger for Mitsubishi S16R diesel engine brings numerous operational and economic benefits. Below are the key advantages that justify its specification for such a demanding engine.
1. Significant Power Increase Without Displacement Growth
The primary advantage of this turbocharger is its ability to increase engine power output by 30% to 50% compared to a naturally aspirated version of the S16R. With forced induction, more air enters each cylinder, allowing more fuel to be burned per cycle. This translates directly into higher torque and horsepower, enabling machinery to handle heavier loads or achieve faster cycle times.
2. Improved Fuel Efficiency
Because the 49182-04912 turbocharger recovers exhaust energy that would otherwise be lost, it improves the overall thermal efficiency of the Mitsubishi S16R engine. Better combustion efficiency means less fuel is required to produce the same power output. Many operators report a fuel saving of 5–15% after replacing a worn or mismatched turbocharger with a genuine specification unit.
3. Reduced Emissions and Smoke
Complete combustion reduces the formation of particulate matter (soot), carbon monoxide, and unburned hydrocarbons. For applications subject to emission regulations (e.g., IMO Tier II for marine or EPA for stationary generators), the 49182-04912 turbocharger for Mitsubishi S16R diesel engine helps keep emissions within legal limits. It also minimizes visible black smoke during acceleration or heavy load, which is critical for urban or environmentally sensitive sites.
4. Lower Exhaust Gas Temperatures (EGT)
By providing excess air to the combustion process, the turbocharger lowers the temperature of exhaust gases. High EGT can damage exhaust valves, cylinder heads, and the turbocharger itself. The 49182-04912 turbocharger is designed to keep EGT within safe bounds, extending the life of the entire engine.
5. High-Altitude Compensation
For equipment operating at high altitudes where air density is naturally low, this turbocharger compensates by maintaining sea-level equivalent manifold pressure. This ensures the Mitsubishi S16R engine does not lose power when used in mountainous regions or high-altitude mines.
6. Durability and Reliability
The 49182-04912 turbocharger for Mitsubishi S16R diesel engine is constructed with high-nickel cast iron turbine housings, precision-machined compressor wheels, and high-temperature bearings. These materials resist thermal fatigue, corrosion, and erosion from exhaust particulates. When properly maintained, this turbocharger can last 10,000 to 15,000 operating hours before major overhaul.
Applications of the 49182-04912 Turbocharger for Mitsubishi S16R Diesel Engine
The 49182-04912 turbocharger for Mitsubishi S16R diesel engine is found wherever the S16R engine is used. This engine family is famous for its versatility and heavy-duty design. Below are the primary application fields:
1. Marine Propulsion and Auxiliary Power
Mitsubishi S16R engines are common in tugboats, fishing vessels, ferries, workboats, and yachts. In marine main propulsion, the turbocharger provides the necessary torque for continuous operation at varying loads. For auxiliary generators on ships, the 49182-04912 turbocharger ensures stable voltage and frequency even when hotel loads or cargo equipment spikes.
2. Diesel Generator Sets (Gensets)
Standby, prime, and continuous power generators powered by the S16R rely on this turbocharger to meet nameplate ratings. Applications include data center backup power, hospital emergency generators, construction site power, and peak shaving units at industrial plants. The turbocharger’s response characteristics are optimized for sudden load changes, reducing generator set recovery time.
3. Heavy-Duty Industrial Machinery
Crushers, conveyors, pumps, compressors, and drilling rigs are often driven by the S16R engine. The 49182-04912 turbocharger for Mitsubishi S16R diesel engine enables these machines to operate at high altitude or in dusty environments without lugging down. Irrigation pumps in agriculture and dewatering pumps in mining are typical examples.
4. Rail and Locomotive Engines
Some regional railcar shunters and maintenance-of-way vehicles use the S16R engine. The turbocharger allows compact engine bays to produce sufficient power without excessive heat rejection.
5. Off-Highway Trucks and Earthmoving Equipment
Large dump trucks, wheel loaders, and bulldozers from certain OEMs utilize the S16R. The turbocharger’s torque rise characteristic helps the engine recover quickly after gear shifts or when digging into a pile.
6. Gas Compression and Oilfield Services
Natural gas compressors, fracturing pumps, and well-servicing units often deploy the S16R engine. In these remote and harsh environments, the 49182-04912 turbocharger must withstand extreme ambient temperatures and dusty conditions. Its robust sealing and bearing system reduce the risk of downtime.
For each application, using the exact 49182-04912 turbocharger for Mitsubishi S16R diesel engine is critical. Substituting a universal turbocharger may lead to over-speed, under-boost, or excessive exhaust backpressure – all of which can damage the engine.
Common Faults and Repair Suggestions for the 49182-04912 Turbocharger
Like any rotating machinery, the 49182-04912 turbocharger for Mitsubishi S16R diesel engine can experience failures over time. Recognizing early warning signs and performing correct repairs will save thousands of dollars in engine damage.
Fault 1: Shaft Bearing Wear and Play
Symptoms: Metallic grinding noise, excessive oil consumption, oil in the intake or exhaust pipes, and a noticeable drop in boost pressure. When you remove the air intake pipe, the compressor wheel may have lateral or axial play.
Causes: Starvation of clean engine oil, using wrong oil viscosity, prolonged idle periods (which prevent full floating bearing lubrication), or contaminated oil with soot or coolant.
Repair Suggestion: Disassemble the turbocharger and inspect the bearing housing. Replace the bearing set, thrust bearing, and seal rings. Always prime the new turbocharger with oil before first start. Change the engine oil and filter, and ensure the oil supply line is not coked or restricted.
Fault 2: Carbon Buildup on Turbine Wheel and Variable Nozzle (if applicable)
Symptoms: Sluggish acceleration, black smoke under load, and high exhaust gas temperatures. The turbine wheel may show uneven or heavy deposits.
Causes: Long periods of low-load operation, poor fuel quality, leaking injectors, or crankcase blow-by entering the intake system.
Repair Suggestion: Remove the turbocharger and carefully clean the turbine housing and wheel using a plastic scraper and solvent (never sandblast or use metal tools that could damage balance). Address the root cause – adjust engine load profile, service injectors, or install a crankcase ventilation filter. In severe cases, the 49182-04912 turbocharger for Mitsubishi S16R diesel engine may require professional disassembly and dynamic balancing after cleaning.
Fault 3: Oil Leakage Past Seals
Symptoms: Blue-white smoke from exhaust, oil puddles in the compressor outlet pipe, or oil dripping from the turbine housing. On a disassembled unit, seals show wear or hardening.
Causes: Clogged oil drain line (creates pressure in bearing housing), excessive crankcase pressure, or worn piston ring seals. Also, using the wrong seal type for the application.
Repair Suggestion: Replace the seal rings and inspect the shaft for scoring. Verify that the oil drain line is clear and has a gravity fall (no kinks). Measure crankcase pressure – if too high, check the breather system. Never overtighten the oil drain connection as that can distort the housing.
Fault 4: Foreign Object Damage (FOD)
Symptoms: Chipped or cracked compressor or turbine blades, loud screeching noise, severe vibration, and zero boost. The engine may stall or refuse to start.
Causes: Dust or debris passed through a damaged air filter, loose bolts or nuts from the intake system, or exhaust manifold scale breaking off.
Repair Suggestion: Complete replacement of the damaged wheel and possibly the housing. The entire induction and exhaust system must be inspected and cleaned. Install a new, high-quality air filter. For the 49182-04912 turbocharger for Mitsubishi S16R diesel engine, repair is often not economical if the housing is cracked – replacement is recommended.
Fault 5: Cracking in Turbine Housing
Symptoms: Exhaust gas leaking externally (sooty marks), audible hiss, loss of boost, and potential overheating of nearby components.
Causes: Thermal fatigue after many heat cycles, sudden water quenching (e.g., washing a hot engine with cold water), or thin-wall casting defects.
Repair Suggestion: Small cracks near wastegate or flange may be welded by a specialist, but most experts recommend replacing the turbine housing or the entire turbocharger. A cracked housing can expand and separate, leading to a fire hazard.
General Repair Recommendations: Always replace mounting gaskets, oil feed line washers, and fasteners when servicing the turbocharger. After installing a new or rebuilt 49182-04912 turbocharger for Mitsubishi S16R diesel engine, perform a pre-lubrication procedure: disable the fuel system, crank the engine until oil pressure builds, then enable fuel and start. Idle for three minutes before applying load.
Supplier of 49182-04912 Turbocharger for Mitsubishi S16R Diesel Engine
When it comes to sourcing a reliable 49182-04912 turbocharger for Mitsubishi S16R diesel engine, you need a partner that understands both quality and delivery. Rsolid engine parts is a specialized supplier dedicated to providing premium aftermarket and OEM-equivalent turbochargers, fuel injection components, and engine parts for industrial diesel engines.
Why Choose Rsolid Engine Parts?
Precision Engineering: Every 49182-04912 turbocharger we supply meets or exceeds original equipment specifications. We use high-grade materials, computer-balanced rotating assemblies, and 100% performance testing before shipment.
Rigorous Quality Control: Our products undergo multiple inspection stages – from raw material verification to final assembly leak testing. We guarantee that the 49182-04912 turbocharger for Mitsubishi S16R diesel engine will deliver correct boost pressure, oil sealing, and vibration levels.
Competitive Pricing & Fast Shipping: By stocking a large inventory of common turbocharger models, we reduce lead times. Most orders are processed within 24 hours. Global shipping options are available to reach your worksite or warehouse.
Technical Support: Our team of diesel engine specialists can help you verify part numbers, diagnose existing turbo faults, and provide installation guidance. We are just a message or call away.
Warranty Commitment: All turbochargers come with a standard warranty against manufacturing defects. We stand behind the reliability of every 49182-04912 turbocharger for Mitsubishi S16R diesel engine we sell.
Contact Rsolid Engine Parts Today
For inquiries, quotes, or technical questions regarding the 49182-04912 turbocharger for Mitsubishi S16R diesel engine, please reach out through the following channels:
Trust Rsolid engine parts to keep your Mitsubishi S16R diesel engine running at peak performance. Whether you need one unit for an emergency repair or a bulk order for your fleet, we deliver quality and reliability.
Conclusion
The 49182-04912 turbocharger for Mitsubishi S16R diesel engine is more than a simple air pump – it is a performance and durability enabler for one of the most popular heavy-duty diesel engines in the world. From its working principle of harnessing exhaust gas energy to its advantages in fuel economy and emissions reduction, this turbocharger is indispensable. Understanding common faults like bearing wear, carbon deposits, or oil leaks helps operators maximize service life. When replacement time comes, choosing a trusted supplier such as Rsolid engine parts ensures you receive a product that meets stringent standards. Keep your Mitsubishi S16R powerful, efficient, and reliable by maintaining the correct turbocharger specification.
