What is Turbocharger Core Cartridge CHRA 17201-E0680?

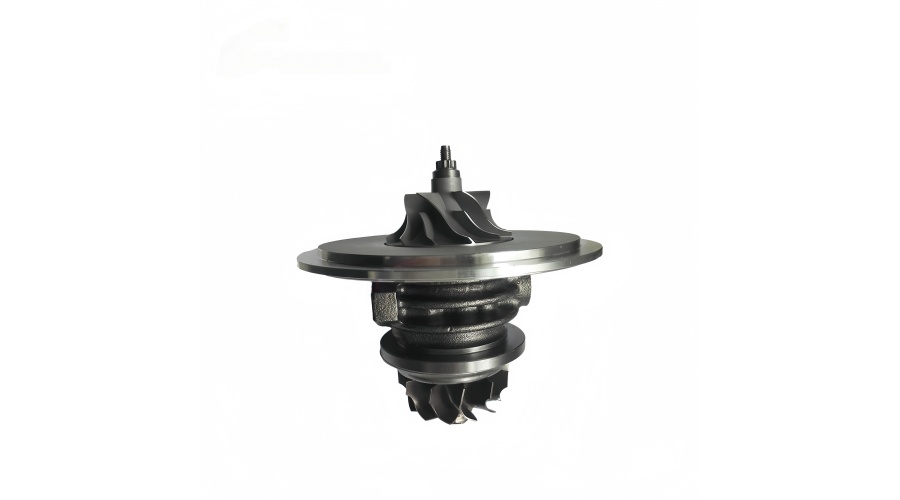

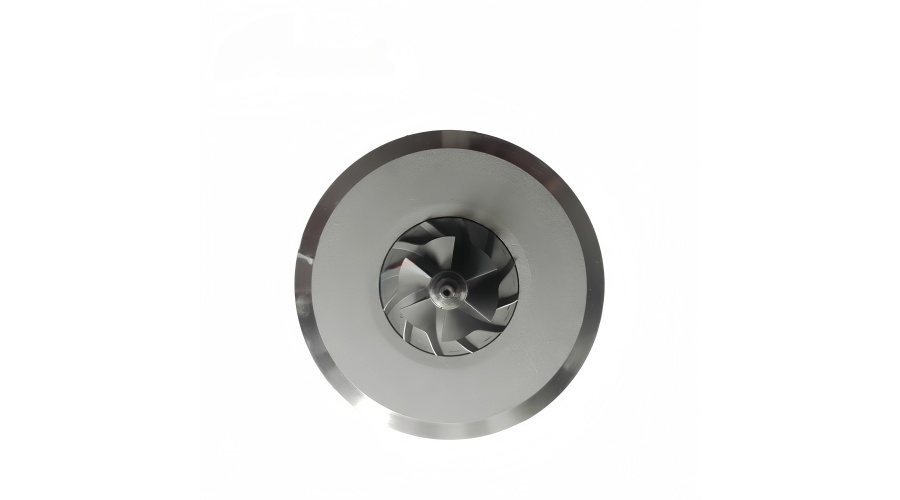

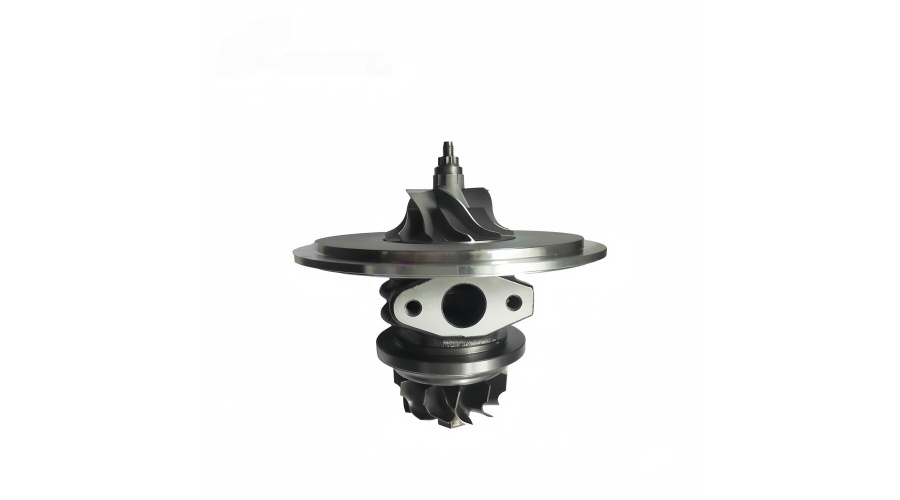

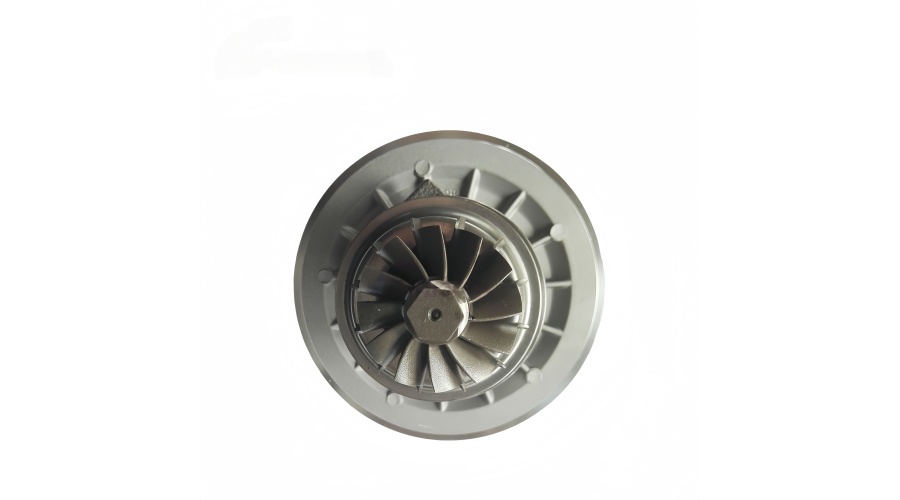

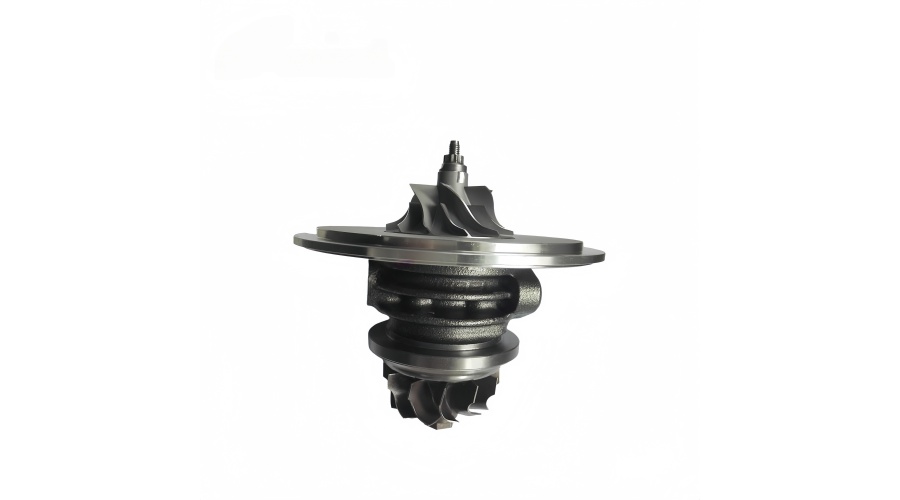

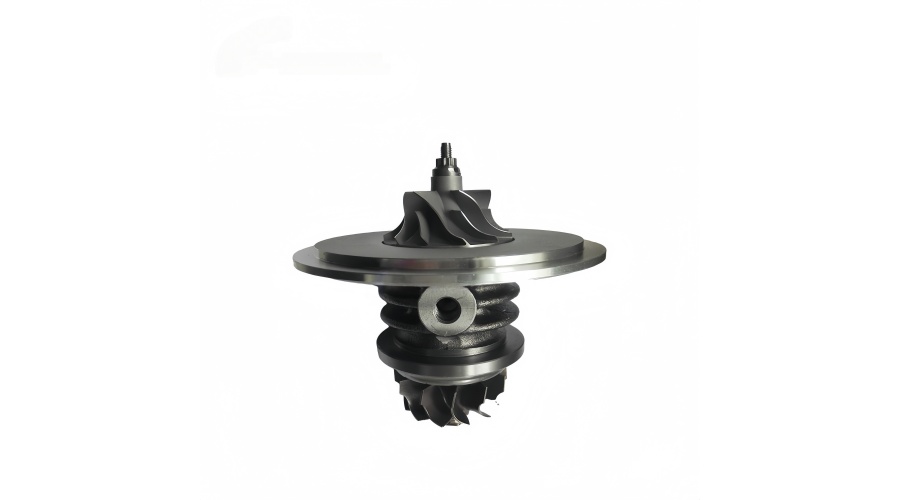

The Turbocharger Core Cartridge CHRA 17201-E0680 is the central rotating assembly of a turbocharger specifically engineered for Hino highway trucks equipped with the 4.0L W04D engine. CHRA stands for Center Housing Rotating Assembly, which is often referred to as the “heart” of any turbocharger. This precision component includes the turbine wheel, compressor wheel, bearing system, shaft, and sealing rings – all pre-assembled inside a center housing. For fleet owners and mechanics working on Hino vehicles, the Turbocharger Core Cartridge CHRA 17201-E0680 is a critical replacement part that restores original engine performance without needing to purchase a complete turbocharger unit.
When a turbocharger fails due to worn bearings, oil leaks, or wheel damage, replacing only the CHRA is a cost-effective and time-saving solution. The Turbocharger Core Cartridge CHRA 17201-E0680 is designed as a direct-fit component for the Hino W04D engine, which powers medium-duty highway trucks known for their durability and fuel efficiency. Unlike universal cartridges, this specific part number (17201-E0680) guarantees correct geometry, oil flow characteristics, and heat tolerance required by Hino’s engineering standards.
Understanding what this cartridge contains helps appreciate its value: inside the center housing, you will find floating or semi-floating bearings that support the shaft at speeds exceeding 100,000 RPM, high-temperature seals to prevent exhaust gas and oil leakage, and precisely balanced wheels made from Inconel or similar superalloys. The Turbocharger Core Cartridge CHRA 17201-E0680 undergoes dynamic balancing during manufacturing to ensure vibration-free operation. For any Hino highway truck owner, recognizing the role of this component is the first step toward maintaining peak engine performance.
[Insert image: Cross-section diagram of CHRA showing internal bearing and seal arrangement]
How Does Turbocharger Core Cartridge CHRA 17201-E0680 Work?
The operation of the Turbocharger Core Cartridge CHRA 17201-E0680 follows the fundamental principles of forced induction. Exhaust gases from the Hino W04D engine enter the turbine housing and strike the turbine wheel, which is part of the CHRA assembly. As the turbine wheel spins, it rotates the common shaft connected to the compressor wheel on the opposite side. The compressor wheel draws in ambient air, compresses it, and forces it into the engine’s intake manifold – resulting in denser air for combustion. The Turbocharger Core Cartridge CHRA 17201-E0680 manages this energy transfer while withstanding extreme heat (up to 950°C on the turbine side) and rotational forces.
Within the cartridge, a sophisticated lubrication system is at work. Engine oil is supplied through a feed port into the center housing, creating a hydrodynamic film between the shaft and bearings. This oil film supports the rotating assembly, absorbs vibrations, and removes heat. The Turbocharger Core Cartridge CHRA 17201-E0680 uses piston rings or labyrinth seals to prevent oil from escaping into the turbine or compressor housings. When the engine is running, continuous oil flow ensures that the bearings never make metal-to-metal contact, dramatically extending service life.
A key point for mechanics: the Turbocharger Core Cartridge CHRA 17201-E0680 must be properly primed with oil before first start-up after installation. Failure to do so can cause immediate bearing damage. Also, the cartridge relies on balanced pressure differentials across the seals – that’s why a restricted oil inlet or clogged drain can cause leakage. In normal operation, the CHRA spins freely with minimal friction, converting exhaust energy into boost pressure efficiently. For Hino W04D engines producing around 130-150 horsepower, this specific cartridge delivers boost pressure in the range of 8–12 PSI, depending on load and RPM.
Advantages of Turbocharger Core Cartridge CHRA 17201-E0680
Choosing the Turbocharger Core Cartridge CHRA 17201-E0680 over a complete turbocharger or a generic rebuild kit offers multiple distinct advantages. First and foremost is cost savings – you pay only for the rotating assembly, not the turbine and compressor housings, which are often reusable. This can reduce repair expenses by 40–60% compared to buying an entire turbo unit. Second is installation convenience: the cartridge comes pre-balanced and pre-assembled, meaning no complex wheel indexing or shimming is required. A skilled mechanic can replace the Turbocharger Core Cartridge CHRA 17201-E0680 in under two hours with basic hand tools.
Another major advantage is restored performance. Over time, bearing wear causes shaft play, leading to oil consumption, smoke, and power loss. Installing a fresh Turbocharger Core Cartridge CHRA 17201-E0680 eliminates shaft play, restores boost pressure to factory specifications, and eliminates blue exhaust smoke caused by oil passing through worn seals. Fleet operators report improved fuel economy of 5–10% after replacing a failing CHRA because the engine no longer overfuels to compensate for low boost.
Durability is also enhanced. The Turbocharger Core Cartridge CHRA 17201-E0680 from reputable suppliers uses upgraded bearing materials (such as copper-lead or aluminum-tin alloys) that resist coking from high-temperature oil shutdowns. Some variants include enhanced thrust bearings to handle higher axial loads common in highway truck applications. Additionally, because the cartridge is balanced as a complete rotating group, it generates less vibration than mismatched rebuilt components, prolonging the life of the turbocharger housings and mounting hardware.
From a maintenance perspective, using a drop-in Turbocharger Core Cartridge CHRA 17201-E0680 reduces vehicle downtime. Instead of sending the turbo out for a multi-day rebuild, you can have the cartridge in stock and complete the repair same-day. For Hino highway trucks that operate on tight delivery schedules, every hour of uptime matters. Finally, this approach is environmentally friendly – reusing the aluminum or cast-iron housings reduces waste, while a properly functioning CHRA lowers engine emissions by ensuring complete combustion.
Application of Turbocharger Core Cartridge CHRA 17201-E0680
The Turbocharger Core Cartridge CHRA 17201-E0680 is specifically designed for the Hino W04D engine, a 4.0-liter, naturally aspirated or turbocharged diesel four-cylinder used in Hino’s medium-duty highway truck lineup. Vehicles that commonly use this cartridge include:
Hino 300 Series (Model years 1995–2004 with W04D engine)
Hino Dutro / Ranger trucks equipped with 4.0L W04D
Hino FB, FD, and FE series medium trucks used for regional hauling and distribution
Beyond highway trucks, the W04D engine also powers some Hino buses and industrial equipment, though the Turbocharger Core Cartridge CHRA 17201-E0680 remains most critical for on-highway applications where sustained high speeds demand consistent boost. If your vehicle’s engine plate shows “W04D” and the OEM turbocharger part number includes 17201-E0680, this cartridge is the correct replacement.
It is important to note that the Turbocharger Core Cartridge CHRA 17201-E0680 is not compatible with W04C or W04E engine variants, as those have different oil flow and mounting configurations. Always verify your original turbocharger’s data plate before ordering. Typical symptoms that indicate your Hino truck needs a new CHRA include:
Blue or white smoke from exhaust, especially after idling
Whining or grinding noises from the turbo area
Lack of power or sluggish acceleration on highways
Excessive oil consumption without visible external leaks
Positive shaft play (radial or axial) detected during inspection
For highway trucks logging high annual mileage (e.g., 50,000+ km), replacing the Turbocharger Core Cartridge CHRA 17201-E0680 every 150,000–200,000 km as preventive maintenance can avoid catastrophic turbo failure that may send metal debris into the engine.
[Insert image: Hino W04D engine bay showing turbocharger location]
Supplier of Turbocharger Core Cartridge CHRA 17201-E0680 – Rsolid Engine Parts
When sourcing a Turbocharger Core Cartridge CHRA 17201-E0680, choosing the right supplier directly impacts performance, durability, and value. Rsolid Engine Parts has established itself as a trusted name in the heavy-duty diesel parts industry, specializing in turbocharger components for Japanese and European commercial vehicles. Here’s why fleet managers and independent mechanics rely on Rsolid for their Hino W04D turbo needs:
1. Rigorous quality control: Every Turbocharger Core Cartridge CHRA 17201-E0680 from Rsolid undergoes 100% inspection before shipping. This includes high-speed balancing verification, seal leak testing, and dimensional checks against OEM drawings. We reject any cartridge with more than 0.03mm radial shaft play – a tighter standard than many competitors.
2. Direct-from-factory pricing: By working directly with ISO 9001:2015 certified manufacturers, Rsolid eliminates middlemen. You receive the Turbocharger Core Cartridge CHRA 17201-E0680 at wholesale prices, even for single-piece orders. Our price is typically 30–50% lower than dealerships, without compromising material quality.
3. Comprehensive warranty: All CHRAs sold by Rsolid include a 12-month / 100,000 km warranty against manufacturing defects. If your Turbocharger Core Cartridge CHRA 17201-E0680 shows premature bearing wear or seal failure under normal use, we provide free replacement and technical support to diagnose the root cause.
4. Fast global shipping: With warehouses in North America, Europe, and Asia, Rsolid can dispatch the Turbocharger Core Cartridge CHRA 17201-E0680 within 24 hours of order confirmation. Express shipping options deliver to most highway truck service centers in 3–5 business days. We understand that a broken truck means lost revenue – our logistics network minimizes downtime.
5. Technical expertise: Rsolid’s support team includes former diesel mechanics who know the Hino W04D engine intimately. They can answer installation questions, torque specifications (e.g., center housing bolts to 25 Nm), and troubleshooting tips. Need a pre-installation checklist? They’ll provide it. Unsure about oil priming procedure? They’ll walk you through. This level of service is rare for CHRA suppliers.
