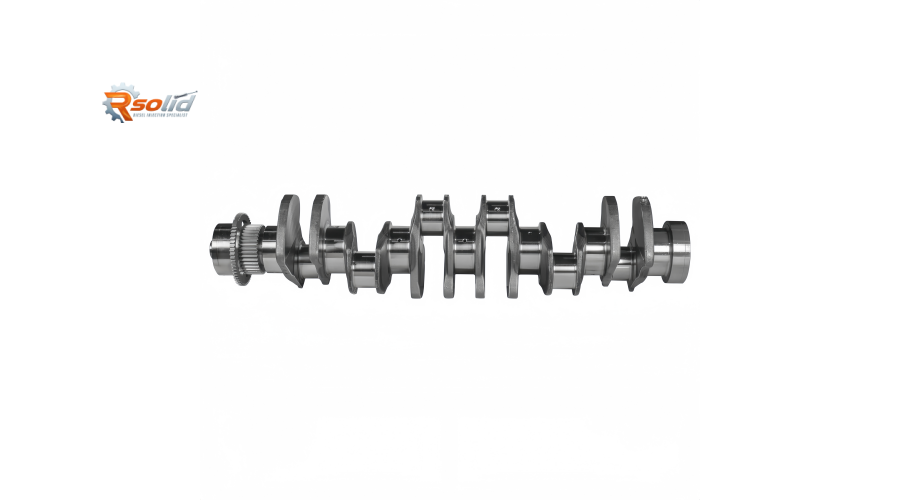

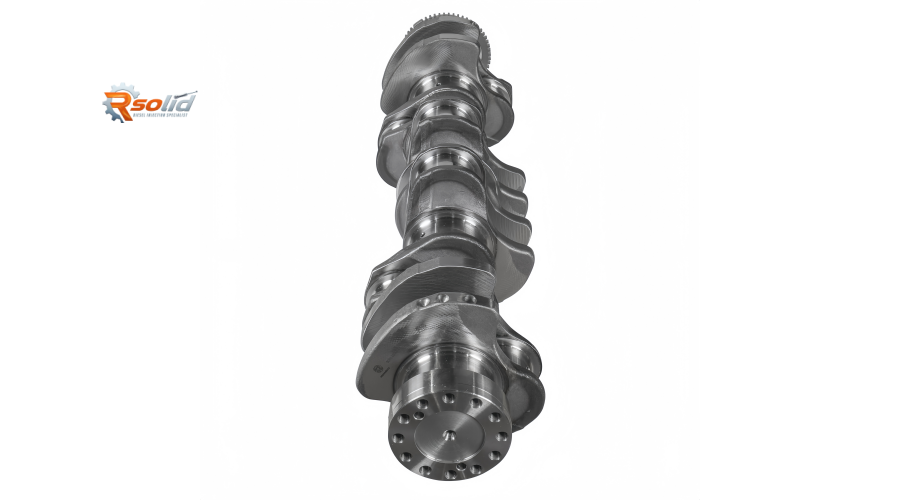

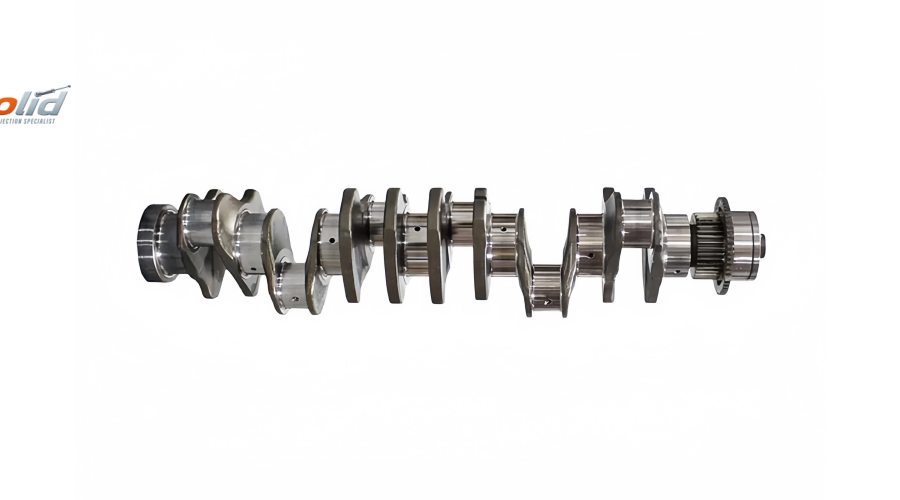

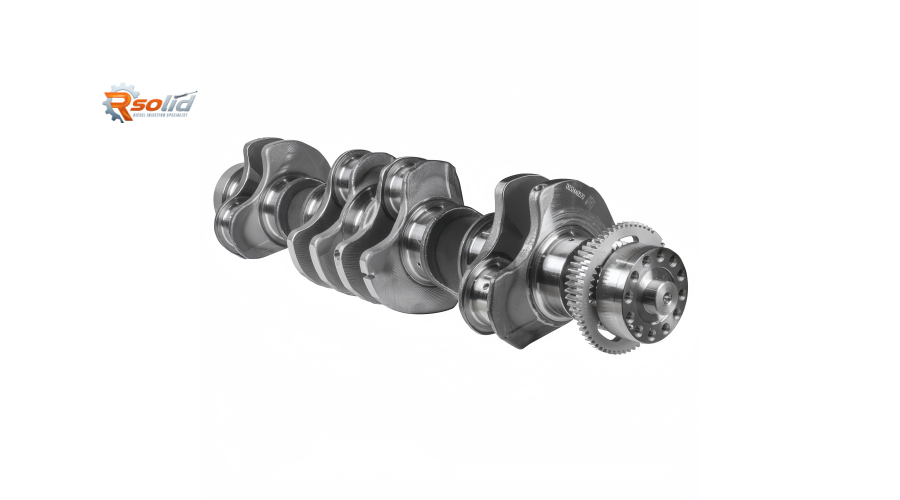

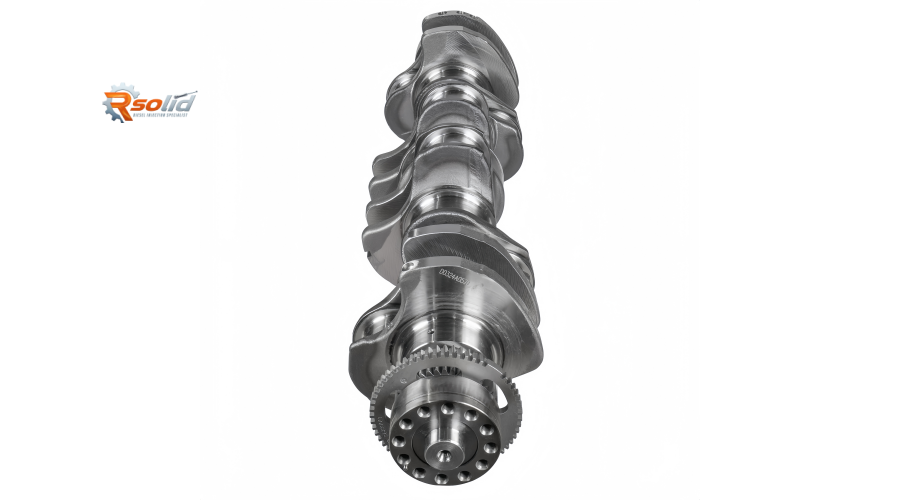

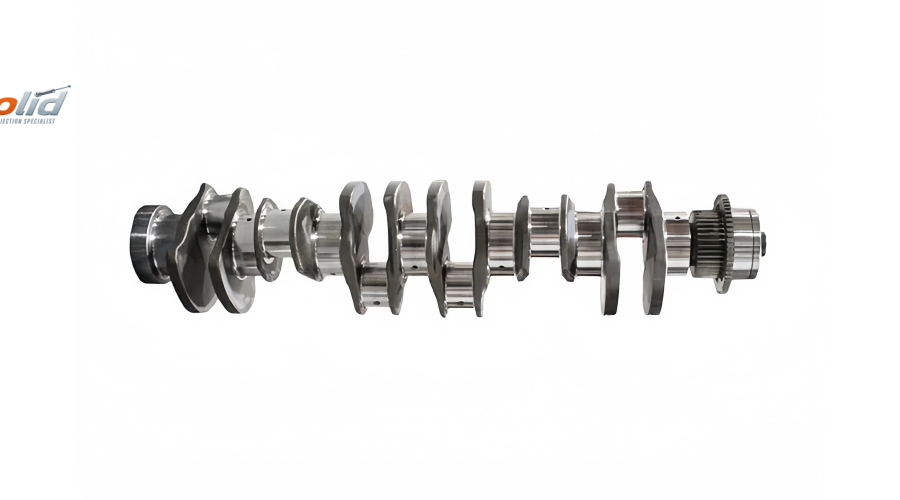

The Cummins X15 is the gold standard for on-highway heavy hauling and severe-duty off-highway applications, delivering up to 605 horsepower and 2,050 lb-ft of peak torque. At the core of this powerhouse lies the 3691444 crankshaft – a precision-forged component engineered to convert explosive combustion forces into smooth, reliable rotational motion. Whether you are rebuilding a high-mileage fleet tractor or refurbishing a stationary industrial engine, choosing the right crankshaft is the single most critical decision for long-term uptime. Let’s dive into why the 3691444 is the definitive choice for your Cummins X15.

Structural Superiority – Engineering That Outlasts the Road

The 3691444 crankshaft is not a generic casting; it is a meticulously forged micro-alloy steel masterpiece, specifically designed to handle the extreme cylinder pressures of the X15's 15-liter displacement. Unlike standard induction-hardened shafts, this unit features deep-rolled fillet radii on all main and connecting rod journals. This cold-working process induces beneficial compressive residual stresses, effectively eliminating stress risers and boosting bending fatigue strength by an impressive 35% over non-rolled designs.

Core Engineering Advantages:

• Advanced Metallurgy (SAE 1541 Modified) – The proprietary steel composition provides exceptional core toughness while allowing for a hardened case depth of 0.080”–0.100” on journal surfaces, resisting brinelling and foreign particle embedding.

• Bi-directional Oil Groove Design – Strategically positioned cross-drilled passages maintain a consistent hydrodynamic wedge at all crankshaft angles, reducing bearing temperatures by up to 15°F during extended grade climbs.

• Induction-Hardened Journal Flanks – Hardness reaches 58–62 HRC on wear surfaces, while the ductile core absorbs torsional spikes from sudden clutch engagement or aggressive downshifting.

• Tighter Torsional Tuning – The counterweight placement is optimized for the X15’s 169mm stroke, minimizing harmonic vibrations at 1,200–1,600 RPM (the engine’s peak torque sweet spot), which drastically reduces rear gear train wear.

Precise Vehicle & Equipment Compatibility

The 3691444 crankshaft is the direct OEM replacement for the Cummins X15 platform, including both the Performance Series and Efficiency Series. It is also fully backward compatible with the earlier ISX15 models (2010–2017), making it a versatile drop-in solution for a vast array of heavy-duty assets.

Primary Fitment Guide:

Critical Fitment Note: Always verify your engine’s CPL (Critical Parts List) number and serial number prefix. The 3691444 is standard for engines with serial number prefixes LSX, LXS, LXE, and LXF. For pre-2010 ISX engines, ensure the rear flywheel housing bolt pattern matches (some earlier variants used a 12-bolt vs. 10-bolt flange – the 3691444 uses the modern heavy-duty 10-bolt pattern with M16 studs).

Common Failure Modes & Expert Installation Guide

Even a tank-grade crankshaft can succumb to operational abuse or neglected maintenance. Recognizing the warning signs early can save your cylinder block from catastrophic damage.

1. Main Journal Scoring (Lack of Lubrication)

• Symptoms: Oil pressure drops below 15 PSI at hot idle; metallic glitter in oil filters; a rhythmic "knock" that fades when fuel is cut to individual cylinders.

• Root Cause: Extended oil change intervals, diluted fuel in oil, or faulty by-pass oil filters allowing abrasive soot (over 2% soot loading) to lap the journals.

• Prevention: Strict adherence to 30,000-mile oil changes with API CK-4 rated 15W-40. Install a high-efficiency centrifugal oil cleaner for extra protection.

2. Crankpin Galling & Overheating

• Symptoms: Blue/discolored rod journals; excessive side-play in connecting rods; oil analysis showing high copper (bearing material).

• Root Cause: Over-fueling due to faulty injectors or a stuck wastegate causing EGTs (Exhaust Gas Temperatures) to exceed 1,350°F, which breaks down the oil film.

• Solution: Always recalibrate injector trim files after installing a new crankshaft to ensure balanced fuel delivery.

3. Thrust Bearing Flaking (End-Play Failure)

• Symptoms: Audible clunk when engaging/disengaging the clutch; erratic CPS (Crankshaft Position Sensor) signals leading to phantom derates.

• Root Cause: Worn clutch brake or excessive pedal free-play pushing the crankshaft forward.

• Critical: Set end-play between 0.004”–0.012” (0.102 – 0.305 mm). If it exceeds 0.014”, replace both thrust washers immediately.

Professional Installation & Replacement Tips

Installing the 3691444 crankshaft requires precision and clean-room discipline. Follow these non-negotiable steps:

1. Block Preparation – Line-bore the main bearing tunnel to ensure straightness. Even a 0.0015” distortion will cause premature #2 and #6 bearing failure.

2. Bearing Clearance Verification – Use a dial bore gauge. Target 0.0035”–0.0055” for mains and 0.0025”–0.0045” for rods. Never rely solely on Plastigage for final assembly.

3. Torque-to-Yield (TTY) Protocol – Main cap bolts and rod bolts are single-use. Lubricate threads with clean engine oil. Follow the Cummins 4-step procedure: 60 ft-lbs → 120 ft-lbs → 180 ft-lbs → final +90° angular torque.

4. Gear & Damper Installation – Heat the crankshaft gear to 300°F for a slip-fit installation. Never hammer it on. Install the viscous damper using the correct hydraulic puller tool; cross-threading the snout will ruin the crankshaft.

5. Pre-Lubrication – Before starting, crank the engine over with the fuel shut-off valve closed until the oil pressure gauge stabilizes at 20+ PSI. This fills all galleys and prevents a "dry start" scuff.
