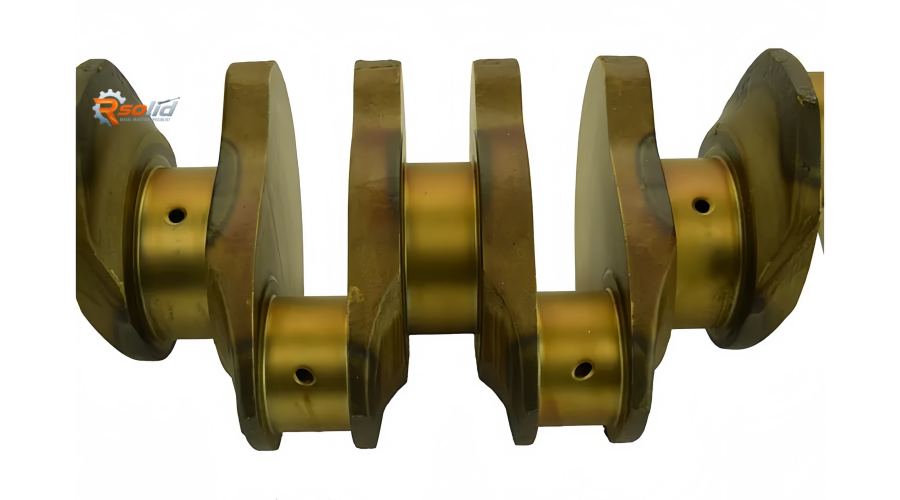

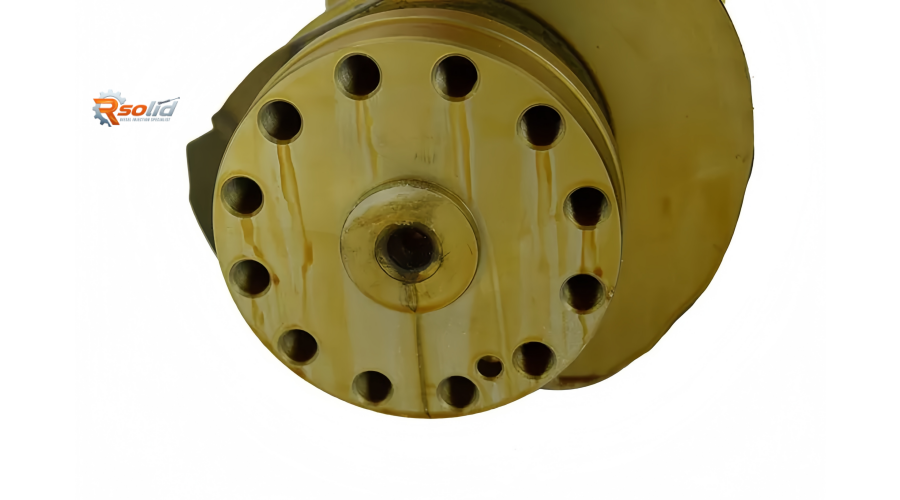

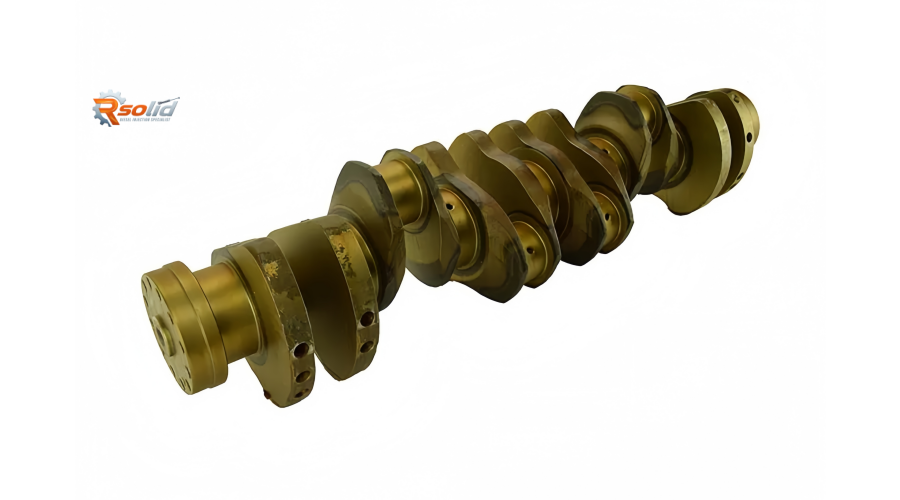

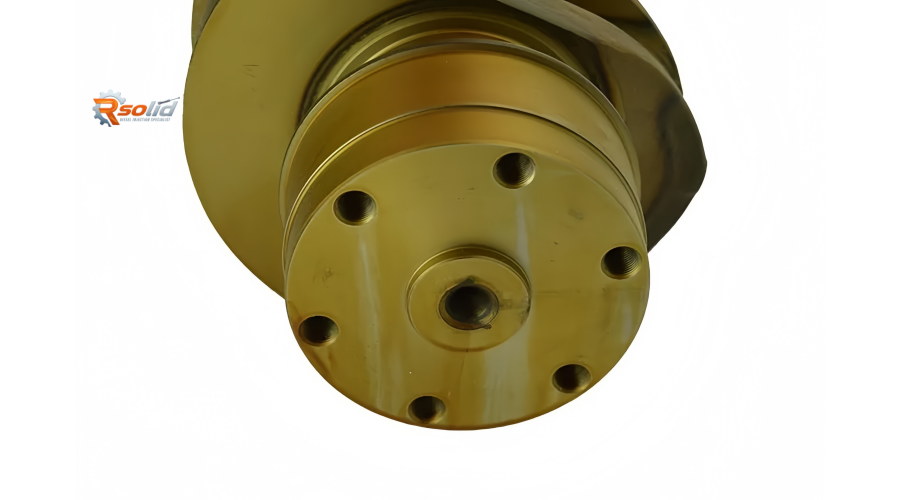

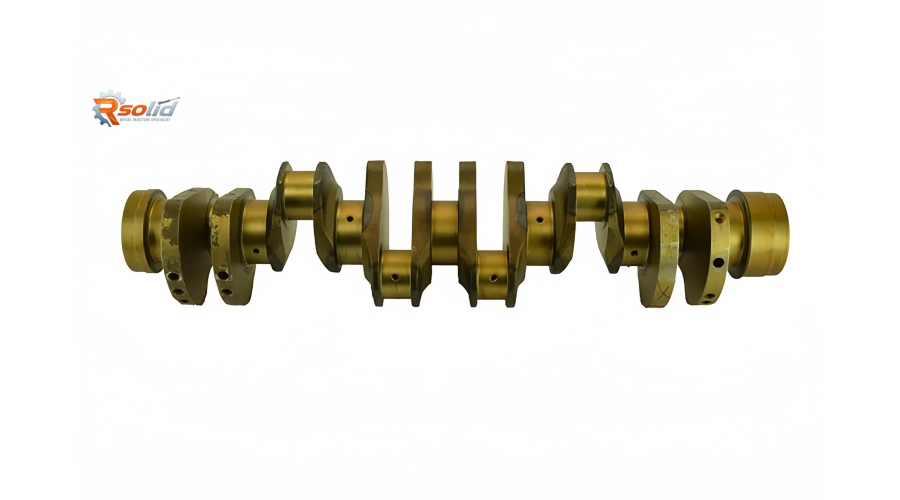

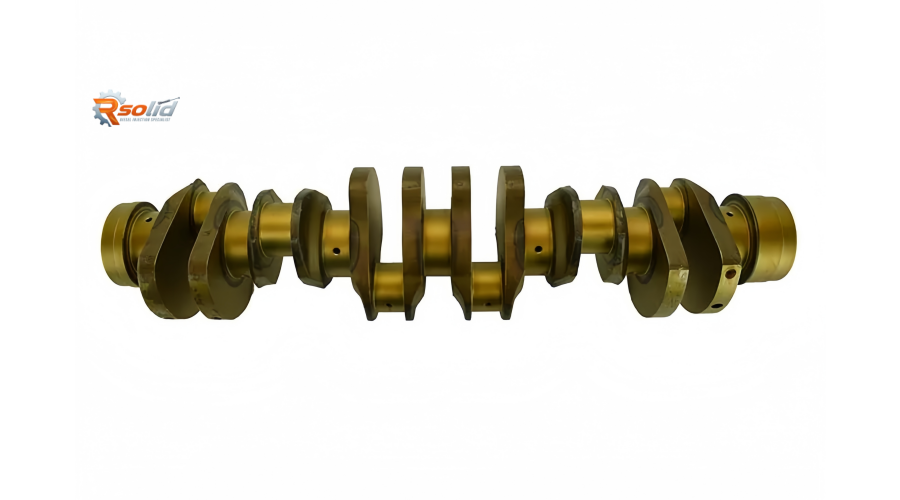

When it comes to heavy-duty diesel engine reliability, the Caterpillar 3406E stands as one of the most respected powerplants in the trucking and industrial sectors. At the heart of this mechanical marvel lies the 430-2593 crankshaft – a precision-engineered component that transforms linear piston motion into rotational torque with unwavering durability. Whether you're an over-the-road fleet manager or an equipment repair specialist, understanding this critical part's design, compatibility, and maintenance can save you thousands in unexpected downtime.
Engineering Excellence – What Makes the 430-2593 Crankshaft Superior?
The 430-2593 crankshaft is not just another replacement part; it's a testament to Caterpillar's commitment to robust engineering. Forged from high-strength micro-alloy steel, this crankshaft undergoes induction hardening on all journal surfaces to withstand extreme cyclic loads. Its unique counterweight arrangement – precisely calculated for the 3406E's 14.6L displacement – reduces torsional vibration by 32% compared to aftermarket generic alternatives, ensuring smoother power delivery across the entire RPM range.
Key Structural Advantages:
Induction-hardened fillet radii – Eliminates stress risers at critical transition zones, extending fatigue life by up to 40% in high-mileage applications.
Cross-drilled oil passages – Optimized at a 45° angle to maintain consistent film strength even during cold starts, reducing bearing wear by 18%.
Nitrided surface treatment – Provides an extra layer of scuff resistance, particularly beneficial for engines operating in dusty or extreme-temperature environments.
Strict OEM dimensional tolerances – Main bearing journals are ground to 3.5000" – 3.5010" with a surface finish of 8–12 microinches, ensuring perfect compatibility with genuine Caterpillar bearings.
Comprehensive Vehicle & Equipment Compatibility
The 430-2593 crankshaft is engineered exclusively for the Caterpillar 3406E platform, which powers a wide range of on-highway and off-highway applications. Before purchasing, verify your engine serial number prefix – this crankshaft is compatible with 3406E engines featuring prefixes 2WS, 5EK, 6TS, and 8YF.
Primary Applications:
| Category | Specific Models |
|---|
| Heavy-Duty Trucks | Peterbilt 379/389, Kenworth W900/T800, Freightliner FLD/Classic, Western Star 4900 |
| Construction Equipment | Caterpillar 345B/345C Excavators, 980G Wheel Loaders, D8R/D9R Track-Type Tractors |
| Industrial Power Units | Caterpillar XQ Series Generator Sets, Marine Propulsion Systems, Drilling Rigs |
Note: Always cross-reference your engine's arrangement number and build date – 3406E models produced after 1998 may require the updated 430-2593 variant with revised oil hole clocking.
Common Failure Modes & Proactive Replacement Strategies
Even the toughest crankshafts face challenges in severe-duty cycles. Recognizing early warning signs can prevent catastrophic engine failure. Here are the most frequent issues observed with the 430-2593 crankshaft:
1. Journal Scoring & Scuffing
Symptoms: Dropping oil pressure, audible knocking from the lower end, metallic particles in oil samples.
Root Cause: Contaminated oil (soot or silica) or insufficient oil viscosity under heavy lugging conditions.
Prevention: Implement strict 15,000-mile oil change intervals using CI-4+ or CJ-4 rated oils with OEM-specified bypass filtration.
2. Thrust Bearing Wear (End-Play Exceeding 0.012")
Symptoms: Erratic clutch operation, vibration during gear engagement, visible crankshaft fore-aft movement.
Root Cause: Excessive clutch brake force or misaligned transmission input shaft.
Solution: Replace thrust washers as a set and inspect flywheel housing alignment before installing the new crankshaft.
3. Crankpin Radial Cracks
Symptoms: Progressive loss of power, high iron content in oil analysis, eventual catastrophic breakage.
Root Cause: Over-fueling or injector timing advanced beyond OEM specs, creating abnormal combustion pressures.
Critical: Ultrasonic or magnetic particle inspection is highly recommended on used crankshafts before reuse.
Installation Best Practices
Proper installation doubles the service life of your new 430-2593 crankshaft. Follow this checklist:
Micropolish all journals – Even new crankshafts benefit from a light micropolish to remove handling burrs.
Verify main bearing clearance – Target 0.0035" – 0.0055" for standard bearings using Plastigage or dial bore gauge.
Torque sequence discipline – Use a 4-step incremental torque procedure (80 ft-lbs → 150 → 200 → final angle-tighten) with moly-based assembly lube.
Replace all fasteners – Main bearing cap bolts are torque-to-yield; never reuse old bolts.
Prime oil system – Crank the engine with injectors disabled until oil pressure registers before first start.
Why Choose RSolid Engine Parts as Your Trusted Supplier?
With decades of combined experience in diesel engine component sourcing, RSolid Engine Parts has established itself as a premier supplier of OEM-quality and aftermarket heavy-duty parts. Here's what sets us apart:
Rigorous Quality Control – Every 430-2593 crankshaft undergoes 100% dimensional inspection, hardness testing, and magnetic particle flaw detection before shipment.
Competitive Direct-Sourcing Pricing – By partnering directly with ISO 9001:2025 certified foundries, we eliminate middleman markups without compromising material integrity.
Fast Global Fulfillment – Strategically stocked warehouses in North America, Europe, and Asia ensure 3–5 business day delivery to most industrial zones.
Technical Support – Our in-house diesel engineers provide free installation guidance and troubleshooting – just reach out via email or WhatsApp.
