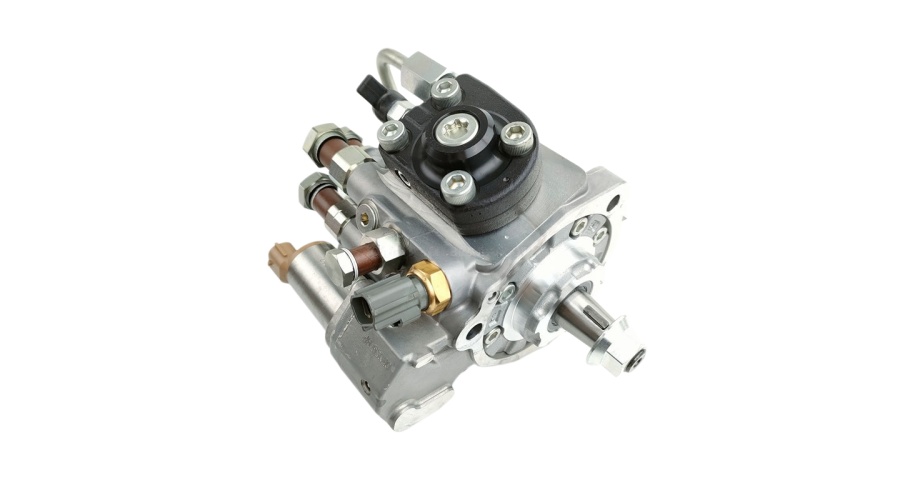

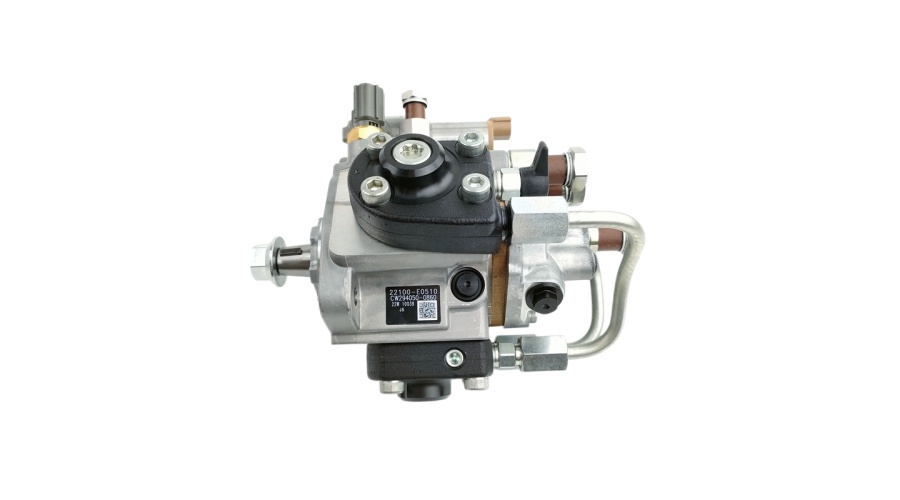

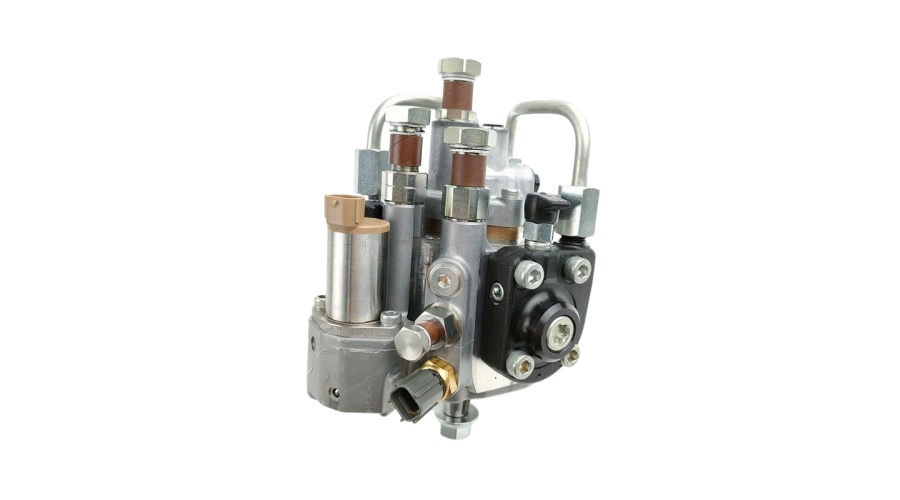

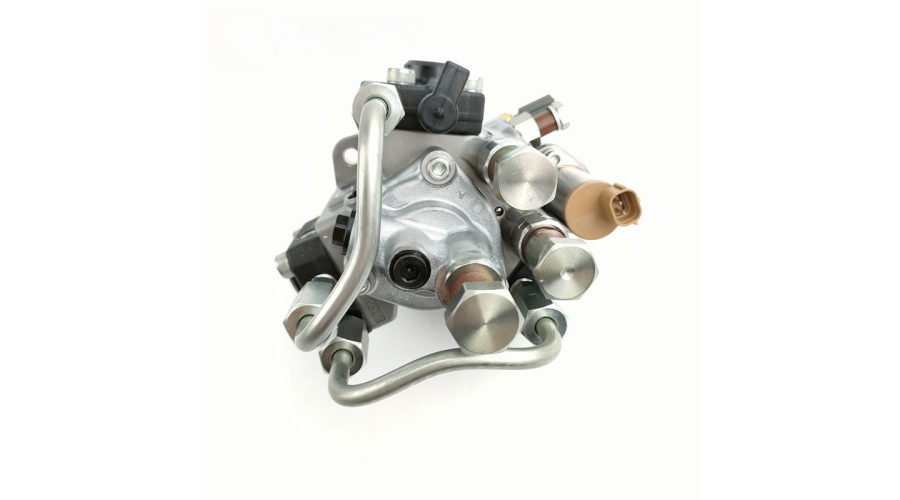

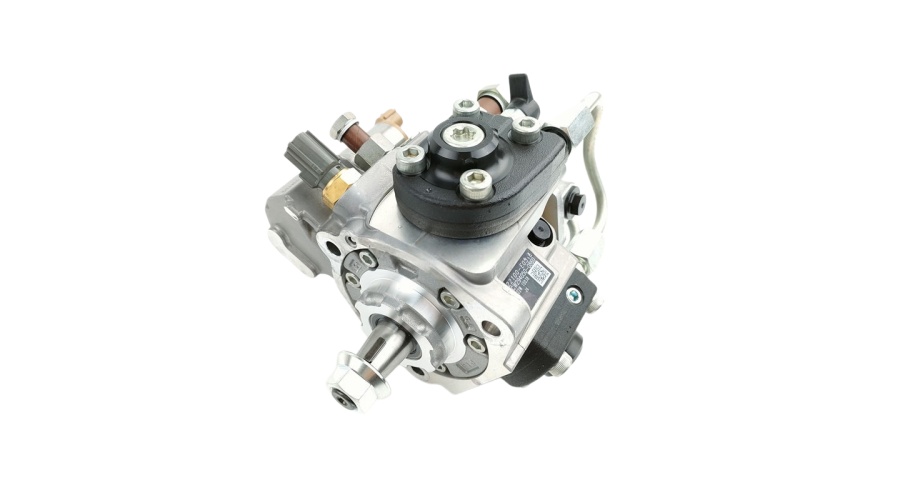

For heavy-duty trucks, buses, and construction equipment powered by the Hino J08E series engine, the fuel injection pump must deliver consistent high pressure and flow under extreme conditions. The 294050-0860 HP4 diesel injection pump (Denso compatible) is a next-generation common rail pump designed specifically for later J08E variants with tighter emission standards (Euro 4, Euro 5, and beyond). Supplied by Rsolid Engine Parts, this HP4-series pump offers improved efficiency, quieter operation, and enhanced durability compared to earlier models.
Structural Advantages of 294050-0860 HP4 Diesel Injection Pump
The 294050-0860 belongs to Denso’s HP4 pump family – an evolution of the HP0/HP3 designs. It is specifically calibrated for the Hino J08E engine’s injection characteristics. Key engineering improvements include:
Advanced Two-Plunger Radial Design with Optimized Cam Profile
Like earlier J08E pumps, this unit uses two radial plungers. However, the HP4 features a revised cam ring profile that reduces torque ripple by 15%.
Preventive Maintenance Recommendations for 294050-0860 HP4 Pump
The HP4 pump is more durable than earlier designs, but it is also more sensitive to fuel contamination and electrical issues. Follow these guidelines to achieve 600,000+ km of trouble-free operation.
1. Strict Fuel Filter Regimen – Every 15,000 km
Hino specifies primary (10 μm) and secondary (5 μm) fuel filters. For Euro 5 engines, change filters every 15,000 km or 6 months – whichever comes first. In dusty or high-humidity environments, reduce to 10,000 km. A clogged filter causes cavitation that erodes the HP4’s precision plungers.
2. Use Ultra-Low Sulfur Diesel (ULSD)
The HP4 pump requires diesel with sulfur content below 50 ppm (EN590) or 15 ppm (EPA). Biodiesel blends above B5 are not recommended unless the pump has been upgraded with special seals. Regularly drain the water separator – water is the #1 enemy of common rail pumps.
3. Monitor SCV Health via OBD
Fault codes P0087 (rail pressure low), P0093 (fuel system leak), or P1229 (SCV circuit) indicate SCV wear. The HP4’s SCV typically lasts 200,000–250,000 km. Replace preventatively at 200,000 km – it is much cheaper than a full pump replacement.
4. Perform a Return Flow Test Every 50,000 km
Measure fuel returning to the tank via the spill line. At idle (650–750 rpm), return flow should be < 35 mL/min for a healthy HP4 pump. Higher values indicate internal plunger wear or SCV leakage. Trend monitoring is key – a gradual increase signals approaching failure.
5. Inspect High-Pressure Pipes for Micro-Leaks
After any pump or injector work, always replace the high-pressure pipes (they are single-use due to cone deformation). Torque pipe nuts to 35 Nm for the pump outlet. Use a dye penetrant or leak detection spray to check for micro-leaks – even a pinhole leak can erode the pump head.
6. Check Pump Drive Gear Lash Annually
The pump is gear-driven from the camshaft. Excessive backlash (wear in the idler gear) can cause timing scatter and metal particles. Inspect during valve clearance adjustments or timing chain replacement. Acceptable backlash: 0.05–0.15 mm.
7. Replace Shaft Seal and O-Rings at 300,000 km
The double-lip Viton® seal is robust, but it can harden over time. Replace the shaft seal and all O-rings as part of a major overhaul. Use genuine Denso or Rsolid-supplied seal kits to ensure compatibility with ULSD.
8. Keep Electrical Connectors Clean and Dry
The SCV and sensor connectors are vulnerable to corrosion in wet or salty environments. Apply dielectric grease annually. A faulty SCV connection can cause intermittent rail pressure drops, triggering limp mode.
9. Use a Fuel Additive with Lubricity Enhancer
ULSD has lower lubricity than older diesel. A quality additive (e.g., with 200–400 ppm of lubricity improver) can extend plunger life. Avoid additives containing alcohol, solvents, or cetane boosters above 2 points.
10. Perform an ECU Software Check
Some Hino J08E ECUs have updates that improve SCV control logic. Check with your Hino dealer for the latest calibration – an outdated ECU can cause premature SCV wear.
Why Choose Rsolid Engine Parts as Your Supplier?
Rsolid Engine Parts is a leading aftermarket supplier of Denso-compatible common rail pumps for Hino, Toyota, Mitsubishi, and other Japanese diesel engines. For the Hino J08E HP4 pump 294050-0860, we offer:
Exact OEM Specification
Our pump matches Denso’s HP4 dimensions, plunger diameter (approx. 7.5 mm), cam profile, and SCV calibration. No “universal” modifications – direct bolt-on for J08E engines.
100% Bench Tested with HP4-Specific Protocol
Each pump undergoes a full test cycle on a common rail test bench, verifying:
Rail pressure build-up from idle to 3000 rpm (engine speed)
SCV linearity and response time (0–100% duty cycle)
Plunger leakage (return flow) at 200 MPa
High-pressure seal integrity at 220 MPa (over-pressure test)
Electrical connector continuity and sensor output
New SCV & Complete Seal Kit Included
We supply the pump with a brand new HP4-specific SCV (linear solenoid type) and a Viton® seal kit (shaft seal, O-rings, gaskets). Both are pre-installed and tested.
12-Month / 100,000 km Warranty
Rsolid provides a comprehensive warranty covering manufacturing defects. For fleet operators, extended warranty (up to 24 months) is available.
Global Stock & Fast Logistics
With warehouses in Asia, the Middle East, Africa, Europe, and Latin America, we can deliver to Hino dealers, independent workshops, and fleet maintenance centers quickly.
Technical Documentation & Remote Support
We provide installation manuals, torque specifications, diagnostic flowcharts, and SCV calibration data. Our technical team is available via WhatsApp and email.
