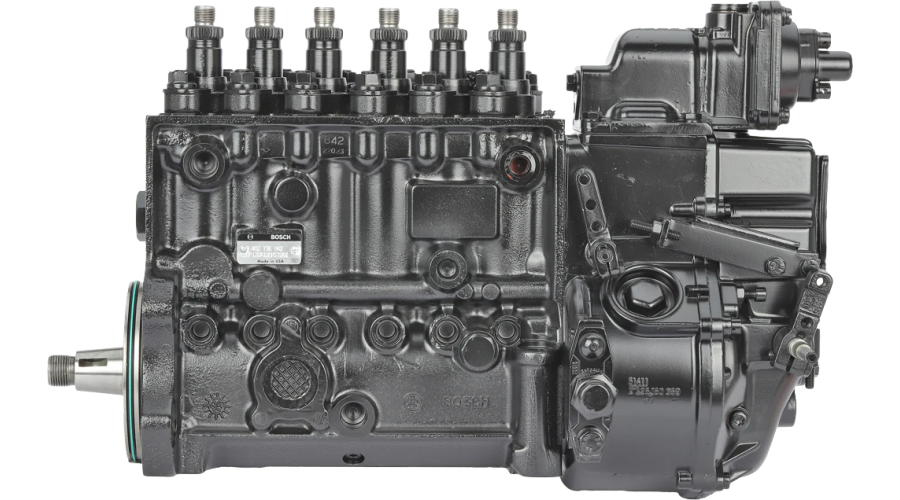

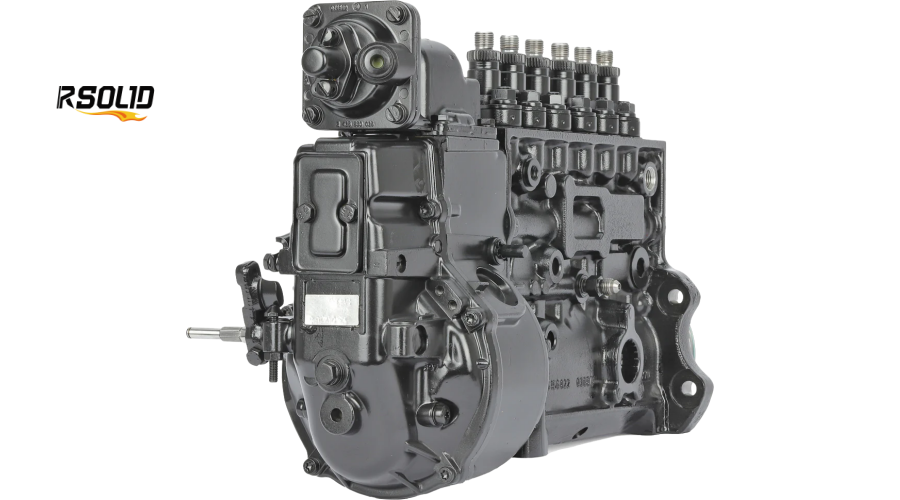

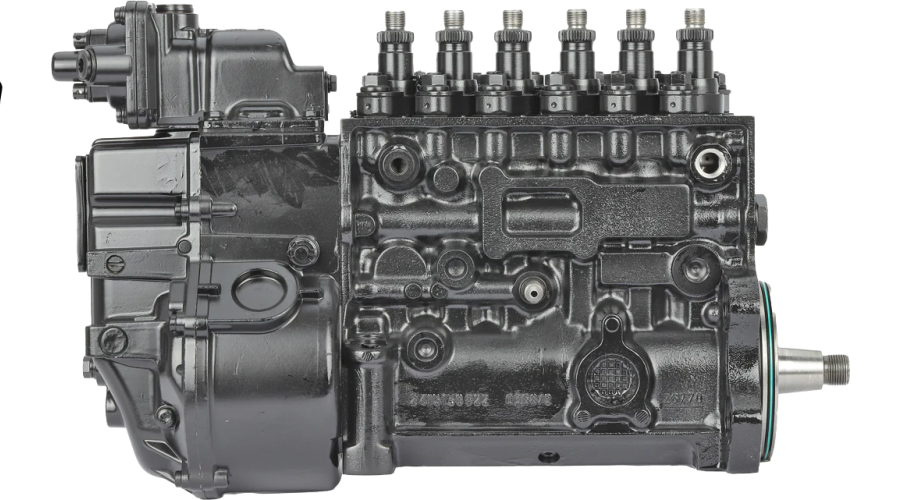

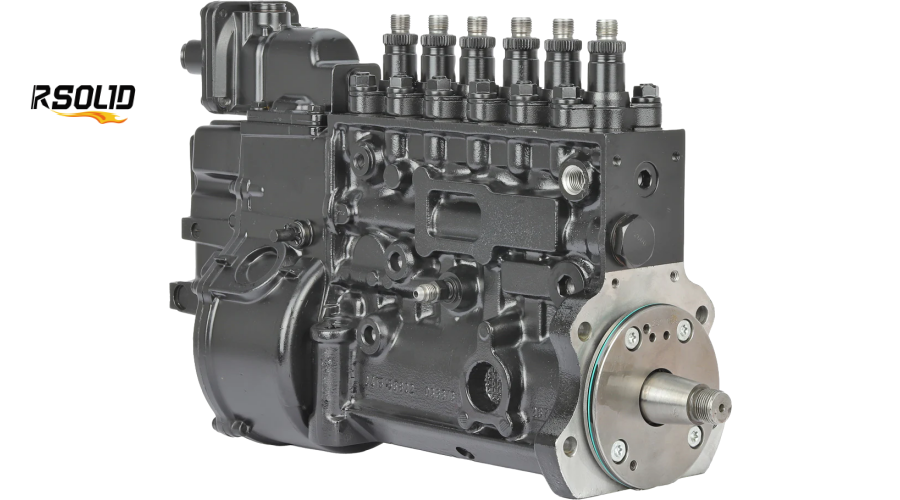

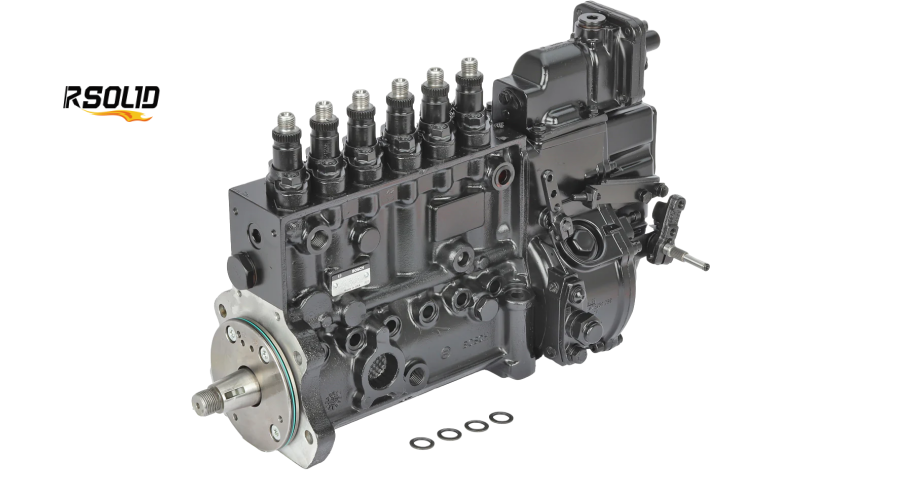

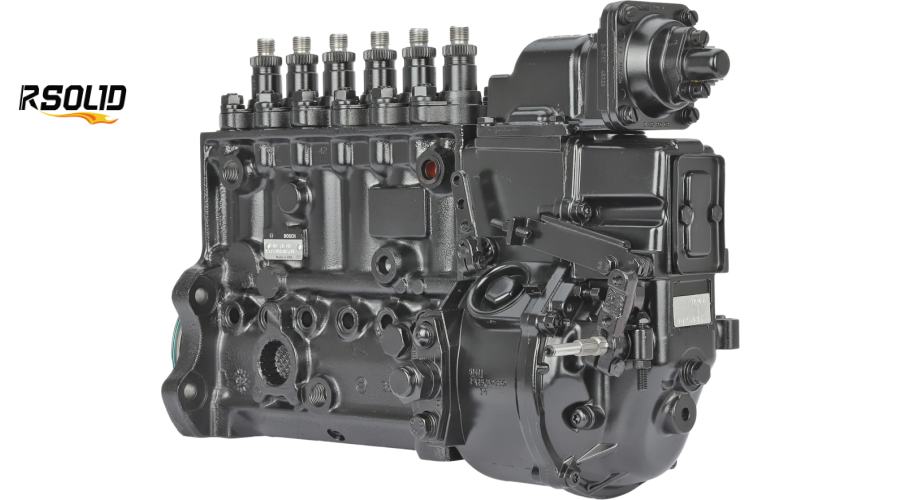

3925085 Structural characteristics of diesel injection pump

1. Basic Housing & Drive:

• Cast Iron Main Housing: Houses all major components and provides mounting flanges to the engine.

• Camshaft: Runs the length of the pump, driven by the engine's gear train. It has one lobe for each engine cylinder (e.g., 6 lobes for a 6-cylinder engine). This camshaft directly determines injection timing and pump stroke.

2. Pumping Elements (The Heart):

• Plunger and Barrel Assemblies: There is one pair per engine cylinder. Each plunger is a ultra-precise ground steel piston that runs inside a matched barrel (liner).

• Operation: As the camshaft rotates, it pushes the plunger up inside its barrel, creating extremely high pressure (up to ~20,000 psi / 1,400 bar). A helix machined into the plunger is the key to fuel metering.

3. Fuel Metering & Control:

• Control Rack & Pinion Gears: A toothed gear is attached to each plunger. These gears mesh with a single control rack (a slotted bar) that runs the length of the pump. Moving the rack rotates all plungers simultaneously.

• Governor: A mechanical flyweight-type governor is attached. It senses engine speed (via the camshaft) and automatically moves the control rack to adjust fuel delivery, preventing overspeed and maintaining idle. This is where throttle linkage is connected.

• Helix Function: Rotating the plunger via the rack changes the alignment of the plunger's helix with a spill port in the barrel. This precisely controls when during the plunger's upward stroke the high-pressure fuel is "spilled" back to the tank, thereby ending injection. The earlier the spill, the less fuel delivered. This is the core of its mechanical metering.

4. Fuel Delivery & Timing:

• Delivery Valve: Above each plunger/barrel set. A one-way check valve that opens at a preset pressure, allowing fuel to travel to the injector. It also creates a sharp pressure drop in the line to prevent injector dribble.

• Timing Advance Mechanism: A piston inside the pump, actuated by internal fuel pressure, that can rotate the camshaft slightly relative to the drive gear. As engine RPM increases, it advances injection timing for optimal combustion and efficiency.

5. Fuel Supply & Lubrication:

Transfer Pump: A gear-type pump on the back of the P7100 that pulls fuel from the tank and supplies it to the pumping elements at low pressure (~30-50 psi).

Critical Note: The fuel in a Bosch P7100 also lubricates its internal parts. Using low-lubricity fuel (or running it dry) destroys the pump.

Advantages (Why These Pumps Are Revered)

• The design, especially of the mechanical units like the P7100, confers legendary benefits:

  1. Unmatched Durability & Simplicity:

• No complex electronics, sensors, or high-speed solenoids to fail. Fewer failure points.

• Over-engineered with heavy-duty materials; with clean fuel, they regularly exceed 300,000 miles.

  2. Extreme Reliability:

  Functions independently of the vehicle's electrical system. A true "run-on-its-own" pump. This is critical for industrial, marine, and agricultural applications where downtime is catastrophic.

  Less susceptible to damage from water in fuel compared to the ultra-tight tolerances of common rail systems (though water is still very bad).

  3. High Torque & Tuning Potential:

  The mechanical governor and robust construction allow for significant performance tuning. Adjusting the fuel screw, changing the governor springs, or installing larger plungers ("big sticks") can safely and reliably increase power and torque. This made the 5.9L 12V a tuner's dream.

  4. Consistent High-Pressure Delivery:

  Each cylinder gets its own dedicated plunger, driven directly by the camshaft. This provides extremely consistent and sharp injection pulses across all cylinders, contributing to smooth operation and good fuel economy.

  5. Maintainability:

  Can be rebuilt, recalibrated, and adjusted by specialized diesel shops. They are not strictly "replace-only" units like many modern electronic pumps.
