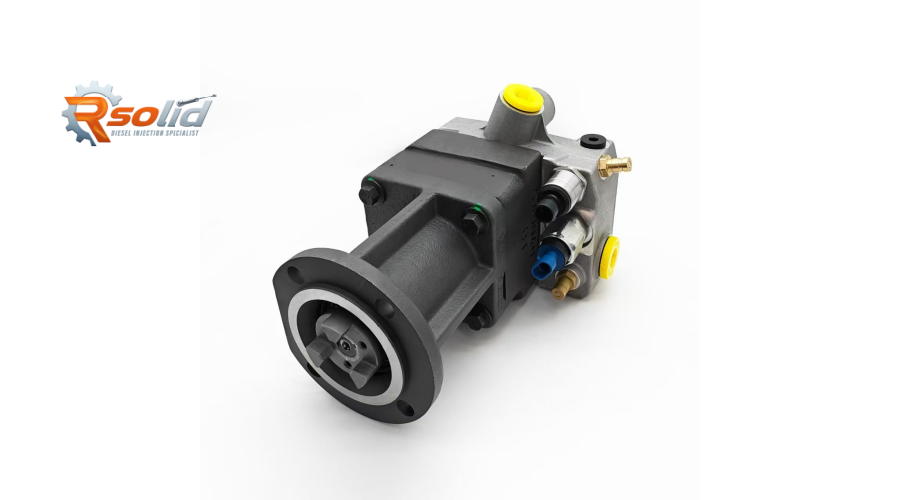

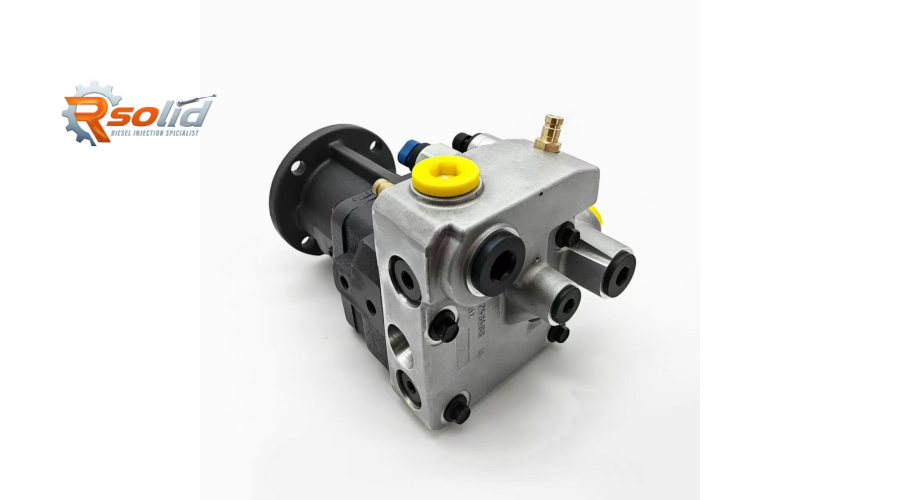

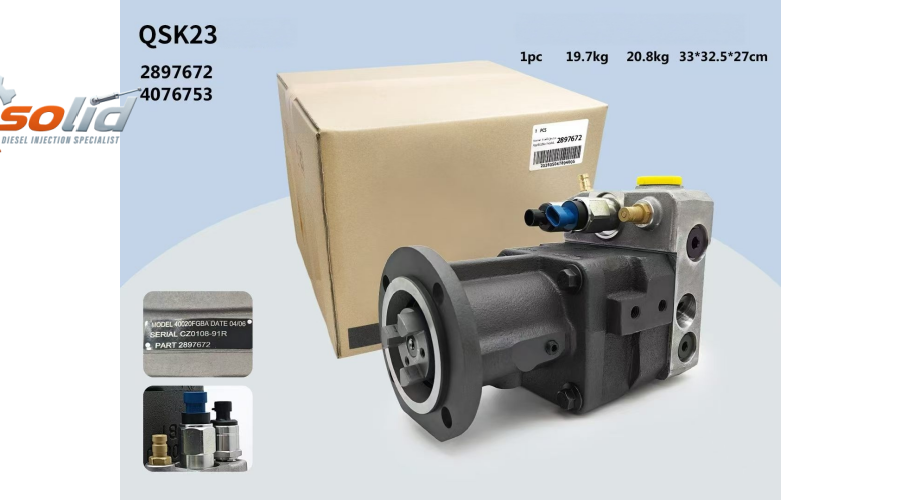

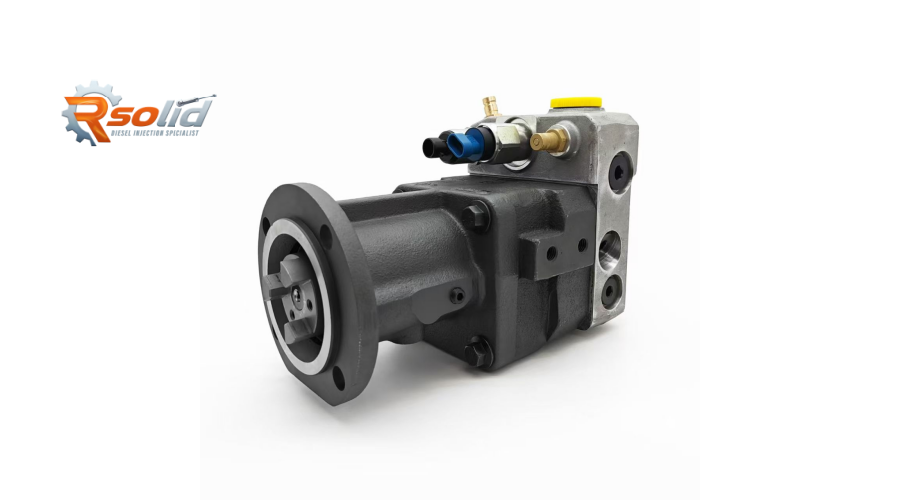

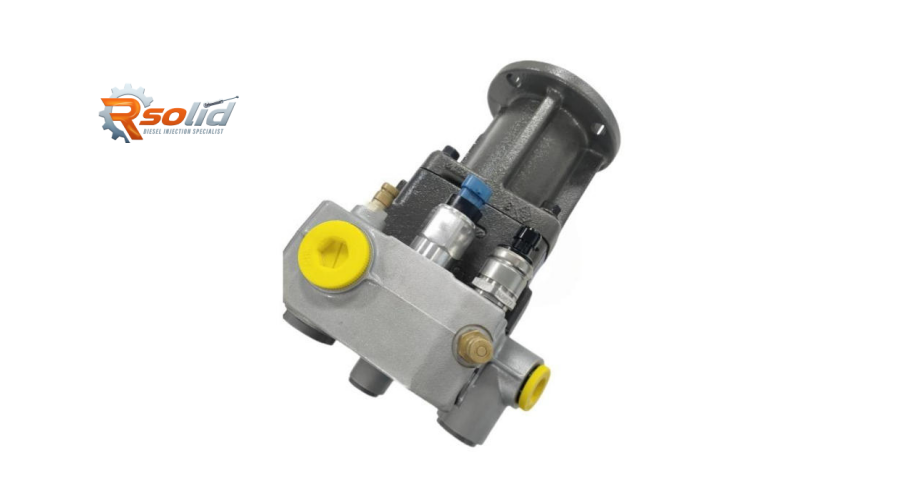

4076753 Fuel Pump – High-Pressure Common Rail Pump for Cummins QSK23 Diesel Engine
For operators of Cummins QSK23 engines – whether in mining haul trucks, offshore vessels, locomotive propulsion, or industrial generator sets – the fuel pump is the heart of the high-pressure common rail (HPCR) fuel system. The 4076753 fuel pump (also known as a CP3-style high-pressure pump) is an OEM-grade replacement engineered specifically for the QSK23 platform, delivering the precise fuel pressure and flow required for optimal combustion, maximum power output, and low emissions.
The 4076753 is a critical component that must deliver consistent, high-pressure fuel to the common rail, ensuring that each injector receives the exact volume of fuel needed for every firing cycle. In this comprehensive guide, we examine its advanced engineering, compatible engine models, common failure signs, professional installation best practices, and why Rsolid Engine Parts is the globally trusted supplier for Cummins fuel system components.
1. Structural Features & Advantages of the 4076753 Fuel Pump
The 4076753 is a high-pressure common rail (HPCR) fuel pump, often referred to as a CP3-style pump (similar to Bosch CP3 architecture but customised for Cummins). Its design incorporates several advanced features to meet the demands of continuous, high-load operation:
High-pressure common rail architecture – The 4076753 is a radial-piston pump designed to generate fuel pressures up to 1,800 bar (26,100 psi) . This ultra-high pressure ensures fine atomisation at the injectors, enabling multiple injection events (pilot, main, post) for improved combustion efficiency, lower emissions, and reduced noise.
Radial piston design with three or more pumping elements – The pump features multiple radial pistons arranged around a central drive shaft. This design provides smooth, continuous fuel delivery with minimal pressure pulsation, reducing stress on the common rail and injectors.
Precision-machined high-strength steel components – All internal components (pistons, barrel, cam ring, and drive shaft) are manufactured from hardened alloy steel to withstand the extreme pressures and continuous rotation. This ensures long-term durability and resistance to wear from fuel contamination.
Integrated inlet metering valve (IMV) – The pump incorporates an electronically controlled inlet metering valve that regulates fuel flow into the pumping chamber. This valve, controlled by the engine control module (ECM), precisely adjusts fuel delivery to match engine demand, optimising fuel efficiency and reducing load on the pump.
Built-in overflow and pressure relief valves – To protect the system from overpressure and ensure consistent rail pressure, the pump includes an internal relief valve and a fuel return system. These features maintain stable pressure under varying load conditions.
High-flow internal lubrication – The pump is lubricated by the fuel itself, with internal passages ensuring adequate cooling and lubrication of moving parts. This design minimises friction and extends service life.
Direct fitment – The 4076753 is dimensionally identical to the original Cummins pump, allowing a simple bolt-on replacement with no modifications. It includes the correct mounting flange, gear coupling, and fuel port connections.
Precision calibration – Each pump is factory-calibrated to deliver the exact flow rate and pressure characteristics required for the QSK23 engine control module. This ensures seamless integration with the engine's ECM without the need for custom tuning.
Operational benefits for fleet operators and plant engineers:
Restored engine power – A new pump ensures that the common rail receives the correct pressure, restoring full-rated horsepower and torque.
Improved fuel economy – Precise pressure control and consistent fuel delivery reduce specific fuel consumption (BSFC) by up to 3–5% .
Reduced exhaust emissions – Consistent high pressure ensures complete combustion, reducing particulate matter (soot) and NOx formation.
Reliable cold starting – The pump can rapidly build pressure even during low cranking speeds, enabling reliable ignition in cold conditions.
Extended injector life – Clean, stable fuel pressure prevents injector sticking, reduces wear, and extends the service life of expensive injectors.
100% direct fit – No modifications required; simply replace the old pump and bleed the system.
2. Compatible Engine Models & Typical Applications
The 4076753 fuel pump is specifically designed for the Cummins QSK23 series – a family of 6-cylinder, inline, 4-stroke, turbocharged, heavy-duty diesel engines with a displacement of 23 litres. These engines are used in some of the most demanding applications worldwide.
| Engine Model | Typical Applications |
|---|
| Cummins QSK23 (Tier 2 / Tier 3) | Mining haul trucks, large excavators, wheel loaders, bulldozers |
| Cummins QSK23 (Marine) | Marine propulsion for workboats, fishing vessels, offshore support vessels |
| Cummins QSK23 (Genset) | Prime and standby power generation for data centres, hospitals, industrial plants |
| Cummins QSK23 (Railway) | Locomotive propulsion, railcar power |
| Cummins QSK23 (Industrial) | Compressor drives, pumping stations, drilling rigs |
Critical cross-reference: The 4076753 is the genuine Cummins part number for this high-pressure common rail fuel pump. It is sometimes cross-referenced with Bosch pump numbers (e.g., 0 445 010 9xx) – always verify with your engine serial number (e.g., QSK23-****) and existing pump part number before ordering. The pump is supplied as a complete assembly with the drive gear and inlet/outlet fittings; new seals and O-rings should be installed simultaneously.
3. Common Failure Modes & Installation/Replacement Recommendations
Typical Warning Signs That Your Fuel Pump Needs Replacement
Loss of power / sluggish acceleration – Insufficient rail pressure reduces injector performance, leading to a noticeable decrease in engine output and slow throttle response.
Hard starting or no-start – When the pump cannot build sufficient pressure during cranking, the injectors may not fire, preventing the engine from starting.
Rough idle / misfire – Unstable pressure delivery causes cylinder imbalance, resulting in a shaky idle and uneven running.
Excessive black or white smoke – Improper injection timing and poor atomisation due to low pressure cause incomplete combustion, producing heavy smoke.
Increased fuel consumption – A worn pump reduces efficiency, increasing fuel usage and raising operating costs.
Fuel in engine oil (diesel dilution) – Internal seal failure can allow fuel to leak into the crankcase, contaminating the engine oil and risking bearing damage.
Engine warning lights / fault codes – The ECM may trigger codes related to rail pressure (e.g., P0087, P0088), fuel pressure deviation, or pump circuit malfunctions.
Professional Installation Best Practices
Proper installation is essential for performance and longevity. Follow these steps:
Clean the pump mounting area – Thoroughly clean the pump mounting surface and surrounding components to prevent debris from entering the fuel system.
Replace all seals and O-rings – Install new O-rings and gaskets supplied with the new pump or in a separate seal kit. Lightly lubricate the O-rings with clean diesel fuel or assembly oil. Never use silicone grease.
Check the drive coupling – Inspect the gear or spline coupling between the pump and the engine gear train for signs of wear. Replace if necessary.
Torque mounting bolts – Tighten the pump mounting bolts to Cummins' specified torque (typically 45–55 N·m – consult your engine manual). Follow a cross-tightening pattern.
Reconnect high-pressure and low-pressure fuel lines – Ensure all connections are clean and secure. Tighten line fittings to the specified torque (typically 40–50 N·m for high-pressure lines). Replace any line seals if required.
Prime the fuel system – Before starting, prime the fuel system to remove trapped air. Use the hand primer pump or electric lift pump to circulate fuel until no air bubbles are visible in the return line.
Start the engine and check for leaks – Start the engine and run at idle, checking for fuel leaks around the pump and lines. Allow the engine to warm up and monitor fuel rail pressure using diagnostic software.
Perform a pressure test / rail pressure monitoring – Using Cummins INSITE™ software, verify that the fuel rail pressure meets specifications at idle and under load.
Road test / load bank test – Test the engine under load to ensure that the pump delivers adequate pressure and that the engine performs at full rated power.
4. Why Rsolid Engine Parts Is Your Preferred Global Supplier
Rsolid Engine Parts has been a premier supplier of Cummins, Caterpillar, and other heavy-duty diesel components for over 15 years, serving mining, marine, power generation, and industrial sectors across six continents. Here is why the 4076753 fuel pump from Rsolid is the intelligent choice:
OEM-equivalent manufacturing – Produced to ISO 9001:2015 and IATF 16949 standards, using identical high-strength steel, radial piston designs, and calibration processes as genuine Cummins pumps.
100% pressure and flow tested – Every pump is bench-tested for pressure output, flow rate, and leak integrity. Test reports are available upon request.
Complete installation kits – We offer the pump together with all required seals, O-rings, and fittings in a convenient kit – simplifying your ordering and maintenance.
Global inventory and rapid dispatch – Strategically warehoused in Asia, Europe, and North America, ensuring 3–7 working day delivery to most international ports and airports.
Competitive wholesale pricing – Attractive volume discounts for workshops, fleet operators, and parts distributors. Enquire about our bulk order programme.
Free expert technical support – Our in-house Cummins specialists provide installation guides, torque specifications, and troubleshooting advice via WhatsApp or email.
Solid warranty – 12 months / 2,000 operating hours against manufacturing defects and premature wear – with a straightforward return and replacement policy.
Contact Rsolid Engine Parts Today
📧 Email: amy@rinjector.com
📱 WhatsApp: +86 15975376778
Whether you need a single 4076753 fuel pump for a running repair or a complete fuel system overhaul for a QSK23 fleet, Amy and her team will provide a detailed quotation, stock confirmation, and shipping schedule within 2 hours. We also supply complementary parts – injectors, rail pressure sensors, seals, and complete filter kits – for comprehensive fuel system maintenance.
