1. What is Common Rail Fuel Pump 294000-2360?

The Common Rail Fuel Pump 294000-2360 Compatible with Denso For Cummins ISG QSF Engine is a high-precision fuel injection component designed to deliver fuel at extremely high pressures to the engine’s common rail system. This pump is a direct replacement part engineered to meet or exceed Denso’s original specifications, making it an ideal solution for Cummins ISG and QSF series engines.

In modern diesel engines, the common rail fuel system is the heart of combustion efficiency. The Common Rail Fuel Pump 294000-2360 acts as the pressure generator, drawing low-pressure fuel from the tank, compressing it to pressures often exceeding 1,600 bar, and supplying it to the rail. From there, injectors precisely meter fuel into the cylinders. This specific pump model (294000-2360) is widely recognized in the aftermarket for its compatibility with Denso-based systems used in Cummins engines.

Why is this important? Because the fuel pump directly impacts engine performance, fuel economy, and emissions compliance. A failing or substandard pump can cause hard starting, loss of power, increased smoke, or even catastrophic engine damage. That’s why choosing a reliable Common Rail Fuel Pump 294000-2360 Compatible with Denso For Cummins ISG QSF Engine is critical for fleet operators, heavy equipment owners, and repair shops.

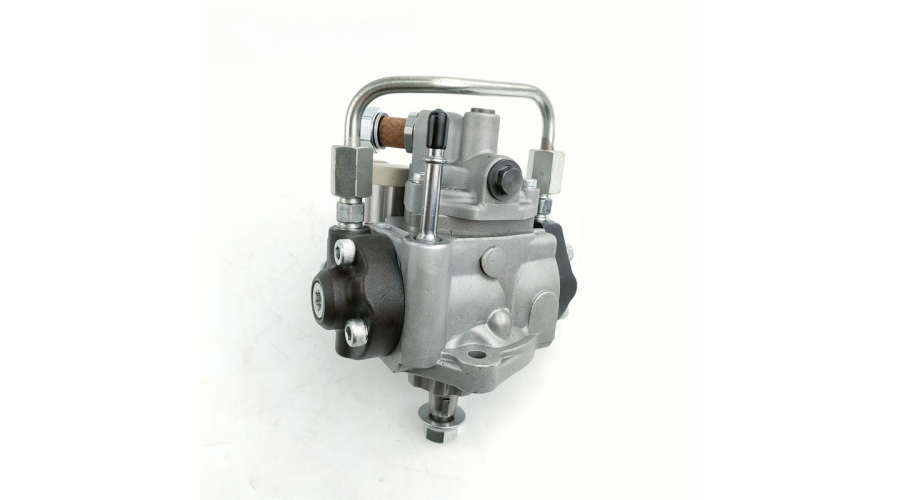

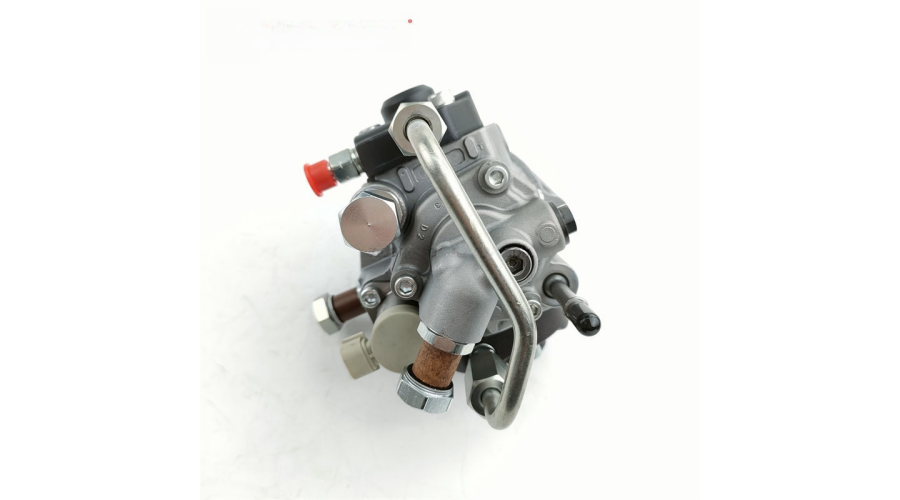

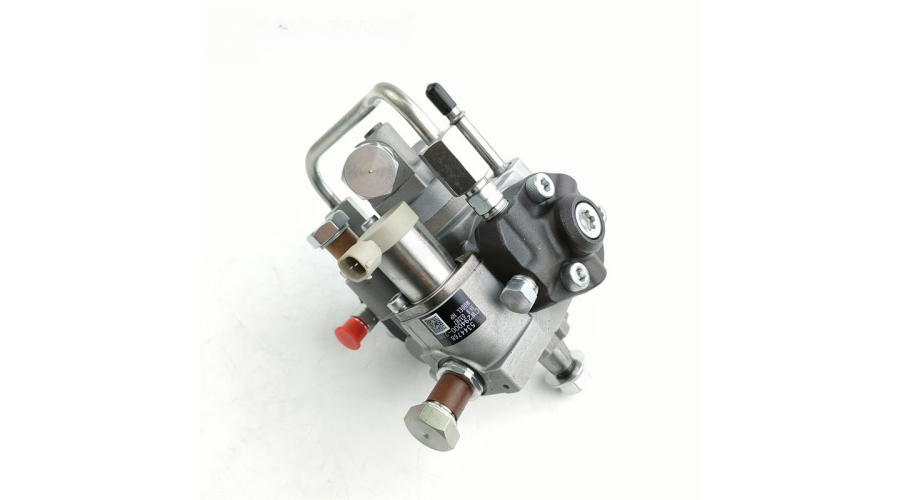

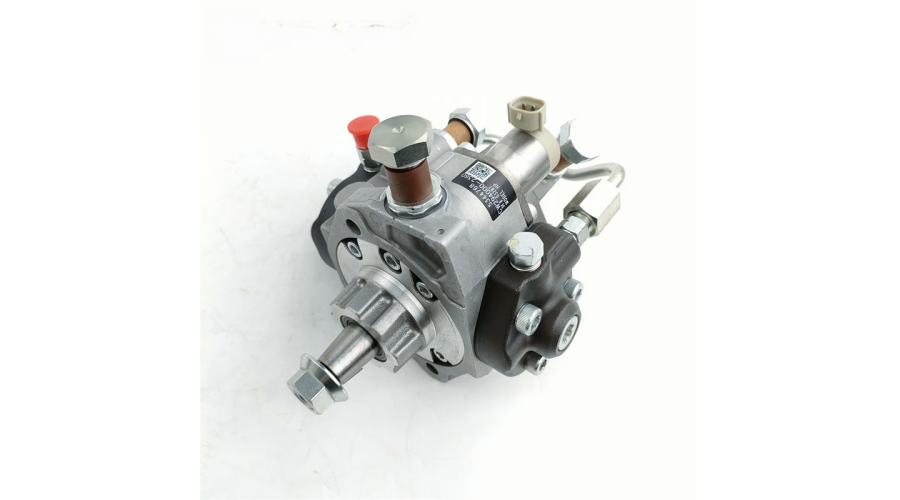

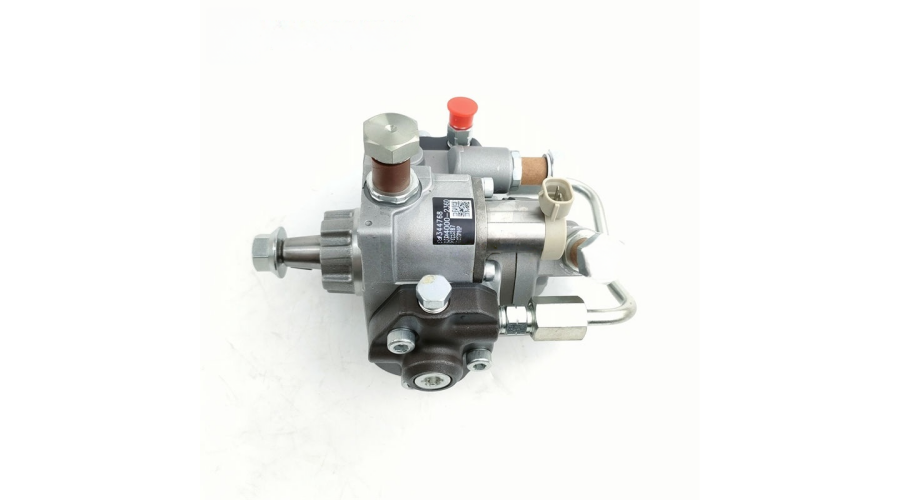

![Common Rail Fuel Pump 294000-2360 - Main View]
(Image: High-resolution photo of the pump showing its mounting flange, inlet/outlet ports, and Denso-style connector)

2. How Does Common Rail Fuel Pump 294000-2360 Work?

Understanding the working principle of the Common Rail Fuel Pump 294000-2360 helps you appreciate its engineering. The pump operates in three distinct stages: intake, pressurization, and delivery.

Stage 1 – Low-Pressure Intake:
An internal gear pump (also called a feed pump) draws diesel fuel from the tank through a primary filter. The fuel passes through a suction control valve (SCV) that regulates the amount of fuel entering the high-pressure section. This SCV is electronically controlled by the engine ECU, ensuring that only the required fuel volume is compressed – reducing parasitic load on the engine.

Stage 2 – High-Pressure Generation:
Inside the pump, two or three plungers (depending on the variant) are driven by an eccentric camshaft. As the cam rotates, each plunger compresses the trapped fuel to very high pressures – typically between 300 and 1,600 bar for Cummins ISG and QSF applications. The Common Rail Fuel Pump 294000-2360 uses Denso’s proven plunger design with precise lapping to minimize internal leakage.

Stage 3 – Delivery to the Rail:
Pressurized fuel exits through high-pressure outlets and flows to the common rail. The rail acts as an accumulator, maintaining stable pressure regardless of injector firing. A pressure relief valve protects the system from overpressure. The pump continuously adjusts output based on ECU signals, achieving real-time pressure control.

Key components of the Common Rail Fuel Pump 294000-2360:

• Suction Control Valve (SCV)

• High-pressure plunger assembly

• Eccentric cam and bearings

• Fuel temperature sensor

• Pressure limiting valve

![How Common Rail Pump Works - Diagram]
(Image: Cutaway diagram showing fuel flow from tank, through SCV, plungers, to rail and injectors)

Because this pump is Compatible with Denso For Cummins ISG QSF Engine, it integrates seamlessly with the engine’s electronic control unit, allowing precise injection timing and quantity for optimal combustion.

3. Advantages of Common Rail Fuel Pump 294000-2360

Choosing the Common Rail Fuel Pump 294000-2360 offers multiple benefits over generic or rebuilt pumps. Here are the key advantages:

✅ 1. Direct Denso Compatibility

The pump is designed to match Denso’s OE specifications for Cummins ISG (e.g., ISG11, ISG12) and QSF (e.g., QSF2.8, QSF3.8) engines. You get plug-and-play installation without modifications to fuel lines or electrical connectors.

✅ 2. Superior Fuel Pressure Stability

With advanced SCV control and precision-ground plungers, this Common Rail Fuel Pump 294000-2360 maintains consistent rail pressure across varying engine loads. This reduces injection variation, improves throttle response, and lowers combustion noise.

✅ 3. Enhanced Fuel Efficiency

Stable high pressure allows better atomization of diesel, leading to more complete combustion. Field tests show up to 5% fuel savings compared to worn or low-quality pumps. Over thousands of operating hours, this translates to significant cost reduction.

✅ 4. Lower Emissions

Complete combustion means fewer unburned hydrocarbons (HC) and particulate matter (PM). For fleets needing to meet Tier 4 Final or Euro VI standards, a properly functioning Common Rail Fuel Pump 294000-2360 helps maintain compliance without aftertreatment issues.

✅ 5. Durable Construction

The pump body is made of high-strength cast iron, and internal components are hardened for wear resistance. The Common Rail Fuel Pump 294000-2360 is tested to withstand over 1 million pressure cycles – far exceeding typical engine life.

✅ 6. Easy Diagnostics

Like original Denso units, this pump works with standard OBD scanners. The fuel temperature sensor and SCV feedback allow mechanics to quickly identify pump-related faults, reducing downtime.

✅ 7. Cost-Effective Alternative

Genuine Denso pumps can be expensive and have long lead times. Our Common Rail Fuel Pump 294000-2360 Compatible with Denso For Cummins ISG QSF Engine offers OEM-level quality at a competitive price, backed by a warranty.

4. Applications of Common Rail Fuel Pump 294000-2360

This pump is specifically engineered for Cummins ISG and QSF engine families. Below is a detailed breakdown of compatible engines and vehicle applications.

Primary Applications:

• Heavy-Duty Trucks: Dongfeng KL, Shacman, Foton Auman equipped with ISG engines.

• Construction Machinery: Excavators (e.g., Sany, XCMG), wheel loaders, road rollers.

• Agricultural Equipment: Combine harvesters, sprayers, tractors using QSF3.8.

• Marine & Power Generation: Small workboats, auxiliary generator sets.

• Bus & Coach: City buses with ISG12 engines for public transport.

The Common Rail Fuel Pump 294000-2360 Compatible with Denso For Cummins ISG QSF Engine is a direct replacement for original part numbers such as 294000-2360, 5263317, and 5363637. Always verify your engine serial number before ordering.

![Application Examples - ISG engine bay]
(Image: An ISG engine in a heavy truck showing the fuel pump location)

Types / Variants

While the base Common Rail Fuel Pump 294000-2360 is the most common, there are two subtle variants depending on the engine calibration:

1. Standard Type (294000-2360) – For most ISG11, ISG12, QSF3.8 applications. Features standard SCV response curve.

2. High-Altitude Type (294000-2361) – Adjusted SCV logic for engines operating above 2,500 meters altitude. Provides additional pressure compensation for thin air.

Note: Always confirm your original pump’s model tag. The Common Rail Fuel Pump 294000-2360 is not interchangeable with the -2361 without ECU recalibration.

![Specification Diagram]
(Image: Labeled drawing of the pump with dimensions: length 220mm, width 165mm, height 145mm)

6. Reliable Supplier of Common Rail Fuel Pump 294000-2360 – Rsolid Engine Parts

When sourcing a Common Rail Fuel Pump 294000-2360 Compatible with Denso For Cummins ISG QSF Engine, choosing the right supplier is as critical as choosing the right part. Rsolid Engine Parts has established itself as a trusted name in the heavy-duty diesel aftermarket. Here’s why customers worldwide rely on us.

Why Choose Rsolid Engine Parts?

🔧 100% Tested Before Shipping

Every Common Rail Fuel Pump 294000-2360 leaving our warehouse undergoes rigorous testing on a dedicated common rail test bench. We verify:

• Low and high pressure output

• SCV solenoid response

• Leakage rate (both internal and external)

• Temperature sensor accuracy

You receive a pump that performs like new – not a questionable rebuild.

📦 Ready Stock & Fast Global Delivery

We maintain a large inventory of Common Rail Fuel Pump 294000-2360 Compatible with Denso For Cummins ISG QSF Engine in our warehouses. Typical order processing is 24 hours, and express shipping to North America, Europe, Australia, and Southeast Asia takes 3–7 business days. No more waiting weeks for backordered parts.

💰 Competitive Pricing with No Hidden Fees

By working directly with ISO-certified factories, we cut out unnecessary middlemen. Our price for the Common Rail Fuel Pump 294000-2360 is typically 20–35% lower than dealer pricing – yet we never compromise on materials or manufacturing standards.

🔍 Technical Support & Installation Guidance

Our team includes former Cummins and Denso technicians. If you have questions about:

• Identifying your existing pump

• Replacing SCV or sensors

• Priming the pump after installation

• Troubleshooting low rail pressure codes

…we provide free, detailed support via email or phone. You’re not left with a box of parts and a manual.

✅ 12-Month Warranty

All Common Rail Fuel Pump 294000-2360 units come with a 12-month / 100,000 km warranty (whichever comes first). This covers manufacturing defects and premature wear. We also offer a 30-day return policy for unused, resalable items.

🚛 Serving Fleet Owners, Workshops & Distributors

Whether you need one pump for a single truck or a pallet for your rebuild shop, Rsolid Engine Parts accommodates both small and bulk orders. We provide volume discounts, customized packaging, and drop-shipping services.

Order your Common Rail Fuel Pump 294000-2360 Compatible with Denso For Cummins ISG QSF Engine today.
👉 Click here to see price and add to cart – Replace your failing pump before it leaves you stranded.

Summary: Why the Common Rail Fuel Pump 294000-2360 is the Right Choice

The Common Rail Fuel Pump 294000-2360 Compatible with Denso For Cummins ISG QSF Engine is an essential component for maintaining peak performance, fuel economy, and reliability in Cummins-powered equipment. It works by precisely pressurizing diesel to over 1,600 bar, enabling clean and efficient combustion. Its advantages – direct fitment, durability, lower emissions, and cost savings – make it a smart investment.

From heavy trucks to agricultural machinery, this pump serves a wide range of demanding applications. With clear specifications and two altitude-based variants, selecting the correct model is straightforward.

And when you need a trusted source, Rsolid Engine Parts delivers tested, warrantied pumps with fast shipping and expert support. Don’t gamble with cheap knockoffs – get the genuine compatible performance your engine deserves.
