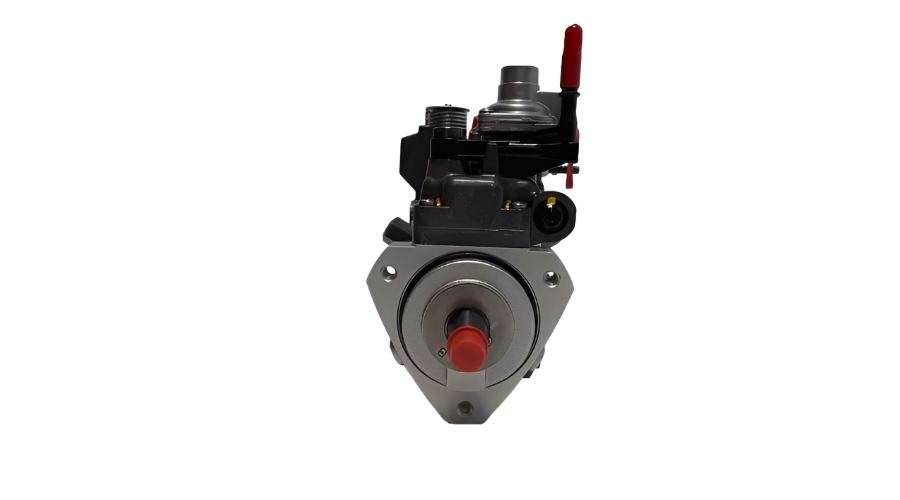

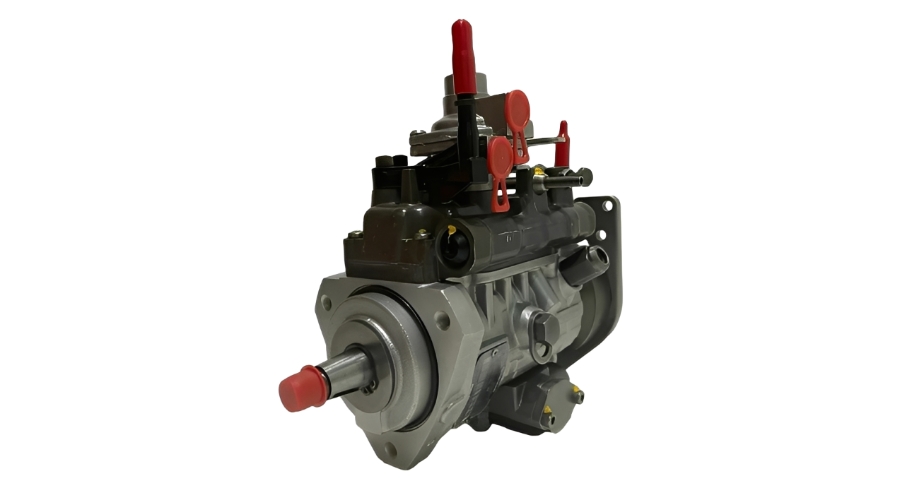

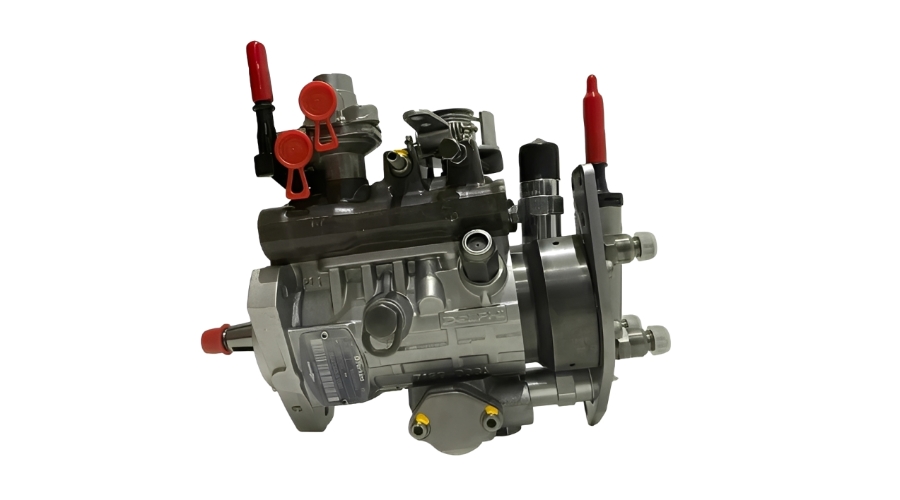

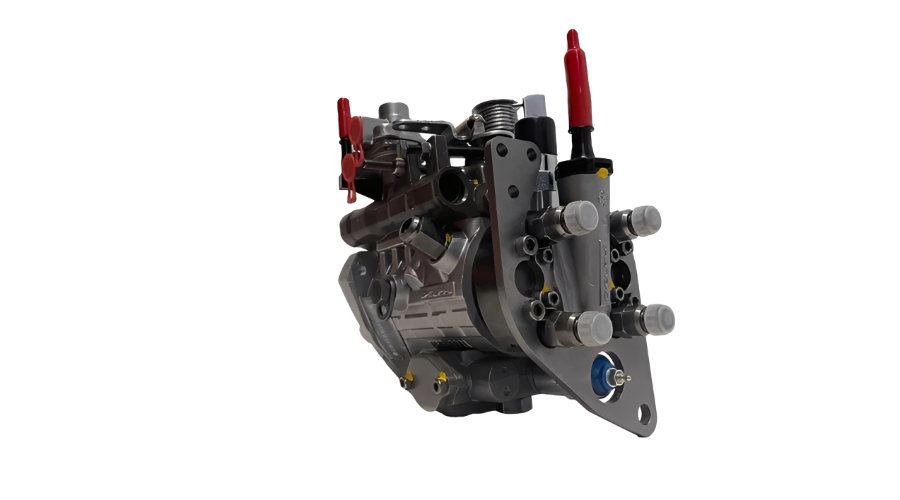

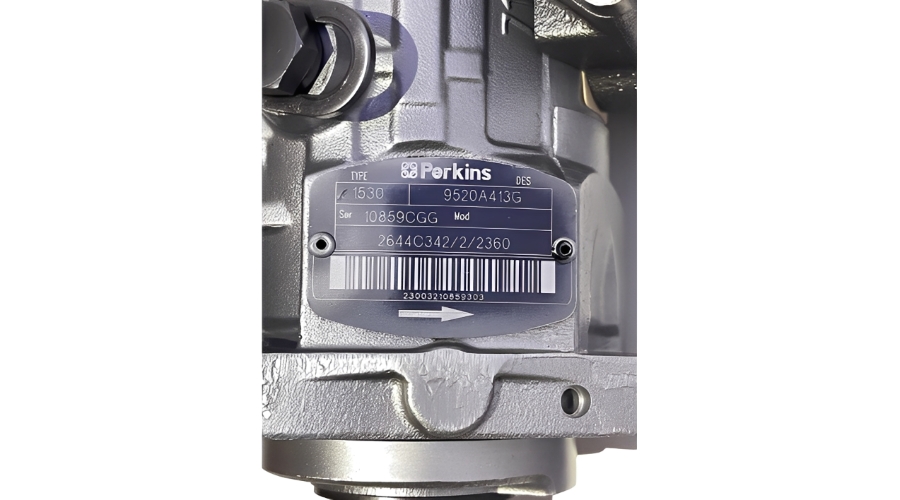

The Perkins 9520A413G / 2644C342 is a high-performance rotary-type diesel fuel injection pump designed for precision fuel delivery in Perkins diesel engines. It ensures optimal combustion efficiency, reduced emissions, and reliable performance in demanding industrial and mobile applications.
1. Structural Features
A. Pump Housing & Construction
Robust Cast Iron/Aluminum Housing – Provides durability and heat dissipation.
Precision-Machined Components – Ensures tight tolerances for high-pressure fuel delivery.
Sealed Design – Prevents fuel leaks and contamination.
B. Rotary Distributor Mechanism
Single-Plunger Distributor System – Delivers fuel sequentially to each cylinder.
Helical Groove Metering – Adjusts fuel quantity based on engine speed and load.
Hydraulic Governor Integration – Maintains stable RPM under varying loads.
C. High-Pressure Fuel Delivery
D. Key Components
Drive Shaft – Connects to the engine camshaft for synchronized operation.
Vane-Type Transfer Pump – Supplies fuel from the tank to the high-pressure side.
Control Sleeve & Governor – Regulates fuel delivery based on throttle input.
Delivery Valves – Ensure clean fuel cut-off to prevent dribbling.
2. Technical Advantages
A. Fuel Efficiency & Performance
B. Reliability & Durability
Corrosion-Resistant Materials – Suitable for harsh environments (marine, construction).
Low Maintenance Design – Fewer moving parts compared to inline pumps.
C. Emissions Compliance
D. Smooth Engine Operation
3. Application Scenarios & Equipment
A. Industrial & Power Generation
Perkins 1100 Series Engines (e.g., 1104D-44TA, 1104C-44T)
Generator Sets (20–150 kVA range)
Pump & Compressor Drives
B. Construction & Agriculture
C. Marine & Off-Highway
4. Maintenance & Troubleshooting Tips
Use Clean Fuel – Contaminants can damage precision components.
Regular Filter Changes – Prevents clogging and wear.
Professional Calibration Needed – Incorrect timing affects performance.
Check for Leaks – Worn seals may cause fuel seepage.
Common Failure Symptoms
Hard Starting (worn plunger/barrels)
Loss of Power (governor or timing issue)
Excessive Smoke (incorrect fuel delivery)
Conclusion:
The Perkins 9520A413G / 2644C342 fuel injection pump is a high-efficiency, durable, and versatile component critical for diesel engines in industrial, agricultural, and marine applications. Its rotary distributor design, precise fuel control, and robust construction make it a reliable choice for demanding environments.
