For marine operators and engineers who depend on the Mitsubishi S6A3 engine – whether for main propulsion in fishing vessels, coastal freighters, or auxiliary power generation – the cylinder liner is a critical component that directly affects engine longevity, oil consumption, and overall reliability. The 35A07-32500 cylinder liner is a premium, OEM‑grade replacement engineered specifically for the S6A3 platform, featuring advanced Support Phosphating and TUFFTRIDE® surface treatments for exceptional wear resistance, corrosion protection, and extended service life.
This high‑quality liner is designed to meet Mitsubishi Heavy Industries' exacting standards, ensuring a direct drop‑in fit with no modifications required. In this comprehensive guide, we examine its advanced engineering, compatible engine models, common failure signs, professional installation best practices, and why Rsolid Engine Parts is the trusted global supplier for Mitsubishi marine components.
1. Structural Features & Advantages of the 35A07-32500 Cylinder Liner

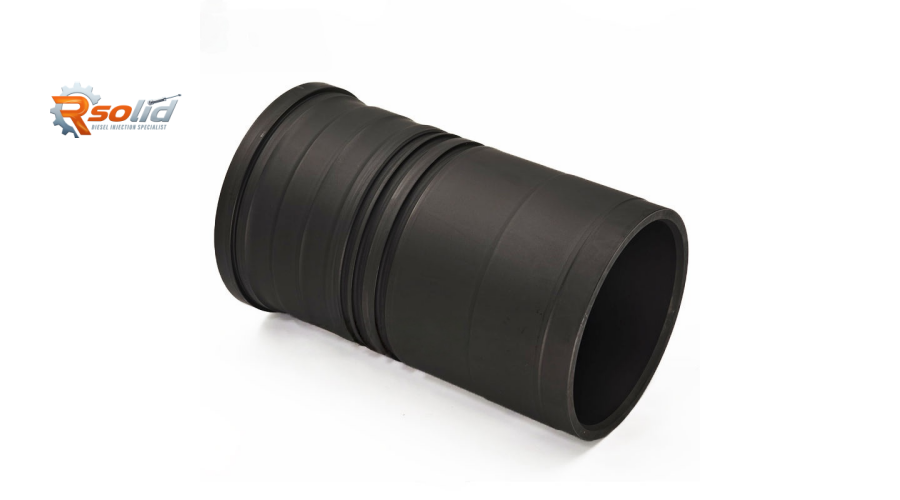

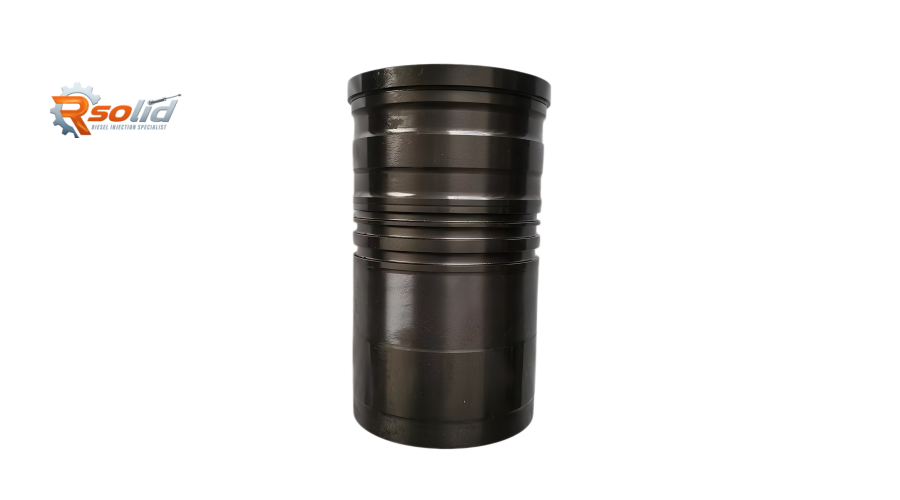

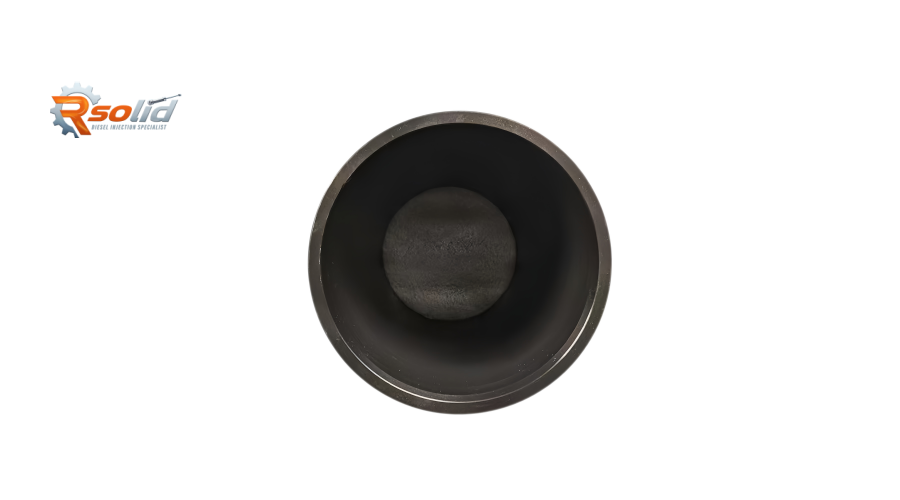

The 35A07-32500 is a precision‑engineered wet‑type cylinder liner, manufactured using high‑grade alloy cast iron and enhanced with advanced surface treatment processes. Its design incorporates several heavy‑duty features to meet the demands of continuous marine duty:
High‑grade alloy cast iron construction – Manufactured from a specialised chromium‑molybdenum (Cr‑Mo) alloy cast iron, this material offers outstanding resistance to adhesive wear (scuffing), abrasive wear, and thermal fatigue. The alloy chemistry is optimised to maintain hardness and dimensional stability at sustained operating temperatures up to 300°C on the inner bore surface, preventing "bore softening" and ensuring long‑term performance.
Support Phosphating treatment – The liner undergoes a manganese phosphate coating process, which creates a micro‑porous surface that retains lubricating oil. This significantly reduces friction during the initial break‑in period, promotes rapid ring seating, and provides a sacrificial layer that protects against scuffing and galling – especially critical during cold starts and sudden load changes.
TUFFTRIDE® (ferritic nitrocarburizing) process – The liner's working surface is treated with the TUFFTRIDE® process, a specialised ferritic nitrocarburizing treatment that diffuses nitrogen and carbon into the surface. This creates a hard, wear‑resistant compound layer (typically 10–25 µm thick) with a hardness exceeding HRC 60. The benefits include:
Exceptional wear resistance – Reduces bore wear and extends liner life.
Improved scuffing resistance – Protects against piston ring galling under high load.
Reduced friction – Lowers oil consumption and improves fuel efficiency.
Corrosion resistance – Provides protection against the corrosive effects of marine fuels and saltwater environments.

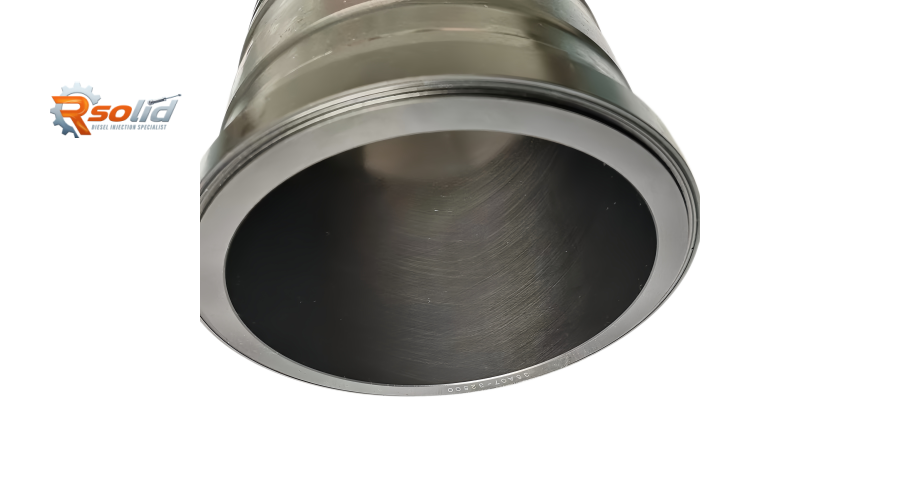

Precision‑honed and plateau‑finished bore – The inner running surface is finished with a multi‑stage plateau honing process, producing a controlled cross‑hatch pattern (30‑45° included angle) with a surface roughness (Ra) of 0.15 – 0.30 µm. This optimises oil film retention, ensures rapid ring seating, and significantly reduces oil consumption throughout the liner's service life.

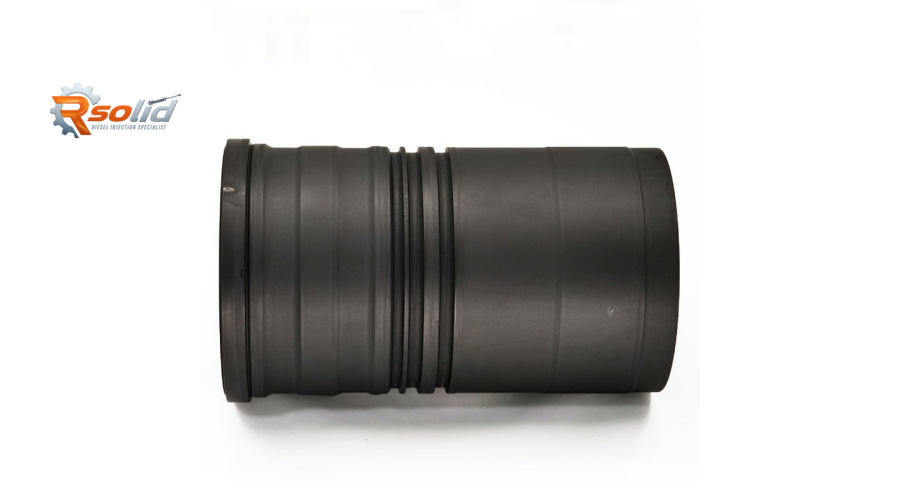

Wet‑type liner with precision O‑ring grooves – The 35A07-32500 is a wet liner, meaning its outer surface is in direct contact with engine coolant. It features accurately machined grooves at the lower sealing section, designed to accommodate high‑temperature FKM (Viton®) O‑rings. This design maintains a positive coolant seal, preventing oil emulsification and keeping combustion gases out of the cooling system.
Anti‑cavitation and corrosion protection – The water‑jacket contact area receives a specialised anti‑cavitation coating and chemical passivation treatment, resisting pitting and material erosion caused by coolant vibration and the corrosive effects of seawater‑contaminated coolants.

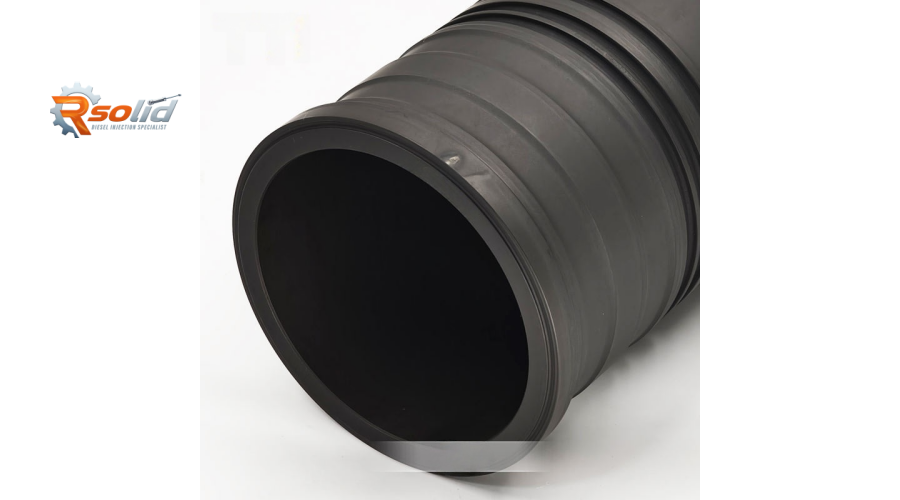

Precision‑ground top flange with controlled protrusion – The upper flange is ground to a mirror finish with micron‑level flatness (typically ±0.02 mm), ensuring a perfect gas‑tight seal against the cylinder head gasket. The liner protrusion (height above the block deck) is factory‑set to 0.05 – 0.15 mm, guaranteeing correct head gasket compression and preventing combustion gas leakage.
Operational benefits for marine engineers and vessel owners:
Extended overhaul intervals – The combined Support Phosphating and TUFFTRIDE® treatments significantly reduce bore wear, delivering up to 15,000 – 20,000 hours of reliable service.
Reduced oil consumption – The plateau‑honed finish and phosphated surface optimise oil retention and ring seating, cutting oil top‑up frequency by up to 25%.
Improved cold‑start performance – The phosphated coating reduces scuffing risk during cold starts.
Consistent compression and thermal efficiency – A true, undistorted bore maintains maximum cylinder sealing, translating to better fuel economy and easier starting.
100% direct drop‑in fit – Identical to the original Mitsubishi liner in all critical dimensions – no block re‑boring or custom shimming required when using standard‑size liners.
2. Compatible Engine Models & Typical Applications
The 35A07-32500 cylinder liner is specifically engineered for the Mitsubishi S6A3 series – a family of 6‑cylinder, inline, 4‑stroke, water‑cooled diesel engines widely used in marine propulsion and auxiliary power roles.
| Engine Model | Typical Applications |
|---|
| Mitsubishi S6A3 | Main propulsion for fishing vessels, coastal freighters, harbour tugs |
| Mitsubishi S6A3-(T2)MTK3M | Marine propulsion, fishing boats, work boats, tugboats |
| Mitsubishi S6A3 (Genset variants) | Prime and standby power generation on vessels and offshore platforms |
Engine Specifications (S6A3-(T2)MTK3M):
Cylinder configuration: 6 in‑line
Total displacement: 18.56 litres
Bore x stroke: 150 mm x 175 mm
Compression ratio: 14.5:1
Method of operation: 4‑cycle, water‑cooled, direct injection, turbocharged with air‑cooler
Critical cross‑reference: The 35A07-32500 is the genuine Mitsubishi service part number for standard‑size cylinder liners in the S6A3 series. It incorporates the advanced Support Phosphating and TUFFTRIDE® treatments. Oversize liners (+0.25mm, +0.50mm) are typically available – confirm your current bore measurement and engine serial number (e.g., S6A3-****) before ordering. This liner is generally supplied as a bare unit; O‑ring seals, head gaskets, and piston rings must be ordered separately or as part of a complete overhaul kit.
3. Common Failure Modes & Installation/Replacement Recommendations
Typical Warning Signs That Your Liner Needs Replacement
Excessive oil consumption with blue exhaust – Continuous blue smoke at operating temperature indicates bore glazing, excessive wear, or deep vertical scoring.
High blow‑by and crankcase pressurisation – Oil mist pulsing from the dipstick tube or breather due to worn bore ovality or deep scuff marks.
Unexplained coolant loss – Dropping coolant levels without visible external leaks often points to a failed lower O‑ring seal or a cracked liner.
Combustion gas in the cooling system – Persistent bubbles in the radiator or expansion tank indicate a cracked liner or failed upper seal.
Loss of compression / hard starting – Worn or scored liners reduce cylinder sealing, leading to difficult starts, rough idle, and reduced load capacity.
Professional Installation Best Practices
Precision installation is crucial to realising the full service life of the 35A07-32500 liner. Follow these essential steps:
Thorough cleaning of the cylinder block bore – Remove the old liner and meticulously clean the liner seat in the block using a suitable solvent and a non‑abrasive nylon pad. Remove all old O‑ring residue, carbon deposits, and surface rust. The seat must be perfectly clean, dry, and free from any foreign particles.
Inspect and measure the block housing – Using a dial bore gauge, measure the block's liner housing for ovality and out‑of‑round. Ensure it remains within service limits (typically less than 0.03 mm total variation). If the housing is worn beyond limits, an oversize liner or specialist block machining is required.
Lubricate and fit new O‑rings – Lightly coat the new FKM (Viton®) O‑rings (available separately or as a Rsolid kit) with clean engine oil or a specialised rubber assembly lubricant. Never use silicone grease or petroleum jelly, as these can cause the O‑rings to roll or extrude, leading to immediate coolant leaks.
Install the liner with controlled, even pressure – Using a dedicated liner installation tool or a hydraulic press, insert the liner squarely into the block bore. Absolutely never strike the liner flange directly with a hammer, as this will distort the honed bore. Apply slow, steady, even pressure.
Measure liner protrusion – After seating, measure the liner's height above the block deck at three to four points around the circumference using a dial gauge and a suitable bridge piece. The protrusion must be consistent (typically 0.05 – 0.15 mm) and within the engine manual's specified range; the variance should not exceed ±0.03 mm. Incorrect protrusion will inevitably cause head gasket failure.
Final bore verification – Re‑check the bore for roundness and taper to ensure no distortion occurred during the fitting process.
Assemble piston and rings – Fit the piston rings using a proper ring expander (never roll them over the skirt), stagger the ring gaps at 120° intervals, and thoroughly lubricate the piston, rings, and fresh liner bore with clean engine oil. Use a quality ring compressor to install the piston smoothly.
Torque the cylinder head – Follow the manufacturer's factory torque sequence and specifications (typically a multi‑stage torque plus a final angle‑tighten). Re‑torque the head bolts after the engine has completed its initial heat cycle and again after the first 50 operating hours.
Proper break‑in procedure – Start the engine and run at low idle (no load) for 15‑20 minutes to allow the new rings to begin seating. Gradually apply load over the next 8‑10 hours, avoiding sustained full‑throttle operation. Change the engine oil and filter immediately after the initial break‑in period to remove microscopic assembly debris.
4. Why Rsolid Engine Parts Is Your Preferred Global Supplier
Rsolid Engine Parts has been a premier supplier of Mitsubishi, Yanmar, and Caterpillar diesel components for over 15 years, servicing marine fleets, power stations, and engineering workshops across six continents. Here is why the 35A07-32500 cylinder liner from Rsolid is the intelligent procurement choice:
OEM‑equivalent manufacturing standards – Produced in ISO 9001:2015 and IATF 16949 certified foundries, using the identical chromium‑molybdenum alloy chemistry, Support Phosphating, and TUFFTRIDE® processes as genuine Mitsubishi service parts.
100% precision quality inspection – Every single liner is inspected for bore roundness, straightness, surface finish (Ra value), hardness (HRC), and flange dimensions using state‑of‑the‑art CMM equipment. We guarantee a perfect, distortion‑free fit.
Complete complementary seal kits – We supply matching high‑temperature FKM (Viton®) O‑rings and full seal kits, ensuring you have everything required for a leak‑free, reliable installation.
Global stock & rapid logistics – Strategically warehoused in Asia, Europe, and North America, ensuring 3‑7 working day delivery to major international seaports and airports worldwide.
Competitive wholesale pricing – Attractive volume discounts are available for professional workshops, commercial fleet operators, and parts distributors. Please enquire about our bulk order and consolidated shipping options.
Free expert technical support – Our in‑house marine diesel engineers provide installation torque guides, liner protrusion measurement advice, and remote troubleshooting via WhatsApp or email.
Unconditional warranty – 12 months / 2,000 operating hours against casting defects, premature wear, and material failures, supported by a straightforward return and expedited replacement policy.
Contact Rsolid Engine Parts Today
📧 Email: amy@rinjector.com
📱 WhatsApp: +86 15975376778
Whether you require a single 35A07-32500 liner for a running repair or a full set of six liners for a complete Mitsubishi S6A3 overhaul, Amy and her dedicated team will respond with a detailed quotation, stock availability, and shipping schedule within 2 hours. We also supply complementary parts – piston assemblies, ring kits, connecting rod bearings, complete O‑ring kits, and full gasket sets – for comprehensive engine rebuilds.
Choose the 35A07-32500 cylinder liner from Rsolid – featuring advanced Support Phosphating and TUFFTRIDE® treatments for uncompromising durability, reduced wear, and reliable power for your Mitsubishi S6A3 marine diesel engine.
