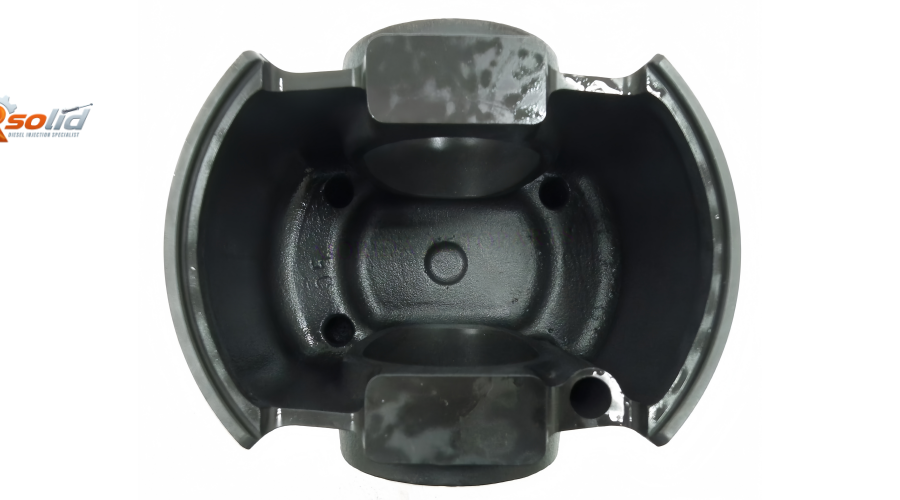

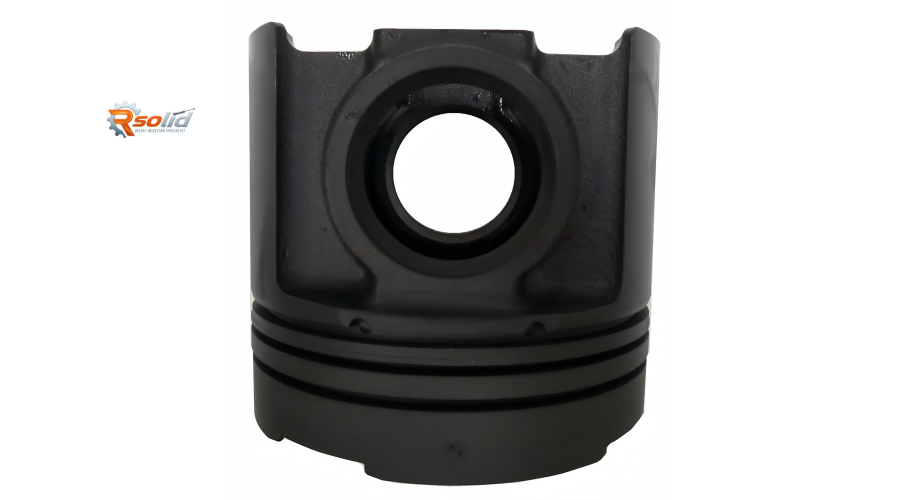

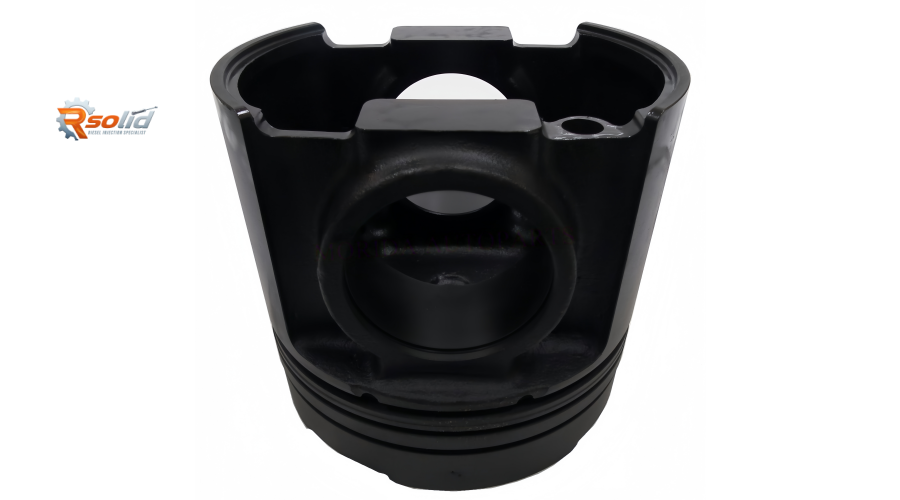

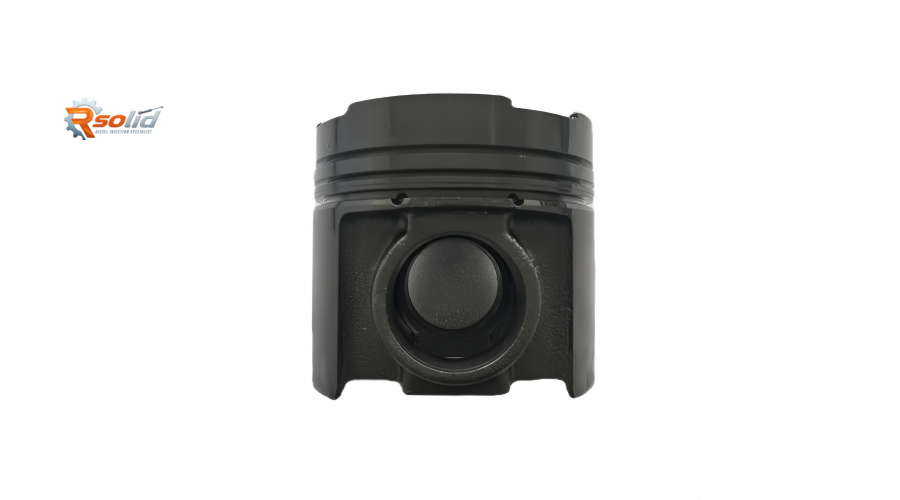

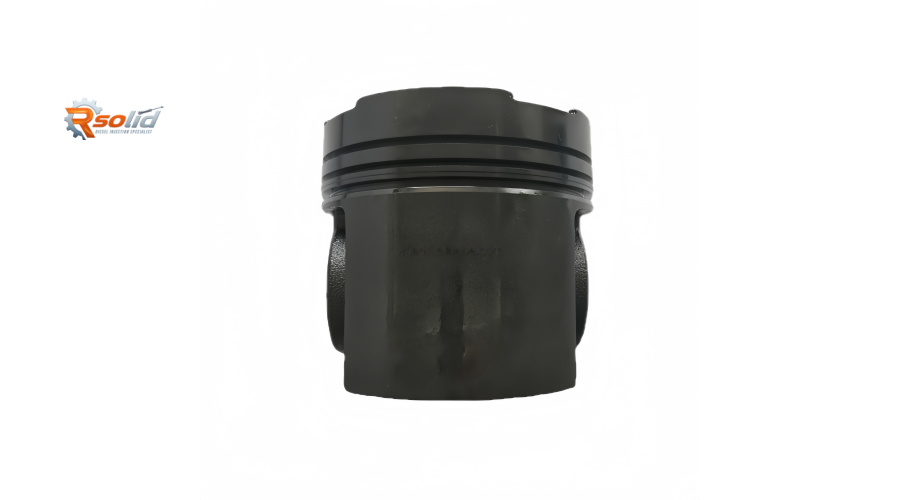

748690-95060 Diesel Engine Piston – Premium OEM Replacement for Yanmar 12AY Marine Engine

For operators of Yanmar 12AY engines – whether in large fishing vessels, offshore support vessels, ferries, or high‑power generator sets – the piston is one of the most heavily stressed components in the combustion chamber. As a V12 configuration engine, the 12AY delivers exceptional power output and torque, placing immense mechanical and thermal loads on its pistons. The 748690-95060 piston is a premium, OEM-grade replacement engineered specifically for this high‑performance marine platform, delivering exceptional durability, precise dimensional accuracy, and a direct drop‑in fit.

Available as a bare piston or as part of a complete overhaul kit, this piston is designed to meet Yanmar's exacting standards. In this comprehensive guide, we examine its advanced construction, compatible engine variants, common failure signs, professional installation best practices, and why Rsolid Engine Parts is the preferred global supplier for Yanmar marine engine components.

1. Structural Features & Advantages of the 748690-95060 Piston

The 748690-95060 is a precision‑engineered piston incorporating several advanced design features to withstand the extreme demands of the 12AY V12 marine duty cycles:

• Premium aluminium‑silicon alloy – Manufactured from a high‑grade eutectic aluminium‑silicon alloy (typically Al‑Si12CuMgNi), this material provides an exceptional balance of lightweight construction, high thermal conductivity, and low thermal expansion. The elevated silicon content (12‑13%) offers outstanding scuff resistance, preventing piston‑to‑cylinder galling during cold starts and sudden load changes – a critical requirement in marine environments where rapid manoeuvring is common.

• Ni‑Resist® austenitic ring groove insert – The top compression ring groove is reinforced with a high‑nickel cast iron insert that resists micro‑welding and groove wear at peak firing temperatures (exceeding 2,000°C). This critical feature maintains proper ring seating and combustion sealing over thousands of operating hours, preventing costly blow‑by and power loss.

• Optimised skirt profile with anti‑friction coating – The piston skirt features a computer‑modelled ovality and barrel shape to accommodate thermal expansion uniformly. It is coated with a molybdenum disulphide (MoS₂) or graphite‑based solid lubricant layer, which reduces friction during the initial break‑in period, minimises scuffing risk, and promotes rapid ring seating for immediate oil control.

• Integral cooling gallery (oil‑cooled crown) – An enclosed oil channel is cast directly beneath the piston crown. During operation, pressurised engine oil is sprayed from the connecting rod or crankcase jets into this gallery, actively dissipating combustion heat. This reduces the piston crown temperature by as much as 25‑30°C, significantly extending fatigue life and reducing the risk of thermal cracking – particularly important in sustained high‑load marine applications.

• Precision‑weight matched sets – Each piston is machined to a strict weight tolerance of ±5 grams within a factory‑matched set. For a V12 engine, this is critical to ensure perfect dynamic balance across all twelve cylinders, reducing crankshaft torsional vibration, minimising main bearing wear, and delivering smoother operation – especially important for generator sets requiring stable frequency output.

• Premium piston pin compatibility – The pin bore is precision‑honed to accept a fully floating piston pin (sold separately). Some variants include a bronze or tin‑indium bushing to provide an additional bearing surface, reducing pin noise and ensuring long‑term durability.

• Direct drop‑in fit – The 748690-95060 is dimensionally identical to the original Yanmar piston, requiring no block machining or custom modifications for installation.

Operational benefits for vessel owners and marine engineers:

• Reduced oil consumption – Optimised ring groove geometry and anti‑wear coatings minimise oil bypass past the rings.

• Improved fuel economy – Restored compression ratios and precise crown height translate to better thermal efficiency and lower specific fuel consumption.

• Extended overhaul intervals – With proper fuel, air filtration, and coolant maintenance, this piston reliably delivers extended service life.

• Smoother, quieter operation – Weight‑matched sets and the anti‑scuff skirt coating reduce engine vibration and mechanical noise.

• 100% direct drop‑in fit – Identical to the original Yanmar piston in all critical dimensions – no modifications required.

2. Compatible Engine Models & Typical Applications

The 748690-95060 piston is specifically engineered for the Yanmar 12AY series – a V12, 4‑stroke, water‑cooled marine diesel engine widely used in commercial and auxiliary marine applications.

Engine Specifications (12AY series):

• Cylinder configuration: V12 (12 cylinders in V‑configuration)

• Method of operation: 4‑cycle, water‑cooled, direct injection, turbocharged

• Bore x stroke: OEM standard – verify with engine manual

• Displacement: Approximately 40‑50 litres (verify with engine manual)

Critical cross‑reference: The 748690-95060 is a genuine Yanmar service part number for standard‑size pistons in the 12AY V12 series. Oversize pistons may be available (+0.25mm, +0.50mm) – confirm your cylinder liner bore measurement and engine serial number before ordering. This piston is typically supplied as a bare unit; piston rings, pin, and circlips are ordered separately or as part of a complete repair kit.

3. Common Failure Modes & Installation/Replacement Recommendations

Typical Warning Signs Your Piston Needs Replacement

• Excessive blow‑by – Pressurised gases escaping into the crankcase, causing oil mist from the breather tube and reduced engine power.

• High oil consumption with blue exhaust – Continuous blue smoke at operating temperature indicates worn ring grooves, a scored skirt, or a cracked ring land allowing oil to enter the combustion chamber.

• Piston slap / metallic knocking – A hollow, metallic tapping noise, especially noticeable during cold starts, points to excessive piston‑to‑cylinder clearance due to skirt wear or ovality.

• Loss of compression / hard starting – Difficulty starting the engine, rough idle, and reduced load‑carrying capacity signal a cracked piston crown or severely worn rings.

• Metal particles in the oil – Finding aluminium or iron debris in the oil filter or sump indicates a piston in the early stages of catastrophic failure – immediate investigation is required.

Professional Installation Best Practices

Installing a new 748690-95060 piston requires meticulous preparation and precise execution. Follow these essential steps:

1. Thorough cylinder bore inspection – Before installation, measure the cylinder liner bore at top, middle, and bottom positions (both in the thrust and non‑thrust axes) using a dial bore gauge. Verify that the bore is within service limits and that the correct oversize piston matches the existing bore.

2. Piston ring end‑gap verification – Install the new rings into the cylinder bore (without the piston) and measure the ring end gaps using a feeler gauge. If the gap is too small, carefully file the ends with a ring filing tool. Never file rings on a used piston – always use the rings intended for the new piston.

3. Ring installation – Use a proper ring expander to fit the rings onto the piston. Never roll the rings over the piston skirt – this can scratch the MoS₂ coating. Ensure the ring markings face upward. Stagger the ring gaps at 120° intervals, ensuring they are positioned away from the thrust sides of the piston.

4. Lubrication – Coat the piston skirt, rings, and cylinder bore with clean engine oil or a high‑quality assembly lubricant. Lightly lubricate the piston pin and pin bore as well.

5. Connecting rod assembly – Attach the piston to the connecting rod using the piston pin. If using a fully floating pin, install new circlips and ensure they are fully and securely seated. Never reuse circlips.

6. Piston installation into cylinder – Use a high‑quality ring compressor to uniformly compress all rings. Gently tap the piston into the cylinder bore using a soft‑faced mallet. The piston should slide smoothly – if excessive force is required, stop and check for ring misalignment or incorrect ring gap.

7. Connecting rod bolt torque – Tighten the connecting rod bolts to the manufacturer's specified torque. Always use a calibrated torque wrench and angle gauge for accuracy.

8. Break‑in procedure – After complete reassembly, start the engine and run at low idle (no load) for 15‑20 minutes. Gradually apply load over the next 8‑10 hours. Change the engine oil and filter after the initial break‑in period.

4. Why Rsolid Engine Parts Is Your Preferred Global Supplier

Rsolid Engine Parts has been a trusted supplier of Yanmar, Mitsubishi, and Caterpillar diesel components for over 15 years, serving marine fleets, power plants, and workshops across six continents. Here is why the 748690-95060 piston from Rsolid is the intelligent choice:

• OEM‑equivalent manufacturing – Sourced from ISO 9001:2015 and IATF 16949 certified foundries, using identical materials and processes as genuine Yanmar service pistons.

• 100% dimensional and weight inspection – Every piston is measured and weight‑matched to guarantee perfect engine balance – especially critical for V12 configurations.

• Complete repair kit options – We offer this piston as a bare unit, with premium ring sets, or as a full overhaul kit.

• Global inventory and rapid dispatch – Strategically warehoused in Asia, Europe, and North America, ensuring 3‑7 working day delivery to most international ports and airports.

• Competitive wholesale pricing – Attractive volume discounts for workshops, fleet operators, and parts distributors.

• Free expert technical support – Our in‑house marine engineers provide installation guides, torque specifications, and troubleshooting via WhatsApp or email.

• Solid warranty – 12 months / 2,000 operating hours against casting defects, premature wear, and material failures.
