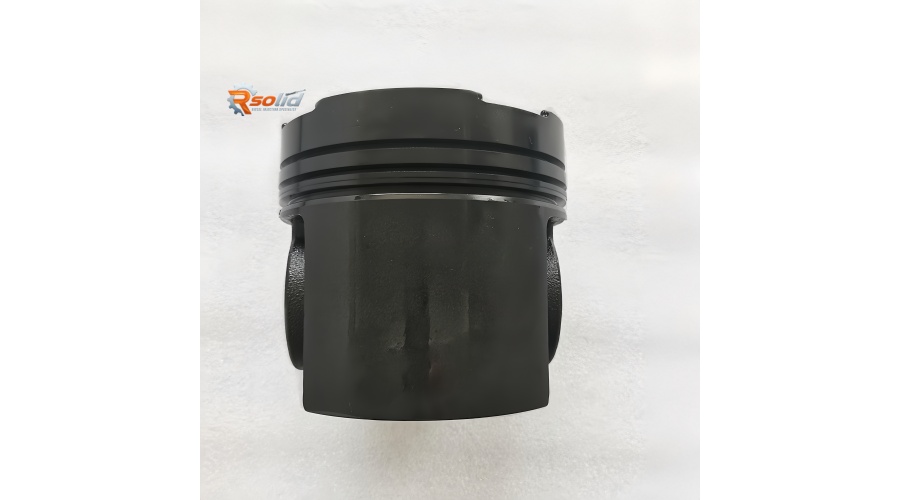

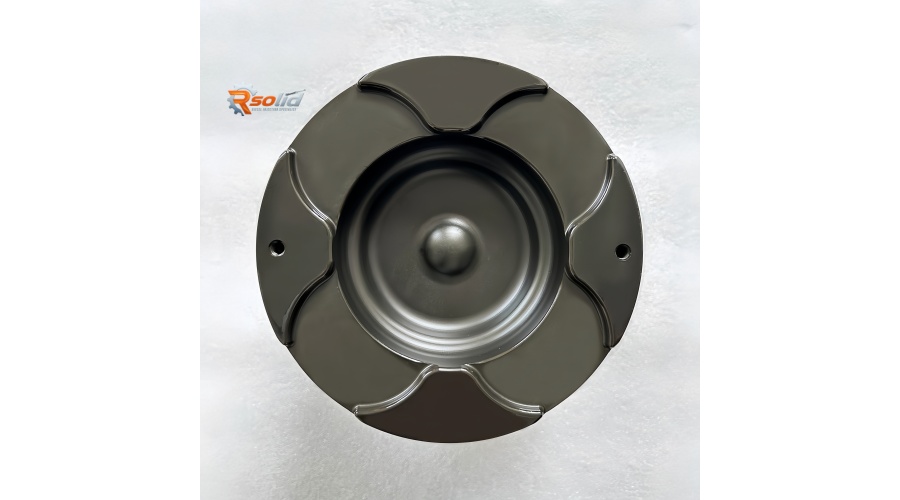

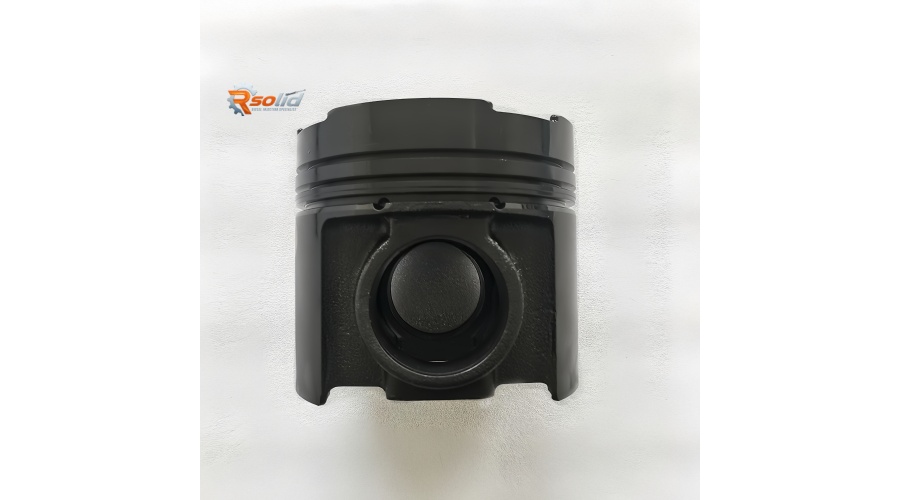

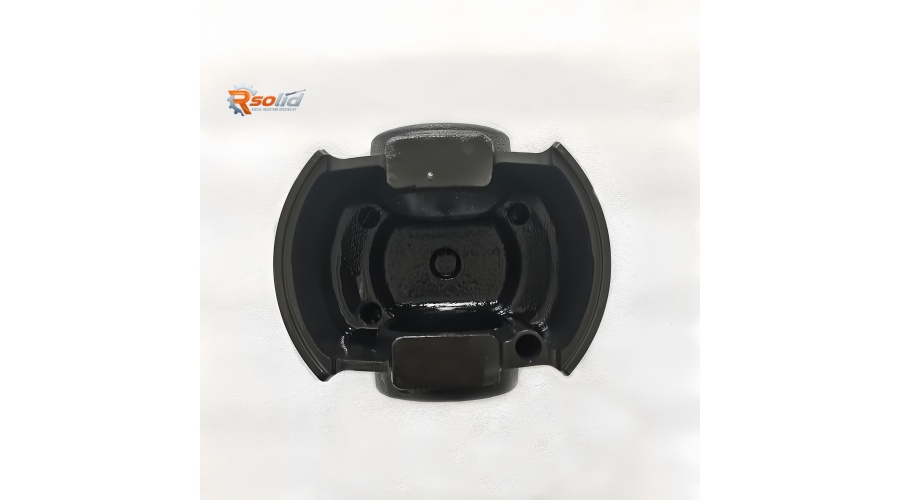

Marine Engine Part 6AY 748699-22800-C Piston – For Yanmar 6AY Series Diesel Engines
For marine propulsion and auxiliary generator sets, the Yanmar 6AY series has long been a benchmark for reliability, fuel economy, and compact power. Whether you are operating a fishing vessel, a pleasure yacht, or a land‑based genset, the engine's ability to generate smooth, consistent power depends on one critical moving component – the piston. The 6AY 748699-22800-C piston (also referenced as 748699-22800-C or Yanmar 6AY piston) is a precision-engineered, OEM‑grade replacement designed to restore compression, reduce oil consumption, and extend overhaul intervals for your Yanmar diesel.
As part of a complete repair kit or a stand‑alone purchase, this piston delivers the exact dimensional tolerances and metallurgical properties required for Yanmar's high‑speed, high‑temperature marine duty cycle. In this guide, we explore its advanced construction, compatible engine models, common failure signs, professional installation protocols, and why Rsolid Engine Parts is the trusted global supplier for Yanmar engine components.
1. Structural Features & Advantages of the 6AY 748699‑22800‑C Piston
The 748699-22800-C is not a generic casting – it is a sophisticated component engineered for the unique demands of medium‑speed marine and generator diesel engines. Its design highlights include:
High‑silicon aluminium alloy construction – Manufactured from a premium eutectic aluminium‑silicon alloy (typically Al-Si12CuMgNi), this material offers an excellent strength‑to‑weight ratio, high thermal conductivity, and low thermal expansion. The high silicon content (12‑13%) provides exceptional scuff resistance, reducing the risk of galling during cold starts and heavy load transients.
Advanced ring groove reinforcement – The top ring groove is fitted with a high‑nickel austenitic cast iron insert (Ni‑Resist® equivalent). This insert prevents micro‑welding and groove wear caused by the high combustion pressures and temperatures (peak firing up to 180 bar), maintaining proper ring sealing over thousands of operating hours.
Optimised piston skirt profile and coating – The skirt features a computer‑optimised ovality and barrel shape to accommodate thermal expansion. It is coated with a molybdenum disulphide (MoS₂) or graphite anti‑friction layer that reduces friction during the initial run‑in period, scuffing risk, and promotes rapid ring seating.
Internal cooling gallery – An enclosed oil cooling channel (cooling gallery) is cast just below the ring belt. When the engine is running, pressurised engine oil is sprayed from the crankcase through nozzle jets into this gallery, effectively carrying away combustion heat and reducing the piston crown temperature by up to 30°C, which significantly extends fatigue life.
Precision‑weight matched sets – Each piston is machined to a weight tolerance of ±5 grams within a matched set. This ensures perfect engine balance, reducing crankshaft torsional vibration and extending main bearing life, especially critical for generator sets operating at constant high RPM.
Premium pin bore with bronze bushing (optional) – The piston pin bore is precision‑honed and may include a tin‑indium or bronze bushing to provide a smooth bearing surface for the fully floating piston pin, minimising wear and eliminating piston pin noise.
Operational benefits for vessel owners and plant engineers:
Reduced blow‑by – The precise ring groove geometry and optimal crown height maintain a tight combustion seal, keeping crankcase pressure low.
Lower oil consumption – The plateau‑honed ring grooves and anti‑wear coatings reduce oil passing into the combustion chamber, cutting top‑up frequency by up to 25%.
Improved thermal efficiency – The cooling gallery lowers the piston crown temperature, allowing more aggressive ignition timing and better fuel economy.
Extended TBO (Time Between Overhauls) – With proper fuel and air filtration, this piston can achieve 8,000 – 12,000 hours of service life.
100% direct fit – Matches OEM dimensions exactly, requiring no additional machining. Drop‑in replacement for the original 748699-22800-C piston.
2. Compatible Engine Models & Typical Applications
The 6AY 748699-22800-C piston is specifically designed for the Yanmar 6AY series – a family of inline 6‑cylinder, 4‑stroke, water‑cooled diesel engines widely used in marine and stationary applications.
| Engine Model | Typical Applications |
|---|
| Yanmar 6AYM-GE | Prime power marine gensets, propulsion for small‑medium workboats |
| Yanmar 6AYM-WET | Pleasure yachts, fishing vessels, harbour auxiliary power |
| Yanmar 6AYM-MP | Marine propulsion for coastal freighters and tugboats |
| Yanmar 6AYM-ET | Standby generator sets, fire‑pump drives, industrial pump systems |
3. Common Failure Modes & Installation/Replacement Recommendations
Typical Warning Signs That Your Piston Needs Replacement
Excessive blow‑by and crankcase pressure – Indicates worn ring grooves, a scored skirt, or cracked ring lands, leading to power loss.
Blue exhaust smoke – Continuous blue smoke at operating temperature signals oil burning, usually from worn rings or a scored piston skirt.
Knocking or tapping noise – Piston slap caused by excessive skirt‑to‑cylinder clearance (wear or ovality) creates a metallic knock that worsens when cold.
Loss of compression / hard starting – Low cylinder compression from a cracked piston crown or severely worn ring grooves leads to difficult starting and rough idle.
Oil contamination / metallic debris – Finding aluminium or iron particles in the oil filter or sump indicates a piston in the process of catastrophic failure.
Professional Installation Best Practices
Installing a new 6AY 748699‑22800‑C piston requires precision and cleanliness. Follow these essential steps:
Cylinder bore measurement – Before installation, measure the cylinder liner bore with a bore gauge at top, middle, and bottom positions. Confirm that the bore is within service limits and that the correct oversize piston has been selected (if applicable). The piston‑to‑cylinder clearance for 6AY series is typically 0.10 – 0.18 mm – verify with your engine manual.
Piston ring end‑gap check – Install the new rings into the cylinder bore (without the piston) to check the ring end gaps. Typical gap for compression rings is 0.30 – 0.45 mm – adjust by filing if necessary. Never file the rings on a used piston.
Ring installation – Use a proper ring expander to fit the rings onto the piston. Never roll the rings over the piston skirt – this can scratch the coating. Ensure the markings ( "TOP" or a dot ) face upward. Stagger the ring gaps at 120° intervals, avoiding the thrust sides.
Lubrication – Coat the piston skirt, rings, and cylinder bore with clean engine oil or a specialised assembly lube. The piston pin and pin bore should also be lubricated.
Connecting rod assembly – Connect the piston to the connecting rod using the piston pin. If using a fully floating pin, install new circlips (snap rings) and ensure they are fully seated in their grooves.
Piston installation into cylinder – Use a high‑quality ring compressor to uniformly compress the rings. Gently tap the piston into the cylinder bore using a wooden hammer handle or a soft‑faced mallet. Never force the piston – it should slide in smoothly without excessive pressure.
Connecting rod bearing and cap torque – Apply the specified torque to the connecting rod bolts. For Yanmar 6AY, typical torque is 45 – 55 N·m plus a 90° angle‑tighten (check your manual). Use a torque angle gauge for accuracy.
Break‑in procedure – After final assembly, start the engine and run at low idle (no load) for 15‑20 minutes. Gradually apply load, avoiding full‑power operation for the first 8‑10 hours. Change the engine oil and filter after the initial break‑in period to remove assembly debris.
4. Why Rsolid Engine Parts Is Your Preferred Global Supplier
Rsolid Engine Parts has been a trusted supplier of Yanmar, Mitsubishi, Caterpillar, and other major diesel components for over 15 years, serving marine fleets, power plants, and workshops across the globe. Here is why the 6AY 748699-22800-C piston from Rsolid is the intelligent choice:
OEM‑equivalent quality – Sourced from ISO 9001:2015 and IATF 16949 certified manufacturers, using the same aluminium alloy chemistry, casting techniques, and ring groove hardening processes as genuine Yanmar service pistons.
100% dimensional and weight inspection – Every piston is measured for diameter, ovality, ring groove height, and weight. We supply pistons in weight‑matched sets (typically within ±5g) to ensure perfect engine balance.
Complete kit options – We offer this piston as a bare unit, with premium ring sets (Japanese or German steel), or as a full repair kit including the piston, rings, pin, circlips, and often a matching gasket set.
Global inventory – Strategically warehoused in Asia, Europe, and North America, ensuring 3‑7 working day delivery to most international ports and airports.
Competitive wholesale pricing – Volume discounts for workshops, fleet operators, and parts distributors. Enquire about our bulk order programme and consolidated shipping.
Free technical support – Our in‑house marine diesel engineers provide illustrated installation guides, torque specifications, and ring gap calculations via WhatsApp or email.
Solid warranty – 12 months / 2,000 operating hours against casting defects, premature wear, and material failures – with a straightforward return and replacement policy.
Contact Rsolid Engine Parts Today
📧 Email: amy@rinjector.com
📱 WhatsApp: +86 15975376778
Whether you need a single 6AY 748699-22800-C piston for a running repair or a full set of six pistons for a complete Yanmar 6AY overhaul, Amy and her team will provide a detailed quotation, stock confirmation, and shipping schedule within 2 hours. We also supply complementary parts – piston rings, cylinder liners, connecting rods, bearing shells, and complete gasket kits – for comprehensive engine rebuilds.
