ME062598 Cylinder Kit – Complete Overhaul Solution for Mitsubishi 8DC9 Diesel Engine
For operators of Mitsubishi 8DC9 engines – whether in heavy‑duty trucks, construction equipment, marine propulsion, or industrial power generation – a major overhaul is a significant investment that demands the highest quality components. The ME062598 cylinder kit is a comprehensive, OEM‑grade replacement solution engineered specifically for the 8DC9 platform, delivering everything required to restore a cylinder to factory‑fresh condition in one complete package.
This complete kit includes the piston, cylinder liner, piston rings, piston pin, circlips, and all necessary O‑rings and seals – factory‑matched to ensure optimal clearances and performance. As a V8 configuration engine, the 8DC9 places exceptional demands on its cylinders, making the quality of the overhaul kit critical to long‑term reliability. In this comprehensive guide, we examine its advanced construction, compatible engine variants, common failure signs, professional installation best practices,
1. Structural Features & Advantages of the ME062598 Cylinder Kit
The ME062598 is a complete cylinder kit, engineered to meet Mitsubishi's exacting standards for the 8DC9 heavy‑duty V8 diesel engine. Its design incorporates several advanced features:
Complete matched assembly – The kit includes the piston, cylinder liner, piston rings (3 compression + 1 oil), piston pin, circlips, and all O‑rings and seals – all factory‑matched to ensure proper clearances and optimal performance. This eliminates the need to source components individually and ensures compatibility.
Premium aluminium‑silicon alloy piston – The piston is manufactured from a high‑grade eutectic aluminium‑silicon alloy (Al‑Si12CuMgNi), providing an exceptional balance of lightweight construction, high thermal conductivity, and low thermal expansion. The elevated silicon content (12‑13%) offers outstanding scuff resistance, preventing piston‑to‑cylinder galling during cold starts and sudden load changes.
Ni‑Resist® austenitic ring groove insert – The top compression ring groove is reinforced with a high‑nickel cast iron insert that resists micro‑welding and groove wear at peak firing temperatures (exceeding 2,000°C). This critical feature maintains proper ring seating and combustion sealing over thousands of operating hours, preventing costly blow‑by and power loss.
Optimised skirt profile with anti‑friction coating – The piston skirt features a computer‑modelled ovality and barrel shape to accommodate thermal expansion uniformly. It is coated with a molybdenum disulphide (MoS₂) or graphite‑based solid lubricant layer, which reduces friction during the initial break‑in period, minimises scuffing risk, and promotes rapid ring seating.
Integral cooling gallery (oil‑cooled crown) – An enclosed oil channel is cast directly beneath the piston crown. During operation, pressurised engine oil is sprayed from the connecting rod jets into this gallery, actively dissipating combustion heat. This reduces the piston crown temperature by as much as 25‑30°C, significantly extending fatigue life and reducing the risk of thermal cracking.

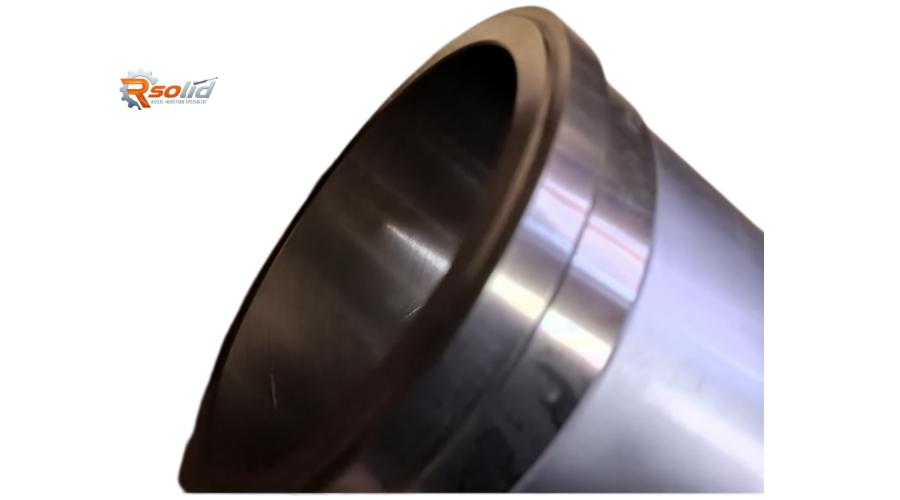

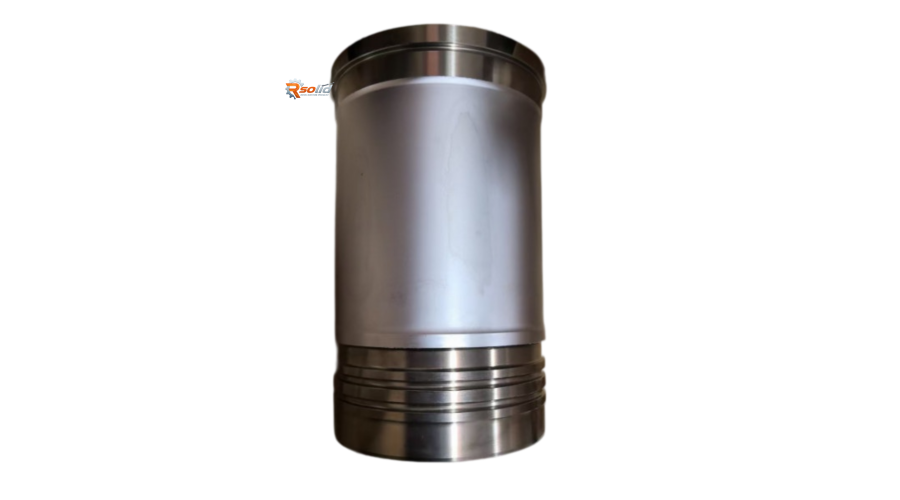

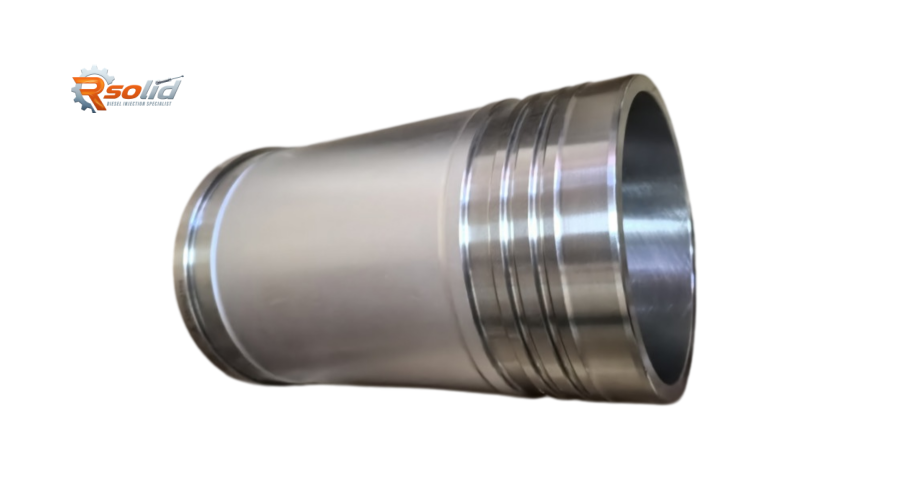

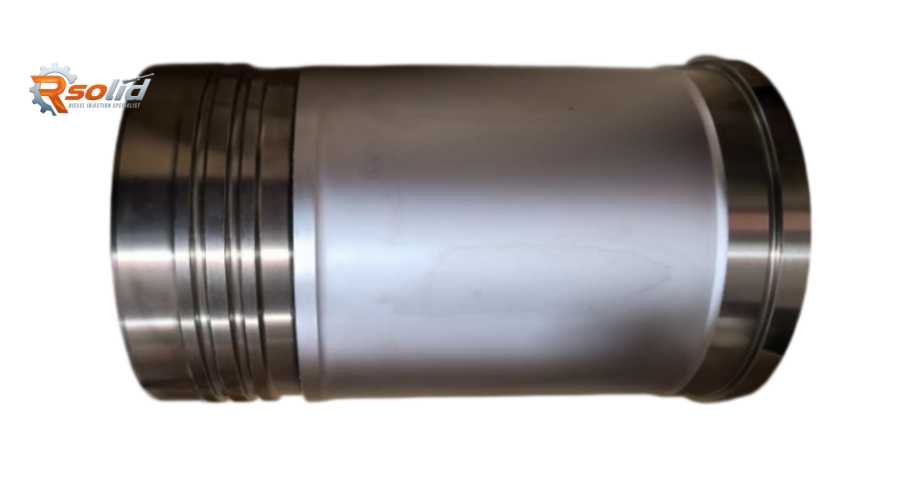

High‑grade alloy cast iron cylinder liner – The liner is manufactured from a specialised chromium‑molybdenum (Cr‑Mo) alloy cast iron, offering outstanding resistance to adhesive wear (scuffing), abrasive wear, and thermal fatigue. The alloy chemistry is optimised to maintain hardness and dimensional stability at sustained operating temperatures up to 300°C.

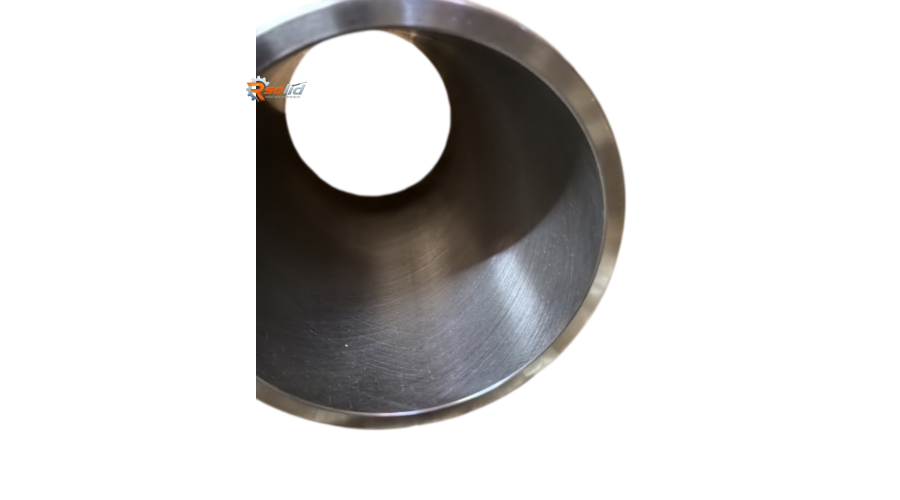

Induction‑hardened and plateau‑honed bore – The inner running surface is induction‑hardened to achieve a uniform surface hardness of HRC 52‑58, providing a durable wear layer that resists scoring from piston ring micro‑movement. The final finishing uses a multi‑stage plateau honing process, producing a controlled cross‑hatch pattern (30‑45° included angle) with a surface roughness (Ra) of 0.15 – 0.30 µm. This optimises oil film retention, ensures rapid ring seating, and significantly reduces oil consumption.
Precision‑ground ring set – The kit includes high‑quality piston rings that are precision‑ground and matched to the piston and liner for optimal sealing and low oil consumption.
Complete sealing solution – All O‑rings and seals required for installation are included, ensuring a leak‑free assembly.
Direct drop‑in fit – The ME062598 is dimensionally identical to the original Mitsubishi components, requiring no block machining or custom modifications for installation.
Operational benefits for equipment owners and engineers:
Complete solution – All required components in one kit – no need to source parts separately.
Reduced oil consumption – Optimised ring geometry and plateau‑honed liner minimise oil bypass.
Improved fuel economy – Restored compression ratios and precise clearances translate to better thermal efficiency.
Extended overhaul intervals – With proper maintenance, this kit delivers extended service life.
100% direct fit – Identical to original Mitsubishi components – no modifications required.
2. Compatible Engine Models & Typical Applications
The ME062598 cylinder kit is specifically engineered for the Mitsubishi 8DC9 engine – a V8, 4‑stroke, water‑cooled diesel engine widely used in heavy‑duty applications.
| Engine Model | Configuration | Typical Applications |
|---|
| Mitsubishi 8DC9 | V8 | Heavy‑duty trucks, construction equipment, buses, industrial machinery |
| Mitsubishi 8DC9 (Genset variants) | V8 | Prime and standby power generation |
| Mitsubishi 8DC9 (Marine) | V8 | Marine propulsion, auxiliary power for workboats |
Engine Specifications (8DC9):
Cylinder configuration: V8 (8 cylinders in 90° V‑configuration)
Method of operation: 4‑cycle, water‑cooled, direct injection
Bore x stroke: OEM standard – verify with engine manual
Displacement: Approximately 14‑16 litres (verify with engine manual)
Typical power output: 200‑300+ HP (depending on variant)
Critical cross‑reference: The ME062598 is a genuine Mitsubishi service part number for the complete cylinder kit (standard size). Oversize kits may be available (+0.25mm, +0.50mm) – confirm your cylinder bore measurement and engine serial number before ordering. The kit includes the piston, liner, rings, pin, circlips, and all seals as a matched set.
3. Common Failure Modes & Installation/Replacement Recommendations
Typical Warning Signs That Your Cylinder Kit Needs Replacement
Excessive blow‑by – Pressurised gases escaping into the crankcase, causing oil mist from the breather tube and reduced engine power.
High oil consumption with blue exhaust – Continuous blue smoke at operating temperature indicates worn rings, a scored liner, or worn ring grooves.
Piston slap / metallic knocking – A hollow, metallic tapping noise, especially noticeable during cold starts, points to excessive piston‑to‑cylinder clearance.
Loss of compression / hard starting – Difficulty starting, rough idle, and reduced load‑carrying capacity signal worn rings or a scored liner.
Coolant in oil – Milky oil emulsion indicates a failed liner seal or cracked liner.
Metal particles in the oil – Finding aluminium or iron debris indicates active wear – immediate investigation is required.
Professional Installation Best Practices
Installing a new ME062598 kit requires meticulous preparation and precise execution. Follow these essential steps:
Thorough cleaning of the cylinder block – Remove the old liner and meticulously clean the liner seat in the block using a suitable solvent and a non‑abrasive pad. Remove all old O‑ring residue, carbon deposits, and rust. The seat must be perfectly clean and dry.
Inspect the block bore – Using a dial bore gauge, measure the block's liner housing for ovality and out‑of‑round. Ensure it remains within service limits (typically less than 0.03 mm variation).
Lubricate and fit new O‑rings – Lightly coat the new O‑rings (included in the kit) with clean engine oil or a specialised rubber assembly lubricant. Never use silicone grease or petroleum jelly.
Install the liner – Using a dedicated liner installation tool or a hydraulic press, insert the liner squarely into the block bore. Never strike the liner flange directly with a hammer.
Measure liner protrusion – After seating, measure the liner's height above the block deck using a dial gauge. The protrusion must be consistent (typically 0.05 – 0.15 mm) and within the engine manual's specified range.
Final bore verification – Re‑check the bore for roundness and taper to ensure no distortion occurred.
Piston ring end‑gap verification – Install the new rings into the cylinder bore (without the piston) and measure the ring end gaps. If the gap is too small, carefully file the ends with a ring filing tool.
Ring installation – Use a proper ring expander to fit the rings onto the piston. Never roll the rings over the piston skirt. Ensure ring markings face upward. Stagger the ring gaps at 120° intervals.
Lubrication – Coat the piston skirt, rings, and cylinder bore with clean engine oil or a high‑quality assembly lubricant.
Connecting rod assembly – Attach the piston to the connecting rod using the piston pin. Install new circlips and ensure they are fully and securely seated.
Piston installation into cylinder – Use a high‑quality ring compressor to uniformly compress all rings. Gently tap the piston into the cylinder bore using a soft‑faced mallet. The piston should slide smoothly.
Connecting rod bolt torque – Tighten the connecting rod bolts to the manufacturer's specified torque. Always use a calibrated torque wrench and angle gauge for accuracy.
Break‑in procedure – After complete reassembly, start the engine and run at low idle (no load) for 15‑20 minutes. Gradually apply load over the next 8‑10 hours. Change the engine oil and filter after the initial break‑in period.
4. Why Rsolid Engine Parts Is Your Preferred Global Supplier
Rsolid Engine Parts has been a trusted supplier of Mitsubishi, Yanmar, and Caterpillar diesel components for over 15 years, serving fleets, power plants, and workshops across six continents. Here is why the ME062598 cylinder kit from Rsolid is the intelligent choice:
OEM‑equivalent manufacturing – Sourced from ISO 9001:2015 and IATF 16949 certified foundries, using identical materials and processes as genuine Mitsubishi service parts.
100% dimensional inspection – Every component is inspected for dimensional accuracy – pistons are weight‑matched, liners are checked for roundness and surface finish, and rings are verified for end‑gap and tension.
Complete kit – All components included in one convenient package – no need to source parts separately.
Global inventory and rapid dispatch – Strategically warehoused in Asia, Europe, and North America, ensuring 3‑7 working day delivery to most international ports and airports.
Competitive wholesale pricing – Attractive volume discounts for workshops, fleet operators, and parts distributors.
Free expert technical support – Our in‑house engineers provide installation guides, torque specifications, and troubleshooting via WhatsApp or email.
Solid warranty – 12 months / 2,000 operating hours against casting defects, premature wear, and material failures.
Contact Rsolid Engine Parts Today
📧 Email: amy@rinjector.com
📱 WhatsApp: +86 15975376778
Whether you need a single ME062598 cylinder kit for a running repair or a full set of eight kits for a complete Mitsubishi 8DC9 V8 overhaul, Amy and her team will provide a detailed quotation, stock confirmation, and shipping schedule within 2 hours. We also supply complementary parts – connecting rods, bearing shells, and gasket sets – for comprehensive engine rebuilds.
Choose the ME062598 cylinder kit from Rsolid – engineered for uncompromising durability, reduced oil consumption, and reliable power for your Mitsubishi 8DC9 V8 diesel engine.
