Diesel Injector Return Flow Test: Step-by-Step Procedure and How to Read the Results

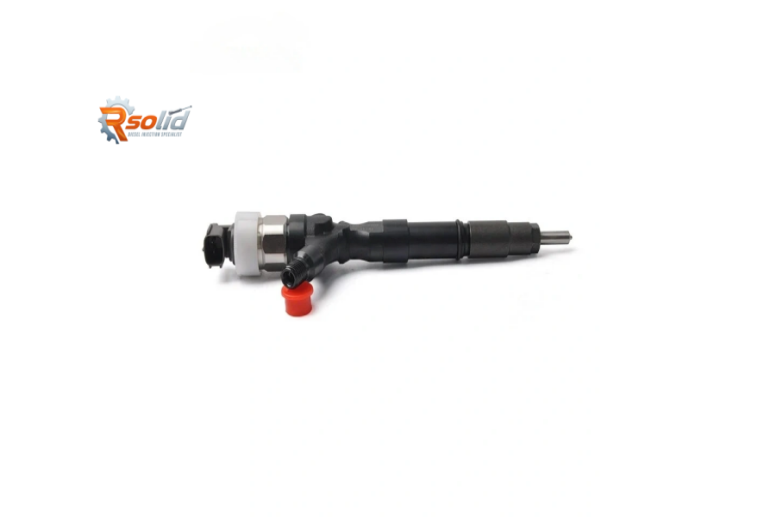

A diesel injector return flow test—also called a leak-off test or injector leak-back test—is one of the most useful first checks for common-rail diesel injector problems. It measures how much fuel each injector sends back to the tank through the low-pressure return circuit. Excessive return flow from one injector often points to internal wear, a leaking control valve, or a nozzle problem.
This guide explains the procedure step by step, how to read the results, and what real-world cases show. It focuses on common-rail diesel engines, where return flow testing is most common.
What Is a Diesel Injector Return Flow Test?
In a common-rail injector, a small amount of fuel continuously returns to the tank. This return flow is normal—it helps control injection and cools the injector. But when an injector wears internally or leaks, return flow can increase significantly.
The test compares the return volume from each injector over a set time. A single injector returning much more fuel than the others is a strong suspect.
Important: Return flow testing is a low-pressure test. Do not loosen high-pressure fuel lines while the engine is running.
Tools You Need
Injector leak-off / return flow test kit with graduated vials and adapters
Stopwatch
Manufacturer service data for return-flow specifications
Scan tool
PPE: gloves, safety glasses
Rags and a safe container for diesel
Fire extinguisher nearby
Use the correct adapters for the injector brand. A restricted or mismatched adapter can distort results.
Step-by-Step Diesel Injector Return Flow Test Procedure
1. Check the Basics First
Scan for fault codes. Check fuel pressure, air filter, boost pipes, and coolant condition. A return flow test is not a substitute for a compression test or a coolant leak test.
2. Warm the Engine
Run the engine to normal operating temperature unless the manufacturer specifies otherwise. Cold fuel and cold injectors can change return volumes.
3. Locate the Injector Return Circuit
Identify the low-pressure return line from each injector. On many common-rail engines, the injectors share a return rail or connect via short hoses. Confirm the layout in service information before disconnecting anything.
4. Stop the Engine and Relieve Low-Pressure Pressure
Switch off the ignition. Wear PPE. Place rags around fittings. Do not open high-pressure lines.
5. Set Up the Test Kit
Label each graduated vial for cylinder 1, 2, 3, etc. Connect the test hoses to each injector’s return port. Plug or route the original return line as required by the kit instructions.
6. Start the Engine and Check for Leaks
Start the engine and let it idle. Check every connection for leaks immediately. If fuel is spraying or a hose is loose, stop and fix it.
7. Run the Test for the Specified Time
Run the engine at idle for the time specified by the manufacturer—often 1 to 3 minutes. Some tests also require a high-idle or load step. Record the exact duration.
8. Record the Volumes
Compare the fuel level in each vial. Record volumes in milliliters. Note any bubbles, discoloration, or strong fuel smell.
9. Reconnect and Recheck
Reconnect the return lines, clean up spilled fuel, and clear any codes. Prime the system if needed and check for leaks.
How to Read Diesel Injector Return Flow Test Results
Always compare the results with OEM specifications and with the other injectors on the same engine.
| Test Result | What It Usually Means | Next Step |
|---|---|---|
| All injectors within spec and close to each other | Return circuit is healthy | Look elsewhere for the fault |
| One injector much higher than the rest | Suspect internal injector wear or leak | Bench-test or replace that injector, then code it |
| All injectors high | Verify test setup, adapters, duration, and OEM spec; possible widespread wear or pressure-control issue | Do not condemn all injectors without further testing |
| One injector much lower | Possible blocked return port or adapter problem | Check adapter and repeat the test |
| Bubbles in return flow | Air ingress | Check seals and connections; repeat test |
| Dark or contaminated fuel | Fuel contamination or internal damage | Inspect fuel system and filters |
Key Reading Rules
Compare cylinders, not just the spec. A single outlier matters.
Follow the exact test conditions. Idle time, temperature, and adapters affect results.
A high return flow does not confirm a bad spray pattern. It indicates internal leakage or wear. Bench testing confirms spray quality.
A low return flow is not always good. It may mean a blocked return path or a test setup error.
Real-World Cases
Case 1: Black smoke and poor fuel economy
A 2016 Ford Ranger 2.2 TDCi had black smoke under acceleration and about 9% worse fuel economy. Air and boost checks passed. A return flow test showed one injector returning roughly 2.5 times the volume of the others. Bench testing found a worn nozzle and internal leakage. After replacing and coding the injector, the black smoke and economy issue were resolved.
Reading: One high injector with black smoke is a strong overfueling clue.
Case 2: White haze and rough idle
A 2015 Ram 2500 with the 6.7L Cummins developed a white haze at idle after warm-up and a slight rough idle. There was no coolant loss, and the smoke smelled like raw diesel. The return flow test showed injector #4 filling much faster than the others. Replacement and coding fixed the white haze and rough idle.
Reading: White diesel-smelling smoke plus one high return volume points to injector dribble or poor atomization.
Case 3: All injectors “high” but no fault
A 2017 Volkswagen Crafter 2.0 TDI showed all four vials filling faster than expected. The technician repeated the test with the correct OEM adapters and the specified idle duration. All volumes were within spec. The first kit had restricted adapters, which skewed the results.
Reading: All-high results should trigger a setup check before parts replacement.
FAQ
How long should a diesel injector return flow test run?
Follow the manufacturer’s specification. Many tests run at idle for 1 to 3 minutes, but some require high idle or a timed load step.
Is a return flow test the same as a leak-off test?
Yes, the terms are often used interchangeably. It measures fuel returning from each injector through the low-pressure circuit.
Can I drive with an injector that has high return flow?
It is not recommended. High return flow can cause rough running, misfires, smoke, and limp mode. Diagnose it promptly.
Does a return flow test confirm a bad spray pattern?
No. It indicates internal leakage or wear. Bench testing is needed to confirm spray pattern and delivery quantity.
Why do I see bubbles in the return flow?
Bubbles usually mean air is entering the low-pressure circuit. Check seals, adapters, and hose connections, then repeat the test.
Conclusion
The diesel injector return flow test is a fast, low-cost way to narrow down common-rail injector problems. Warm the engine, use the correct adapters, run the test for the specified time, and compare each injector against OEM specs and the other cylinders. One high injector is a strong suspect; all-high results require a setup check first.
