ME152652 Piston Cylinder Kit for Mitsubishi 6D24 Diesel Engine: The Ultimate Rebuild Solution
ME152652 Piston Cylinder Kit for Mitsubishi 6D24 Diesel Engine: The Ultimate Rebuild Solution
When your Mitsubishi 6D24 diesel engine starts losing power, burning excessive oil, or showing signs of compression loss, the culprit often lies deep inside the combustion chamber. The ME152652 piston cylinder kit is the OEM-grade replacement assembly designed to restore your engine’s performance to factory specifications. In this comprehensive guide, we’ll explore why this kit is the gold standard for 6D24 overhauls, what’s included, installation tips, and how it can extend your engine’s service life by thousands of hours.

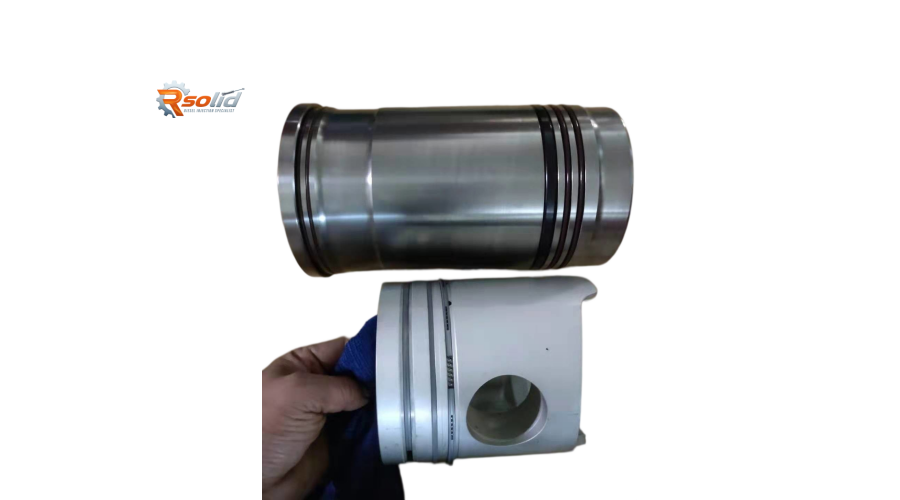

What Is the ME152652 Piston Cylinder Kit?
The ME152652 is a complete piston-and-cylinder assembly engineered specifically for Mitsubishi’s heavy-duty 6D24 inline-six diesel engine. This engine powers a wide range of construction equipment, forklifts, generators, and marine vessels—including popular models like the Mitsubishi FD/FG series forklifts, excavators, and industrial power units.

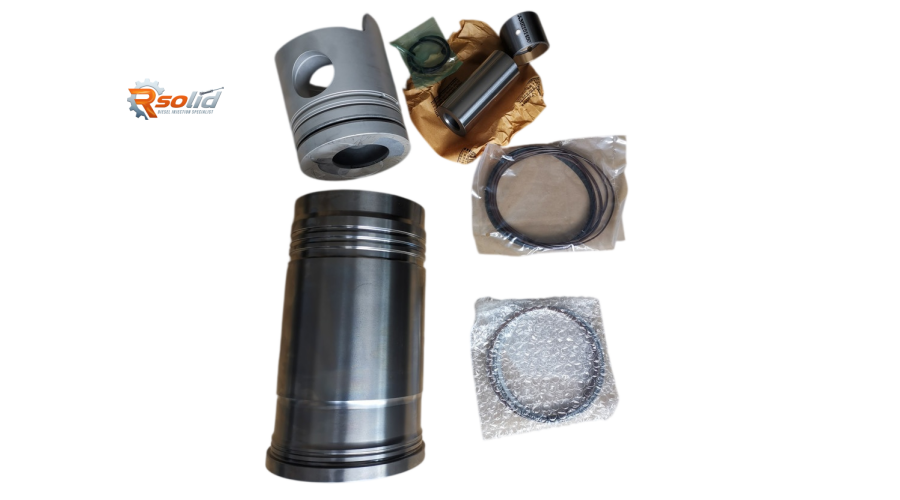

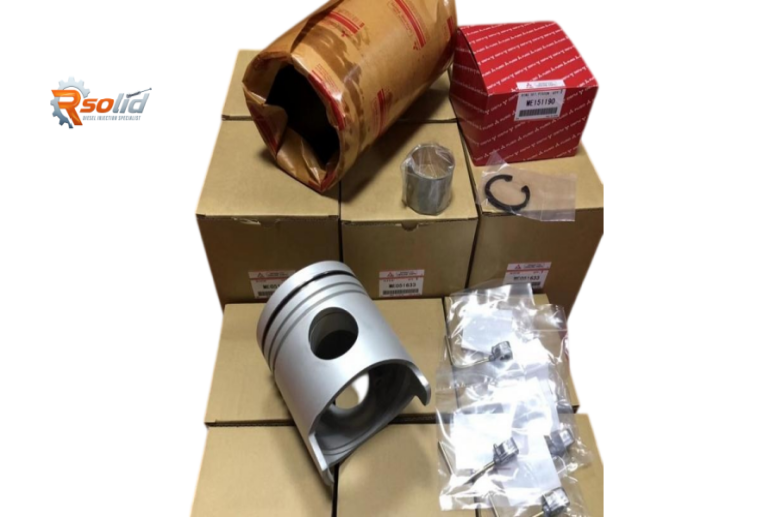

The kit typically includes:
Piston (with rings and pin)

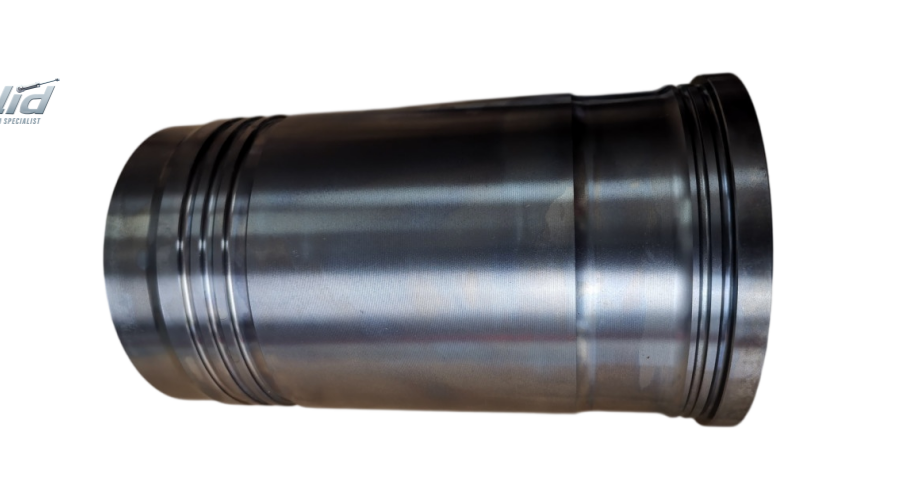

Cylinder liner (wet or dry type, depending on variant)
Piston rings (compression and oil-control rings)
Circlips and retaining components
Every component is manufactured to Mitsubishi’s original dimensional tolerances, ensuring a perfect fit without the need for additional machining in most cases.
Why Choose the Genuine ME152652 Over Aftermarket Alternatives?
1. Exact Match for 6D24 Specifications
The 6D24 has a bore of 130 mm and a stroke of 150 mm, with a displacement of 11.94 liters. The ME152652 kit matches the original piston crown design, ring groove depths, and liner wall thickness. Aftermarket kits often compromise on metallurgy or ring tension, leading to premature wear, blow-by, or overheating. OEM-grade ME152652 uses high-silicon aluminum alloy for the piston and centrifugally cast iron for the liner—materials proven to withstand the 6D24’s peak firing pressure of over 180 bar.
2. Optimized Ring Pack for Reduced Oil Consumption
The included ring set features a plasma-moly coated top ring, a tapered second ring, and a three-piece oil ring. This configuration minimizes friction while maintaining excellent oil scraping action. Users report up to 30% reduction in lube oil consumption compared to worn or mismatched rings.
3. Better Heat Dissipation
The cylinder liner’s honing crosshatch pattern is critical for oil retention and heat transfer. The ME152652 liner comes with a plateau-honed finish that promotes rapid break-in and reduces the risk of scuffing during the first 50 operating hours.
Signs Your 6D24 Engine Needs a New Piston Cylinder Kit
Hard starting – Low compression due to worn rings or scored liners.
Excessive blue/white smoke – Oil passing into the combustion chamber.
Loss of power under load – Blow-by gases escaping past the rings reduce effective cylinder pressure.
High crankcase pressure – Often accompanied by oil leaks from breather tubes.
Metallic knocking noise – Piston slap caused by excessive clearance between piston and liner.
If you observe any of these symptoms, a compression test and borescope inspection will confirm the need for a rebuild. Replacing only the piston rings without addressing liner wear is a temporary fix; the ME152652 kit ensures all mating surfaces are renewed simultaneously.
Step-by-Step Installation Best Practices
Proper installation is just as important as the quality of the parts. Follow these guidelines to maximize the life of your new ME152652 kit:
Cleanliness is paramount – Flush the crankcase, oil cooler, and all oil galleries before reassembly. Any debris trapped in the system will quickly damage the new liner and rings.
Measure liner protrusion – The 6D24 requires a specific liner height above the block deck (usually 0.05–0.12 mm). Use a dial gauge to verify; incorrect protrusion will cause head gasket failure.
Check piston-to-liner clearance – The service manual specifies 0.12–0.18 mm for a new assembly. Always measure at the thrust face, 90° from the piston pin axis.
Stagger ring gaps – Space the three ring gaps at 120° intervals to minimize blow-by. Do not align gaps with the piston pin or thrust side.
Use genuine gaskets and sealants – While the kit includes the piston and liner, you’ll need a new cylinder head gasket, O-rings, and anaerobic sealant for the liner counterbore.
Follow torque sequence – Tighten the cylinder head bolts in three stages, using the correct pattern (center outward) and final torque value of 350–370 N·m for the 6D24.
Expected Performance Gains After Rebuild
A properly installed ME152652 kit delivers measurable improvements:
Compression pressure restored to 28–32 kg/cm² (at cranking speed).
Fuel efficiency improved by 5–8% as the engine no longer overfuels to compensate for low compression.
Oil pressure stabilizes at idle and load due to reduced bearing clearances and consistent ring sealing.
Emissions drop significantly – lower opacity (smoke) and reduced hydrocarbon output.
Many fleet operators have logged over 8,000–10,000 hours of reliable service after a full in-frame rebuild using the ME152652 kit, provided regular maintenance (oil/filter changes every 250 hours) is followed.
Compatibility: Which Models Use the 6D24 and ME152652?
The 6D24 engine is found in:
| Equipment Type | Model Examples |
|---|---|
| Forklifts | Mitsubishi FD40–FD70, FGC40–FGC70 |
| Excavators | Mitsubishi MS110–MS180 |
| Industrial generators | MGS series, 150–250 kVA sets |
| Marine propulsion | 6D24-T, 6D24-TC |
| Trucks & buses | Fuso heavy-duty chassis (certain regions) |
Always verify your engine serial number and the existing part number on the old piston. The ME152652 supersedes earlier versions (e.g., ME152651), but cross-check with your dealer to confirm.
Where to Buy and What to Look For
When sourcing the ME152652, prioritize suppliers who:
Provide a clear certificate of authenticity or OEM packaging.
Offer a warranty (minimum 12 months or 2,000 hours).
Have positive reviews from heavy equipment repair shops.
Can supply complementary parts (bearing sets, head bolts, injection nozzles) for a complete overhaul.
Avoid "bargain" kits that copy the ME152652 number but use inferior castings—these often fail within 500 hours, costing you double in labor and downtime.
Cost-Benefit Analysis
The ME152652 kit typically retails between $350 and $600 depending on region and supplier. While this seems higher than generic alternatives (which may start at $200), the genuine kit’s longevity and reduced risk of catastrophic failure make it the more economical choice. Consider that a single scored cylinder due to a collapsed aftermarket liner can lead to a crankshaft regrind or block replacement—repairs exceeding $3,000.
For a professional shop, the labor time for a one-cylinder rebuild is about 6–8 hours. With the ME152652, you’ll perform this job once, not twice.
Maintenance Tips Post-Installation
Break-in period: Run the engine at varying loads (not full throttle) for the first 20 hours. Avoid prolonged idling.
Oil change: Replace oil and filter after the first 50 hours to remove break-in metallic particles.
Torque re-check: Retighten cylinder head bolts after the first cooldown (engine cold) as per manual.
Monitor coolant temperature: Ensure the thermostat and water pump are functional; overheating is the top killer of new liners.
Final Verdict
The ME152652 piston cylinder kit is not just a spare part—it’s a commitment to restoring your Mitsubishi 6D24 engine’s original power, efficiency, and reliability. Whether you’re a fleet manager, an independent mechanic, or an equipment owner, investing in this genuine assembly pays dividends in reduced fuel costs, fewer breakdowns, and extended engine life.
Don’t wait until a scored piston leaves you stranded. Plan your rebuild with the ME152652, and your 6D24 will run like new for years to come.
