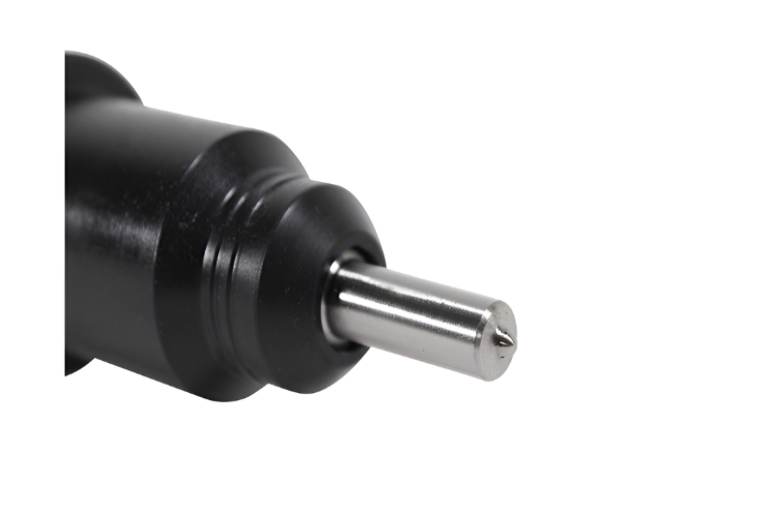

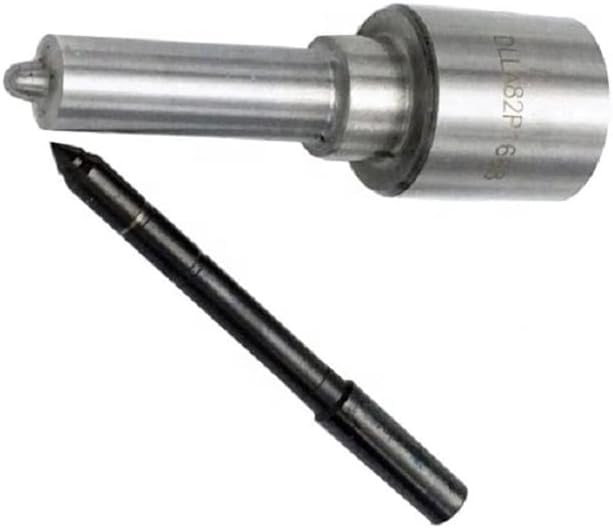

Core component of diesel injector: Tip nozzle
Mastering Injector Nozzle Design: Spray Angle, Penetration Distance, and Combustion Chamber Matching for Optimal Engine Performance
When it comes to diesel engine efficiency, power output, and emission control, few components matter as much as the fuel injector nozzle. Yet, many engine builders and fleet managers overlook the delicate interplay between spray angle, penetration distance, and combustion chamber geometry. Getting this triad right can mean the difference between a clean-burning, fuel-sipping workhorse and a smoky, carbon-fouled liability.
In this comprehensive guide, we’ll break down the science of injector nozzle design, explain how to match spray characteristics to your combustion bowl,
Why Nozzle Design Matters More Than You Think
The injector nozzle isn’t just a hole that squirts fuel. It’s the final arbiter of atomization, mixture formation, and combustion quality. Two parameters dominate this process:
Spray angle – the cone angle at which fuel exits the nozzle orifices.
Penetration distance – how far the fuel jet travels into the combustion chamber before breaking up and evaporating.
These aren’t independent variables. They interact with piston bowl shape, swirl ratio, boost pressure, and injection timing. A mismatch leads to:
Wall wetting (fuel hitting the cylinder liner or piston crown)
Over-mixing or under-mixing
Increased soot and NOx trade-offs
Reduced thermal efficiency and higher fuel consumption
Spray Angle: The Foundation of Air-Fuel Mixing
Spray angle is typically measured in degrees (e.g., 150°, 155°, 160°) and determines the initial spread of the fuel plume. A wider angle disperses fuel across a larger area, promoting better air entrainment – but only if the combustion bowl is wide enough to contain it.
Narrow vs. Wide Spray Angles
| Spray Angle | Best For | Risk |
|---|---|---|
| Narrow (≤145°) | Deep, narrow bowls; high-swirl engines | Poor air utilization; fuel-rich core |
| Medium (146°–155°) | Most modern medium-duty and heavy-duty engines | Balanced performance |
| Wide (≥156°) | Shallow, wide bowls; low-swirl designs | Wall impingement; increased HC and soot |
The key takeaway: spray angle must match the bowl lip diameter and bowl depth. If the angle is too wide for a given piston, fuel hits the bowl wall before atomizing completely, leading to liquid film formation and incomplete combustion.
Penetration Distance: The Hidden Variable
Penetration distance is the length the fuel jet travels from the nozzle orifice to the point where its velocity drops below the mixing threshold. It’s governed by:
Injection pressure (higher = longer penetration)
Nozzle hole diameter (larger = longer penetration)
In-cylinder gas density (higher density = shorter penetration due to drag)
Spray angle (wider angle generally reduces penetration)
The Goldilocks Zone
Too short: Fuel doesn’t reach the squish region, leaving unburned air in the bowl periphery.
Too long: Fuel impinges on the piston crown or cylinder wall, creating a “wet” zone that produces soot and dilutes engine oil.
Optimal penetration ensures the fuel jet reaches the outer recirculation zone of the bowl but stops before touching the wall. This requires precise hole sizing and number of orifices – a science that Rsolid Engine Parts has mastered through years of R&D and real-world testing.
Combustion Chamber Matching: The Complete Picture
Your combustion chamber (piston bowl) has its own “fingerprint” – diameter, depth, lip radius, and re-entrant geometry. To achieve complete combustion, the spray plume must:
Hit the bowl lip at the right angle to generate turbulence.
Follow the bowl contour without separating from the wall.
Mix with swirl air to create a homogeneous charge before ignition.
Practical Matching Guidelines
For shallow bowls (e.g., Euro VI / Tier 4 final): Use wider spray angles (155°–160°) and shorter penetration to avoid wall wetting.
For deep, narrow bowls (older engines): Narrower angles (145°–150°) with longer penetration ensure fuel reaches the bowl bottom.
High-swirl engines: Slightly narrower angles to counteract swirl-induced spray deflection.
Low-swirl engines: Wider angles to compensate for less air movement.
Modern computational fluid dynamics (CFD) can simulate these interactions, but the real test is on the dyno – and in the field. That’s why experienced tuners and rebuilders rely on proven nozzle specifications from trusted suppliers.
Why Rsolid Engine Parts Is Your Ideal Partner

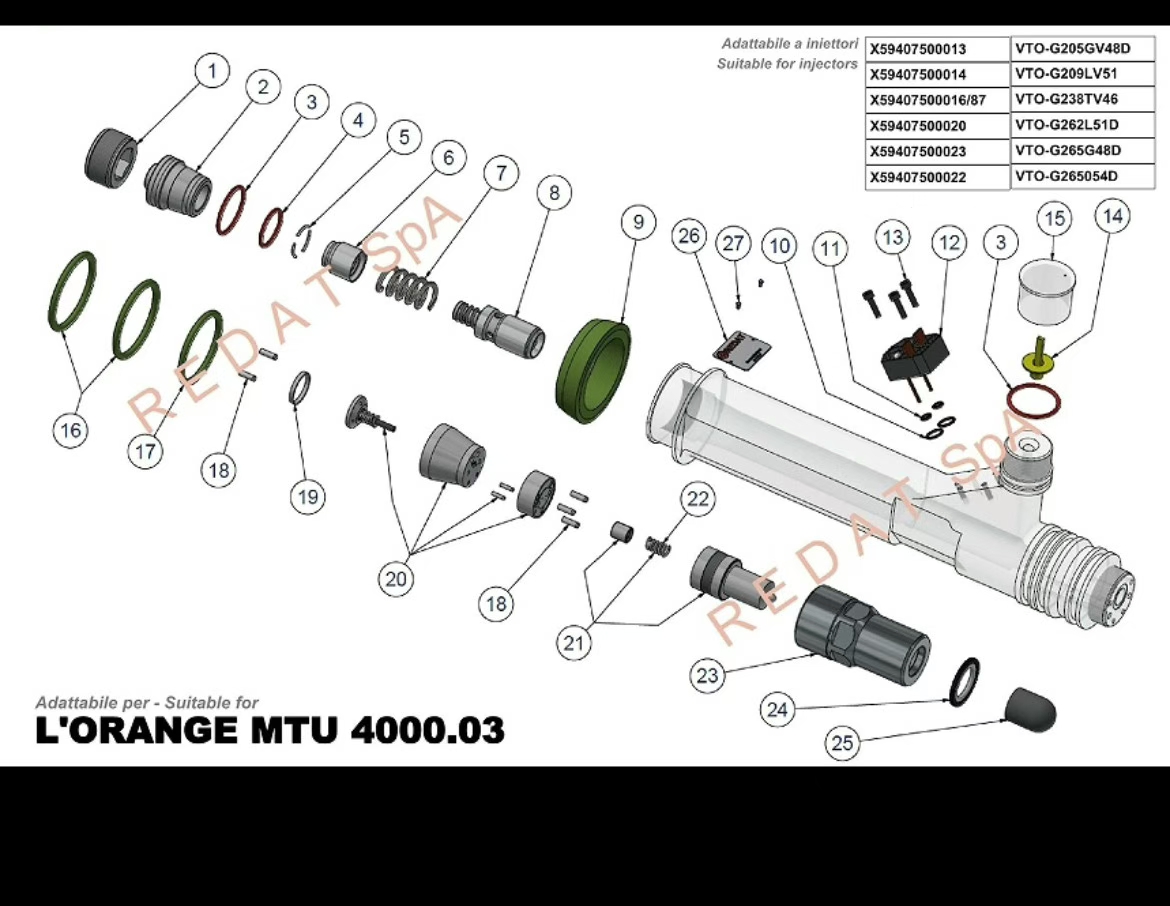

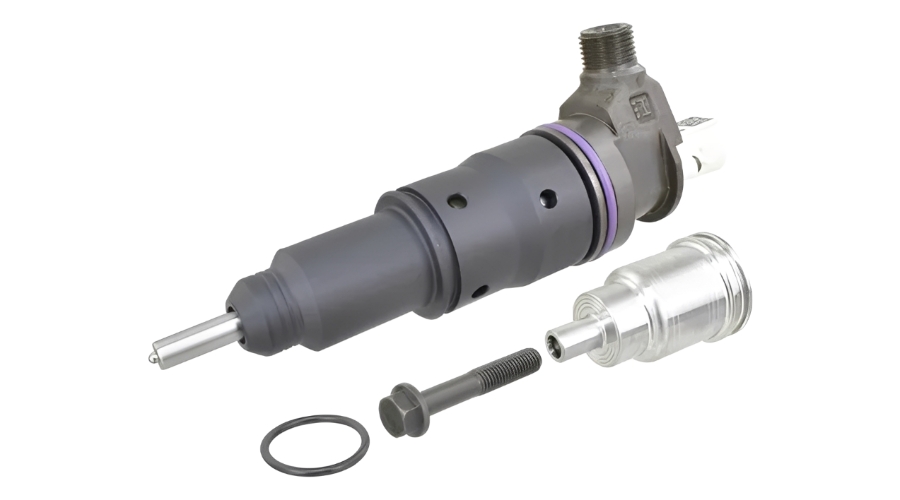

Rsolid Engine Parts isn’t just another nozzle vendor. We specialize in precision-ground, heat-treated injector nozzles that meet or exceed OEM tolerances. Our product range covers all major brands – Bosch, Delphi, Denso, and more – with spray angles from 140° to 165° and hole counts from 4 to 12.
What sets Rsolid apart:
ISO-certified manufacturing with 100% flow-testing on every nozzle.
Customization: We can adjust spray angle, hole diameter, and sac volume to match your specific piston bowl.
Technical support: Our engineers provide free consultation on spray-bowl matching – just send your engine model and piston part number.
Global shipping with fast delivery to North America, Europe, Asia, and Africa.
Whether you’re rebuilding a fleet of Cummins ISX, refurbishing a Caterpillar C15, or tuning a marine Yanmar, we have the right nozzle – or we’ll make it for you.
Real-World Case: Retrofitting for Lower Emissions
A recent customer operated a fleet of 2008 MAN trucks with high soot complaints. Original nozzles had a 150° spray angle and 0.28 mm holes. After analyzing their bowl geometry (wide, shallow), we recommended a 156° angle with 0.26 mm holes – slightly shorter penetration, wider spread. Result: soot reduced by 22%, fuel economy improved by 4.5%, and NOx stayed within legal limits. All it took was a nozzle swap.
How to Order the Right Nozzle
When contacting us, please provide:
Engine make, model, and year
Injector part number (e.g., 0 433 175 621)
Desired spray angle and hole configuration (if known)
Piston bowl dimensions (optional but helpful)
Our team will cross-reference our database and recommend the optimal specification.
