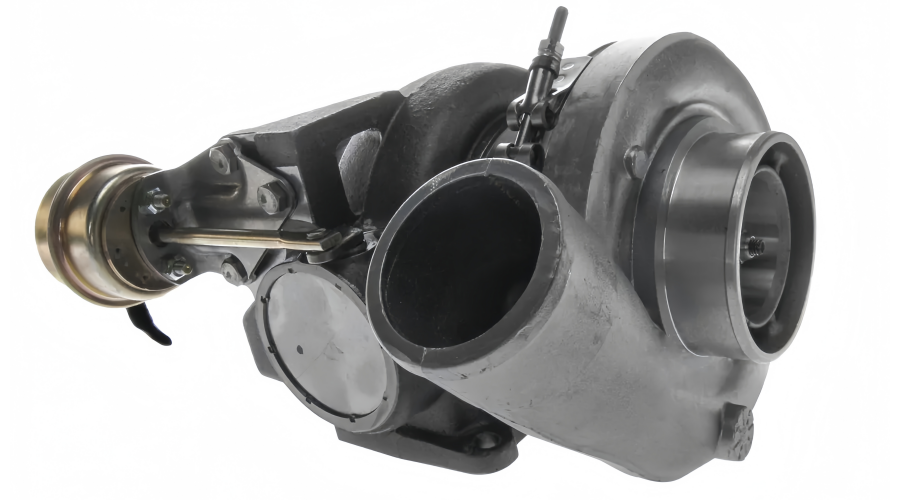

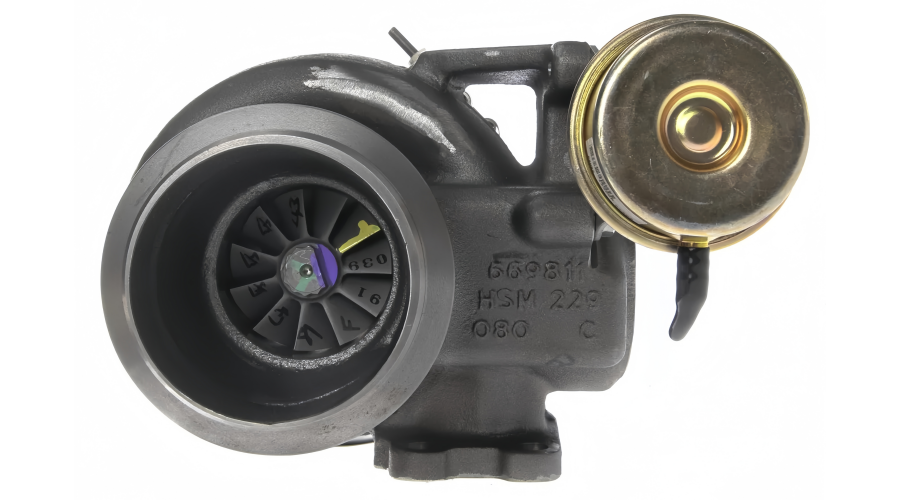

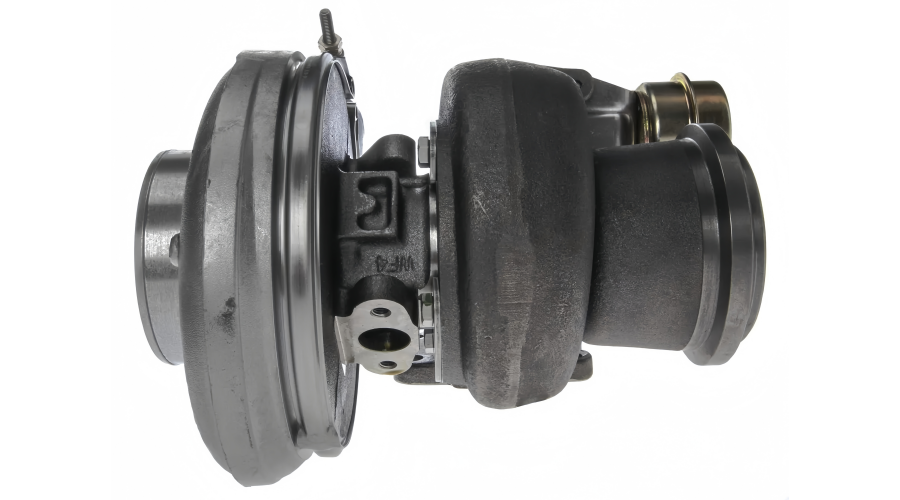

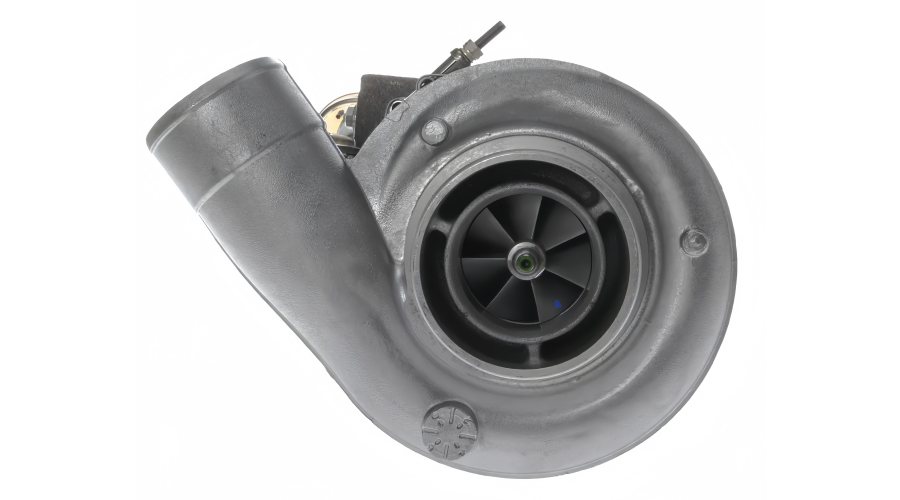

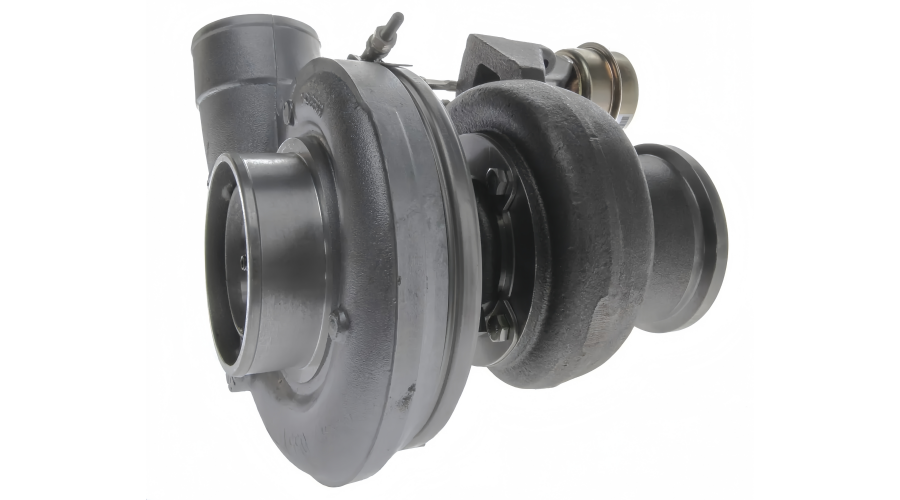

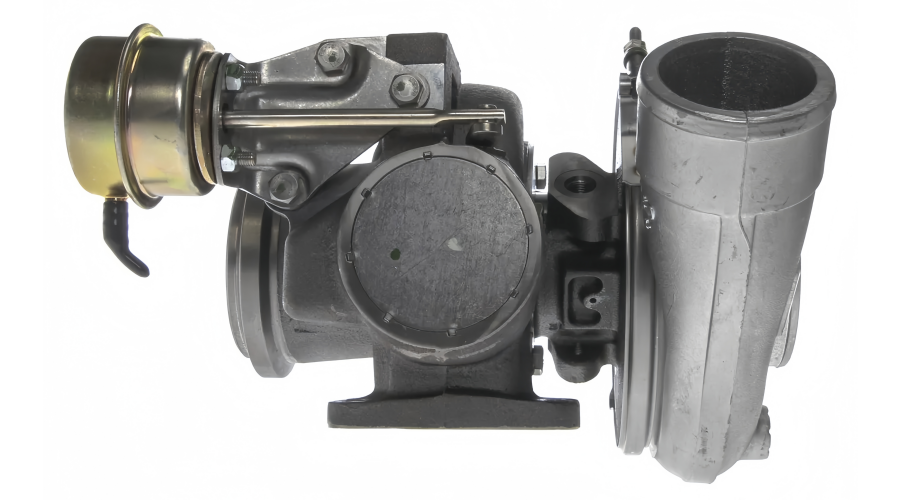

127TC21206000 Turbocharger for Caterpillar 3126B / 3126E Engines – Direct Fit, Reliable Boost, and Long Service Life

The 127TC21206000 Turbocharger is a high-performance replacement unit designed specifically for Caterpillar 3126B and 3126E diesel engines. Known for its robust wastegate design and efficient compressor mapping, this turbocharger restores lost horsepower, reduces exhaust smoke, and improves throttle response in medium‑duty trucks, buses, and construction equipment.

1. Structural Features and Advantages of the 127TC21206000 Turbocharger

The 127TC21206000 turbocharger is engineered to meet Caterpillar’s demanding performance and durability standards. Its key structural advantages include:

• High‑nickel cast iron turbine housing – Withstands extreme exhaust temperatures (up to 950°C) and resists thermal fatigue cracking.

• Forged and fully machined compressor wheel – Aerodynamically optimized 6+6 blade design provides rapid spool‑up and high flow efficiency across the engine’s operating range.

• Heavy‑duty floating journal bearings – Reduce friction, tolerate minor oil contamination, and are serviceable for extended turbo life.

• Integrated wastegate with reliable actuator – Maintains stable boost pressure (typically 18–26 PSI) to prevent over‑boost and protect engine internals.

• Direct bolt‑on replacement – Matches OEM mounting flanges, oil and water ports (if water‑cooled), and compressor outlet orientation for CAT 3126B and 3126E. Replaces part numbers 127TC21206000, 195‑6398, 196‑804, and 170‑344.

• Heat shield and oil slinger – Minimises oil coking and prevents oil leakage into the turbine or compressor side.

These features translate into lower exhaust gas temperatures (EGT), reduced turbo lag, and improved fuel economy – especially under heavy loads or long‑distance hauling.

2. Core Working Principle

The 127TC21206000 turbocharger operates on the principle of exhaust gas energy recovery. Here is the step‑by‑step process:

1. Exhaust gas entry – Engine exhaust flows into the turbine housing at high velocity and temperature.

2. Turbine wheel rotation – The gas spins the turbine wheel (made of Inconel or similar nickel‑based alloy) at speeds up to 110,000 RPM.

3. Common shaft drive – The turbine and compressor wheels are mounted on a common shaft, so the compressor spins simultaneously.

4. Air compression – The compressor wheel draws ambient air through the air filter, compresses it, and forces it into the intake manifold.

5. Increased power output – Denser air allows more fuel to be burned per cycle, increasing horsepower by 30–40% without increasing engine displacement.

A wastegate bypasses excess exhaust gas around the turbine once the preset boost level is reached, preventing over‑boost and engine damage. Some variants also include a water‑cooled centre housing for extreme duty cycles.

3. Primary Applications / Main Equipment

The 127TC21206000 turbocharger is widely used in vehicles and machines powered by CAT 3126B and 3126E engines. Typical applications include:

• Medium‑duty trucks – International 4700/4900, Freightliner FL/M2 series, Ford F‑650/750, Sterling Acterra.

• School and transit buses – Blue Bird, Thomas, IC Bus, Gillig with CAT 3126E.

• Construction equipment – Caterpillar backhoe loaders (416, 426, 428, 432), wheel loaders (910, 914G, 924G), and excavators (311, 312, 315).

• Agricultural machinery – Combines (e.g., CAT Lexion) and large tractors using 3126B engines.

• Marine propulsion – Small workboats and auxiliary generator sets.

• RVs and motorhomes – Diesel pushers with CAT 3126E (e.g., Monaco, Fleetwood, Tiffin).

This turbocharger is a direct OEM replacement for part numbers: 127TC21206000, 195‑6398, 196‑804, 170‑344, and 0R‑4870.

4. Common Failure Symptoms & Repair/Replacement Guidelines

Typical Failure Signs:

Repair and Replacement Key Points:

1. Pre‑removal inspection – Check shaft play (radial >0.5mm, axial >0.1mm indicates replacement). Inspect air filter, oil quality, and intake hoses for restrictions.

2. Use only OEM‑grade replacement – The 127TC21206000 must meet CAT’s balance and material specifications. Avoid unbranded counterfeits.

3. Pre‑lubricate the turbo – Pour clean engine oil into the oil inlet hole before installing to prevent dry‑start bearing seizure.

4. Replace oil feed and drain lines – Old lines often contain carbon sludge that can starve the new turbo of oil.

5. Use new gaskets and hardware – Torque manifold studs to 30–38 Nm; oil drain bolts to 20–25 Nm.

6. Prime the engine oil system – Crank the engine with the fuel shut off until oil pressure builds, then start and idle for 2–3 minutes.

7. Check for boost leaks – After installation, pressurise the intake system and listen for leaks at intercooler boots and gaskets.

8. Verify wastegate operation – Use a hand pump to ensure the actuator opens at specified pressure (typically 18–22 PSI).

⚠️ Critical: Always address the root cause (restricted oil supply, dirty air filter, excessive back pressure) before fitting a new turbo – otherwise, the replacement will fail prematurely.

OEM Cross Reference:
0R7279, 0R7569, 0R9865, 10R1103, 122-8567, 127TC21206000, 155-9661, 155-9664, 159-4740, 169980, 171744, 171745, 173701, 175480, 178089, 186-2532, 1862532, 195-5992, 195-5993, 195-5994, 195-5995, 195-5996, 195-5997, 195-5998, 195-5999, 1955992, 1955993, 1955994, 1955995, 1955996, 1955997, 1955998, 1955999, 228-3228, 2283228, 269-2915, 269-2916, 269-2917, 269-2918, 269-2919, 269-2920, 269-2921, 269-2922, 269-2923, 269-2924, 269-2926, 2692915, 2692916, 2692917, 2692918, 2692919, 2692920, 2692921, 2692922, 2692923, 2692924, 2692926, Re69128
