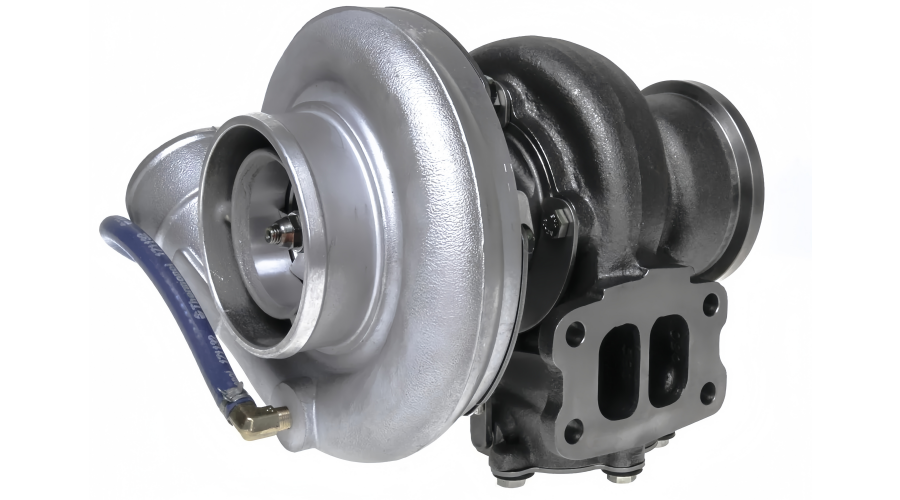

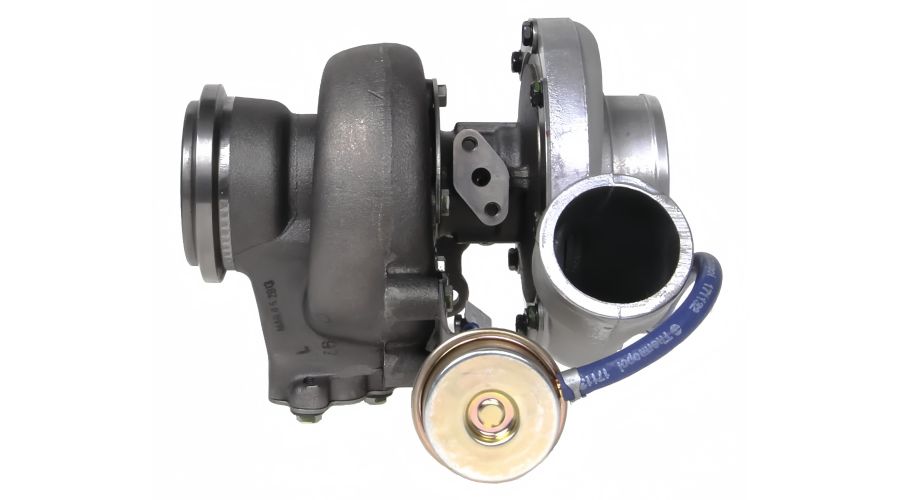

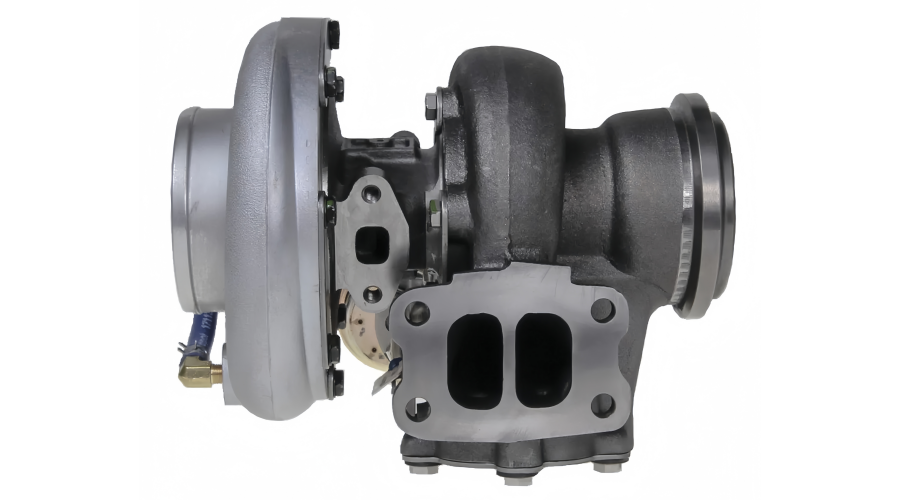

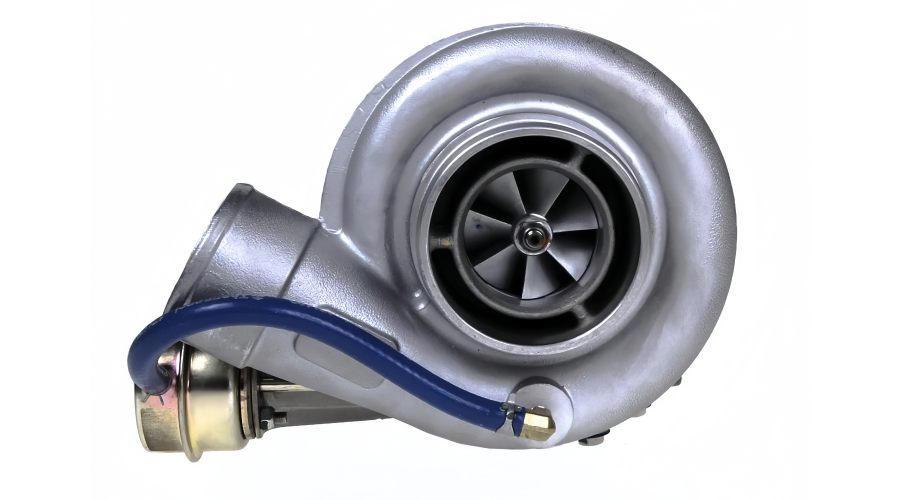

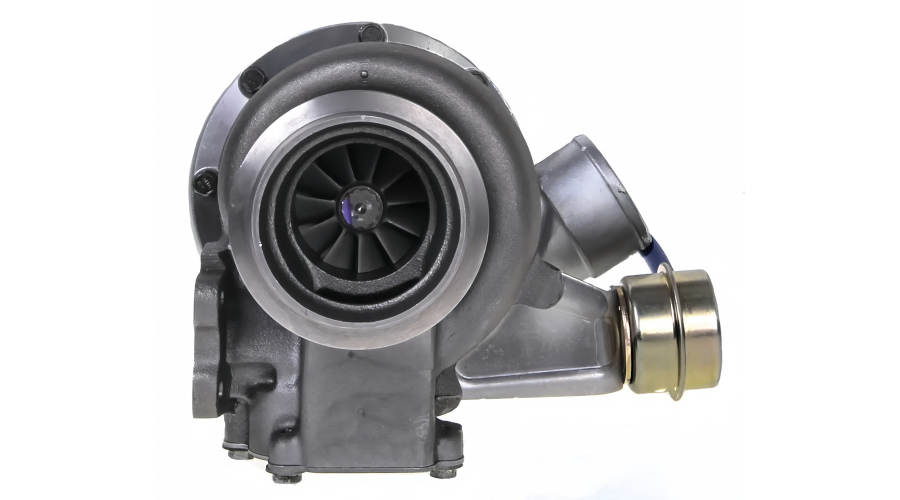

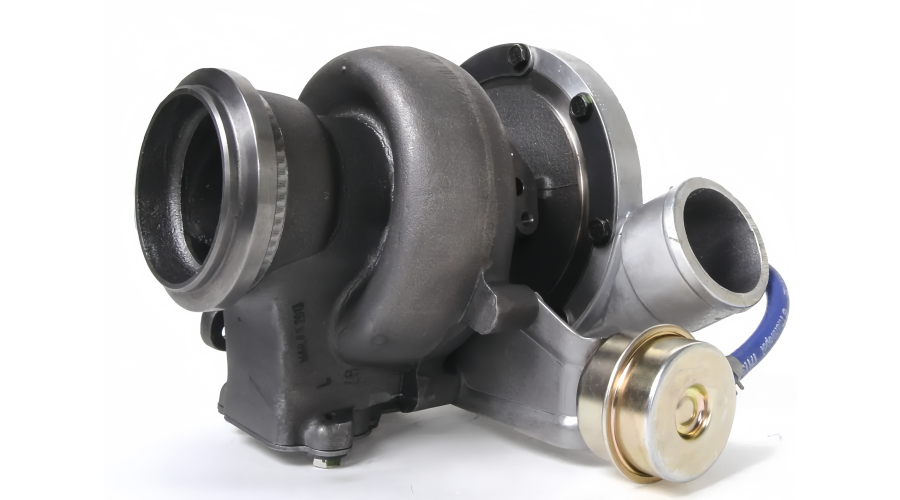

78468 Turbocharger for Caterpillar 3126B Diesel Engine – Reliable Power, Direct Fit, and Long Durability

The 178468 Turbocharger is a direct OEM‑grade replacement unit designed specifically for the Caterpillar 3126B diesel engine. This turbocharger restores original horsepower, reduces black smoke, and improves fuel efficiency in medium‑duty trucks, buses, and heavy equipment.

1. Structural Features and Advantages of the 178468 Turbocharger

The 178468 turbocharger is built to Caterpillar’s exacting standards for the 3126B engine platform. Its key design advantages include:

• High‑strength cast iron turbine housing – Withstands extreme exhaust temperatures (up to 950°C) and resists thermal cracking under heavy loads.

• Forged aluminium compressor wheel – Features a high‑flow 6+6 blade profile for rapid spool‑up and consistent boost across the RPM range.

• Dual floating journal bearings – Provide excellent damping, tolerate minor oil contamination, and are easily serviceable.

• Precision‑calibrated wastegate actuator – Maintains stable boost pressure (typically 17–25 PSI) to protect the engine from over‑boost.

• Direct bolt‑on fitment – Matches all mounting flanges, oil ports, and compressor outlet orientation for CAT 3126B. Replaces OEM numbers 178468, 194‑7221, 196‑803, and 0R‑4869.

• Heat shield and oil slinger – Reduce oil coking and prevent oil leakage into the turbine or compressor side.

These features result in lower exhaust gas temperatures (EGT), reduced turbo lag, and extended turbo life – even in demanding applications like construction and long‑haul trucking.

2. Core Working Principle

The 178468 turbocharger operates on the principle of exhaust gas energy recovery. Here is the step‑by‑step process:

1. Exhaust gas entry – Engine exhaust flows into the turbine housing at high velocity and temperature.

2. Turbine wheel rotation – The gas spins the turbine wheel (made of high‑nickel alloy) at speeds up to 110,000 RPM.

3. Common shaft drive – The turbine and compressor wheels share a single shaft, so the compressor spins simultaneously.

4. Air compression – The compressor wheel draws ambient air through the air filter, compresses it, and forces it into the intake manifold.

5. Increased power output – Denser air allows more fuel to be burned per cycle, increasing horsepower by up to 35% without raising engine displacement.

A wastegate bypasses excess exhaust gas around the turbine once the preset boost level is reached, preventing over‑boost and engine damage. The 178468 typically uses an oil‑cooled centre housing, though some variants include water‑cooling for extreme duty cycles.

3. Primary Applications / Main Equipment

The 178468 turbocharger is widely used in vehicles and machines powered by the CAT 3126B engine. Typical applications include:

• Medium‑duty trucks – International 4700/4900, Freightliner FL/M2 106, Ford F‑650/750, Sterling Acterra, GMC TopKick.

• School and transit buses – Blue Bird, Thomas Built Buses, IC Bus, Gillig with CAT 3126B.

• Construction equipment – Caterpillar backhoe loaders (416D, 426D, 428D, 432D), wheel loaders (914G, 924G), and excavators (311B, 312B, 315B).

• Agricultural machinery – Combines and large tractors using 3126B engines.

• Marine propulsion – Small workboats and auxiliary generator sets.

• RVs and motorhomes – Diesel pushers with CAT 3126B (e.g., Monaco, Fleetwood, Winnebago).

This turbocharger is a direct OEM replacement for part numbers: 178468, 194‑7221, 196‑803, 0R‑4869, and 170‑345.

4. Common Failure Symptoms & Repair/Replacement Guidelines

Typical Failure Signs:

Repair and Replacement Key Points:

1. Pre‑removal inspection – Check shaft play (radial >0.5mm, axial >0.1mm indicates replacement). Inspect air filter, oil quality, and intake hoses for restrictions.

2. Use only OEM‑grade replacement – The 178468 must meet CAT’s balance and material specifications. Avoid unbranded counterfeits.

3. Pre‑lubricate the turbo – Pour clean engine oil into the oil inlet hole before installing to prevent dry‑start bearing seizure.

4. Replace oil feed and drain lines – Old lines often contain carbon sludge that can starve the new turbo of oil.

5. Use new gaskets and hardware – Torque manifold studs to 30–38 Nm; oil drain bolts to 20–25 Nm.

6. Prime the engine oil system – Crank the engine with the fuel shut off until oil pressure builds, then start and idle for 2–3 minutes.

7. Check for boost leaks – After installation, pressurise the intake system and listen for leaks at intercooler boots and gaskets.

8. Verify wastegate operation – Use a hand pump to ensure the actuator opens at specified pressure (typically 18–22 PSI).

⚠️ Critical: Always address the root cause (restricted oil supply, dirty air filter, excessive back pressure) before fitting a new turbo – otherwise, the replacement will fail prematurely.

OEM Cross Reference:
0R7569, 1629103, 170227, 171574, 171595, 171636, 171998, 171999, 172000, 172001, 172002, 172003, 172004, 172005, 172006, 172007, 178468, 191-8028, 1918028, 192-0949, 1920949, 193-5867, 1935867, 198-8717, 198-8718, 198-8721, 198-8722, 198-8723, 198-8724, 198-8725, 198-8726, 198-8727, 1988717, 1988718, 1988721, 1988722, 1988723, 1988724, 1988725, 1988726, 1988727
