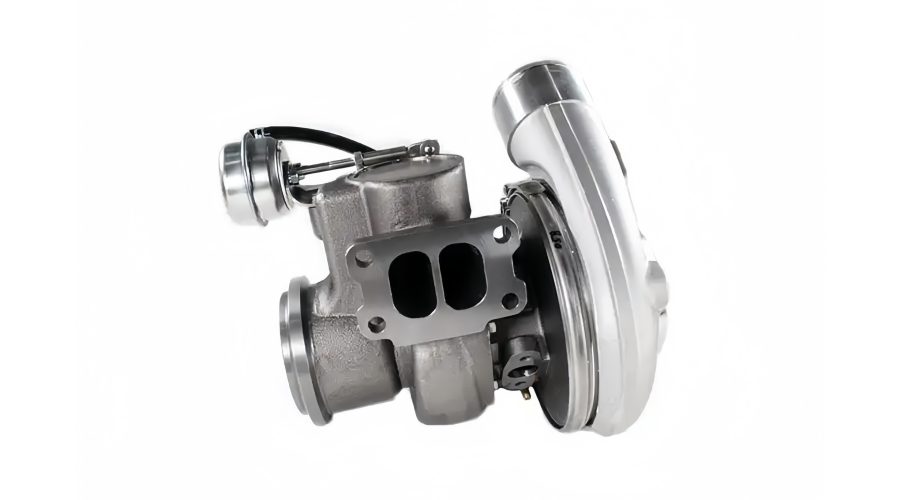

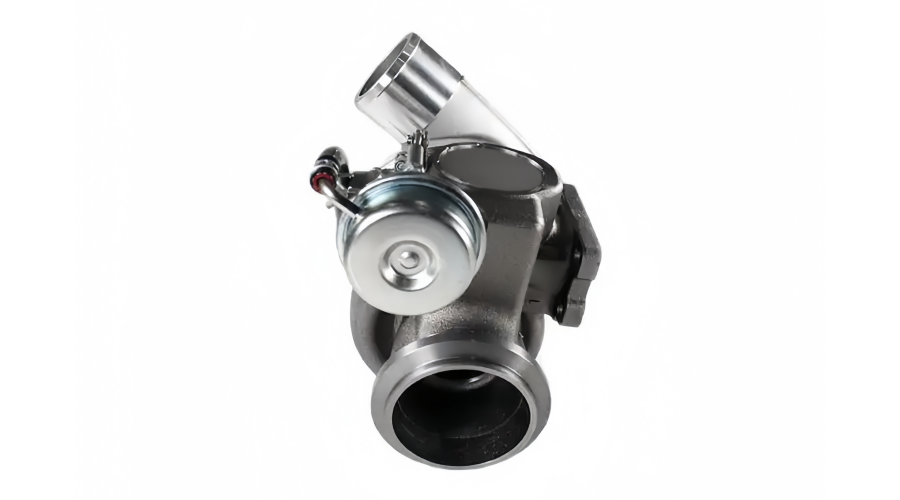

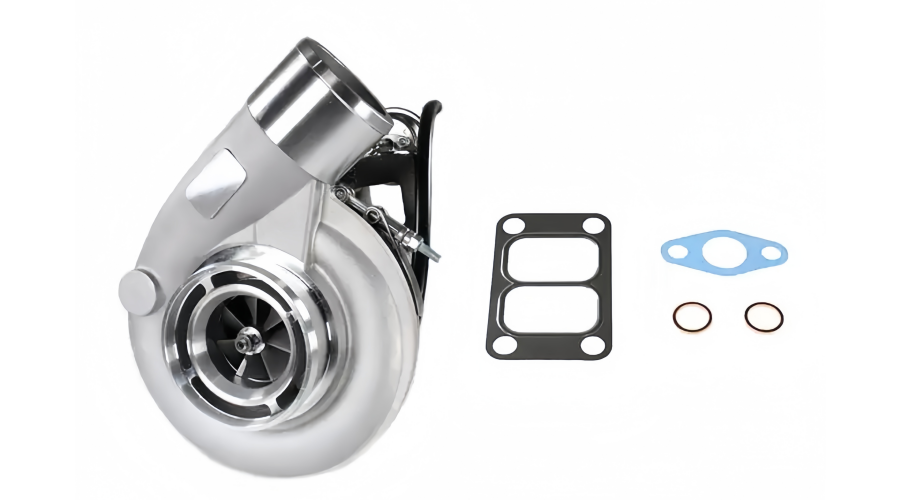

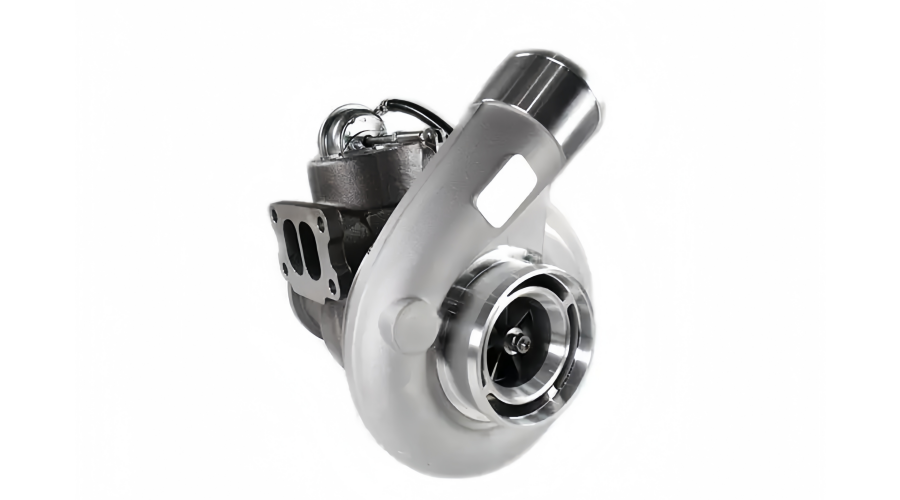

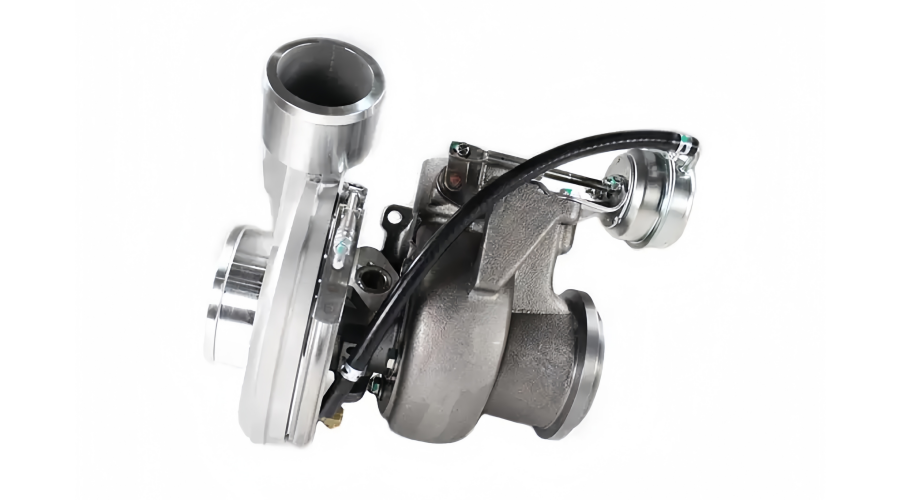

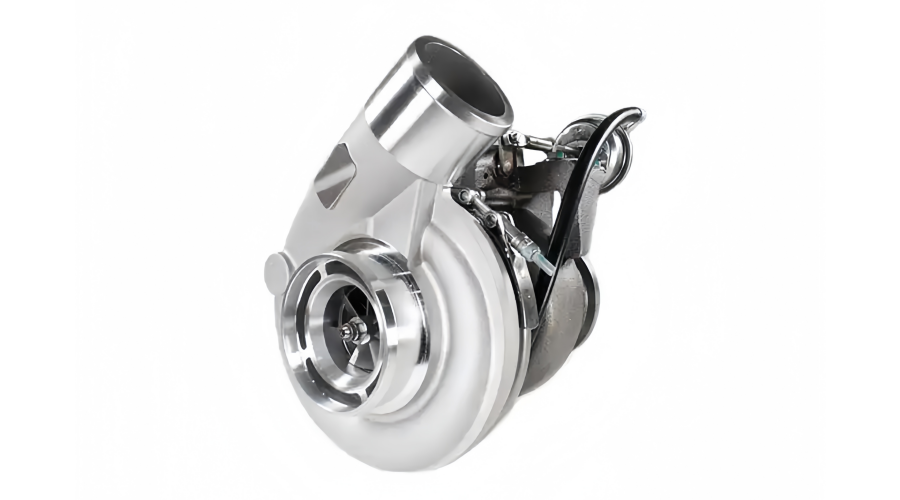

The 1700700252 Turbocharger is a high-performance forced induction component designed specifically for Caterpillar 3126 and C7 heavy-duty diesel engines (sometimes referred to as C73126 in some catalogs). Whether you operate a truck, bus, construction machine, or marine vessel, this turbocharger ensures optimal air density, fuel efficiency, and power output.

1. Structural Features and Advantages of the 1700700252 Turbocharger

The 1700700252 turbocharger is engineered for durability and rapid boost response in demanding environments. Its key design advantages include:

• One-piece cast iron turbine housing – Withstands extreme thermal cycling (up to 950°C) and resists cracking.

• High-efficiency compressor wheel – Made from forged aluminum alloy with aerodynamically optimized blades for faster spool-up.

• Floating bearing system – Dual oil‑film floating bearings reduce friction and tolerate minor oil contamination better than ball bearings.

• Integrated wastegate actuator – Precisely controls boost pressure (typically 18–25 PSI) to prevent over‑boost and engine damage.

• Direct bolt‑on fitment – Replaces OEM part numbers 1700700252, 170069, 194-7222, 172-4713 for CAT 3126 and C7 engines.

• Heat shield and oil deflector – Protects bearing housing from exhaust heat, reducing oil coking.

These features translate to lower exhaust gas temperatures (EGT), reduced turbo lag, and extended turbo life even under continuous high‑load operation.

2. Core Working Principle

The 1700700252 turbocharger operates on the principle of exhaust gas energy recovery to compress intake air. The step‑by‑step process is as follows:

1. Exhaust gas entry – Exhaust gases from the engine’s cylinders enter the turbine housing at high velocity and temperature.

2. Turbine wheel rotation – The gas flow spins the turbine wheel (made of high‑nickel alloy) at speeds up to 110,000 RPM.

3. Common shaft transfer – The turbine wheel and compressor wheel share a common shaft, so the compressor spins simultaneously.

4. Air compression – The compressor wheel draws ambient air through the air filter, compresses it, and forces it into the intake manifold.

5. Increased power output – Dense, compressed air allows more fuel to be burned per cycle, producing up to 35% more horsepower without increasing engine displacement.

A wastegate (integral to this model) opens when boost reaches a preset level, bypassing excess exhaust gas around the turbine to maintain safe boost pressure.

3. Primary Applications / Main Equipment

The 1700700252 turbocharger is widely used in diesel engines across multiple industries. Typical applications include:

• Medium‑duty trucks – Freightliner M2, International 4300, and other chassis with CAT 3126 or C7 engines.

• School and transit buses – Blue Bird, Thomas, IC Bus with CAT 3126 (7.2L) engines.

• Construction machinery – Caterpillar 3126‑powered excavators (e.g., 320C, 322C), wheel loaders (924G, 928G), and backhoe loaders.

• Agricultural equipment – Large tractors and combines using CAT C7 engines.

• Marine propulsion – Small workboats and auxiliary generator sets.

• RVs and motorhomes – Diesel pushers with CAT 3126 (e.g., Monaco, Fleetwood).

This turbocharger is a direct OEM replacement for part numbers: 1700700252, 170‑069, 194‑7222, 172‑4713, and 172‑4714.

4. Common Failure Symptoms & Repair/Replacement Guidelines

Typical Failure Signs:

Repair and Replacement Key Points:

1. Pre‑removal inspection – Check for shaft play (radial >0.5mm and axial >0.1mm indicates failure). Inspect air filter and oil condition.

2. Always use OEM‑spec replacement – The 1700700252 must meet CAT’s balance and material standards. Avoid cheap counterfeits.

3. Pre‑lubrication is critical – Pour clean engine oil into the turbo oil inlet before first start to prevent dry‑bearing seizure.

4. Replace oil feed and drain lines – Old lines may have carbon sludge or restrictions that starve the new turbo.

5. Use new gaskets and fasteners – Torque manifold studs to 35–40 Nm; oil drain bolts to 20–25 Nm.

6. Prime the engine oil system – Crank the engine with the fuel shut off until oil pressure registers, then start and idle for 2 minutes.

7. Perform a boost leak test – After installation, check all intake hoses and intercooler connections for leaks.

⚠️ Important: Always diagnose the root cause – a clogged oil supply, dirty air filter, or excessive back pressure will kill a new turbo quickly.

5. Why Choose Rsolid Engine Parts as Your Supplier?

Rsolid Engine Parts is a trusted global supplier of diesel engine components, including the 1700700252 turbocharger for CAT 3126 / C7 engines. Here is what makes us different:

📞 WhatsApp: +8615975376778
🌐Website: www.rinjector.com

Whether you need a single turbo for a fleet repair or bulk units for resale, Rsolid Engine Parts delivers reliability, performance, and peace of mind.
