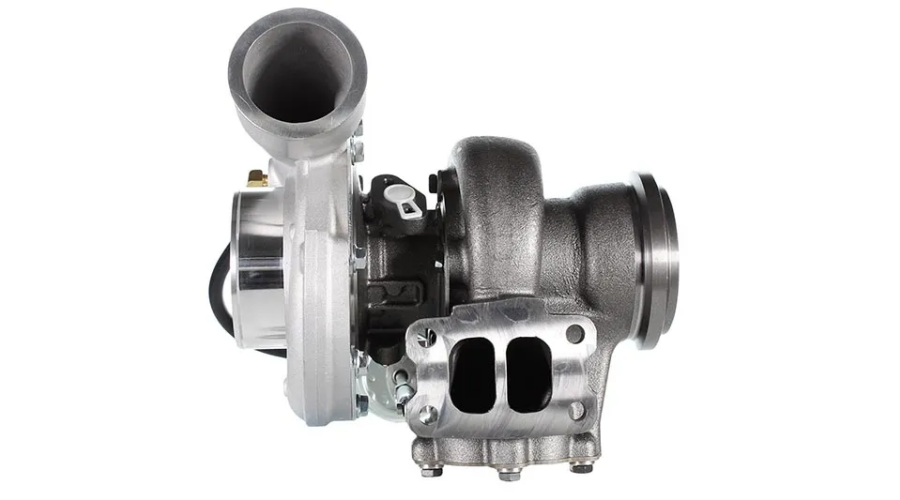

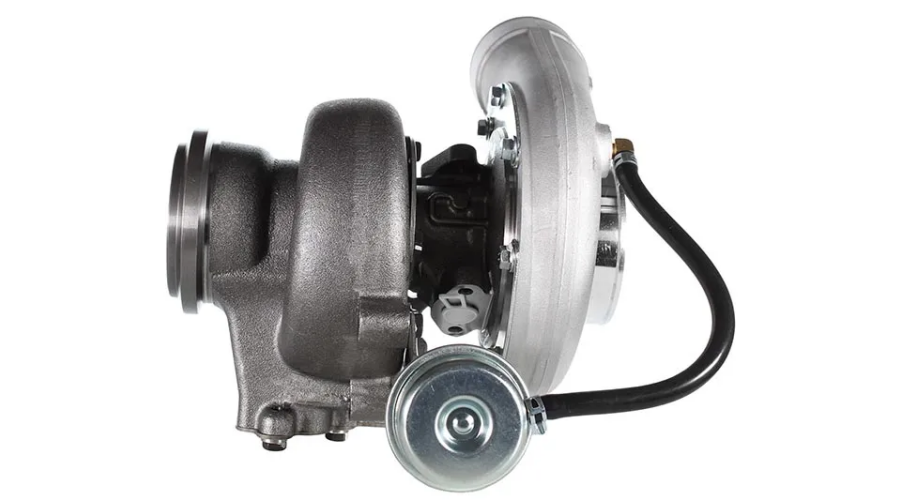

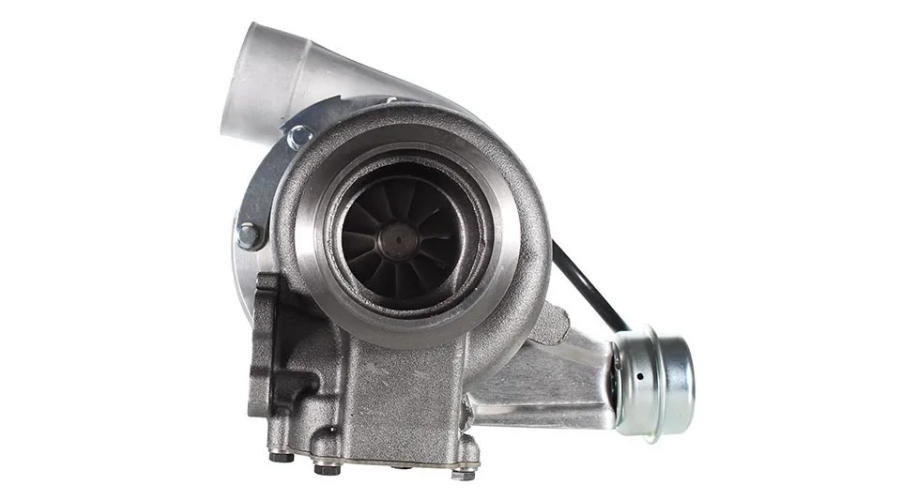

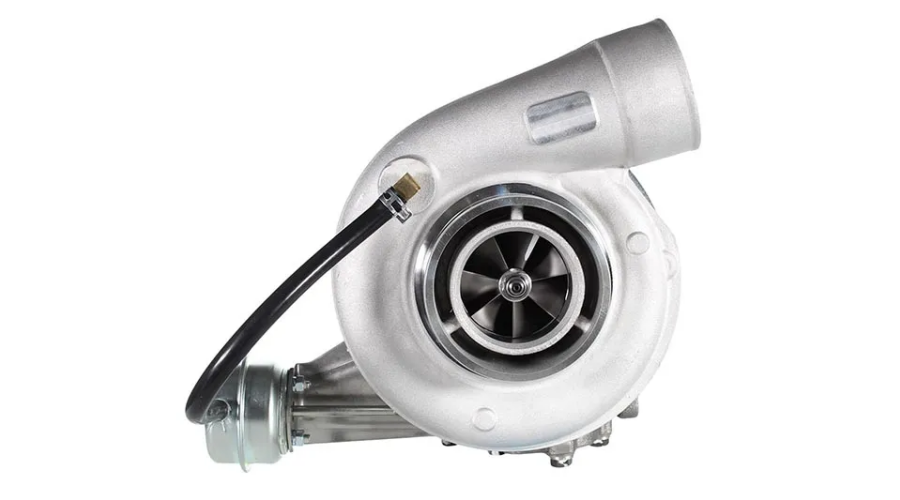

The 170343 Turbocharger is a direct‑fit forced induction solution for Caterpillar 3116, 3126B, and 3126E diesel engines. Known for its robust construction and responsive boost delivery.

1. Structural Features and Advantages of the 170343 Turbocharger

The 170343 turbocharger is built to withstand the harsh operating conditions of Caterpillar’s 3116 and 3126 engine families. Its key design advantages include:

• One‑piece high‑nickel turbine housing – Resists thermal cracking at exhaust temperatures up to 950°C.

• Forged aluminium compressor wheel – Aerodynamically profiled blades provide rapid spool‑up and high flow efficiency.

• Heavy‑duty floating journal bearings – Reduce friction and tolerate minor oil contamination better than ball bearings.

• Integrated wastegate actuator – Maintains stable boost pressure (typically 16–24 PSI) to protect the engine from over‑boost.

• Direct bolt‑on replacement – Matches OEM dimensions for CAT 3116, 3126B, and 3126E engines. Replaces part numbers 170343, 196136, 196804, and 107176.

• Heat‑shielded bearing housing – Minimises oil coking by isolating the bearing system from exhaust heat.

These features result in lower exhaust gas temperatures (EGT), reduced turbo lag, and longer service life even under continuous heavy loads.

2. Core Working Principle

The 170343 turbocharger uses exhaust gas energy to compress intake air, following this cycle:

1. Exhaust gas entry – Engine exhaust flows into the turbine housing at high velocity.

2. Turbine wheel rotation – The gas spins the turbine wheel (made of Inconel or similar nickel alloy) at speeds up to 105,000 RPM.

3. Common shaft drive – The turbine and compressor wheels share a single shaft, so the compressor spins simultaneously.

4. Air compression – The compressor wheel draws in ambient air, compresses it, and delivers it to the intake manifold.

5. Increased power output – Denser air allows more fuel to be burned per cycle, increasing horsepower by up to 30–40% without raising engine displacement.

A wastegate diverts excess exhaust gas around the turbine once the preset boost level is reached, preventing over‑boost and engine damage.

3. Primary Applications / Main Equipment

The 170343 turbocharger is widely used in vehicles and machines powered by CAT 3116, 3126B, and 3126E engines. Typical applications include:

• Medium‑duty trucks – International 4700/4900, Freightliner FL series, Ford F‑650/750 with CAT 3126E.

• School and shuttle buses – Thomas, Blue Bird, IC Bus with CAT 3116 or 3126 engines.

• Construction equipment – Caterpillar backhoe loaders (416, 426, 428), wheel loaders (910, 914G), and excavators (311, 312).

• Agricultural machinery – Combines and large tractors using CAT 3126B engines.

• Marine vessels – Small workboats and auxiliary gensets.

• RVs and motorhomes – Diesel pushers with CAT 3116 or 3126 engines.

This turbocharger is a direct OEM replacement for part numbers: 170343, 196136, 196804, 107176, and 0R4454.

4. Common Failure Symptoms & Repair/Replacement Guidelines

Typical Failure Signs:

Repair and Replacement Key Points:

1. Pre‑removal inspection – Check shaft play (radial >0.5mm, axial >0.1mm means rebuild or replace). Inspect air filter, oil quality, and intake hoses.

2. Use only OEM‑grade replacement – The 170343 must meet CAT’s balance and material standards. Avoid unbranded counterfeits.

3. Pre‑lubricate the turbo – Pour clean engine oil into the oil inlet hole before installing to prevent dry‑start bearing damage.

4. Replace oil feed and drain lines – Old lines often contain carbon sludge that can starve the new turbo of oil.

5. Use new gaskets and hardware – Torque manifold studs to 30–35 Nm; oil drain bolts to 20–25 Nm.

6. Prime the engine oil system – Crank the engine with the fuel shut off until oil pressure builds, then start and idle for 2–3 minutes.

7. Check for boost leaks – After installation, pressurise the intake system and listen for leaks at intercooler boots and gaskets.

⚠️ Critical: Always address the root cause (restricted oil supply, dirty air filter, excessive back pressure) before fitting a new turbo – otherwise, the replacement will fail prematurely.

5. Why Choose Rsolid Engine Parts as Your Supplier?

Rsolid Engine Parts is a leading global supplier of diesel engine components, including the 170343 turbocharger for CAT 3116/3126B/3126E engines. Here are our advantages:

📞 WhatsApp: +8615975376778
🌐Website: www.rinjector.com

Whether you need one turbo for a single truck or a bulk order for a fleet, Rsolid Engine Parts delivers reliability, performance, and peace of mind.
