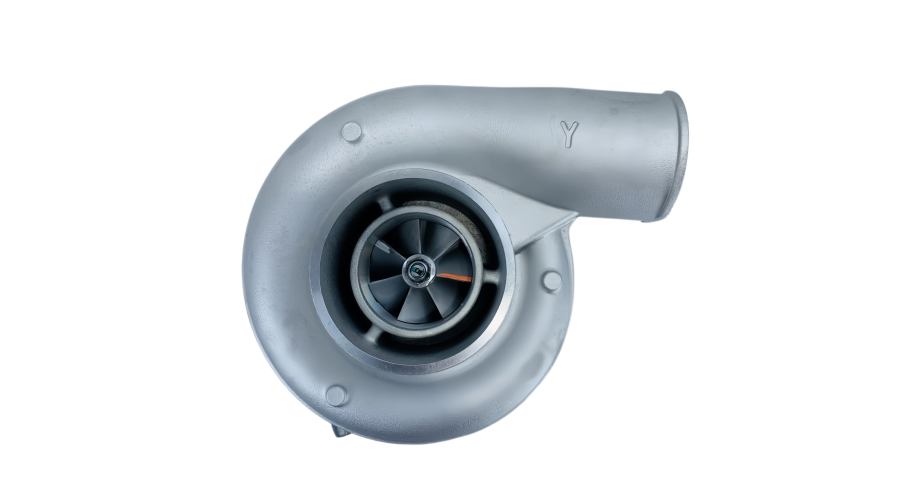

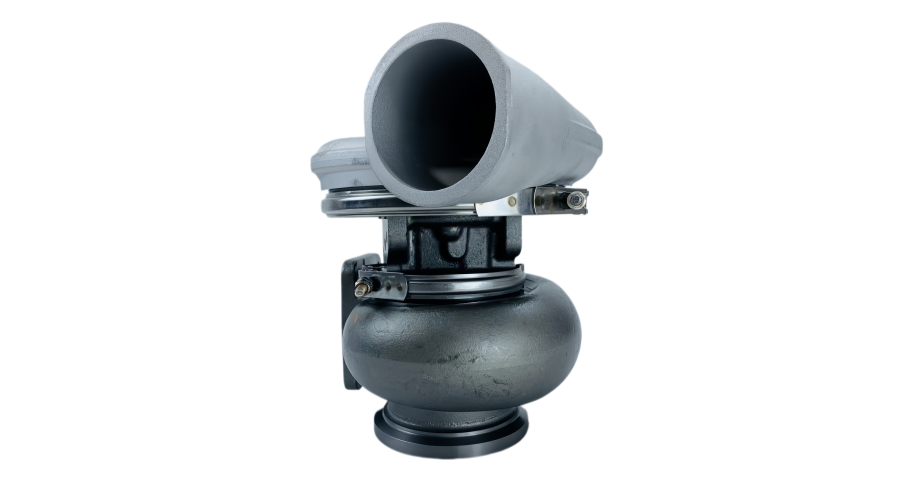

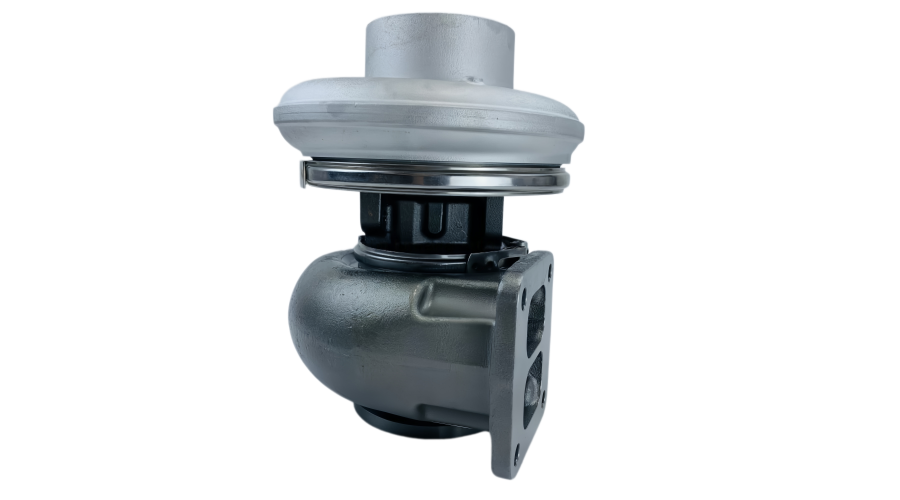

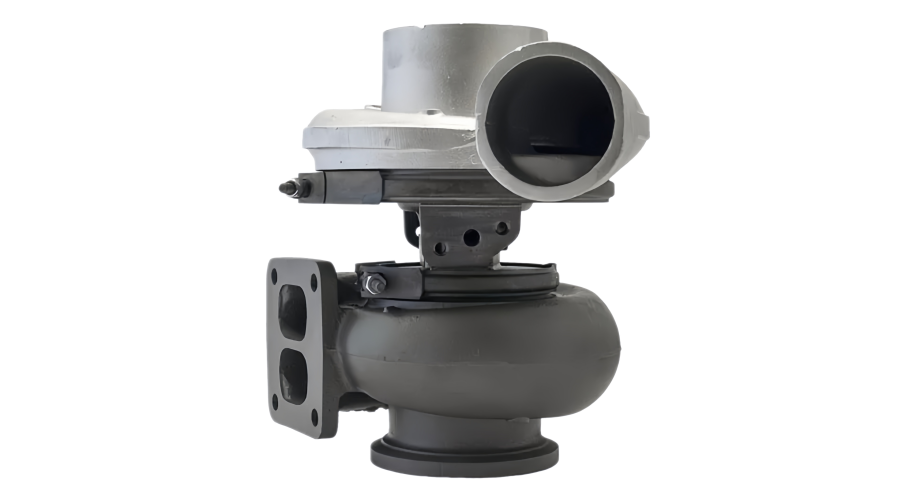

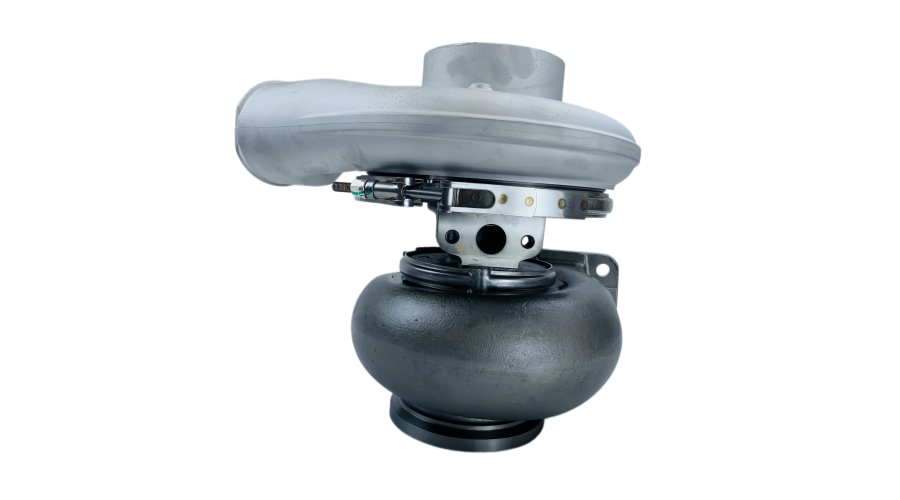

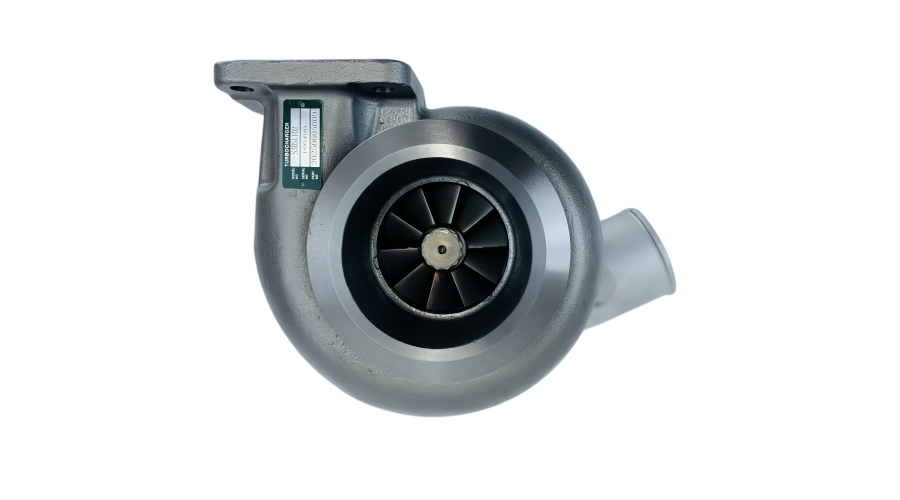

179571 Turbocharger for Caterpillar 3176 Diesel Engine – High‑Output Boost, Direct Fit, and Proven Durability

The 179571 Turbocharger is a heavy‑duty forced induction unit engineered specifically for the Caterpillar 3176 diesel engine. Whether you are maintaining an over‑the‑road truck, a construction machine, or a marine vessel, this turbocharger restores original power, lowers exhaust gas temperatures, and improves fuel economy.

1. Structural Features and Advantages of the 179571 Turbocharger

The 179571 turbocharger is built to meet the demanding performance requirements of the CAT 3176 engine (10.3L in‑line 6 cylinder). Its key design advantages include:

• High‑nickel ductile iron turbine housing – Exceptional resistance to thermal fatigue and cracking at exhaust temperatures up to 950°C.

• Fully machined forged compressor wheel – Advanced aerodynamic blade profile (6+6 or 6+12 depending on variant) provides rapid spool‑up and high volumetric efficiency.

• Heavy‑duty floating journal bearings – Dual oil‑film bearings reduce friction, tolerate minor oil contamination, and are field‑serviceable.

• Precision wastegate with robust actuator – Maintains stable boost pressure (typically 20–30 PSI) to protect engine components from over‑boost.

• Direct bolt‑on replacement – Matches all mounting flanges, oil inlet/outlet ports, and compressor housing orientation for CAT 3176. Replaces OEM numbers 179571, 107‑176, 196‑136, 196‑804, and 0R‑4454.

• Integrated heat shield and oil slinger – Minimises oil coking and prevents seal leakage.

These features translate into lower exhaust gas temperatures (EGT), reduced turbo lag, and longer turbo life – even under continuous high‑load operation (e.g., hill climbing or heavy towing).

2. Core Working Principle

The 179571 turbocharger operates on the principle of exhaust gas energy recovery. Here is the step‑by‑step process:

1. Exhaust gas entry – Engine exhaust flows into the turbine housing at high velocity and temperature.

2. Turbine wheel rotation – The gas spins the turbine wheel (made of Inconel or similar nickel‑based alloy) at speeds up to 105,000–115,000 RPM.

3. Common shaft drive – The turbine and compressor wheels share a single shaft, so the compressor spins simultaneously.

4. Air compression – The compressor wheel draws ambient air through the air filter, compresses it, and forces it into the intake manifold.

5. Increased power output – Denser air allows more fuel to be burned per cycle, increasing horsepower by 30–40% without raising engine displacement.

A wastegate bypasses excess exhaust gas around the turbine once the preset boost level is reached, preventing over‑boost and engine damage. The 179571 uses an oil‑cooled centre housing, though some variants may include water‑cooling for extreme duty cycles.

3. Primary Applications / Main Equipment

The 179571 turbocharger is widely used in vehicles and machines powered by the CAT 3176 engine (predecessor to the C10 and C12). Typical applications include:

• Heavy‑duty trucks – Peterbilt 357/378/379, Kenworth T800/W900, Freightliner FLD/Classic, International 9200/9400 with CAT 3176.

• Construction equipment – Caterpillar excavators (320, 322, 325), wheel loaders (950F, 960F), and motor graders (14H, 16H) equipped with 3176 engines.

• Agricultural machinery – Large tractors and combines using CAT 3176 power units.

• Marine propulsion – Workboats, patrol boats, and generator sets with CAT 3176 marine engines.

• Industrial power units – Stationary pumps, compressors, and gensets.

This turbocharger is a direct OEM replacement for part numbers: 179571, 107‑176, 196‑136, 196‑804, 0R‑4454, and 170‑344.

4. Common Failure Symptoms & Repair/Replacement Guidelines

Typical Failure Signs:

Repair and Replacement Key Points:

1. Pre‑removal inspection – Check shaft play (radial >0.5mm, axial >0.1mm indicates replacement). Inspect air filter, oil quality, and intake hoses for restrictions.

2. Use only OEM‑grade replacement – The 179571 must meet CAT’s balance and material specifications. Avoid unbranded counterfeits.

3. Pre‑lubricate the turbo – Pour clean engine oil into the oil inlet hole before installing to prevent dry‑start bearing seizure.

4. Replace oil feed and drain lines – Old lines often contain carbon sludge that can starve the new turbo of oil.

5. Use new gaskets and hardware – Torque manifold studs to 35–45 Nm; oil drain bolts to 20–25 Nm.

6. Prime the engine oil system – Crank the engine with the fuel shut off until oil pressure builds, then start and idle for 2–3 minutes.

7. Check for boost leaks – After installation, pressurise the intake system and listen for leaks at intercooler boots and gaskets.

8. Verify wastegate operation – Use a hand pump to ensure the actuator opens at specified pressure (typically 20–26 PSI).

⚠️ Critical: Always address the root cause (restricted oil supply, dirty air filter, excessive back pressure) before fitting a new turbo – otherwise, the replacement will fail prematurely.

5. Why Choose Rsolid Engine Parts as Your Supplier?

Rsolid Engine Parts is a leading global supplier of diesel engine components, including the 179571 turbocharger for CAT 3176 engines. Here are our advantages:

📞 WhatsApp: +8615975376778
🌐Website: www.rinjector.com

Whether you need one turbo for a single truck or a bulk order for a fleet, Rsolid Engine Parts delivers reliability, performance, and peace of mind.
