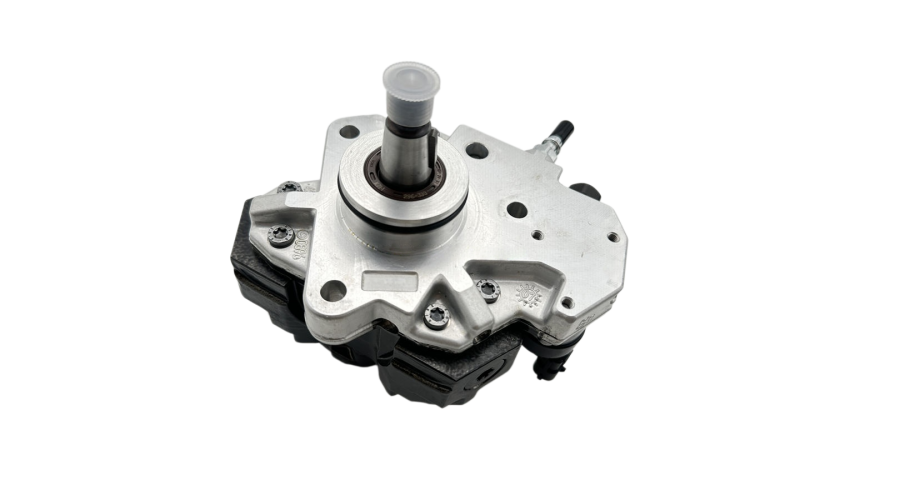

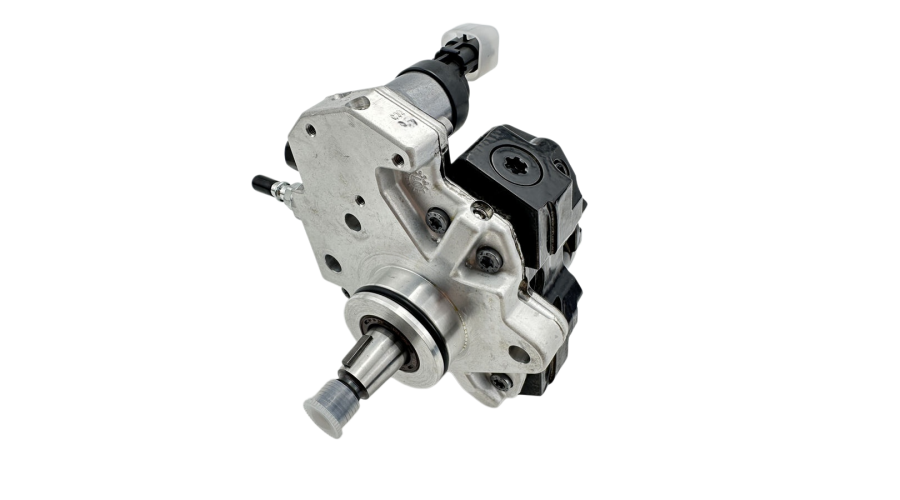

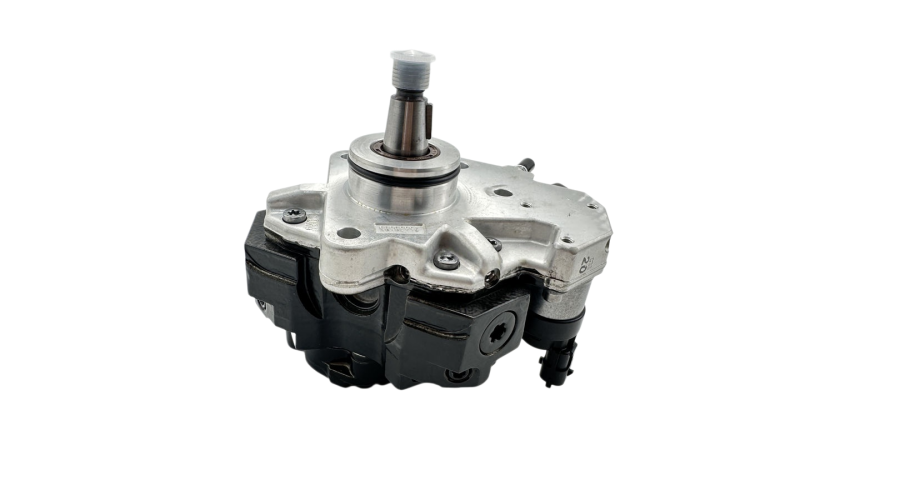

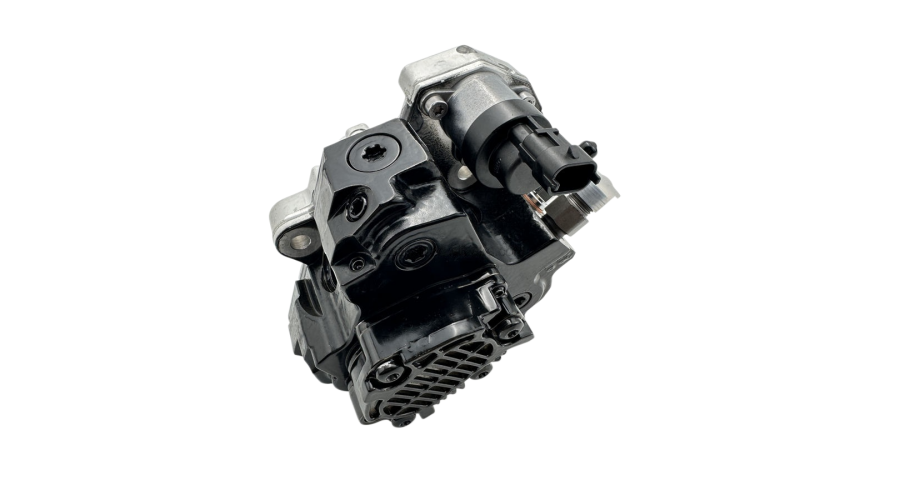

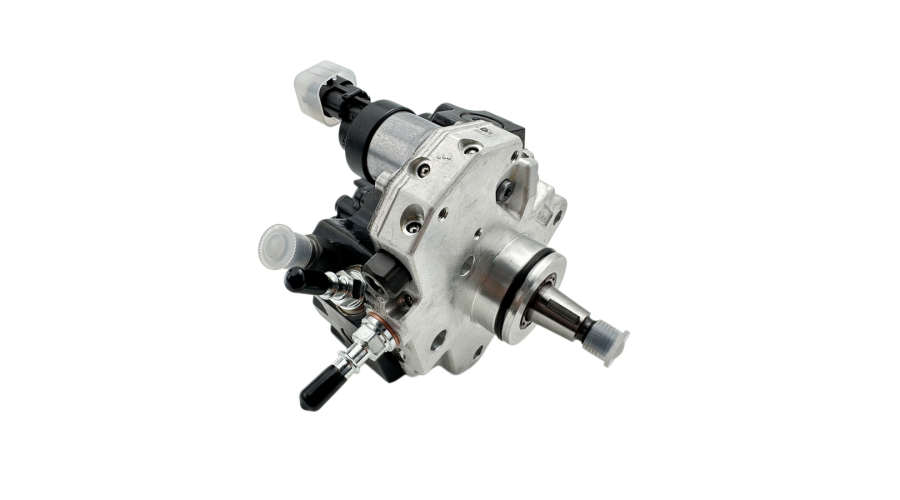

What is 0445010101 High Pressure Common Rail Diesel Injection Pump?
The 0445010101 high pressure common rail diesel injection pump is a precision-engineered fuel pump designed for modern diesel engines that require ultra-high fuel pressure for efficient combustion. This pump is fully compatible with Bosch common rail systems, making it a reliable replacement or upgrade component for a wide range of commercial vehicles, agricultural machinery, and industrial diesel engines.
In simple terms, the 0445010101 high pressure common rail diesel injection pump acts as the heart of the diesel fuel system. It draws low-pressure fuel from the tank, pressurizes it to extreme levels (often exceeding 1,600 bar), and delivers it to the common rail – a shared accumulator that supplies fuel to each injector. Unlike traditional mechanical injection pumps, this common rail design decouples pressure generation from injection timing, allowing for greater precision, lower emissions, and improved fuel economy.
This particular model is manufactured to match Bosch’s original specifications, ensuring identical fitment, performance, and durability. It is commonly found in diesel engines ranging from 2.0L to 6.0L displacement, including those used in trucks, buses, tractors, and construction equipment. The 0445010101 high pressure common rail diesel injection pump features a robust cast-iron housing, hardened internal components, and advanced lubrication channels to withstand the punishing demands of continuous high-pressure operation.
For diesel engine technicians and fleet managers, understanding this pump’s role is critical. A failing high-pressure pump can lead to poor starting, loss of power, increased smoke, and even catastrophic injector damage. Therefore, sourcing a high-quality, Bosch-compatible 0445010101 high pressure common rail diesel injection pump is essential for maintaining engine reliability.
How Does the 0445010101 High Pressure Common Rail Diesel Injection Pump Work?
The working principle of the 0445010101 high pressure common rail diesel injection pump is based on a radial piston or inline plunger design, depending on the specific variant. Most common rail pumps for this model use a three-piston radial arrangement driven by an eccentric cam on the engine’s timing gear. Here’s a step-by-step breakdown:
Low-pressure fuel supply: A built-in gear pump (or an external transfer pump) draws diesel from the tank and passes it through a filter. Fuel enters the high-pressure pump’s inlet at approximately 3–5 bar.
Suction and metering: An inlet metering valve (IMV) controls the amount of fuel allowed into the pumping chambers. The engine ECU (Electronic Control Unit) adjusts the IMV to regulate the final rail pressure. This is a key difference from older pumps – only the required amount of fuel is pressurized, reducing parasitic load.
Compression stroke: As the eccentric cam rotates, it pushes the radial pistons inward. Each piston compresses the trapped fuel in its chamber to pressures typically between 1,200 and 2,000 bar (17,400–29,000 psi). The 0445010101 high pressure common rail diesel injection pump uses extremely precise clearances (often in the micron range) to prevent internal leakage.
Discharge to the common rail: High-pressure fuel passes through outlet valves and enters the common rail via a high-pressure line. A pressure sensor on the rail sends real-time data to the ECU, which then modulates the IMV and a rail pressure relief valve to maintain target pressure.
Lubrication and cooling: Diesel fuel itself acts as the primary lubricant and coolant for the pump’s internal components. This is why using low-quality or contaminated fuel can rapidly destroy the 04450101 high pressure common rail diesel injection pump.
The ECU continuously calculates desired rail pressure based on engine load, speed, and temperature. For example, during idle, pressure may drop to 300 bar, while full-throttle acceleration can demand over 2,000 bar. The pump’s fast response (within milliseconds) ensures that the injectors always receive fuel at the correct pressure for optimal atomization and combustion.
One common question among mechanics: “Does the 0445010101 high pressure common rail diesel injection pump require timing calibration?” Unlike unit injectors, most common rail pumps are timed to the engine via a keyed gear or spline shaft, but the exact injection timing is handled electronically by the injectors themselves. However, correct phasing between the pump’s delivery strokes and engine rotation is still important – always consult the vehicle’s service manual.
Advantages of the 0445010101 High Pressure Common Rail Diesel Injection Pump
Choosing the 0445010101 high pressure common rail diesel injection pump offers multiple benefits over older mechanical pump designs or lower-quality aftermarket alternatives. Below are the key advantages:
1. Superior Fuel Atomization
By generating pressures above 1,600 bar, this pump enables injectors to spray diesel into microscopic droplets. Better atomization means more complete combustion, leading to higher power output and lower particulate emissions.
2. Reduced Noise and Vibration
Traditional mechanical injection pumps produce sharp pressure spikes, causing the familiar “diesel clatter.” The common rail system, powered by the 0445010101 high pressure common rail diesel injection pump, allows multiple pilot injections per cycle, which smooths out combustion and dramatically reduces engine noise.
3. Improved Fuel Economy
Because the ECU precisely matches fuel quantity and pressure to demand, no excess fuel is wasted. Fleet operators report fuel savings of 5–15% after replacing worn pumps with a new 0445010101 high pressure common rail diesel injection pump.
4. Lower Emissions
Modern diesel engines must comply with Euro 5, Euro 6, Tier 4 Final, and other strict emission standards. The precise pressure control of this pump supports advanced after-treatment systems like DPF (Diesel Particulate Filter) and SCR (Selective Catalytic Reduction).
5. Self-Diagnostic Capabilities
When used with a compatible ECU, the 0445010101 high pressure common rail diesel injection pump provides diagnostic trouble codes (DTCs) for issues like low rail pressure, IMV malfunction, or internal leakage. This simplifies troubleshooting and reduces downtime.
6. Long Service Life with Proper Maintenance
Original-quality Bosch-compatible pumps are designed for over 500,000 km of highway use or 8,000–10,000 hours in industrial applications. The hardened cam ring and DLC (Diamond-Like Carbon) coated pistons resist wear even under continuous high-load operation.
7. Easy Installation
The 0445010101 high pressure common rail diesel injection pump features the same mounting flange, gear/spline interface, and port locations as the Bosch original. No special modifications are required – simply remove the old unit and install this replacement using standard tools.
Common Faults and Repair Suggestions for the 0445010101 High Pressure Common Rail Diesel Injection Pump
Even a robust 0445010101 high pressure common rail diesel injection pump can develop issues over time, especially if maintenance is neglected. Recognizing early symptoms can save you from expensive engine damage. Below are the most frequent faults and practical repair suggestions.
Fault 1: Metal Contamination (The “Black Death”)
Symptoms: Rough running, loss of power, metallic debris in the fuel filter, and eventually engine stalling.
Cause: Internal wear of the pump’s cam ring, pistons, or bearings releases microscopic metal particles that circulate through the common rail and injectors. This is often triggered by water in the fuel, low lubricity fuel (e.g., biodiesel blends), or simply high mileage.
Repair Suggestion: Replace the 0445010101 high pressure common rail diesel injection pump immediately. Additionally, you MUST flush the entire fuel system – tank, lines, rail, and injectors. Metal contamination typically ruins injectors, so they should be tested or replaced as well. Never install a new pump without cleaning the system, or the debris will destroy the new pump within minutes.
Fault 2: Inlet Metering Valve (IMV) Failure
Symptoms: Hard starting, erratic rail pressure, or pressure too high/low. Diagnostic trouble codes like P0087 (rail pressure too low) or P0088 (too high) appear.
Cause: The IMV’s solenoid or internal spool wears out due to electrical surges, dirt, or fuel contamination.
Repair Suggestion: Many technicians replace the IMV separately. However, if the pump has high hours, it’s safer to install a complete 0445010101 high pressure common rail diesel injection pump. When replacing just the IMV, use an OEM-quality valve and recalibrate the ECU’s pressure learning values using diagnostic software.
Fault 3: Low Pressure Output (Worn Piston/Barrel)
Symptoms: Engine struggles to reach desired rail pressure under load, black smoke, reduced torque.
Cause: The plunger-and-barrel clearances have exceeded tolerance due to abrasion. Fuel leaks past the pistons instead of being delivered to the rail.
Repair Suggestion: The pump internals are not field-serviceable (tight tolerances require specialized tools). Replace the 0445010101 high pressure common rail diesel injection pump with a new or professionally remanufactured unit. Avoid “cheap rebuilds” that reuse worn cam rings.
Fault 4: Fuel Leakage from Pump Body
Symptoms: Visible diesel drips around the pump, fuel odor, pressure loss, and potential fire hazard.
Cause: Cracked housing, failed O-rings, or a damaged high-pressure outlet fitting.
Repair Suggestion: Tighten fittings to spec (usually 20–25 Nm). If leakage persists, replace the pump. Do not attempt to weld or epoxy a cracked high-pressure pump – the extreme pressures will cause explosive failure.
Fault 5: Noise (Whining or Knocking)
Symptoms: High-pitched whine from the pump area, especially at idle. Knocking sounds under load.
Cause: Air in the fuel (due to a leaking suction line) or bearing failure.
Repair Suggestion: First, check the low-pressure side for air leaks. If the noise continues and the pump has over 5,000 hours, internal bearings are likely failing. Replace the 0445010101 high pressure common rail diesel injection pump to avoid sudden seizure.
Preventive Maintenance Tips
Change the fuel filter every 10,000–15,000 km (or as per engine manufacturer).
Use high-quality diesel with proper cetane rating and lubricity additives.
Drain water from the fuel/water separator weekly.
Avoid running the tank dry – low fuel causes the pump to suck air and lose lubrication.
When replacing the pump, always use new high-pressure lines (copper washers or seals). Old lines may not reseal properly.
Supplier of 0445010101 High Pressure Common Rail Diesel Injection Pump
When you need a reliable 0445010101 high pressure common rail diesel injection pump, choosing the right supplier is just as important as the part itself. That’s where Rsolid engine parts comes in.
Rsolid engine parts is a specialized supplier of high-quality diesel fuel injection components, including the 0445010101 high pressure common rail diesel injection pump. We understand that downtime costs money, so we focus on three core values: quality, availability, and technical support.
