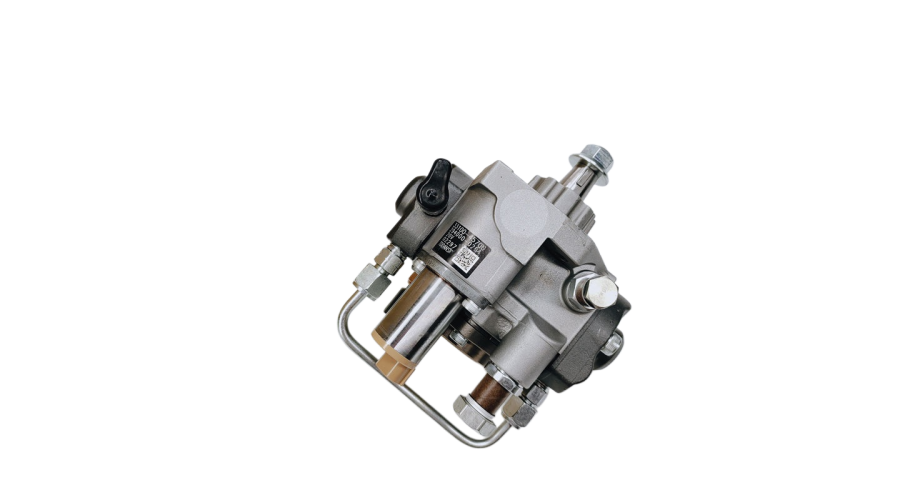

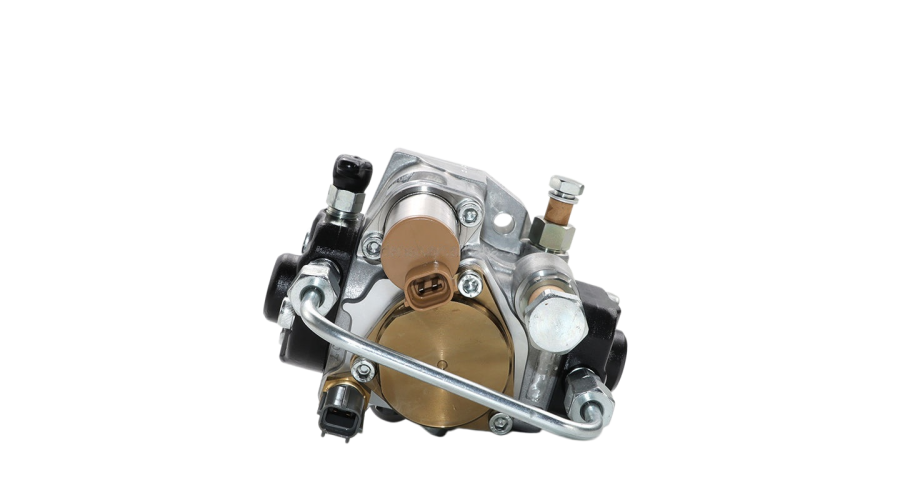

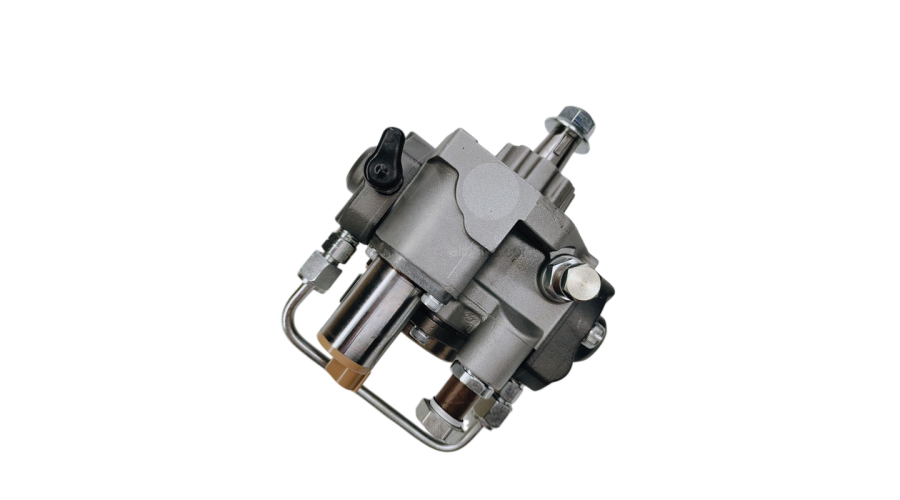

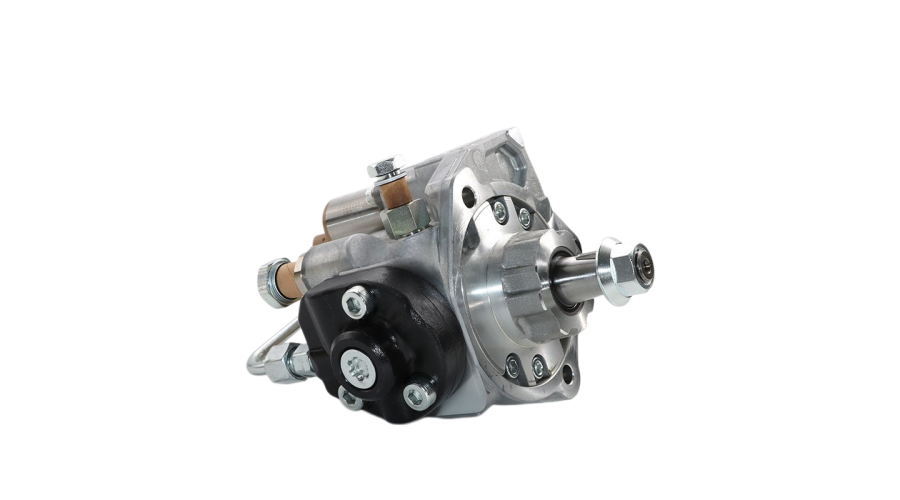

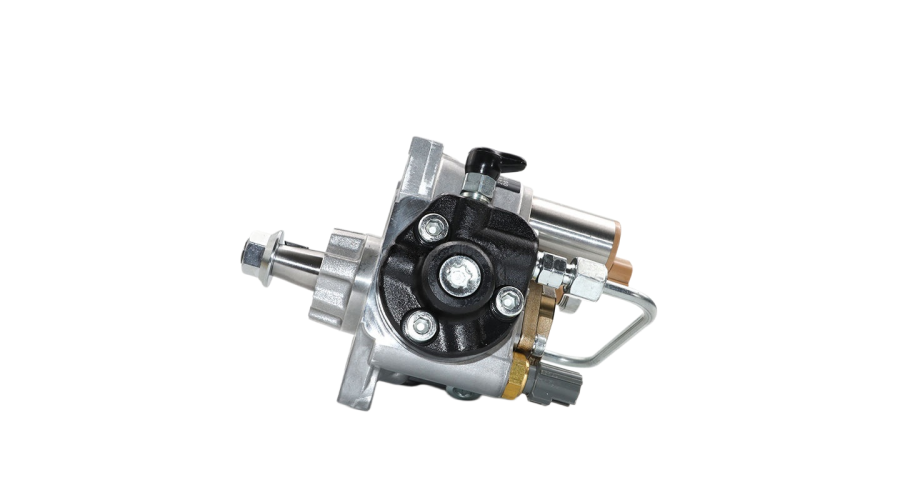

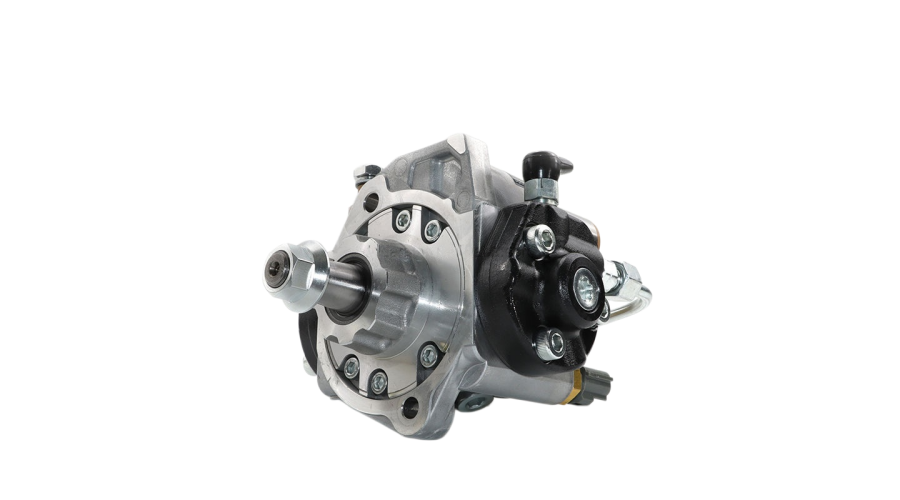

What Is 9729400-029 Common Rail Fuel Injection Pump?
The 9729400-029 common rail fuel injection pump is a high-precision component designed for modern diesel engines. This pump is specifically engineered to be compatible with Denso common rail systems, which are widely used in heavy-duty trucks, agricultural machinery, construction equipment, and marine diesel engines. As a critical part of the fuel delivery system, the 9729400-029 common rail fuel injection pump ensures that diesel fuel is pressurized to extremely high levels before being delivered to the injectors.
In simple terms, this pump acts as the heart of the common rail fuel system. Unlike traditional mechanical injection pumps that deliver fuel in pulses, the 9729400-029 common rail fuel injection pump creates a continuous high-pressure reservoir (the “common rail”) that supplies all injectors simultaneously. This design allows for more precise control over injection timing and quantity, resulting in better combustion efficiency, lower emissions, and improved engine performance.
The 9729400-029 common rail fuel injection pump is a replacement part that matches original equipment specifications. It is widely sought after by diesel engine repair shops and fleet maintenance teams because of its reliability and direct interchangeability with Denso-based systems. Whether you are repairing a truck that won’t start or upgrading an older engine, understanding this pump is essential.
How Does the 9729400-029 Common Rail Fuel Pump Work?
To grasp how the 9729400-029 common rail fuel injection pump functions, it helps to break down the process into several stages. First, a low-pressure lift pump (often integrated into the same housing) draws diesel fuel from the tank through a filter. The fuel then enters the pumping chamber of the 9729400-029 common rail fuel injection pump, where a camshaft driven by the engine’s crankshaft pushes one or more plungers up and down.
Each upward stroke of a plunger compresses the fuel to extremely high pressures—typically between 1,600 and 2,000 bar (23,000 to 29,000 psi). A suction valve and a discharge valve control the flow, ensuring that fuel moves only in one direction. The pressurized fuel is then sent to the common rail, a thick metal tube that acts as a pressure accumulator. An electronic control unit (ECU) monitors the rail pressure via a sensor and adjusts the 9729400-029 common rail fuel injection pump’s output by operating a metering unit (also called an inlet metering valve).
Inside the 9729400-029 common rail fuel injection pump, there is also a pressure relief valve that protects the system from overpressure. Some versions include a fuel temperature sensor and a fuel shut-off valve. The ECU continuously compares the desired pressure (based on engine load and speed) with the actual pressure. If the pressure is too low, the ECU opens the metering valve wider to allow more fuel into the pumping chamber. If the pressure is too high, the valve reduces the flow or the relief valve opens briefly.
Because the 9729400-029 common rail fuel injection pump operates under extreme stress, all internal components are made from hardened steel and precisely machined to tolerances of a few microns. This precision is what allows the pump to deliver consistent fuel volumes at high pressure without leaking or wearing out prematurely.
Advantages of Using 9729400-029 Common Rail Fuel Injection Pump
Why should you choose the 9729400-029 common rail fuel injection pump for your diesel engine? Here are the key benefits:
High Pressure Capability – This pump can generate rail pressures exceeding 1,800 bar, enabling finer fuel atomization. Better atomization means more complete combustion, which translates to higher power output and lower fuel consumption.
Precise Fuel Metering – Thanks to the electronic metering unit, the 9729400-029 common rail fuel injection pump delivers exactly the amount of fuel required at any given moment. This reduces waste and minimizes black smoke emissions.
Denso Compatibility – Since many diesel engines (such as those from Japanese, European, and American manufacturers) use Denso common rail systems, this pump fits seamlessly. You don’t need to modify mounting brackets, fuel lines, or electrical connectors.
Improved Cold Start Performance – The 9729400-029 common rail fuel injection pump maintains residual pressure after shutdown, which helps the engine start quickly even in freezing weather. The pump also handles diesel fuel with different viscosities and additives.
Durability – Built with wear-resistant materials, the 9729400-029 common rail fuel injection pump can operate for thousands of hours without failure, provided the fuel is clean and the filter is regularly changed.
Lower Noise and Vibration – Unlike older inline or distributor pumps that create sharp pressure spikes, the common rail system smooths out pressure fluctuations. The 9729400-029 common rail fuel injection pump contributes to quieter engine operation.
Reduced Emissions – By enabling multiple injection events (pilot, main, and post-injection), this pump helps diesel engines meet Euro 4, Euro 5, and even Euro 6 emission standards.
For workshop owners and fleet managers, the 9729400-029 common rail fuel injection pump offers a cost-effective solution to restore engine performance without replacing the entire fuel system.
Applications of the 9729400-029 Diesel Common Rail Pump
The 9729400-029 common rail fuel injection pump is found in a wide range of diesel applications. Its compatibility with Denso systems makes it a popular choice for:
Heavy-duty trucks – Many 6-cylinder and 8-cylinder engines from Japanese and European truck brands use Denso common rail technology. The 9729400-029 common rail fuel injection pump is often specified for engines in the 5-liter to 13-liter displacement range.
Agricultural tractors – Modern tractors rely on precise fuel delivery for field work. The pump’s ability to handle varying loads (from plowing to road transport) makes it ideal for these conditions.
Construction machinery – Excavators, loaders, bulldozers, and backhoes with diesel engines frequently use the 9729400-029 common rail fuel injection pump. The pump’s robust construction withstands the dust, vibration, and temperature extremes found on job sites.
Marine diesel engines – Small to medium-sized workboats, fishing vessels, and yachts with common rail propulsion engines benefit from the pump’s reliability and fuel efficiency.
Diesel generators – Standby and prime power generators require consistent fuel pressure. The 9729400-029 common rail fuel injection pump ensures stable output even under sudden load changes.
Buses and coaches – Public transport vehicles need low emissions and high uptime. Many bus fleets have adopted this pump as a replacement part.
In all these applications, the 9729400-029 common rail fuel injection pump serves as a direct replacement for the original pump. Always verify your engine’s OEM part number before ordering, but in most cases, this pump will match Denso-based systems with identical mounting flange dimensions, gear drive configuration, and fuel connection ports.
Common Faults and Repair Suggestions for 9729400-029 Pump
Even the best 9729400-029 common rail fuel injection pump can develop problems over time. Recognizing the early signs of failure will save you from expensive engine damage. Below are typical faults and practical repair suggestions:
1. Hard Starting or No Start
Cause: Loss of residual pressure due to worn internal seals or a faulty metering unit. Air may also enter the system through a loose fuel line.
Repair: Perform a leak-down test. Replace all O-rings and gaskets in the 9729400-029 common rail fuel injection pump. Check the metering valve resistance (typically between 3 and 5 ohms). If the valve fails, replace it.
2. Low Rail Pressure (Engine Lacks Power)
Cause: Worn plungers or barrels inside the pump reduce the maximum pressure. A clogged fuel filter or restricted fuel supply can also mimic this symptom.
Repair: Measure the actual rail pressure with a diagnostic tool. If the pump cannot reach the commanded pressure, the internal pumping elements may need replacement. However, always replace the fuel filter first and inspect for water contamination. If water has entered the 9729400-029 common rail fuel injection pump, corrosion can damage the plungers beyond repair.
3. Unusual Noise (Knocking or Whining)
Cause: Cavitation from air in the fuel or a failing bearing inside the pump. Another possibility is a loose drive gear or worn camshaft.
Repair: Prime the fuel system to remove air. If noise persists, disassemble the 9729400-029 common rail fuel injection pump and inspect the bearings. Replace any pitted or scored components. Always use genuine repair kits.
4. Fuel Leakage
Cause: Cracked housing, worn shaft seal, or damaged high-pressure head. Leaks often occur around the pump’s mounting flange or at the outlet fitting.
Repair: Tighten all fittings to the specified torque. For shaft seal leaks, the 9729400-029 common rail fuel injection pump must be removed and the seal replaced. In severe cases, the housing may need welding or replacement.
5. Contamination (Metal Particles in Return Fuel)
Cause: Internal wear has generated metal debris. This is a critical failure that can destroy the entire common rail system, including injectors and the rail itself.
Repair: Immediately stop the engine. Remove the 9729400-029 common rail fuel injection pump and flush all fuel lines. Replace the pump with a new or professionally rebuilt unit. Also replace the fuel filter and clean the tank. Do not reuse any contaminated components.
Professional repair tip: Always calibrate the 9729400-029 common rail fuel injection pump on a test bench after rebuilding. The pump’s output must match the engine’s specifications. Without proper calibration, the ECU may set pressure deviation faults.
Reliable Supplier of 9729400-029 Common Rail Fuel Injection Pump – Rsolid Engine Parts
When you need a 9729400-029 common rail fuel injection pump that delivers consistent performance, look no further than Rsolid Engine Parts. As a specialized supplier of diesel fuel system components, we understand the demands of daily repair shop operations and fleet maintenance. Here is why our customers trust us:
Rigorous Quality Control – Every 9729400-029 common rail fuel injection pump leaving our warehouse is tested on advanced calibration equipment. We simulate real engine conditions to ensure pressure stability, leakage-free operation, and precise metering valve response.
Exact Fitment – Our pumps are manufactured to match original dimensional specifications. You will not encounter misaligned bolt holes, incorrect gear heights, or incompatible fuel ports. The 9729400-029 common rail fuel injection pump we supply installs seamlessly.
Competitive Pricing – By sourcing directly from trusted production partners and maintaining efficient logistics, we offer fair prices without compromising quality. Whether you need one pump or one hundred, Rsolid Engine Parts provides volume discounts.
Fast Global Shipping – We have warehouses stocked with the 9729400-029 common rail fuel injection pump and other common rail parts. Most orders are processed within 24 hours. For urgent needs, express shipping options are available.
Technical Support – Our team of diesel experts can answer questions about installation, troubleshooting, and compatibility. We help you avoid costly mistakes. Contact us via WhatsApp for rapid assistance.
Warranty Protection – Each 9729400-029 common rail fuel injection pump comes with a comprehensive warranty. If you encounter any manufacturing defect, we will replace the unit promptly.
Easy Ordering – Visit our website at www.rinjector.com to browse our catalog. You will find detailed product photos, specifications, and customer reviews. You can also reach us on WhatsApp: +8615975376778 for immediate quotes and stock checks.
Rsolid Engine Parts is more than a supplier – we are a partner in keeping your diesel engines running at peak efficiency. From the initial inquiry to after-sales support, we prioritize your satisfaction. Choose Rsolid for your 9729400-029 common rail fuel injection pump needs, and experience the difference that dedicated service makes.
