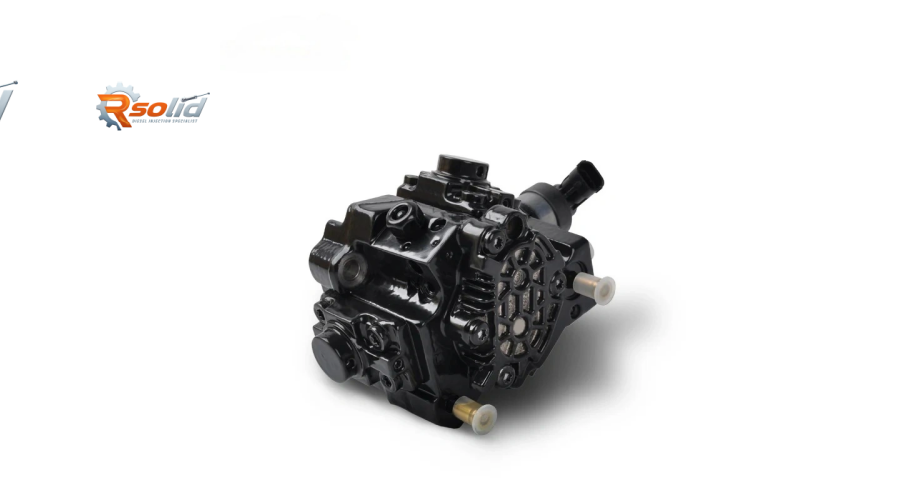

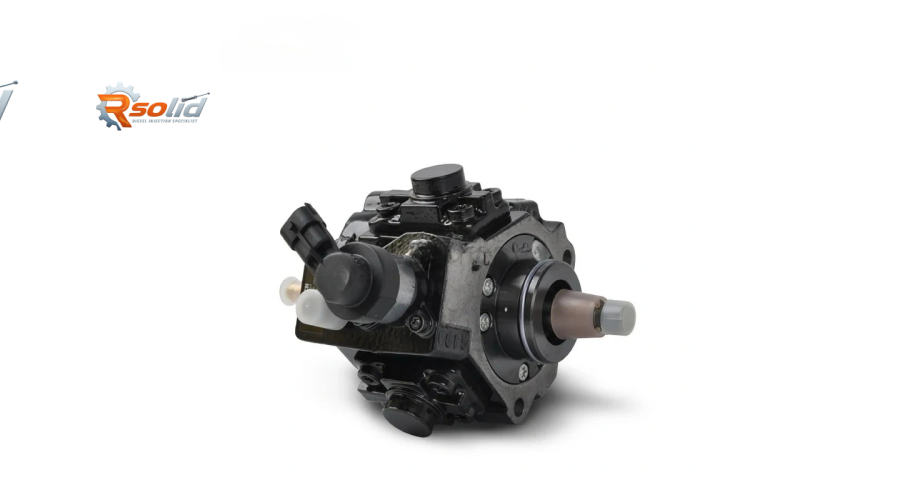

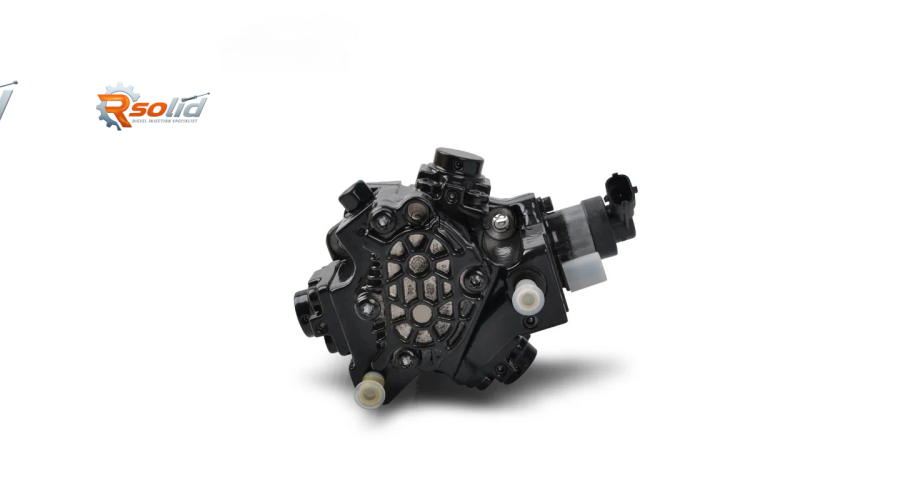

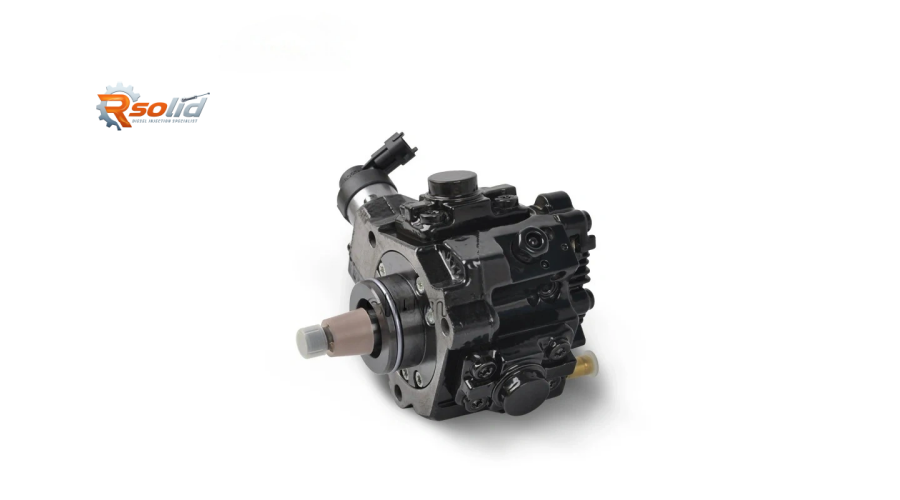

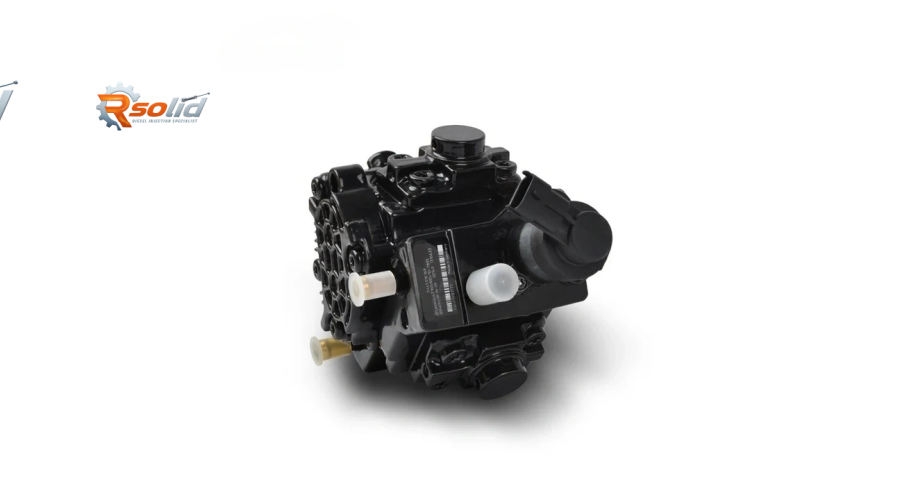

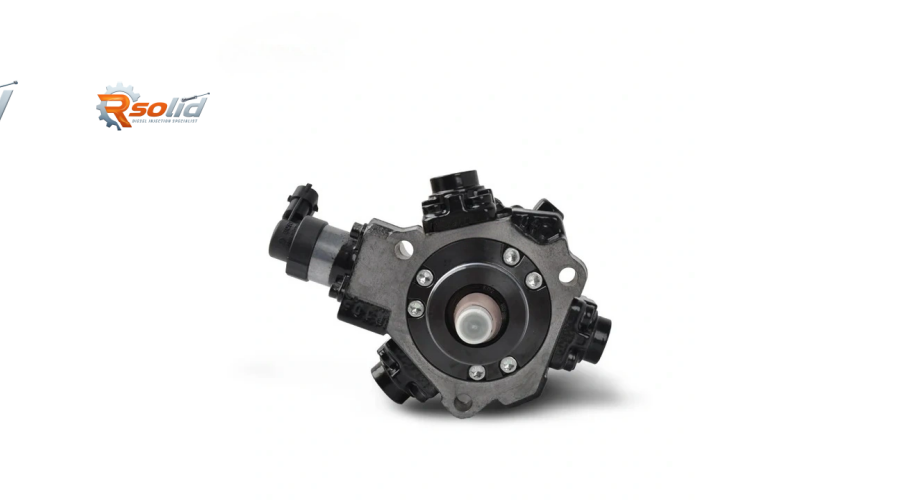

Cummins diesel engines power everything from pickup trucks and delivery vans to construction equipment, buses, and industrial gensets. The 0445010169 common rail fuel pump is a high‑pressure injection pump, fully compatible with Bosch CP3 architecture, specifically calibrated for a range of Cummins ISB, ISC, ISL, QSB, and QSC series engines. This pump delivers stable rail pressure up to 1,800 bar, ensuring efficient combustion, low emissions, and reliable performance under the most demanding operating conditions.
Rsolid Engine Parts supplies the 0445010169 as a brand‑new, Bosch‑compatible unit – 100% calibration tested, and backed by a full 12‑month warranty at competitive pricing for truck fleets, equipment dealers, and repair workshops.
1. Structural Advantages of the Bosch 0445010169 Pump
The 0445010169 belongs to the Bosch CP3 family (often CP3S3 variant), one of the most robust high‑pressure pump platforms in the diesel industry. Its design offers several key benefits for Cummins diesel engines:
Three‑Plunger Radial Piston Design – Uses three radial plungers arranged around an eccentric cam ring, delivering exceptionally smooth, high‑volume fuel flow with minimal pressure pulsation. This reduces mechanical stress on the common rail and injectors – critical for high‑mileage and high‑load operation.
Integrated Vane‑Type Transfer Pump – A built‑in low‑pressure vane pump draws fuel directly from the tank and supplies the high‑pressure plungers, ensuring consistent inlet pressure even when the chassis lift pump is weak. This simplifies installation and removes a common failure point.
High‑Pressure Capability (1,800 bar) – Generates rail pressures up to 1,800 bar (26,100 psi), enabling superior fuel atomisation for complete combustion, lower particulate emissions, and improved fuel economy – essential for Tier 3, Tier 4, and Euro 5/6 compliance.
Heavy‑Duty Drive Shaft & Bearings – Designed to withstand the high torsional loads and vibration of Cummins 4‑, 5.9‑, 6.7‑, 8.3‑, and 8.9‑litre engines, ensuring long service life in on‑highway and off‑highway applications.
High‑Pressure Fuel Lubrication – All moving internal parts (plungers, roller shoes, eccentric cam) are lubricated solely by diesel fuel, eliminating external oil lines and simplifying installation.
Integrated Digital Flow Control Valve (ZME) – An inlet metering solenoid valve precisely regulates fuel entry based on ECU demand, providing accurate rail pressure control, improved throttle response, and lower fuel consumption.
Robust Cast Iron Housing – The pump body is manufactured from high‑strength cast iron with an anti‑corrosion coating, engineered to withstand vibration, thermal cycling, road salt, moisture, and dust.
Direct Bosch CP3 Compatibility – Identical mounting flange (3‑bolt SAE A), drive gear interface, high‑pressure outlet ports, and electrical connector as the original Bosch 0445010169. True plug‑and‑play replacement with no modifications.
Genuine Cross‑References – The 0445010169 is also listed under Cummins OEM numbers such as 5276724, 3947441, and 4929326, making it easy to verify fitment.
2. Compatible Cummins Engine & Equipment Models (≤5)
The 0445010169 pump is used in a wide range of Cummins ISB, ISC, ISL, QSB, QSC, and 6BT common rail engines. Compatible applications include:
Cummins ISB 4.5L / 5.9L / 6.7L – Found in Dodge Ram 2500/3500 (2007‑2012), Freightliner M2 106, Thomas Built buses, and various agricultural equipment.
Cummins ISC 8.3L – Used in medium‑duty trucks (International, Freightliner), fire trucks, buses, and motorhomes.
Cummins ISL 8.9L – Common in heavy‑duty trucks, transit buses, and motorhomes (e.g., Prevost, Newell).
Cummins QSB 4.5L / 6.7L – Industrial version used in generators, compressors, construction machinery (Case, JCB, Komatsu), and marine engines.
Cummins QSC 8.3L – Industrial and marine engine platform.
Cummins 6BT / 6BTA 5.9L (common rail variants) – Found in older Dodge Ram trucks and various industrial equipment.
✅ Important Fitment Note – Before ordering, always verify the Bosch number on your original pump (stamped on the nameplate) and confirm your engine serial number. The 0445010169 may also be listed under 0445010159, 0445010170, or other CP3 variants. Contact us with your engine details for fitment confirmation.
3. Common Failures & Professional Installation/Replacement Advice
3.1 Typical Symptoms of a Failing 0445010169 Pump
Loss of power under load – The vehicle or equipment struggles to maintain speed or torque, often accompanied by black exhaust smoke.
Extended cranking time before start – Rail pressure builds slowly, especially after sitting overnight.
Engine surging or rough idle – Inconsistent fuel delivery at low RPM, causing hunting or misfiring.
DTC codes P0087, P0088, or P0191 – Rail pressure too low, too high, or sensor rationality fault. Use Cummins INSITE, Bosch KTS, or a compatible diagnostic tool.
Metal particles in the fuel filter – A clear sign of CP3 internal wear (plunger scuffing or roller bearing failure). Even small ferrous particles indicate imminent pump failure.
External fuel leakage – Visible diesel around the pump body, particularly at the drive shaft seal or around the ZME metering valve.
Diesel contamination in engine oil – A failed drive shaft seal allows fuel to enter the crankcase, leading to rising oil level and risk of engine damage.
3.2 Professional Installation & Replacement Recommendations
Perform a complete fuel system diagnosis – Use Cummins INSITE or a compatible tool to read fault codes, monitor rail pressure, and measure injector return flow rates. Identify any injectors with excessive return flow.
Replace the fuel metering valve (ZME) – If the old pump has failed internally, replace the ZME solenoid valve (Bosch part number typically 0928400640 or equivalent) with a new one. A faulty ZME can cause repeat pump failure.
Replace all fuel filters – Install new Cummins OEM or high‑quality primary (water separator) and secondary fuel filters before running the new pump. CP3 pumps are sensitive to contamination.
Flush the entire fuel system – Drain and clean the fuel tank. Blow out all supply and return lines with compressed air. Replace any rubber hoses that show degradation. This step is non‑negotiable – debris from a failed pump will destroy a new CP3 within minutes.
Inspect and flow‑test all injectors – High return flow from worn injectors will prevent correct rail pressure and cause repeat pump failure. Have all injectors professionally cleaned or replaced. For Cummins ISB/ISC/ISL, use a Bosch EPS test bench.
Replace the engine oil and filter – If diesel has contaminated the oil (rising level or diesel smell), change the oil and filter BEFORE running the new pump.
Prime the low‑pressure circuit – Use a hand vacuum pump on the fuel return line to pull bubble‑free fuel through the pump and filters. CP3 pumps are self‑priming but dry cranking will score the plungers.
Fill the pump with clean diesel – Remove the high‑pressure outlet fitting and pour clean, lubricious diesel (or Bosch assembly lubricant) into the pump housing to prevent dry start scoring.
Torque all connections to specification – High‑pressure outlet (M14×1.5 cone seal): 40–45 Nm. Low‑pressure inlet (M16×1.5): 25 Nm. High‑pressure line union nuts: 35–40 Nm. Drive shaft nut: consult the Cummins workshop manual (typically 100–120 Nm). Use a calibrated torque wrench.
Reset fuel adaptations – After installation, use Cummins INSITE to clear learned fuel trim values and perform a “high‑pressure pump adaptation” or “fuel system learn” routine.
Perform a leak test – Idle the engine for 10 minutes, then inspect all high‑pressure and low‑pressure unions, the pump mounting area, and the drive shaft seal for any signs of fuel wetness.
Monitor rail pressure – Using live data, verify that actual rail pressure tracks within ±20 bar of specified value across all RPM ranges. Perform a road or load test.
💡 Pro Tip – CP3 pumps are generally durable, but water contamination is their enemy. Always drain the water separator daily. For Cummins engines operating in dusty or high‑hour applications, consider installing an additional 5‑micron fuel filter and using a fuel additive with lubricity enhancer.
4. Why Choose Rsolid Engine Parts as Your Supplier
✅ Exact Bosch CP3 Compatibility – Direct replacement for 0445010169 on Cummins ISB/ISC/ISL/QSB/QSC engines. No modifications.
✅ 100% Calibration Tested – Each pump is run on a Bosch EPS 200 test bench to verify delivery volume, rail pressure stability (1,800 bar), ZME regulator response, and leak‑free operation. Test reports available.
✅ 12‑Month Warranty – Full coverage against manufacturing defects for all pumps supplied, even for high‑mileage and off‑highway use.
✅ Competitive Fleet & Workshop Pricing – Volume discounts for truck fleets, equipment dealers, repair shops, and parts distributors.
✅ Fast Worldwide Shipping – Stock ready to ship to North America, Europe, Asia, Africa, the Middle East, and South America.
✅ Expert Technical Support – Our diesel injection specialists provide pre‑purchase fitment verification, diagnostic assistance, and detailed installation guidance via WhatsApp or email.
