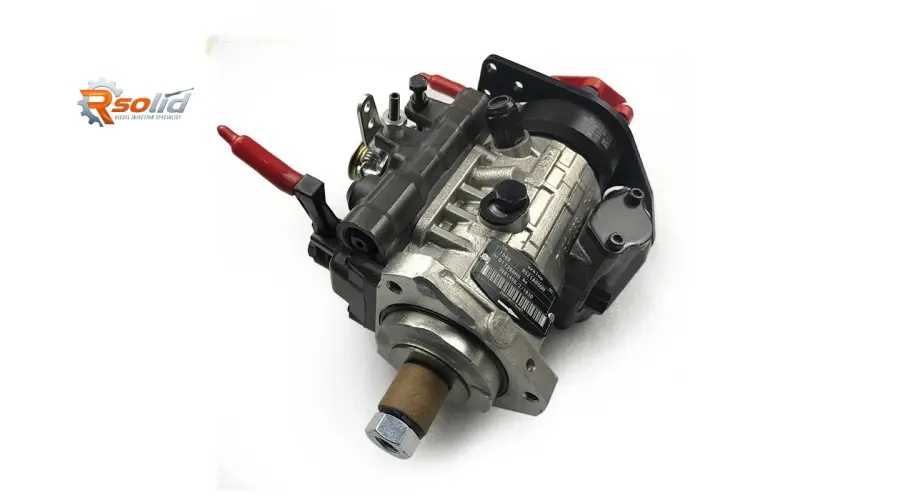

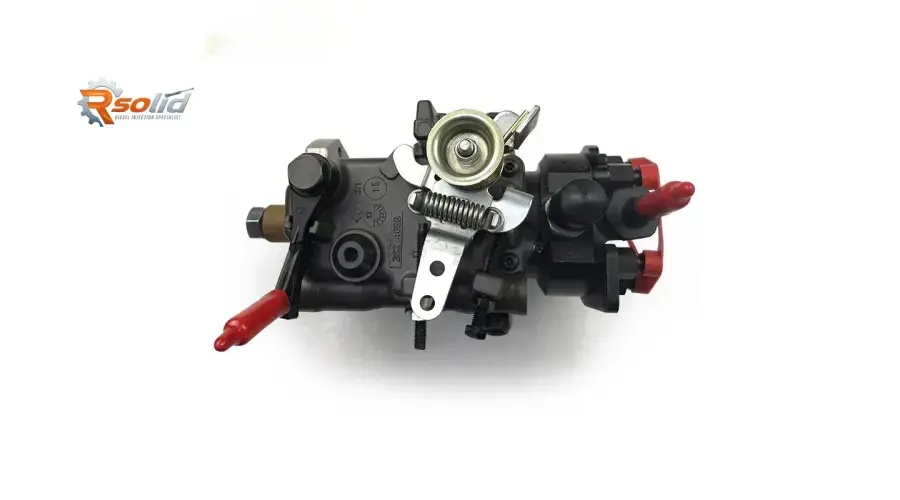

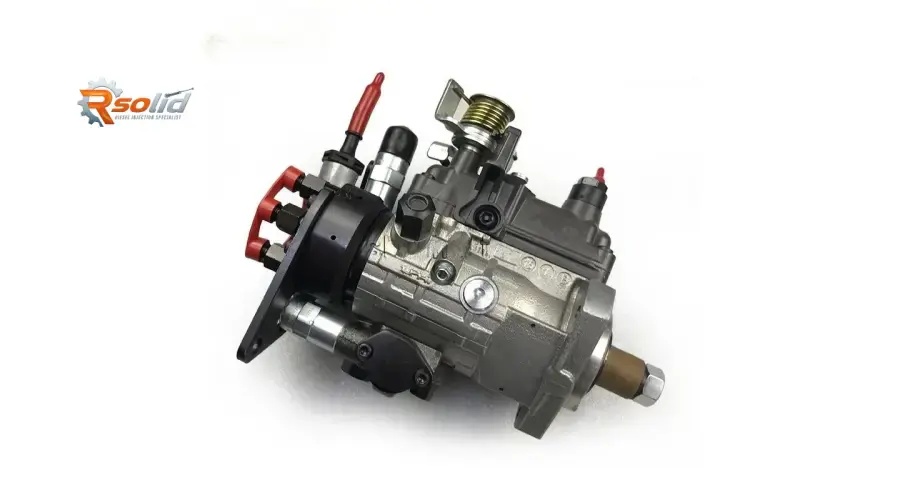

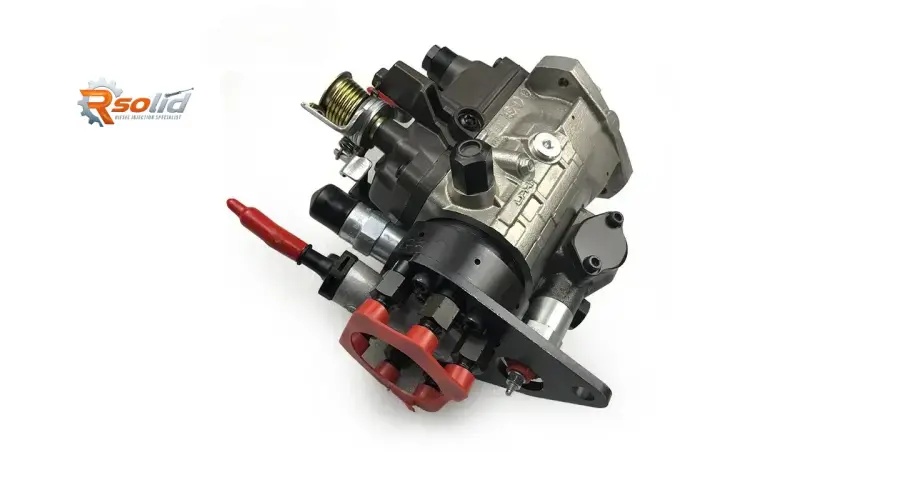

The Caterpillar CAT320 excavator is one of the most popular hydraulic excavators in the world, widely used in construction, mining, and earthmoving. Many CAT320 models (particularly Series B, C, and some D variants) are powered by Perkins 1104 or 1000 series diesel engines, which use a high‑pressure common rail or mechanical unit pump fuel system. The 9521A030H diesel fuel pump is a direct replacement injection pump, fully compatible with Perkins engines and specifically designed for CAT320 excavator applications. This pump ensures precise fuel delivery, stable rail pressure (where applicable), and reliable performance under heavy digging and lifting loads.
Rsolid Engine Parts supplies the 9521A030H as a brand‑new, Perkins‑compatible unit – 100% calibration tested, and backed by a full 12‑month warranty at competitive pricing for excavator owners, repair shops, and equipment dealers.
1. Structural Advantages of the 9521A030H Diesel Pump
The 9521A030H is typically a high‑pressure common rail pump (Bosch CP3 or CP4 based) or a mechanical unit pump, depending on the engine variant. For Perkins 1104/1106 common rail engines, it follows Bosch CP3 architecture. Its design offers several key benefits for excavator applications:
Three‑Plunger Radial Piston Design (CP3 type) – Uses three radial plungers arranged around an eccentric cam, delivering exceptionally smooth, high‑volume fuel flow with minimal pressure pulsation. This reduces stress on the common rail and injectors – critical for excavators that operate under continuously varying loads.
Integrated Vane‑Type Transfer Pump – A built‑in low‑pressure vane pump draws fuel from the tank and supplies the high‑pressure plungers, ensuring consistent inlet pressure even when the lift pump is weak. This is especially important for machines operating on steep slopes or in dusty conditions.
High‑Pressure Capability (1,600–1,800 bar) – Generates rail pressures up to 1,800 bar (26,100 psi), enabling superior fuel atomisation for complete combustion, lower soot formation, and improved fuel economy – essential for Tier 3 / Stage IIIA emissions compliance.
Heavy‑Duty Drive Shaft & Bearings – Designed to withstand the high torsional loads and vibration of Perkins 4‑cylinder engines used in excavators, ensuring long service life in harsh environments (dust, water, temperature extremes).
High‑Pressure Fuel Lubrication – All moving internal parts (plungers, roller shoes, eccentric cam) are lubricated solely by diesel fuel, eliminating external oil lines and simplifying installation.
Integrated Flow Control Valve (ZME) – An inlet metering solenoid valve precisely regulates fuel entry based on ECU demand, providing accurate rail pressure control, improved throttle response, and lower fuel consumption.
Robust Cast Iron Housing – The pump body is manufactured from high‑strength cast iron with an anti‑corrosion coating, engineered to withstand vibration, thermal cycling, moisture, and dust typical of excavator under‑hood environments.
Direct Perkins / CAT Compatibility – Identical mounting flange, drive gear interface, high‑pressure outlet ports, and electrical connector as the original Perkins 9521A030H. True plug‑and‑play replacement with no modifications.
OEM Cross‑References – The 9521A030H is also listed under Perkins numbers PK9521A030H, P9521A030H, and Caterpillar numbers 319-0678 or 362-5113 (depending on excavator model).
2. Compatible CAT320 Excavator Models (≤5)
The 9521A030H pump is specifically calibrated for Perkins 1104C‑44, 1104D‑44, 1106C‑66, and 1000 series engines used in Caterpillar CAT320 excavators. Compatible models include:
Caterpillar CAT320B – Perkins 1106C‑66 (6‑cylinder, 6.6L) or 1104C‑44 (4‑cylinder, 4.4L) – model years approx. 1998–2004.
Caterpillar CAT320C – Perkins 1104C‑44 (4‑cylinder, 4.4L) or 1106C‑66 – model years approx. 2003–2007.
Caterpillar CAT320D – Early models (2007–2010) with Perkins 1104D‑44 common rail engine (Tier 3 / Stage IIIA).
Caterpillar CAT320D L (Long Carriage) – Same engine as 320D.
Caterpillar CAT320E – Some early variants with Perkins engine (verify; later models may use Cat C4.4/C7.1).
✅ Important Fitment Note – Always check your excavator serial number and engine model. The Perkins 9521A030H pump is often stamped on the pump nameplate. Verify with your original part number before ordering. Cross‑reference numbers include PK9521A030H, P9521A030H, and Caterpillar 319-0678 or 362-5113.
3. Common Failures & Professional Installation/Replacement Advice
3.1 Typical Symptoms of a Failing 9521A030H Pump
Loss of hydraulic and engine power – Excavator struggles to dig, lift, or swing, often accompanied by black exhaust smoke.
Extended cranking time before start – Engine takes longer to start, especially after sitting overnight.
Engine surging or rough idle – Inconsistent fuel delivery at low RPM, causing hunting or misfiring during stationary operation.
DTC codes (if common rail) – P0087, P0088, P0191 (rail pressure too low/too high / sensor fault). Use Perkins Electronic Service Tool (EST) or compatible scanner.
Metal particles in the fuel filter – A clear sign of CP3 internal wear (plunger scuffing or roller bearing failure). Even small ferrous particles indicate imminent pump failure.
External fuel leakage – Visible diesel around the pump body, particularly at the drive shaft seal or around the metering valve.
Diesel contamination in engine oil – A failed drive shaft seal allows fuel to enter the crankcase, leading to rising oil level and risk of engine damage.
3.2 Professional Installation & Replacement Recommendations
Perform a complete fuel system diagnosis – Use Perkins EST or a compatible tool to read fault codes, monitor rail pressure, and measure injector return flow rates. Identify any injectors with excessive return flow.
Replace the fuel metering valve (ZME) – If the old pump has failed internally, replace the ZME solenoid valve (Bosch part number typically 0928400640 or equivalent) with a new one. A faulty ZME can cause repeat pump failure.
Replace all fuel filters – Install new Perkins or CAT OEM primary (water separator) and secondary fuel filters before running the new pump. CP3 pumps are sensitive to contamination.
Flush the entire fuel system – Drain and clean the fuel tank. Blow out all supply and return lines with compressed air. Replace any rubber hoses that show degradation. This step is non‑negotiable – debris from a failed pump will destroy a new CP3 within minutes.
Inspect and flow‑test all injectors – High return flow from worn injectors will prevent correct rail pressure and cause repeat pump failure. Have all injectors professionally cleaned or replaced. Use a Bosch EPS test bench.
Replace the engine oil and filter – If diesel has contaminated the oil (rising level or diesel smell), change the oil and filter BEFORE running the new pump.
Prime the low‑pressure circuit – Use a hand vacuum pump on the fuel return line to pull bubble‑free fuel through the pump and filters. CP3 pumps are self‑priming but dry cranking will score the plungers.
Fill the pump with clean diesel – Remove the high‑pressure outlet fitting and pour clean, lubricious diesel (or Bosch assembly lubricant) into the pump housing to prevent dry start scoring.
Torque all connections to specification – High‑pressure outlet (M14×1.5 cone seal): 40–45 Nm. Low‑pressure inlet (M16×1.5): 25 Nm. High‑pressure line union nuts: 35–40 Nm. Drive shaft nut: consult the Perkins/CAT workshop manual (typically 100–120 Nm). Use a calibrated torque wrench.
Reset fuel adaptations – After installation, use Perkins EST to clear learned fuel trim values and perform a “high‑pressure pump adaptation” or “fuel system learn” routine.
Perform a leak test – Idle the engine for 10 minutes, then inspect all high‑pressure and low‑pressure unions, the pump mounting area, and the drive shaft seal for any signs of fuel wetness.
Monitor rail pressure – Using live data, verify that actual rail pressure tracks within ±20 bar of specified value across all RPM ranges. Perform a digging cycle test.
💡 Pro Tip – Excavators operate in extremely dusty and wet environments. Always drain the water separator daily. Consider installing an additional 5‑micron secondary fuel filter and use a fuel additive with lubricity enhancer. Keep the fuel tank full to minimise condensation.
4. Why Choose Rsolid Engine Parts as Your Supplier
✅ Exact Perkins / CAT Compatibility – Direct replacement for 9521A030H on Perkins engines in CAT320 excavators. No modifications required.
✅ 100% Calibration Tested – Each pump is run on a Bosch EPS 200 test bench to verify delivery volume, rail pressure stability (1,600–1,800 bar), ZME regulator response, and leak‑free operation. Test reports available.
✅ 12‑Month Warranty – Full coverage against manufacturing defects, even for high‑hour excavator applications.
✅ Competitive Pricing – Volume discounts for excavation contractors, equipment repair shops, and parts distributors.
✅ Fast Worldwide Shipping – Stock ready to ship to North America, South America, Europe, Africa, Asia, and the Middle East.
✅ Expert Technical Support – Our diesel injection specialists provide pre‑purchase fitment verification, diagnostic assistance, and detailed installation guidance via WhatsApp or email.
