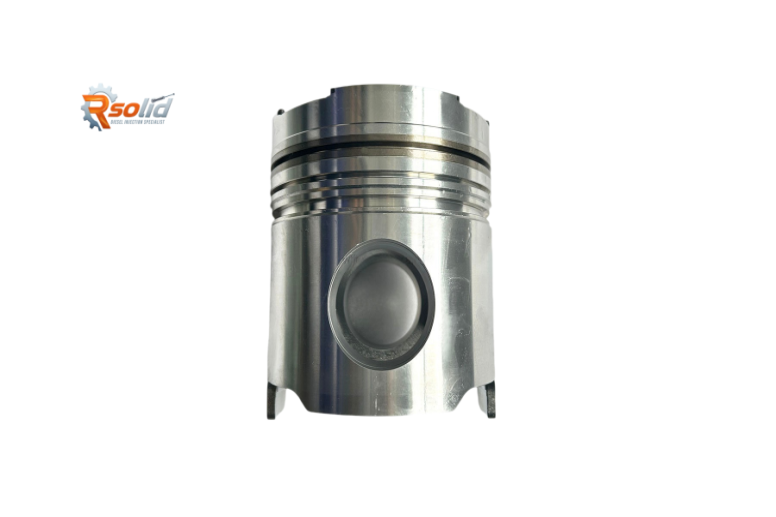

The Ultimate Guide to the 32617-00500 Piston for Mitsubishi S12A2 Heavy-Duty Diesel Engine
When it comes to heavy-duty industrial power, few engines command as much respect as the Mitsubishi S12A2. This V12, four-stroke diesel powerhouse is the backbone of countless marine vessels, mining haul trucks, oil rig generators, and railway locomotives across the globe. It is prized for its durability, but like all mechanical giants, it faces the relentless wear of extreme combustion pressures and high operating temperatures.
At the heart of this reliability lies a critical component: the piston assembly. Specifically, the part number 32617-00500 (often including the piston body, rings, and pin) is the designated replacement for this engine family. If you are an engine rebuilder, a fleet manager, or a ship engineer, understanding the nuances of this piston is vital to avoiding catastrophic engine failure.
In this guide, we break down the function of the 32617-00500 piston, warning signs of failure, a practical case study, and how to ensure you buy the right part.
H2: What is the 32617-00500 Piston?

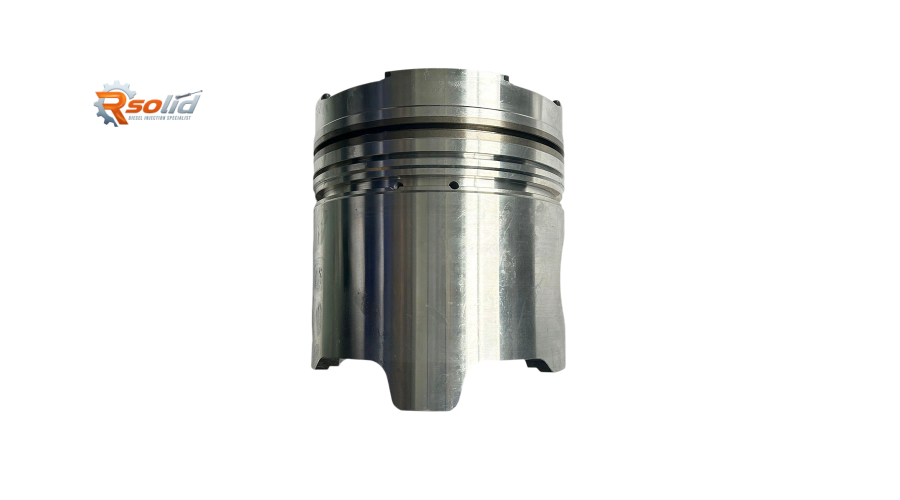

The 32617-00500 is the OEM-equivalent piston assembly specifically engineered for the Mitsubishi S12A2 heavy-duty diesel engine.
Engine Specs: The S12A2 is a 12-cylinder, 90-degree V-angle engine with a displacement of approximately 21.5 liters. It produces anywhere from 550 to 1,200 horsepower depending on the application and turbocharging configuration.

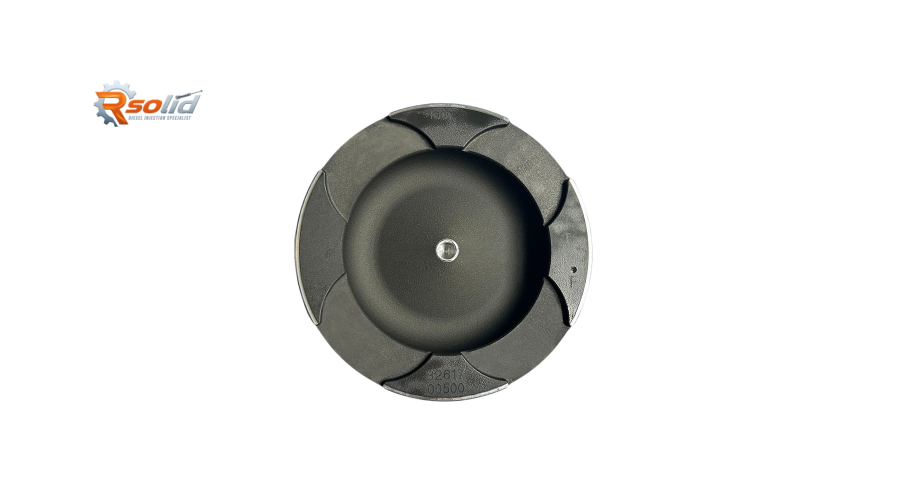

Piston Design: This piston is typically constructed from a high-silicon aluminum alloy for lightweight performance, with a steel crown insert or anodized top ring groove to withstand the extreme heat of the combustion chamber (exceeding 400°C).

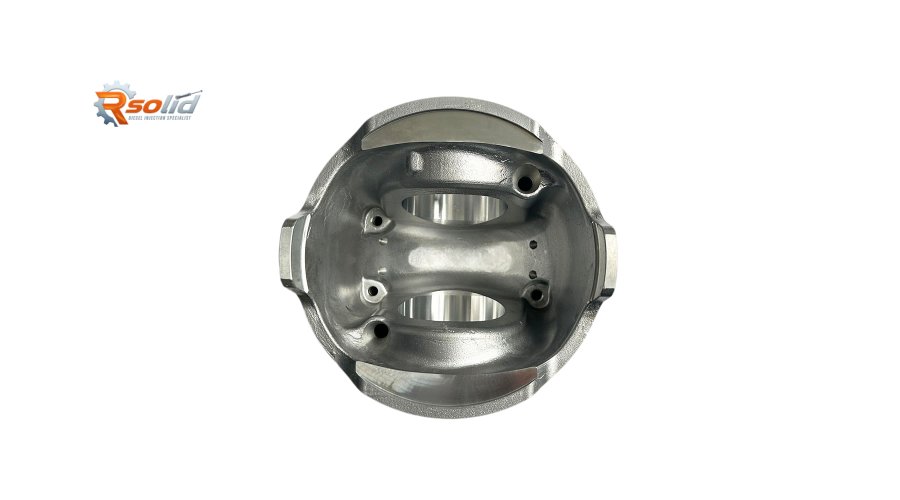

Key Features: It includes precision-machined ring grooves for compression and oil control, an internal cooling gallery (often oil-jetted from the crankcase), and a fully floating wrist pin design.
The 32617-00500 is not just a chunk of metal; it is a precision-engineered component that manages heat dissipation, seals the combustion pressure, and transfers mechanical energy to the connecting rod.
H2: Top 5 Symptoms of a Failing Piston (32617-00500)
Recognizing early signs of piston wear can be the difference between a simple "in-frame" overhaul and a total "bottom-end" rebuild where the crankshaft is damaged.
Excessive Blue/White Exhaust Smoke: If the piston rings are worn or the piston skirt is scored, oil from the crankcase bypasses into the combustion chamber. This burns and generates a distinct blueish-white smoke that lingers heavily.
High Crankcase Blow-by: Remove the oil fill cap while the engine is idling. If you see heavy, pulsating fumes or smoke pushing out, the compression rings are failing to seal. This is a primary indicator of a worn 32617-00500 piston crown.
Loss of Power and Slow Throttle Response: Compression is everything in a diesel engine. A cracked or seized piston allows combustion gases to escape past the rings, reducing cylinder pressure and drastically cutting the engine's torque output.
Knocking or Pinging Noises: As the piston pin bushing wears or the skirt collapses, you will hear a metallic "knock" that gets louder under load. This is dangerous—it often precedes a connecting rod failure.
Increased Oil Consumption: If you are adding a quart of oil every 10-20 operating hours, the piston rings (often included in the 32617-00500 assembly) have lost their tension.
H2: Real-World Case Study – Mining Haul Truck Overhaul
To illustrate the importance of a genuine-quality 32617-00500 piston, let’s look at a recent service case.
Background: A surface mining operation in Western Australia was running two Mitsubishi S12A2 engines powering 150-ton haul trucks. One of the trucks started experiencing intermittent power loss and blowing heavy black smoke.
Diagnosis: Engine diagnostic software pointed to an imbalance in Cylinder #5 and #8. A compression test revealed that Cylinder #8 was holding only 220 PSI compared to the standard 420-450 PSI. The inspection team scoped the cylinder and found significant scoring on the piston skirt.
The Damage:
The original piston had suffered "scuffing" due to a brief coolant loss event weeks prior, which overheated the aluminum skirt.
The top compression ring was stuck in the groove due to carbon build-up.
The wrist pin was seizing, causing a loud metallic knock.
The Solution: The team ordered genuine-spec 32617-00500 piston assemblies for both the affected cylinders to maintain balanced compression. The work crew performed an in-frame repair:
Honed the cylinder liners to a mirror finish.
Installed the new pistons with fresh connecting rod bearings.
Re-torqued the cylinder heads to factory specs.
The Results:
Compression levels returned to 435 PSI across all 12 cylinders.
The knocking sound disappeared immediately.
Oil consumption dropped from 1 liter/hour to under 0.2 liters/hour.
The truck returned to full hauling capacity within 18 hours of downtime.
H2: Replacement Best Practices for the 32617-00500 Piston
If you are installing a new piston, follow these critical steps to ensure longevity:
Measure the Cylinder Liner: Always measure the liner bore taper and out-of-roundness. If the liner is worn beyond spec, a new piston (even a perfect one) will fail quickly.
Check Ring End Gap: Never assume ring gaps are pre-set for your specific liner wear. File the rings (if allowed) to the exact factory clearance. Excessive gap = blow-by; insufficient gap = ring breakage.
Lubricate the Wrist Pin: Use clean engine assembly oil on the pin. Ensure the pin moves freely in the connecting rod bushing without binding.
Follow Torque Sequences: The connecting rod bolts on the S12A2 are torque-to-yield. They require a specific angle-torque sequence (e.g., 100 Nm + 90°). Reusing old bolts is a recipe for disaster.
Why Choose Rsolid Engine Parts for Your Mitsubishi Components
When sourcing critical engine components like the 32617-00500 piston, the quality of the supplier determines the success of your rebuild. Trusting a verified supplier ensures you are not compromising on metallurgy or precision.
Here is why industry professionals choose Rsolid Engine Parts for their heavy-duty diesel needs:
Rigorous Quality Assurance: Rsolid Engine Parts supplies pistons that meet or exceed OEM specifications. Each piston undergoes strict dimensional inspection and material composition testing to ensure they can handle the S12A2's brutal 2,000+ Bar combustion pressures.
Direct Factory Pricing: By optimizing the supply chain, they eliminate unnecessary middleman fees. You get premium, heavy-duty quality without the premium dealership price tag.
Global Shipping Expertise: Whether you are in a remote mining site or a busy shipyard, Rsolid has the logistics network to deliver your parts quickly, minimizing your equipment downtime.
Comprehensive Inventory: Beyond the 32617-00500 piston, they stock a full range of S12A2 components, including cylinder liners, bearing sets, and full overhaul gasket kits—your one-stop shop.
Technical Support: Their team understands heavy-duty engines. They provide installation guidance to ensure you get the maximum lifespan out of your new parts.
H3: Contact Rsolid Engine Parts Today
Don't let a worn piston compromise your Mitsubishi S12A2 engine's productivity. Reach out to their specialized team for expert advice and premium parts.
WhatsApp (Instant Inquiry): +8615975376779
Email (Detailed Quotes): Amy@rinjector.com
Whether you need just one piston for an emergency repair or a full set of 12 for a scheduled overhaul, Rsolid Engine Parts has the solution.
Frequently Asked Questions (FAQ)
Q1: Is the 32617-00500 piston the same for naturally aspirated and turbocharged S12A2 engines?
A: Not always. While the basic shape is similar, turbocharged variants often use a different aluminum alloy and have deeper cooling galleries to manage the extra heat. Verify your engine serial number and the piston crown profile before ordering.Q2: Do I need to replace the cylinder liner when installing a new piston?
A: Not necessarily. If the liner shows minimal wear and the cross-hatch pattern is intact, you can re-use it after a light hone. However, if it has a "glaze" or visible vertical scratches, replace the liner along with the piston.Q3: How long do Mitsubishi S12A2 pistons typically last?
A: With proper maintenance, clean fuel, and regular oil changes, these pistons can easily last 12,000 to 15,000 operating hours. However, severe overloading or coolant loss can reduce this drastically.Q4: Does Rsolid Engine Parts provide the full piston kit (rings, pin, and clips)?
A: Yes. The 32617-00500 assembly supplied by Rsolid typically includes the piston body, compression rings, oil control rings, wrist pin, and retaining circlips—everything you need for a complete installation.
