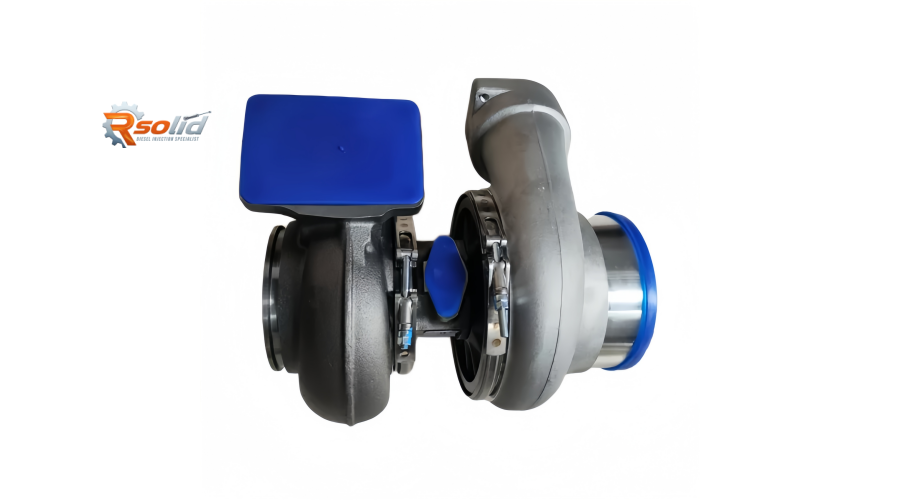

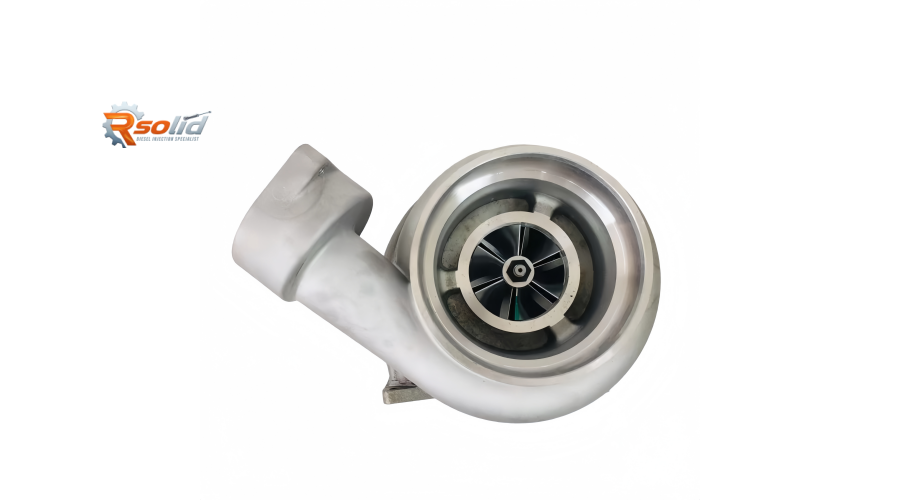

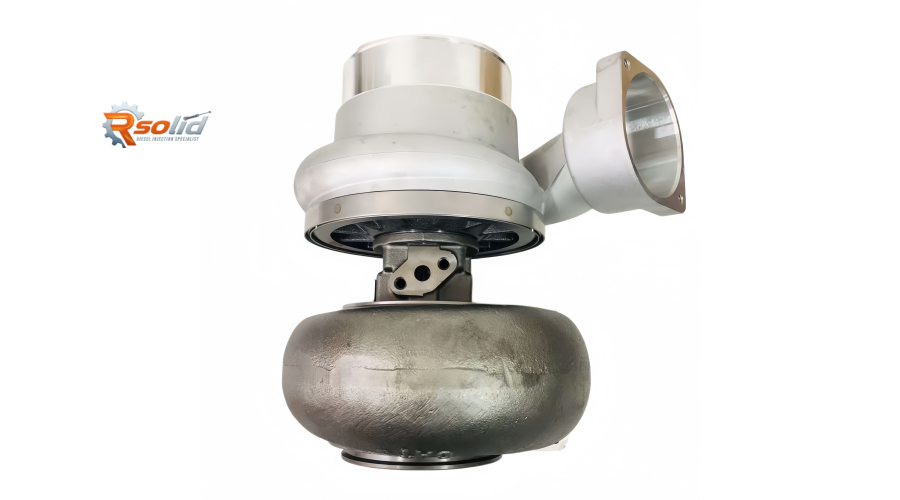

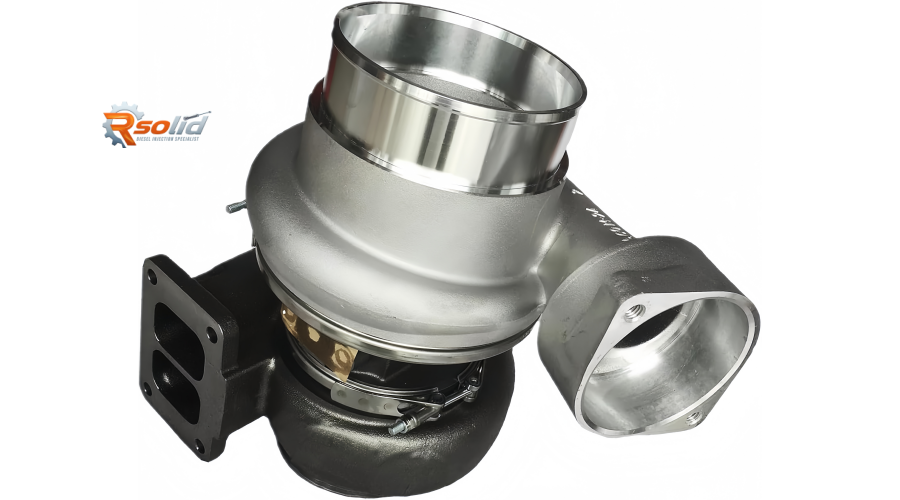

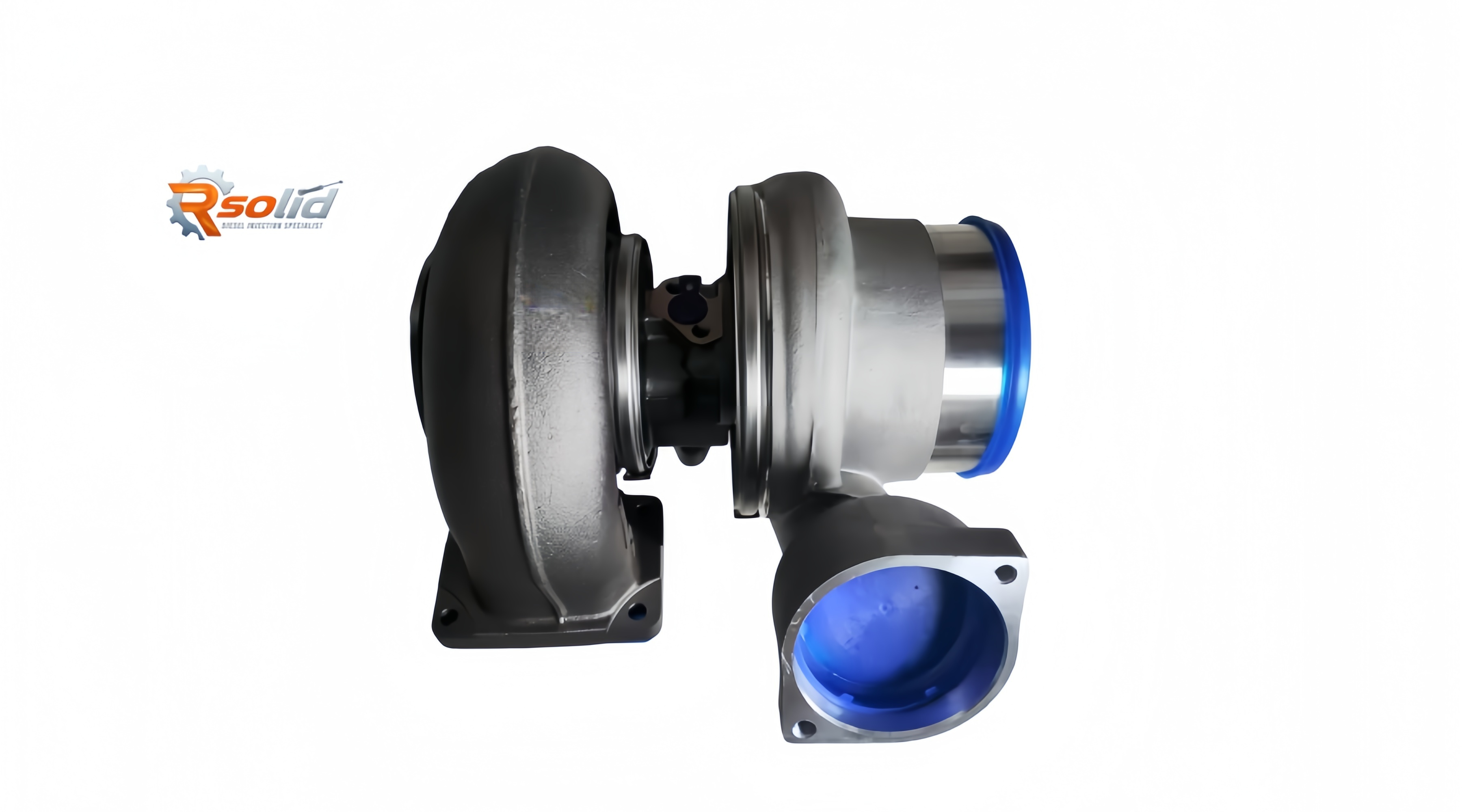

Product Focus: 144-4568 / 1W-6931 Turbocharger for Caterpillar 3412 – Industrial-Grade Boost for SR4 Gensets & Heavy Machinery
When your operation relies on the raw torque and unwavering reliability of a Caterpillar 3412 series engine—whether it’s powering an SR4 generator set, a marine propulsion system, or an industrial pump—the turbocharger is the critical component that determines fuel efficiency, emissions compliance, and peak power output. The 144-4568 (interchangeable with 1W-6931) is the factory-spec direct replacement engineered specifically for the 27.0L V12 beast.
If you are experiencing black smoke, power loss, or high exhaust temperatures, this guide covers the engineering upgrades, exact fitment, failure diagnostics, and a step-by-step replacement strategy to get your Cat back to 100% uptime.
1. Structural Engineering – Built for Continuous Duty and Extreme Heat
The 144-4568 turbocharger is not a standard on-highway unit; it is purpose-built for high-load, continuous-duty applications (prime power and marine) where thermal cycling and sustained boost pressure test material limits daily.
High-Alloy Inconel Turbine Wheel – Unlike standard steel wheels, this unit utilizes a nickel-chromium superalloy that resists creep and oxidation at sustained exhaust inlet temperatures exceeding 760°C (1400°F). This is critical for the 3412E, which runs leaner EGR/combustion strategies that generate higher firing pressures.
Heavy-Duty Three-Piece Thrust Bearing – The 3412 engine produces massive low-end torque, placing extraordinary axial loads on the shaft. This turbo features a stepped, oil-fed thrust bearing with a larger contact surface area (+22% compared to standard S400 frames), which eliminates the infamous "thrust washer galling" seen in lesser aftermarket clones.
Fully Floating Journal Bearings with Dual Oil Inlets – Designed to accommodate the Cat 3412’s specific oil pressure curve (40–70 psi at rated speed). The twin oil inlet ports ensure immediate hydrodynamic lift at start-up, drastically reducing cold-start scuffing.
Reinforced Compressor Housing with Surge-Prevention Ports – The compressor housing incorporates a ported shroud design that recirculates excess boost pressure back to the inlet during sudden load dumps (e.g., generator load rejection). This stabilizes the compressor map, preventing destructive surging that can snap the shaft within milliseconds.
Precision-Machined Mating Flanges – Manufactured to strict SAE J518 dimensions, the turbine inlet and outlet flanges are perfectly flat to accommodate the specific CAT exhaust elbow and T4 twin-scroll inlet (depending on the 3412C or E variant). No warping, no exhaust gas recirculation leaks.
VSR Dynamic Balancing – Each rotating group is balanced to ISO 1940 G1.0 (stricter than the typical G2.5), ensuring vibration-free operation up to 115,000 RPM. This extends the life of the bearing housing O-rings and prevents oil seal fatigue.
2. Exact Fitment – Which CAT Models Use the 144-4568 / 1W-6931?
This turbocharger is a direct cross-reference for Caterpillar 144-4568 and the older supersession 1W-6931. It is exclusively designed for the 3412 family of V12, 4-stroke, direct-injection diesel engines, specifically in the following configurations:
Critical Cross-Reference Note: This turbo physically replaces both 144-4568 and 1W-6931. When ordering, always check your engine Serial Number prefix (e.g., 4TN, 8PS, 9SZ, or C5E). If your unit has a wastegate actuator, verify the actuator part number—this assembly covers non-wastegated and specific wastegated calibrations (check your diaphragm canister for a CAT label).
3. Common Failure Modes & Professional Installation/Replacement Guide
The 3412 places immense stress on its turbo. Here are the five most frequent failure signatures seen in generator and marine applications, plus the proven remedies:
| Symptom | Root Cause | Recommended Corrective Action |
|---|
| Unable to reach rated kW / Black exhaust smoke at load | Clogged turbine nozzle ring due to heavy carbon build-up (often from prolonged low-load idling) | Inspect the turbine inlet. If carbon bridges are visible, replace the complete cartridge. Do not attempt to manually scrape the nozzles—it unbalances the wheel. |
| Engine lopes / surges at constant 1800 RPM | Compressor surge caused by a sticking or improperly set wastegate actuator (on wastegate variants) | Check actuator linkage; it should stroke 12–14mm at 150 kPa (21.7 psi). Replace if diaphragm is punctured. |
| Blue/white oil smoke at start-up | Oil seal leakage on the turbine side—often caused by worn bearings allowing shaft "slop" (>0.030" radial play) | Immediately shut down. Replace turbo. Critical: Replace the oil return line drain tube gasket and clean the crankcase breather to prevent backpressure. |
| High-pitched screech / metallic rattle | Foreign Object Damage (FOD) to compressor or turbine wheel, or total bearing cage failure | Do NOT restart. Remove the intake duct; if wheel edges are chipped or bent, replace the entire assembly. Clean the intercooler circuit to remove debris. |
| Overheating / High EGT at partial load | Internal oil coking blocking the bearing housing oil gallery (often from hot shutdown without cool-down) | Flush the oil supply line with compressed air and solvent. Pre-fill the new turbo with oil before installation. Install a turbo timer if manually operated. |
Installation Best Practices (The "Cat 3412" Specifics):
✅ Oil Supply Line Flush (Non-Negotiable): The 3412 has a steel oil feed line from the block. Remove it and run a wire brush through it or use high-pressure solvent. Most premature failures occur because old carbon shoots into the new turbo's bearings within the first 10 minutes of startup.
✅ Replace All Gaskets & O-Rings: Use the complete gasket kit (including the water-jacket plugs if equipped). Torque the oil drain flange bolts to 35 N·m—overtightening warps the flange and blows seals.
✅ Pre-Lubrication Procedure: Fill the center housing through the top oil feed port with exactly 100ml of clean Cat DEO (SAE 15W-40) while rotating the compressor wheel by hand. Wait 30 seconds for the oil to seep into the thrust bearing.
✅ V-Band Clamp Torque: Tighten turbine inlet and outlet V-band clamps to 10–12 N·m only. Over-tightening distorts the housing and causes exhaust leaks.
❌ Start-up Protocol: Prime the engine oil system by cranking with the fuel shut-off valve closed until oil pressure registers on the gauge. Start the engine and immediately bring it to 1000 RPM (do NOT idle at 600 RPM). Idling a new turbo on a cold 3412 starves the bearings of oil pressure. Run at 1000–1200 RPM for 3 minutes to bed the bearings.
4. Why Rsolid Engine Parts is the Smart Choice for Your CAT 3412
When replacing a critical component on a $50,000+ engine, "cheap" is never the answer—reliability is. Rsolid Engine Parts provides the engineering confidence that your SR4 genset or marine 3412 will fire up and hold load shift after shift.
Genuine-Grade Materials & Full Traceability – Our 144-4568 turbochargers are manufactured in ISO 9001:2015 & IATF 16949 certified foundries. We provide material test reports (MTRs) for the turbine housing and shaft upon request—guaranteeing the Inconel alloy and ductile iron specs match Caterpillar’s original blueprints.
Factory Hot-Gas Tested – Every unit is run on a dynamic test bench simulating the 3412E's specific fuel mapping. We provide a performance test certificate with each turbo, logging boost pressure, oil pressure differential, and vibration levels across 4 load points—so you know it performs before it arrives.
100% New, Never Rebuilt – We do not sell "remanufactured" cores with welded shafts or re-ground journals. Our units feature brand-new, billet-machined compressor wheels and investment-cast turbine wheels for maximum fatigue life.
Ex-CAT Technician Support – Our technical team includes former Caterpillar field service engineers who understand the quirky nuances of the 3412 (like the specific orientation of the oil drain gasket). We provide remote video support via WhatsApp to guide your mechanics step-by-step.
Global Stock & Rapid Dispatch – With dedicated heavy-duty inventory, we keep the 144-4568, 1W-6931, and all associated install kits (oil lines, gaskets, O-rings) ready to ship. Most orders are dispatched via DHL/FedEx Priority within 24 hours to major ports and industrial hubs worldwide.
Warranty You Can Count On – We back every turbo with a 12-month / 2,000-run-hour warranty (whichever comes first) against manufacturing defects. No endless fine print—just straightforward replacement or refund if a defect occurs.
Stop guessing and secure the genuine performance your Caterpillar 3412 deserves.
Contact Rsolid Engine Parts today for a detailed quotation, CAD dimensional drawing, or installation video reference.
