38823101 Engine Rebuild Kit for Caterpillar C13 In‑Frame Engine Repair – Complete Heavy‑Duty Overhaul
1. Basic Specifications & Key Parameters
The 38823101 engine rebuild kit is a complete in‑frame overhaul solution designed specifically for the Caterpillar C13 diesel engine – the 12.5‑liter, inline 6‑cylinder powerhouse that succeeded the C12 and is a staple in heavy trucks, construction equipment, and industrial applications. This kit allows a full rebuild while the engine remains in the chassis, significantly reducing labor time and downtime compared to an out‑of‑frame overhaul.
Base Engine Specifications (Caterpillar C13 – ACERT):
Displacement: 12.5 L (763 cu in)
Bore × Stroke: 130 mm × 157 mm (5.12″ × 6.18″)
Cylinder configuration: Inline 6‑cylinder, 4‑stroke, turbocharged & aftercooled with ACERT technology
Fuel system: HEUI (Hydraulically actuated Electronic Unit Injection) – electronic
Compression ratio (stock): 16.5:1 – 17.0:1 (depending on rating)
Power range: 305 – 470 hp (228 – 350 kW) in truck applications; up to 525 hp in industrial

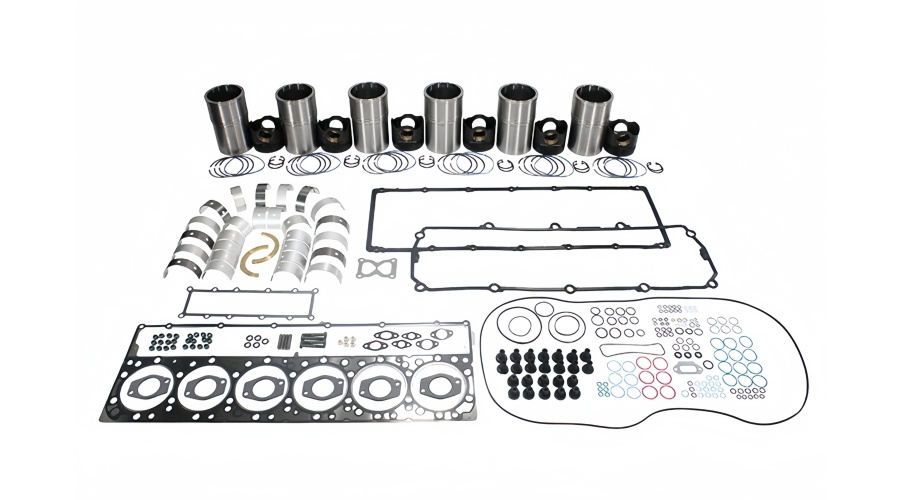

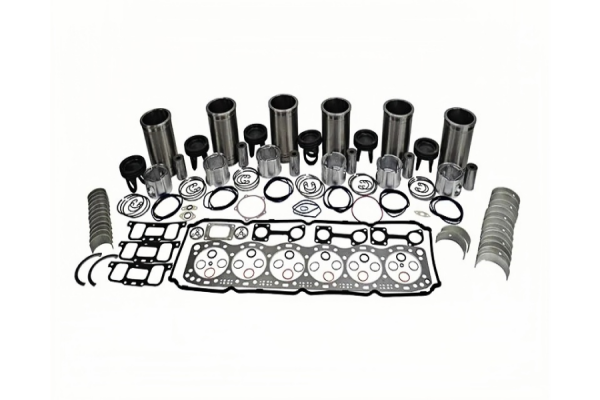

What the 38823101 In‑Frame Rebuild Kit Includes:

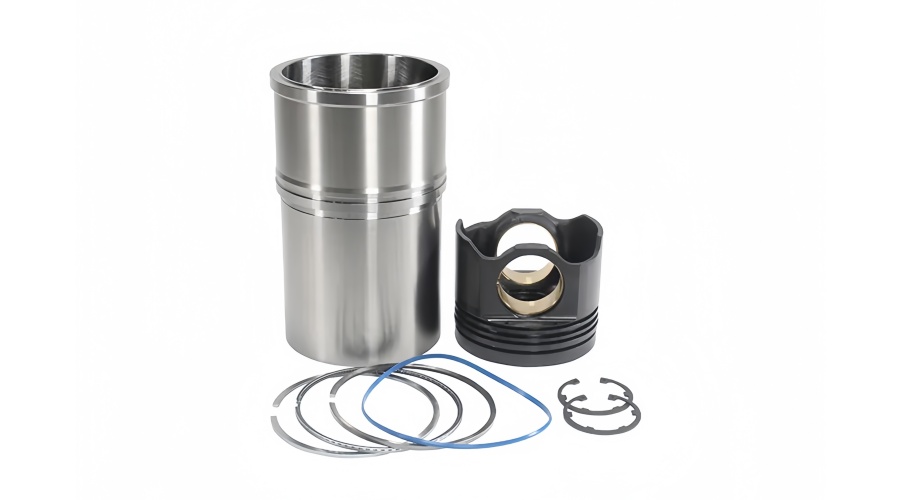

6 x wet‑type cylinder liners (centrifugally cast high‑chromium gray iron, induction‑hardened bore, precision plateau cross‑hatch finish)
6 x forged steel pistons (C13 uses steel pistons for high combustion pressures – aluminum not used in production)
6 x piston ring sets (plasma moly or chrome‑ceramic top ring, tapered second ring, 3‑piece steel oil ring with expander)
Piston pins (wrist pins) and heavy‑duty retaining rings

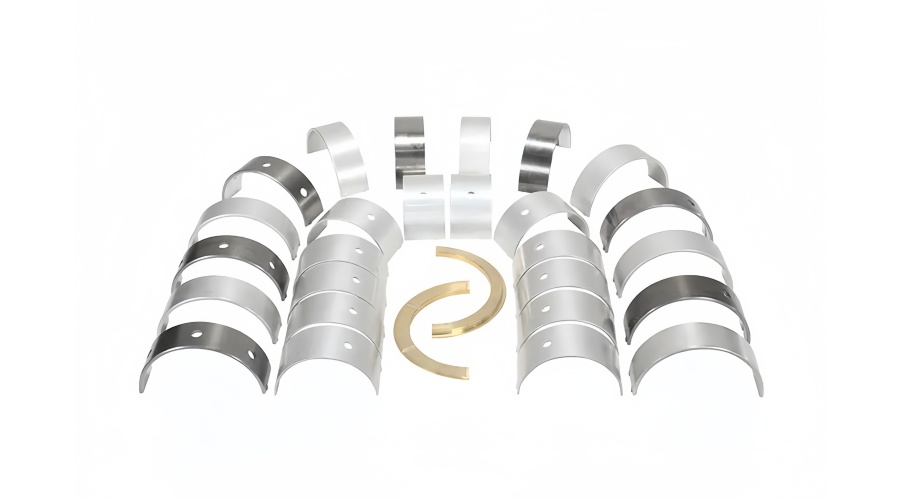

Main bearings (tri‑metal – steel back, copper‑lead, tin‑babbitt) – standard or undersize
Connecting rod bearings (tri‑metal)
Thrust washers (crankshaft end‑play control)
Camshaft bearings

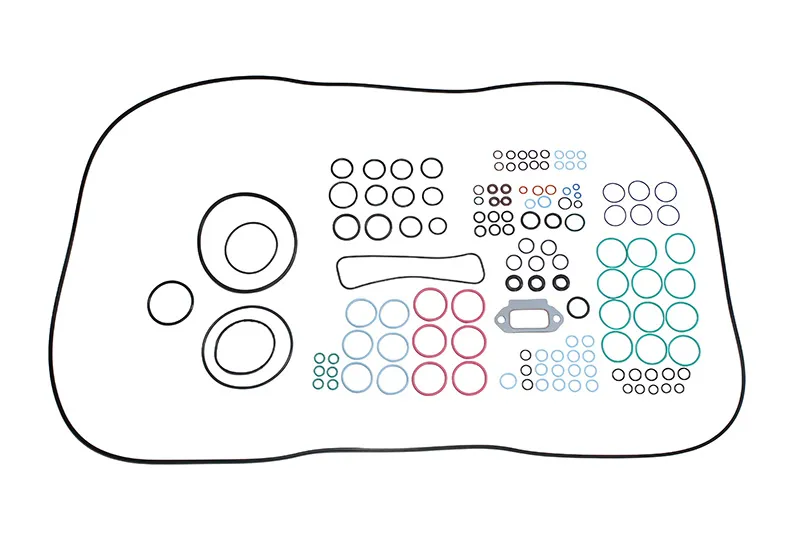

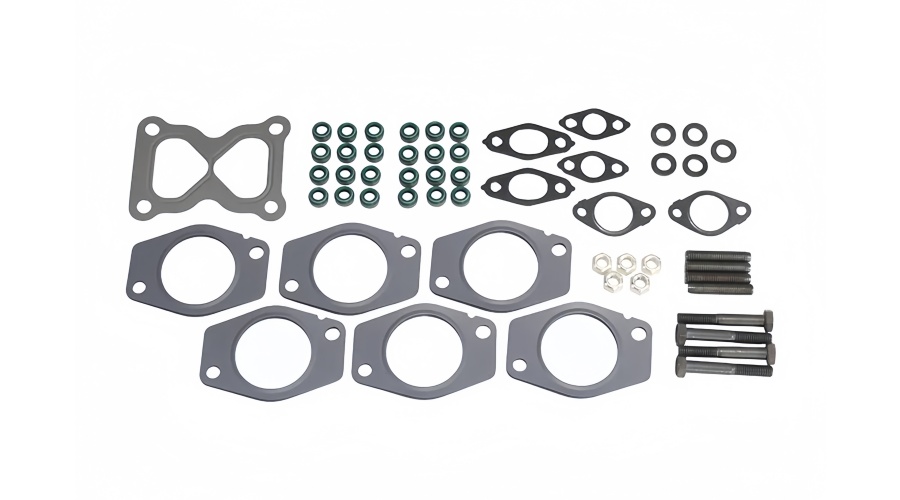

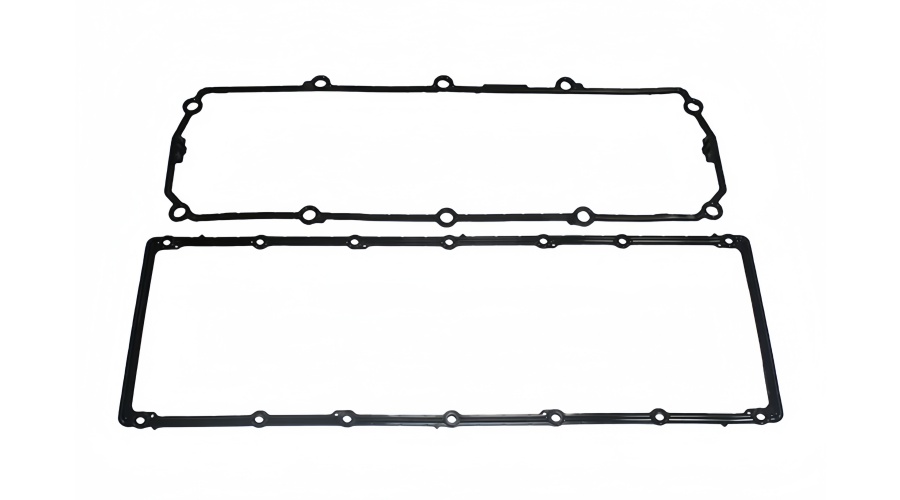

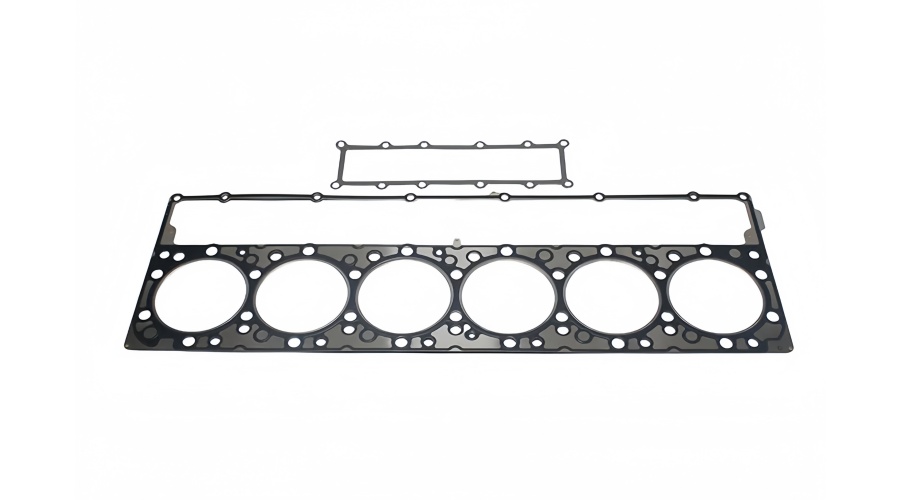

Full upper & lower gasket set – MLS (multi‑layer steel) cylinder head gasket, valve cover, oil pan, intake/exhaust manifold, turbocharger, timing cover, water pump seals, all O‑rings, HEUI injector seals, copper washers, front & rear crankshaft seals
Piston cooling jets (oil spray nozzles) – critical for C13

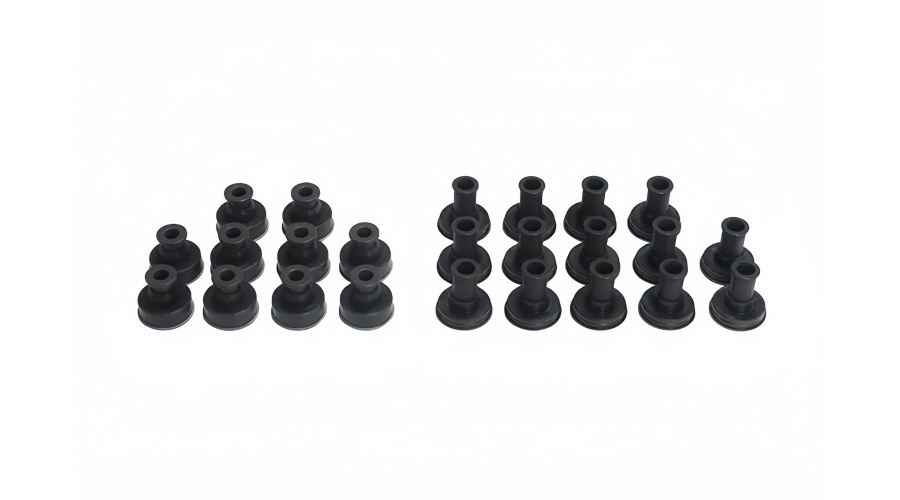

Valve stem seals
Connecting rod bolts (torque‑to‑yield – must be replaced)
Crankshaft damper seal (in some kit versions)
Important Notes:
Part number 38823101 is the OEM / aftermarket reference for the complete C13 in‑frame kit. Always verify your engine serial number prefix (e.g., C13‑###, KCB, KCA, JAM, etc.) before ordering.
The C13 uses steel pistons exclusively. Supplying aluminum pistons will cause catastrophic failure. Rsolid Engine Parts supplies the correct steel pistons.
Bearing oversizes available: standard, 0.010″, 0.020″, 0.030″.
The C13 has a different liner design than the C12 – do not interchange.
2. Compatible Vehicles & Equipment
The Caterpillar C13 diesel engine (ACERT) is widely used across heavy‑duty trucks, construction machinery, and industrial equipment. The 38823101 rebuild kit is suitable for any application powered by a C13 engine.
Heavy‑Duty On‑Highway Trucks
Peterbilt 367, 386, 388, 389, 567 (C13 option)
Kenworth T660, T680, T800, W900 (C13 powered)
Freightliner Cascadia, Century, Columbia, Coronado (with C13)
International ProStar, LoneStar, 9900i (C13 available)
Mack Pinnacle (with Cat C13 repower)
Western Star 4700, 4800, 4900, 5700 (C13 option)
Construction Equipment
Caterpillar excavators (336D, 336E, 340D, 345C, 349D – C13 powered)
Caterpillar wheel loaders (966H, 972H, 980H, 982M – some use C13)
Caterpillar motor graders (14M, 16M, 18M – C13 variants)
Caterpillar bulldozers (D7E, D8T, D9T – some use C13)
Caterpillar off‑highway trucks (770, 772, 773, 775 – certain models)
Caterpillar pipelayers and landfill compactors
Industrial & Stationary
Generator sets (C13 industrial engines, 250–450 kW prime power)
Industrial pumps, compressors, crushers, and drill rigs
Material handlers and scrapers
Marine
Agricultural
Verify your engine serial number prefix – Common C13 prefixes: C13-### (early), KCB, KCA, JAM, JLB, LEE, LEF, LEG, etc. Contact Rsolid Engine Parts with your engine serial number or arrangement (AR) number for exact fitment.
3. Performance Advantages & Functional Improvements
Installing the 38823101 complete in‑frame rebuild kit restores the Caterpillar C13 engine to factory‑fresh operating condition. Here are the key performance gains:
✅ Restored Compression & Full Power Recovery
New cylinder liners, steel pistons, and rings seal combustion gases completely. Cranking compression returns to factory spec (typically 380–480 psi depending on compression ratio). The engine regains its rated horsepower (305–470 hp) and corresponding torque – no more power loss on hills or under heavy loads.
❌ Elimination of Blow‑by
Worn rings and polished liners cause excessive crankcase pressure, a common complaint on high‑hour C13 engines. New plasma‑moly or chrome‑ceramic rings (with optimized radial tension) reduce blow‑by to near zero. You will see no more vapor from the oil fill tube, breather, or dipstick tube.
⛽ Drastically Reduced Oil Consumption
A worn C13 can burn 1 quart of oil every 100–200 miles or 50–80 hours. After a quality rebuild using the 38823101 kit, oil consumption drops to less than 0.5 quart per 500 miles (or 0.25 quart per 100 hours). Blue exhaust smoke disappears, and you no longer need frequent top‑ups.
📈 Improved Fuel Economy
Restored compression and proper combustion chamber sealing increase thermal efficiency by 10–15%. Many fleet owners report fuel savings of 0.5–1.0 mpg in truck applications, quickly recovering the cost of the rebuild kit.
🔧 Healthy Oil Pressure
New main and rod bearings restore oil clearances (typically 0.002–0.004″). Hot idle oil pressure rises from a concerning 10–15 psi to a robust 25–35 psi. At working RPM (1,800–2,100), pressure returns to 50–70 psi – protecting the turbocharger, HEUI pump, camshaft, and crankshaft.
🔇 Smooth & Quiet Operation
New steel pistons, rings, bearings, and gaskets eliminate knocking, rapping, and uneven running. The C13 runs with a steady, balanced cadence – reducing operator fatigue, cab vibration, and noise levels.
⏳ Extended Service Life
A proper in‑frame rebuild using a high‑quality kit like 38823101 can extend the life of your Caterpillar C13 by 10,000–15,000 operating hours or 500,000–700,000 miles in on‑highway use, depending on maintenance and operating conditions.
🛠️ ACERT & HEUI System Compatibility
The kit includes high‑quality injector seals, O‑rings, and gaskets specifically designed for the HEUI fuel system and ACERT emissions components. Proper sealing prevents high‑pressure oil leaks (which can damage the HEUI pump) and ensures consistent injection pressure for optimal combustion.
Rsolid Engine Parts – Your Trusted Supplier for Caterpillar C13 Rebuild Kits
Rsolid Engine Parts is a leading global supplier of diesel engine rebuild kits, fuel injectors, turbochargers, and heavy‑duty components. Our 38823101 engine rebuild kit for the Caterpillar C13 is manufactured to meet or exceed original equipment specifications, offering exceptional value for truck fleets, owner‑operators, construction companies, and rebuild shops.
Why Choose Rsolid Engine Parts?
OEM Quality – All components are sourced from ISO‑9001 certified factories that supply to major OEMs. Each part is dimensionally verified against Caterpillar engineering standards.
Complete Kits – Every kit is assembled, inspected, and counted before shipment – no missing gaskets, seals, or bearings. You receive exactly what you need for a full in‑frame rebuild.
Perfect Fitment Guarantee – We verify engine serial numbers (KCB, KCA, JAM, etc.) and arrangement (AR) numbers to ensure 100% compatibility. If it doesn’t fit, we will replace it.
Steel Pistons Confirmed – We supply the correct forged steel pistons that the C13 requires – no risk of mixing with C12 aluminum pistons.
Flexible Options – Standard and oversize bearing sets (0.010″, 0.020″, 0.030″) available. Upgraded ring packs for extended drain intervals also available.
Fast Worldwide Shipping – Our large inventory is ready for immediate dispatch, minimizing your equipment downtime.
Expert Technical Support – Our team includes experienced Caterpillar diesel mechanics who can assist with installation, torque specifications, HEUI priming, ACERT component handling, and troubleshooting.
Competitive Pricing – Direct sourcing cuts out middlemen, passing significant savings to you.
Contact Rsolid Engine Parts today:
Request a free quote, check stock availability, or get professional installation advice. Keep your Caterpillar C13 running stronger, cleaner, and more efficiently with Rsolid Engine Parts.
