340621028 Engine Rebuild Kit for Caterpillar 3406E Diesel Engine
Structural Features and Advantages

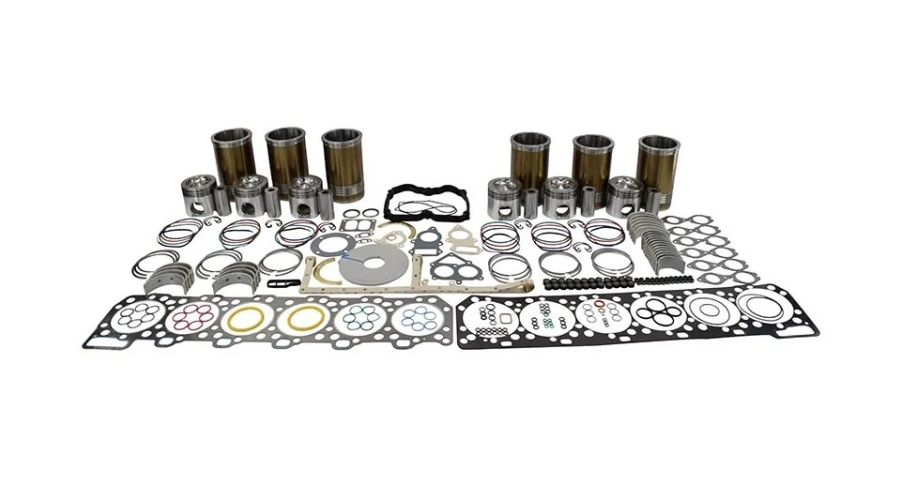

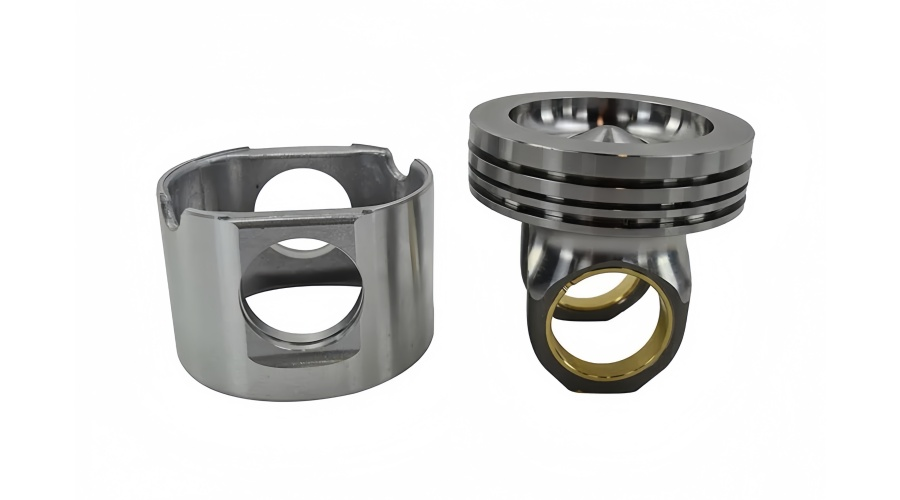

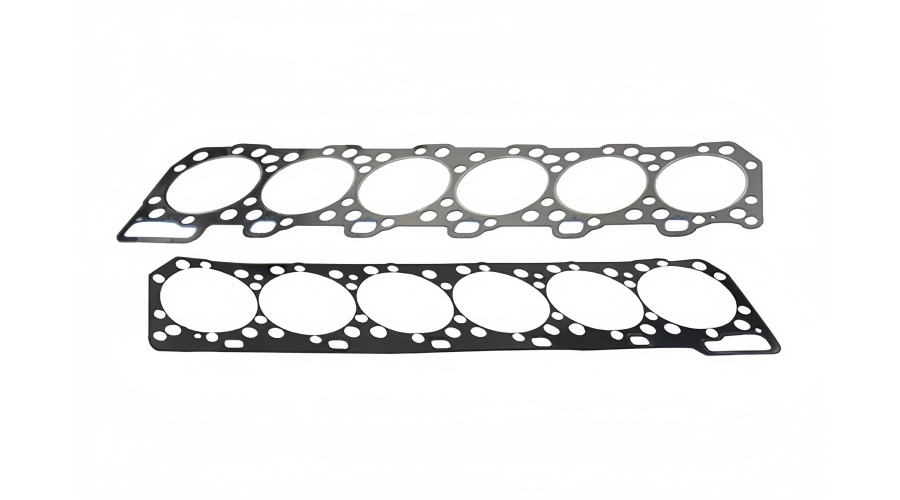

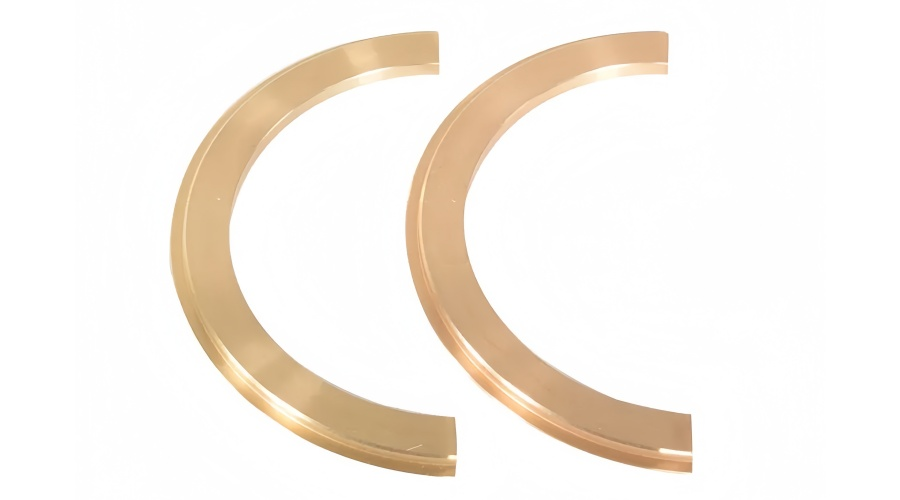

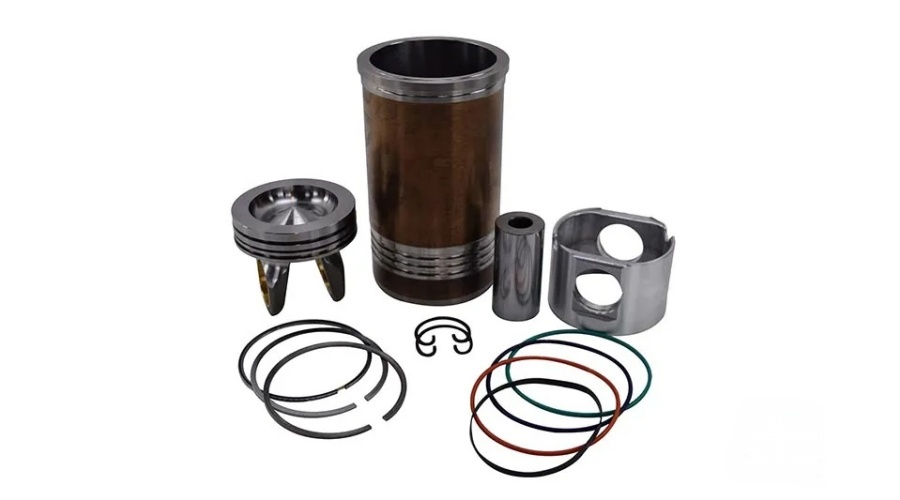

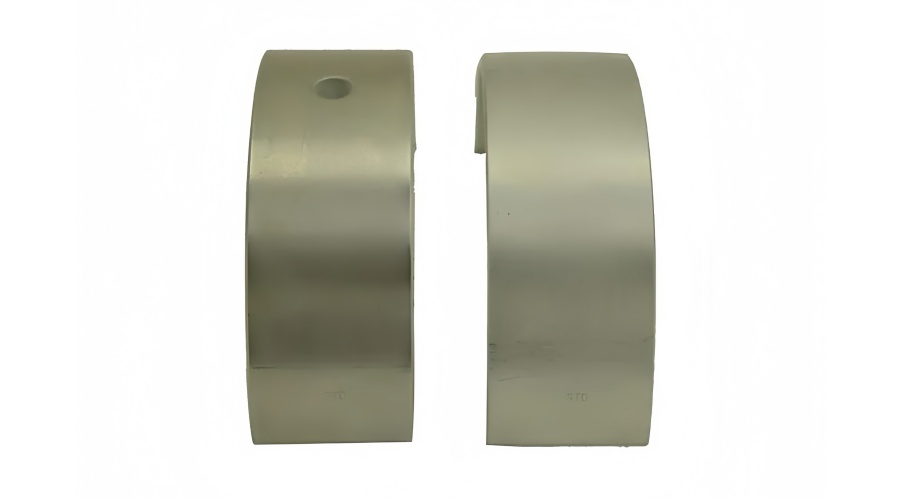

The 340621028 engine rebuild kit is a comprehensive overhaul solution designed for the Caterpillar 3406E diesel engine, a legendary 6-cylinder, 14.6-liter workhorse used worldwide in heavy-duty applications. This master kit typically includes over 200 individual components: piston assemblies (with rings, pins, and circlips), cylinder liner kits, main bearings, rod bearings, thrust washers, full gasket set (including head gasket, valve cover gasket, oil pan gasket, and all O-rings), seal set (front and rear crankshaft seals), cylinder head gaskets (individual or one-piece depending on injector style), and often freeze plugs and valve stem seals. Structurally, the pistons are manufactured from forged aluminum alloy with a high-top ring placement for reduced crevice volume and lower hydrocarbon emissions. The cylinder liners are induction-hardened cast iron with a cross-hatched finish (Ra 0.3–0.5 µm) for immediate ring seating. The bearing shells feature a tri-metal construction (steel backing, copper-lead intermediate layer, and babbitt overlay) to withstand the 3406E’s high cylinder pressures (up to 180 bar). Key advantages of the 340621028 rebuild kit include: matched component compatibility (all parts are precisely graded for specific engine build variations such as 3406E with mechanical unit injection or HEUI injectors), reduction in engine downtime (a single kit delivers everything needed for a complete in-frame or out-of-frame overhaul), and cost savings of 30–50% compared to purchasing genuine Caterpillar parts individually. The kit restores the 3406E to OEM compression, oil pressure, and power output, extending engine life by another 10,000–15,000 operating hours.
Core Working Principle
The 340621028 engine rebuild kit restores the thermodynamic and mechanical efficiency of the Caterpillar 3406E diesel engine by replacing all critical wear components. When installed correctly, the new piston and liner set re-establishes the original compression ratio of 16.5:1. As the new pistons move within the honed liners, the fresh ring pack (top compression ring with barrel face, second ring with taper face, and three-piece oil control ring) seals combustion gases effectively, reducing blow-by from worn-engine levels (often exceeding 150 L/min) to less than 30 L/min. The new main and rod bearings restore oil film thickness to approximately 0.002–0.004 inches, eliminating knocking and maintaining proper crankshaft journal clearances. The full gasket set prevents external oil, coolant, and fuel leaks while ensuring proper sealing of the cylinder head to the block via the head gasket, which incorporates a steel fire ring around each cylinder bore. The valve stem seals (included in some variants) control oil consumption past the valve guides, which is critical for the 3406E’s overhead camshaft configuration. The result is an engine that performs as if newly assembled, with factory-spec power (typically 350–550 hp depending on rating), torque (up to 1850 Nm), and fuel efficiency (around 190–210 g/kWh). The rebuild process essentially resets the mechanical life clock of the 3406E.
Main Application Equipment
The 340621028 engine rebuild kit is used for overhauling Caterpillar 3406E diesel engines found in a vast range of industrial and mobile equipment, including:
Heavy-duty trucks – Peterbilt, Kenworth, Freightliner, Western Star models equipped with the 3406E engine (1980s–2000s production).
Construction machinery – Caterpillar excavators (e.g., 350, 375, 385 series), wheel loaders (980, 988 series), and bulldozers (D8R, D9R).
Articulated dump trucks – Caterpillar 725, 730, 735, 740 models.
Motor graders – Caterpillar 14H, 16H, 24H series.
Off-highway trucks – Caterpillar 769D, 771D, 773D, 775D models.
Agricultural tractors – Challenger MT series and other large ag equipment using the 3406E industrial engine.
Generator sets – Prime and standby generators rated from 250 kW to 600 kW, commonly found in data centers, hospitals, and oilfields.
Marine propulsion – Small to medium workboats, tugboats, and fishing vessels with Caterpillar marine 3406E diesels.
Pumping stations and compressor units for natural gas and water pipelines.
The 3406E is one of the most widely produced heavy diesel engines in history; the 340621028 rebuild kit is an essential stocking item for any heavy equipment repair shop or fleet maintenance facility.
Common Failure Symptoms & Repair/Replacement Guidelines
Failure symptoms indicating the need for the 340621028 rebuild kit on a Caterpillar 3406E engine:
Excessive blow-by – Visible smoke or mist from the crankcase breather tube with pressure that extinguishes a match. Measured blow-by > 70 L/min at rated speed indicates worn rings and liners.
High oil consumption – More than 1 quart (0.95 liters) per 100 gallons (380 liters) of fuel, with blue smoke from the exhaust pipe.
Low compression – Engine hard to start cold, lacks power, misfires. Compression test shows one or more cylinders below 300 psi (20.7 bar) – nominal is 380–420 psi (26–29 bar).
Low oil pressure – Hot idle pressure below 10 psi (0.7 bar) and running pressure below 30 psi (2.1 bar) at rated RPM, caused by worn main and rod bearings.
Oil and coolant leaks – External leaks from aged gaskets and seals, often at the front timing cover, rear main seal, valve cover, or oil pan.
Knocking noises – Metallic knock from main or rod bearings when engine is lugging; also piston slap audible during cold start.
Coolant contamination – Combustion gases in coolant (detected by test kit) due to failed head gasket or cracked liner.
Repair and replacement points for the 340621028 kit:
Before ordering, confirm the 3406E arrangement number (e.g., 7CZ, 9CK, 1LW, 2WS) and injector type (mechanical unit injector vs. HEUI) because gasket and piston designs vary. The 340621028 is typically for mechanical unit injector (EUI) versions. If uncertain, provide your engine serial number to Rsolid Engine Parts for verification.
Perform an in-frame or out-of-frame rebuild depending on accessibility. In-frame is common for trucks and gen-sets where the crankshaft can be removed without pulling the engine.
Remove and inspect the cylinder head for cracks, especially between valve seats and injector bores. The 3406E head is prone to cracking; replacement may be needed.
When installing new cylinder liners, measure liner protrusion above the block deck (0.08–0.16 mm typical). Use the correct shims to achieve spec. Failure to set proper protrusion leads to head gasket failure.
Piston installation: Ensure the piston cooling jets (oil squirters) are not clogged; replace any damaged jets. Lubricate piston rings generously with clean engine oil. Use a quality ring compressor.
Bearing installation: Main bearing caps and rod caps must be torqued in sequence. For 3406E, main cap bolts: 180 Nm + 120°; rod bolts: 110 Nm + 60° + 60° (torque-to-yield – replace bolts every time).
Head gasket installation: Use a new head gasket and engine assembly lubricant on threads. Torque sequence: 270 Nm, then 270 Nm, then + 90°. For multiple head gasket thickness options, match to liner protrusion (e.g., 1.5 mm, 1.6 mm, 1.7 mm thick gaskets).
After full assembly, prime the engine oil system by cranking with fuel off until oil pressure registers (use starter with injector harness disconnected). Then start and idle at 1000 RPM for 20 minutes, checking for leaks and listening for unusual noises.
Perform a break-in procedure under load: 50% load for 1 hour, 75% load for 2 hours, then full load. Change engine oil and filter after the first 50 hours of operation.
Why Choose Rsolid Engine Parts for the 340621028 Engine Rebuild Kit
Rsolid Engine Parts (www.rinjector.com) is a trusted global supplier of the 340621028 engine rebuild kit for Caterpillar 3406E diesels. Each kit is sourced from ISO 9001 certified manufacturers and audited for dimensional accuracy and material composition. Advantages of purchasing from Rsolid include:
Complete kit, no missing parts – Every gasket, seal, bearing, piston, liner, and wear component is included in one master box, eliminating the need to track down individual parts from multiple vendors.
OE-grade or better quality – Pistons from trusted foundries (forged), liners with induction-hardened bores, bearings from Federal-Mogul (now Tenneco) or equivalent, and gaskets with upgraded materials for improved heat resistance.
Arrangement match guaranteed – Rsolid verifies your 3406E arrangement number before shipping, ensuring compatibility with mechanical unit injector (EUI) variants. Free technical consultation.
Rigorous packaging – Kits are double-boxed with foam inserts for fragile components like head gaskets and bearings, preventing damage during international transit.
Global stock availability – High stock levels in regional warehouses (North America, Europe, Asia) with express shipping using DHL, FedEx, or sea freight for bulk orders.
Warranty – 12 months or 2000 operating hours against manufacturing defects. Rsolid provides replacement parts for any verified quality issue.
Competitive pricing – Up to 60% savings compared to Caterpillar dealer prices. Volume discounts for workshops, rebuild centers, and fleet owners.
To order the 340621028 engine rebuild kit for your Caterpillar 3406E, contact Rsolid Engine Parts via WhatsApp: +8615975376778 or visit www.rinjector.com. Provide your engine serial number for accurate kit matching.
