C15107010 Engine Reconstruction Kit for Caterpillar C15 Diesel Engine – Complete Overhaul Solution

Advanced Structural Features and Performance Advantages

The C15107010 engine reconstruction kit is a premium-grade, comprehensive overhaul solution specifically engineered for Caterpillar C15 heavy-duty diesel engines, including both the pre-ACERT mechanical units and the later ACERT electronic versions. This complete kit is designed to restore engine performance, reliability, and fuel efficiency to factory specifications, offering a cost-effective alternative to purchasing individual components. The C15107010 kit is particularly suited for high-mileage engines that have experienced wear over hundreds of thousands of miles or tens of thousands of operating hours.

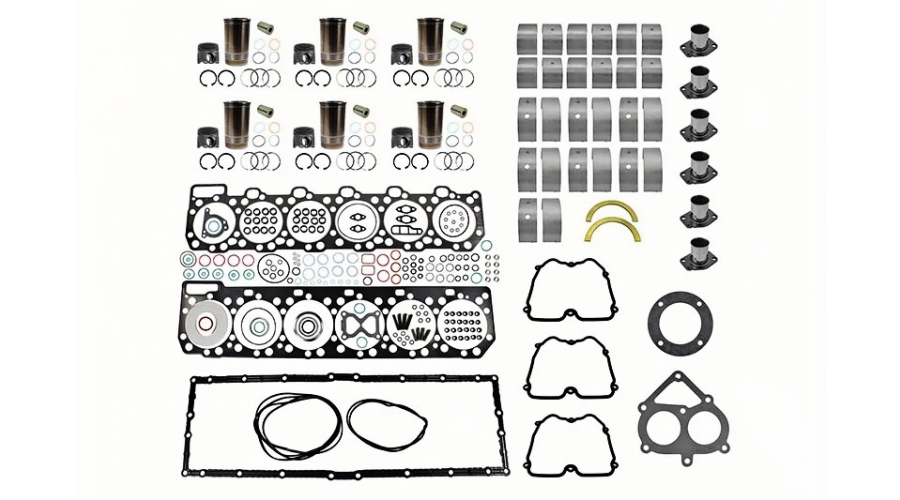

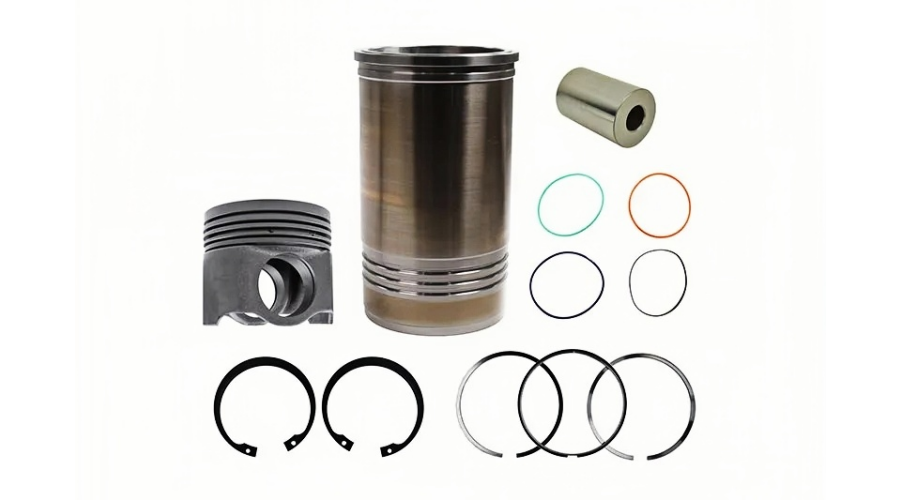

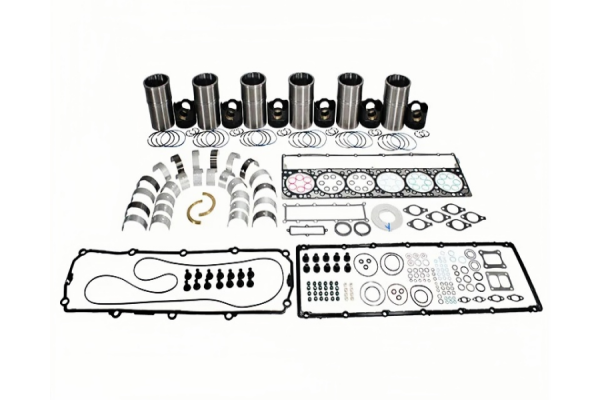

Structurally, the kit includes a complete set of six cylinder packs, each comprising a centrifugal-cast gray iron cylinder liner with a cross-hatched, plateau-honed finish for optimal oil retention and ring seating. The liners feature induction-hardened internal bores that resist scuffing and wear, extending service life by up to 30% compared to standard liners. Pistons are manufactured from forged aluminum alloy (or optionally steel for higher compression ACERT variants) with reinforced ring lands and cooling galleries that direct engine oil to dissipate combustion heat. The piston rings include a plasma-sprayed molybdenum top ring for exceptional wear resistance, a tapered second ring for improved oil control, and a three-piece steel oil control ring that reduces both oil consumption and friction.

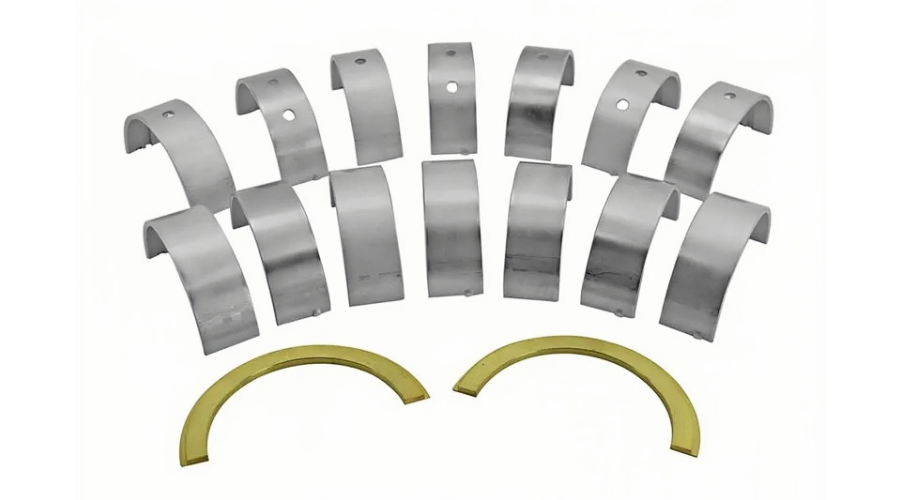

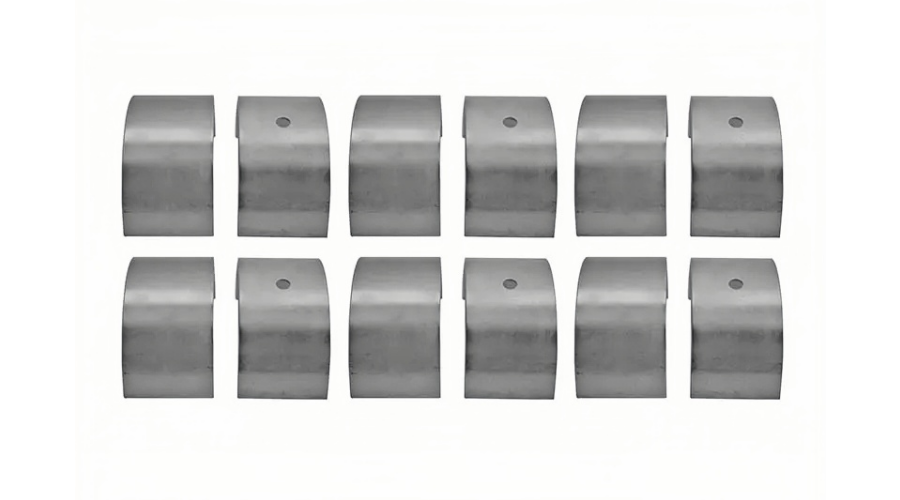

The bearing set included in the C15107010 kit consists of tri-metal connecting rod bearings and main bearings (steel back, copper-lead mid-layer, and babbitt overlay) precision-crush ground to OEM tolerance classes. These bearings are designed to withstand cylinder pressures exceeding 2,500 psi while providing embedability for microscopic contaminants. The kit also supplies thrust washers (crankshaft end-play control), camshaft bearings, and a full engine gasket set — including premium multi-layer steel (MLS) cylinder head gaskets, silicone rubber valve cover and oil pan gaskets, nitrile rubber O-rings, and all necessary seals for the water pump, timing cover, fuel pump, and turbocharger mounting.

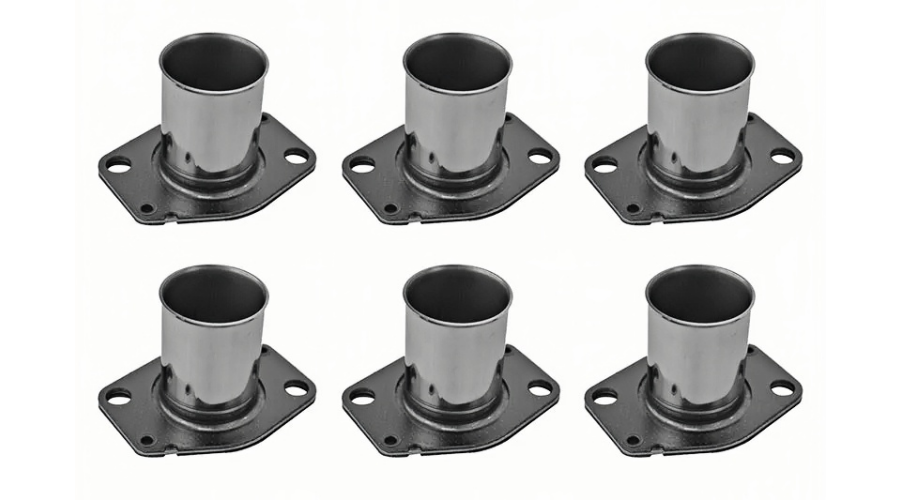

Additional components often included in specific C15107010 configurations are piston cooling jets (which spray oil directly onto the piston undersides), injector seals, valve stem seals, and, in many cases, new cylinder head bolts or stud kits (torque-to-yield type). All components are packed in heavy-duty, moisture-barrier packaging with cylinder-specific labeling to simplify the rebuild process. Every kit offered by Rsolid Engine Parts is verified for dimensional accuracy and material compliance against Caterpillar’s published engineering standards.

Core Working Principle of the C15107010 Reconstruction Kit

The C15107010 engine reconstruction kit functions by systematically replacing the critical wear-limited components that degrade over the operational life of a Caterpillar C15 engine. The C15 is a 6-cylinder, 4-stroke, turbocharged and aftercooled diesel engine with a displacement of 15.2 liters (928 cubic inches) and bore/stroke dimensions of 137.2 mm x 171.4 mm (5.4″ x 6.75″). During normal operation, each cylinder produces peak combustion pressures between 2,000 and 2,700 psi, depending on the engine control calibration.

Over thousands of hours, the cylinder liners experience bore polishing, wear steps, or scuffing, resulting in loss of oil control and blow-by. The piston ring grooves widen and rings lose tension, increasing oil consumption and reducing compression pressure. Bearings develop fatigue cracks, copper-lead exposure, and excessive clearance, which reduces oil pressure and can lead to crankshaft journal damage. Gaskets — particularly the cylinder head gasket — degrade due to thermal cycling and coolant electrolysis, leading to external leaks or internal cross-contamination of oil and coolant.

When a reconstruction is performed using the C15107010 kit, the technician removes all worn components and replaces them with the new parts. The cylinder liners are pressed into the block, typically using a liner protrusion measurement and sealant to ensure proper sealing with the head gasket. New pistons are assembled onto connecting rods (or rods are replaced if included), with piston rings installed and end gaps staggered per Caterpillar procedures. New main bearings are fitted to the crankshaft journals (after measuring and polishing the crankshaft if necessary), and new rod bearings join the pistons to the crankshaft. The cylinder head(s) are reconditioned or replaced, then installed with new MLS head gaskets and bolts torqued in sequence to precise yield values.

After all other gaskets, seals, and O-rings are replaced, the engine is reassembled, refilled with fresh oil and coolant, and broken in. The result is an engine that effectively returns to “new” internal condition, with compression restored, blow-by eliminated, oil consumption normalized, and peak power recovered. The C15107010 kit is designed to provide 500,000 miles or 10,000 hours of reliable service when properly installed and maintained.

Primary Application Equipment

The C15107010 engine reconstruction kit is designed for the Caterpillar C15 diesel engine across its various generations:

• C15 ACERT (2003–2010) – With electronic unit injection (EUI), variable valve actuation, and advanced emissions controls.

• C15 non-ACERT (1999–2003) – Mechanical unit injection, more tolerant of lower fuel quality.

• C15 “BXS” and “MXS” prefix engines – High-horsepower versions commonly found in heavy-haul trucks.

• C15 “6NZ” and “7CZ” configurations – Specific OEM variants with different piston and injector combinations.

These engines are used in:

Heavy-Duty On-Highway Trucks

• Peterbilt 379, 389, 386, 388

• Kenworth T660, T800, W900, T2000

• Freightliner Century, Columbia, Cascadia

• International ProStar, 9900i

• Western Star 4900, 6900

• Mack Titan (with Cat repower)

Vocational and Construction Trucks

• Concrete mixer trucks

• Dump trucks (off-road and on-road)

• Heavy wreckers and recovery vehicles

• Bulk haulers (cement, grain, fuel tankers)

Construction and Mining Equipment

• Caterpillar wheel loaders (980G II, 980H, 988G)

• Caterpillar excavators (365B, 365C, 374D)

• Caterpillar motor graders (16G, 16H, 24M)

• Caterpillar off-highway trucks (775D, 775E, 777C)

Industrial and Stationary Applications

• Generator sets (C15 gen-sets up to 450 kW)

• Industrial pumps (water, crude oil, slurry)

• Air compressors (rotary screw drive packages)

• Agricultural tractors (large row-crop and articulated 4WD)

The C15107010 kit is the preferred choice for many heavy-truck fleets and construction companies because it provides all critical components in one box, eliminating guesswork and reducing downtime.

Common Failure Symptoms and Engine Reconstruction Guidelines

The following symptoms indicate that a Caterpillar C15 engine requires a full reconstruction using the C15107010 kit:

Excessive Crankcase Blow-By – Visible vapor or smoke exiting the crankcase breather, especially under load. Blow-by is the result of combustion gases leaking past worn piston rings and cylinder liners. A simple test: remove the oil fill cap while idling; if vapor bursts out forcefully, the engine needs a rebuild. Blow-by over 10 inches of water column (measured with a manometer) is excessive.

High Oil Consumption – If the engine consumes more than 1 gallon of oil per 500 miles (approx. 1 liter per 300 km) or requires topping off every fuel stop, the C15107010 kit is needed. New rings and liners will restore oil control.

Low Oil Pressure – Warm oil pressure below 20 psi at 1800 RPM indicates excessive bearing clearance or worn oil pump. The bearing set in the kit combined with new seals will typically restore proper pressure (35-50 psi at operating RPM).

Coolant in Oil or Oil in Coolant – Milky oil (emulsified coolant) or oily coolant overflow tank suggests failed head gaskets, cracked liners, or liner seal failure. The head gaskets and all coolant system seals in the kit address this.

Hard Starting and Poor Power – Extended cranking before start, especially cold, and inability to maintain speed on grades indicate low compression. A compression test showing any cylinder below 300 psi (with variation >15% between cylinders) confirms the need for a reconstruction.

Knocking Noises and Vibration – Deep, rhythmic knocking under load (rod bearing failure) or low-frequency rumble (main bearing wear) requires immediate attention. Running with bad bearings leads to crankshaft journal damage and catastrophic engine failure.

Engine Reconstruction Guidelines Using C15107010 Kit – A full reconstruction using this kit requires professional facilities and mechanical expertise. The preferred method is either an in-frame rebuild (engine remains in the chassis, oil pan and cylinder head removed) or out-of-frame (engine completely removed). Key steps: Drain all fluids and remove external components (turbo, manifolds, pump, etc.). Remove the cylinder head(s) and inspect for cracks. Remove oil pan, timing cover, and accessory drives. Pull pistons and rods, then bearings. Remove the camshaft and lifters. Remove cylinder liners using a puller tool. Deglaze or bore the block, then install new liners with proper press-fit and liner projection (0.002–0.006″ above block deck). Measure crankshaft journals for ovality and taper; polish or regrind as needed. Select bearing sizes accordingly (standard or undersize). Assemble pistons to rods with new wrist pins and rings. Install new camshaft bearings and camshaft. Lubricate all bearings and install crankshaft, then torque main caps in sequence. Install pistons/rods and torque rod bolts. Install new head gaskets and cylinder head, torquing head bolts in three stages, with final torque-to-yield as specified. Replace all gaskets, seals, and O-rings from the kit. Reassemble external components, fill with break-in oil and coolant. During initial startup, run at 1000 RPM for 5 minutes while checking for leaks. Then vary RPM and load for the first 50 hours, avoiding full-throttle operation. Change oil and filter after 50 hours, then switch to regular service intervals. Rsolid Engine Parts provides detailed torque specifications and sequencing diagrams with every C15107010 kit.
