600910 Engine Rebuild Kit for Detroit Diesel Series 60 Engine
Structural Features and Advantages

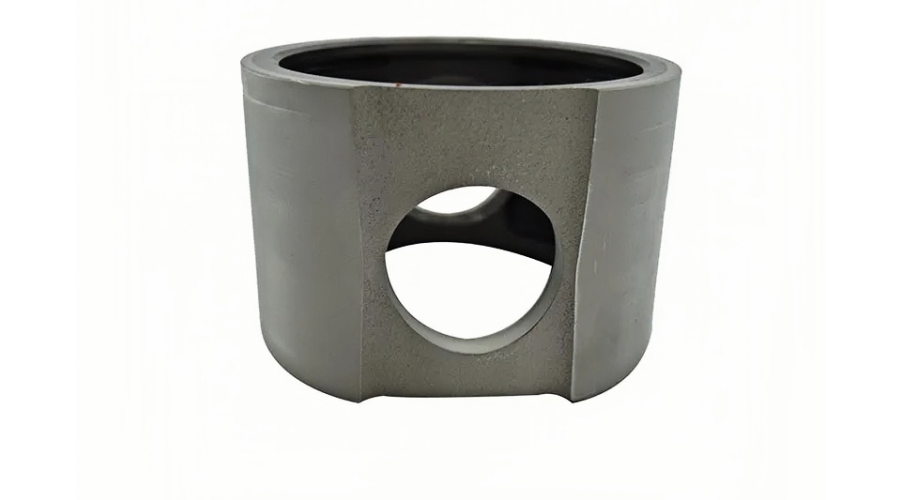

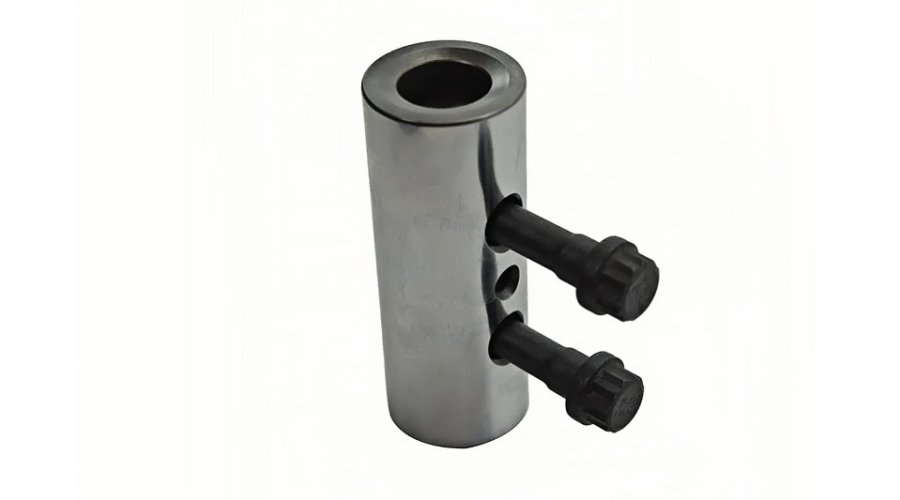

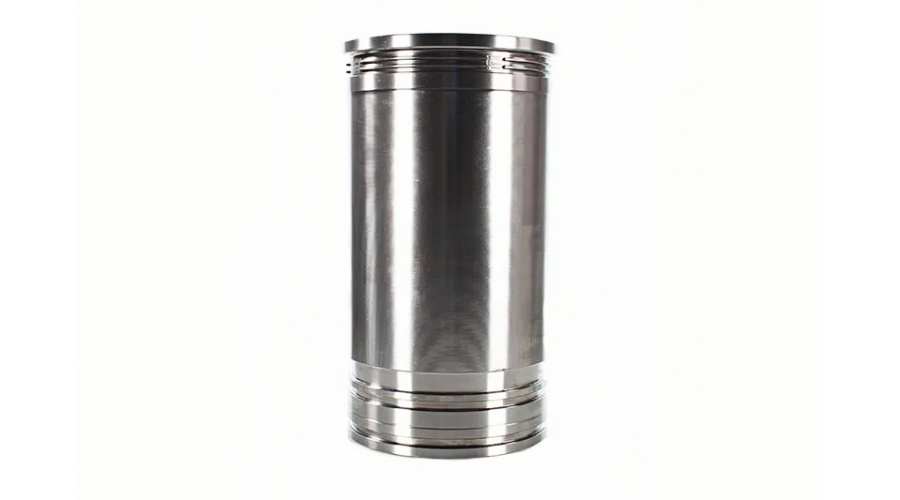

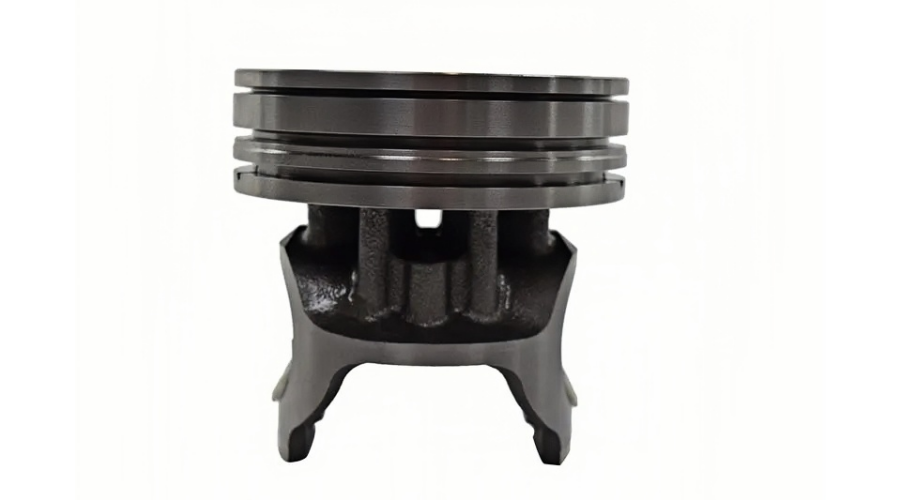

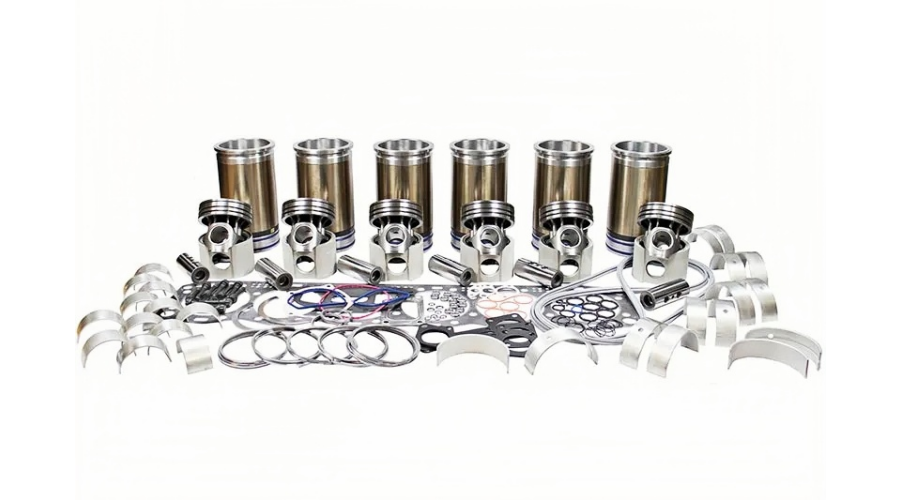

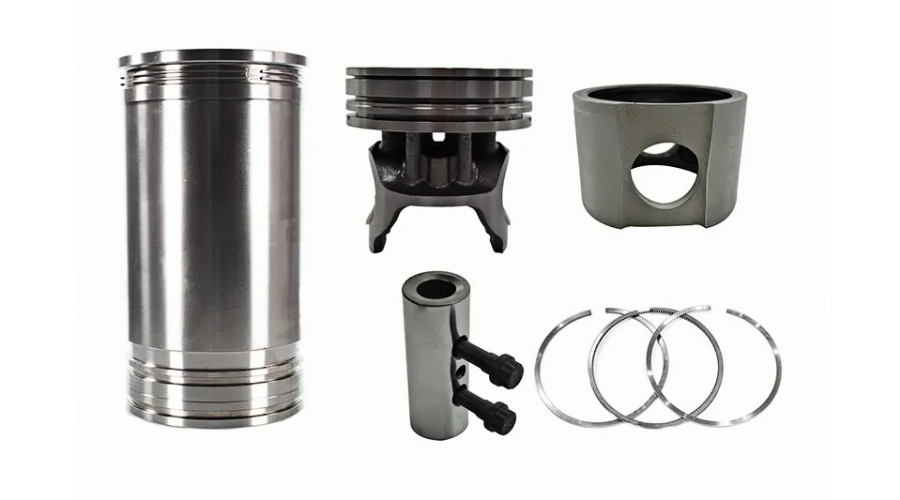

The 600910 engine rebuild kit is a professional-grade master overhaul solution specifically engineered for the Detroit Diesel Series 60 engine, a legendary 4-stroke, 6-cylinder, 12.7L or 14.0L heavy-duty diesel powerplant. This comprehensive kit typically includes everything required for a complete in-frame or out-of-frame rebuild: six piston assemblies (complete with rings, pins, and circlips), six cylinder liner kits, main bearing set (7 shells including thrust washers), connecting rod bearing set (6 pairs), full gasket set (cylinder head gasket, valve cover gasket, oil pan gasket, intake and exhaust manifold gaskets, timing cover gaskets, water pump gaskets, and all O-rings), full seal set (front and rear crankshaft seals, camshaft seals, and auxiliary drive seals), valve stem seals, and often freeze plugs and injector O-rings. Structurally, the pistons are manufactured from forged aluminum alloy with an anodized top ring groove for increased durability under high thermal loads (up to 400°C at the crown). The cylinder liners are flame-hardened or induction-hardened gray iron with a plateau-honed finish (Ra 0.2–0.4 µm) for rapid ring seating and reduced oil consumption. The bearings feature a tri-metal construction (steel backing, copper-lead intermediate layer, and a tin or lead-tin overlay) capable of withstanding the Series 60’s high cylinder pressures (up to 170 bar) and its high-output ratings (up to 560 hp and 1850 Nm). Key advantages of the 600910 rebuild kit include: matched component compatibility (all pistons, liners, bearings, and gaskets are designed to work together as a system), reduction in repair downtime (a single kit number covers 95% of Series 60 mechanical and early electronic models with 12.7L or 14.0L displacement), and significant cost savings (40–60% lower than purchasing genuine Detroit Diesel parts individually). The kit restores the Series 60 to factory-fresh compression, oil pressure, and fuel efficiency, extending engine life by 12,000–15,000 operating hours under normal duty.
Core Working Principle
The 600910 engine rebuild kit works by replacing the major wear components that degrade over time, restoring the Detroit Diesel Series 60’s thermodynamic efficiency and mechanical integrity. As the engine operates, the old piston rings lose tension, cylinder liners develop taper and out-of-roundness, bearings wear down, and gaskets deteriorate. When the new components from the 600910 kit are installed, the following occurs: the new pistons and rings create a near-perfect gas seal against the freshly honed liners, reducing blow-by from worn-engine levels (often exceeding 120 L/min) to below 25 L/min at rated power. The new cylinder liners restore the original bore geometry (137.16 mm typical for 12.7L, 144.78 mm for 14.0L), allowing the piston rings to rotate freely and maintain continuous lubrication. The fresh main and rod bearings re-establish the precise oil clearance (0.058–0.118 mm for main bearings, 0.043–0.089 mm for rod bearings), preventing metal-to-metal contact and maintaining oil pressure (35–70 psi hot running). The new head gasket (typically a multi-layer steel – MLS – design for Series 60) seals combustion pressures up to 170 bar while keeping coolant and oil passages separate. The valve stem seals control oil migration down the valve guides, eliminating blue smoke on startup. The result is an engine that delivers its original rated power and torque (e.g., 430 hp for common over-the-road truck ratings) with fuel consumption returning to baseline (approximately 185–195 g/kWh). The Series 60’s electronic unit injection system (EUI) benefits greatly from restored cylinder balance, leading to smoother operation and lower emissions.
Main Application Equipment
The 600910 engine rebuild kit is used for overhauling Detroit Diesel Series 60 engines, which power a vast range of vehicles and industrial equipment across North America and worldwide:
Class 8 heavy-duty trucks – Freightliner (Classic, Cascadia), Peterbilt (379, 387, 389), Kenworth (T600, T800, W900), Volvo VNL, International 9000 series, Western Star, Mack (with Series 60 option).
Motorcoaches and buses – Prevost, MCI, Setra, and transit buses equipped with Series 60 engines (200–450 hp ratings).
RVs and motorhomes – Large diesel pusher RVs from Fleetwood, Monaco, Tiffin, Newmar.
Construction and mining equipment – Caterpillar, John Deere, Komatsu loaders and excavators that used Series 60 as an OEM option.
Generator sets – Prime and standby generators rated from 200 kW to 600 kW, common in hospitals, data centers, telecom towers, and industrial plants.
Marine propulsion – Tugboats, fishing vessels, small ferries, and yachts with Detroit Diesel Series 60 marine ratings.
Fire trucks and emergency vehicles – Many fire apparatus used the Series 60 for its reliability and responsive power.
Oilfield equipment – Pumping units, frac pumps, and drilling rig auxiliary power units.
The Detroit Diesel Series 60 is widely considered one of the most successful heavy-duty engines ever produced (manufactured from 1987 to around 2010). The 600910 rebuild kit is essential for keeping these millions of engines on the road and at work.
Common Failure Symptoms & Repair/Replacement Guidelines
Failure symptoms indicating the need for the 600910 rebuild kit on a Detroit Diesel Series 60:
High blow-by – Excessive crankcase pressure causing oil mist from the breather tube or oil fill cap. A manometer reading above 75 L/min at rated speed indicates worn rings and liners.
High oil consumption – More than 1 quart per 500 miles ( 0.95 L per 800 km) or blue smoke from exhaust, especially on deceleration (valve stem seals) or constant (rings).
Low compression – Hard cold starting, rough idle, power loss under load. Mechanical compression test (requires starter and battery) shows below 325 psi (22.4 bar); nominal is 420–460 psi (29–32 bar) depending on rating.
Low oil pressure – Hot idle below 10 psi (0.7 bar) and running pressure below 30 psi (2.1 bar) at 1800 RPM. Often caused by worn main and rod bearings.
Knocking noises – Deep, dull knock in time with engine speed (bearing knock) or higher-pitched rap (piston pin or piston slap).
Coolant loss without external leak – Combustion gases entering cooling system (head gasket failure) detected with a coolant hydrocarbon test kit.
Black smoke under load – Overfueling relative to air due to low boost or poor ring sealing. However, first rule out turbocharger before condemning engine.
Oil analysis warnings – High iron (cylinder/liner wear), copper (bearing wear), or silicon (dirt ingestion) in used oil samples.
Repair and replacement points for the 600910 kit:
Confirm engine model and year – Series 60 has two main displacements: 12.7L (bore 137.16 mm / 5.4 in) and 14.0L (bore 144.78 mm / 5.7 in). The 600910 typically fits 12.7L ( most common), but verify using the engine serial number (ESN) or DDC arrangement number. Also confirm electronic unit injection (EUI) vs. mechanical unit injection (MUI) – 600910 is for EUI versions (most 1990-2000s).
Decide between in-frame and out-of-frame – In-frame rebuild is common for trucks and generators where the crankshaft can be accessed from below and the engine remains in the chassis. Out-of-frame allows full cleaning and inspection but requires more time and space.
Inspect the cylinder head – The Series 60 head is crack-prone, especially between the valve seats and injector bore. Magnetic particle inspection is recommended. Replace the head if any cracks are found. Also check valve seat recession.
Cylinder liner installation – Ensure the liner is properly seated with correct protrusion above the block deck (0.05–0.10 mm typical). Use liner shims if needed. Lubricate O-rings with soapy water; do not use oil as it may prevent proper seating.

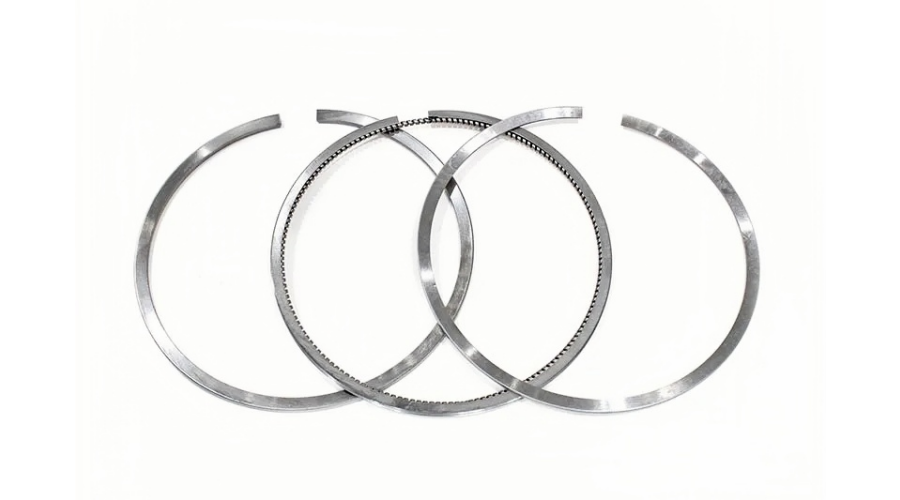

Piston ring gap verification (installed in liner at bottom of ring travel):
Top compression ring: 0.45–0.65 mm (0.018–0.026 in)
Second ring: 0.55–0.75 mm (0.022–0.030 in)
Oil ring rails: 0.30–0.55 mm (0.012–0.022 in)
Piston cooling jets – Before installing pistons, inspect the oil squirters aimed at the piston underside. They must be unobstructed and aimed correctly. Replace any damaged jets.
Bearing torque specifications (use new bolts for both main and rod):
Main bearing cap bolts: 180 Nm (133 ft-lb) + 120°

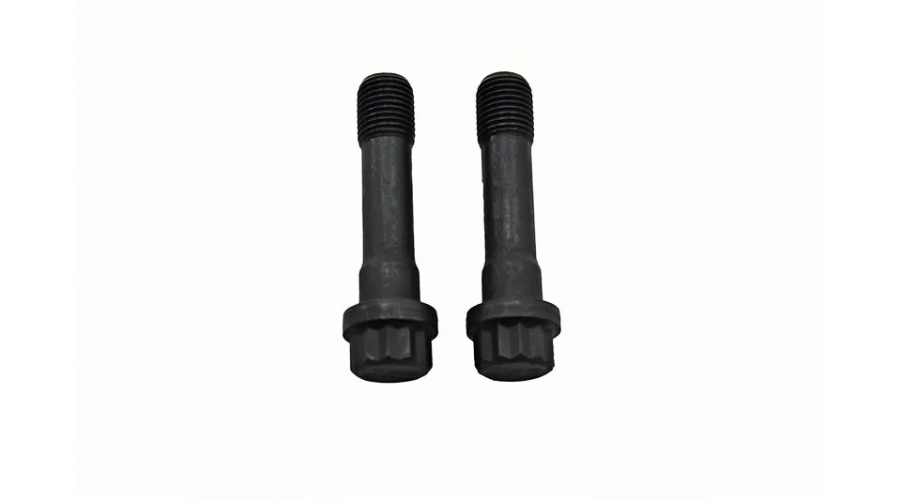

Connecting rod bolts (angle torque): 110 Nm (81 ft-lb) + 60° + 60°
Note: Torque-to-yield bolts must be replaced each time.
Head gasket installation – Use a new MLS head gasket. Ensure head and block surfaces are clean and flat (warpage < 0.08 mm). Apply a thin film of assembly lube to threads. Torque sequence: first pass 70 Nm, second pass 150 Nm, third pass 270 Nm, fourth + 90°.
After assembly – Prime the oil system by cranking with fuel shut off (unplug injectors) until oil pressure registers on gauge (typically 30-45 seconds cranking). Then start engine and run at 1000–1200 RPM for 15 minutes, checking for oil, coolant, and fuel leaks. Listen for unusual knocking.
Break-in procedure – Load engine gently: 25% load for 30 min, 50% for 1 hour, 75% for 2 hours, then full load. Avoid extended idling (causes ring glazing). Change oil and filter after the first 100 hours (or 5000 miles) of operation.
Why Choose Rsolid Engine Parts for the 600910 Engine Rebuild Kit
Rsolid Engine Parts (www.rinjector.com) is a premier international supplier of the 600910 engine rebuild kit for Detroit Diesel Series 60 engines. With strict quality control and global logistics, Rsolid offers significant advantages to workshops and fleet owners:
Complete, ready-to-install kits – No missing components. Every 600910 kit is packed with all pistons, liners, bearings, gaskets, seals, valve stem seals, and small parts needed for a full overhaul.
OE-grade or better quality – Pistons from ISO-certified forges (AISI 4032 or 2618 aluminum), liners with induction-hardened bores and genuine-style cross-hatch, bearings from OEM-approved suppliers (e.g., King, Clevite, or equivalent), gaskets with upgraded high-temperature materials.
Exact application matching – Rsolid verifies your Series 60 model (12.7L or 14.0L, EUI, ESN prefix) before shipping, ensuring correct piston dish volume and ring groove configuration. Free technical consultation via WhatsApp.
Anti-fraud packaging – Each component is individually labeled; head gaskets are protected with cardboard inserts; bearings are wax-coated to prevent corrosion during transport.
Fast global shipping – Large inventory in North America, Europe, Middle East, and Asia warehouses. Express air freight available for emergency rebuilds. Standard sea freight for bulk orders.
Competitive wholesale pricing – Save 40–60% compared to genuine Detroit Diesel parts. Volume discounts for repair shops, fleets, and international distributors.
Warranty – 12 months or 2000 operating hours (whichever comes first) against manufacturing defects. Rsolid provides free replacement for any verified defective part.
To order the 600910 engine rebuild kit for your Detroit Diesel Series 60, contact Rsolid Engine Parts via WhatsApp: +8615975376778 or visit www.rinjector.com. Please provide your engine serial number (ESN) and current mileage/hours for tailored advice.
