Diesel Engine Rebuild Kit 5405986 for Cummins ISX15 Diesel Engine
Structural Features and Advantages

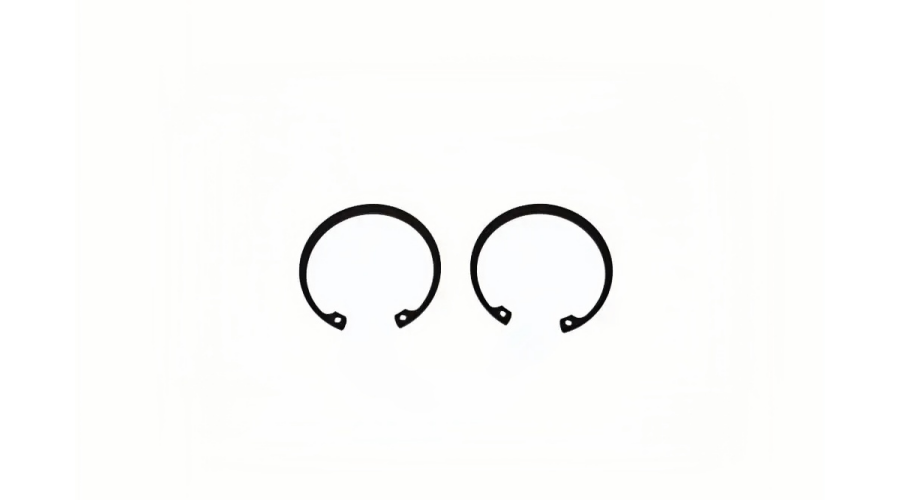

The 5405986 diesel engine rebuild kit is a complete master overhaul solution engineered specifically for the Cummins ISX15 (15-liter) heavy-duty diesel engine, one of the most popular powertrains in North American Class 8 trucks and industrial applications. This comprehensive kit typically includes over 250 essential components: six piston assemblies (complete with pistons, rings, pins, and circlips), six cylinder liner kits, main bearing set (7 shells with thrust washers), connecting rod bearing set (6 pairs), full gasket set (cylinder head gasket, valve cover gasket, oil pan gasket, intake and exhaust manifold gaskets, front and rear timing cover gaskets, water pump gaskets, thermostat housing gaskets, and all O-rings including injector seals), full seal set (front and rear crankshaft seals, camshaft seals, and accessory drive seals), valve stem seals, and often freeze plugs, piston cooling jets (oil squirters) , and head dowel pins. Structurally, the pistons are typically articulated two-piece designs (forged steel crown with aluminum skirt) on most ISX15 variants, providing superior heat resistance (crown temperatures up to 450°C) and reduced reciprocating mass. The cylinder liners are induction-hardened gray iron with a precision cross-hatched plateau finish (Ra 0.2–0.4 µm), featuring a mid-stop design for consistent seating and optimal heat transfer. The bearings utilize tri-metal construction (steel backing, copper-lead intermediate layer, and tin or lead-tin overlay) capable of withstanding peak cylinder pressures exceeding 220 bar on high-output ISX15 engines (up to 600 hp and 2050 Nm torque). Key advantages of the 5405986 rebuild kit include: exact OEM specification compatibility (meets Cummins original design for ISX15 from 2002 to 2017, covering EGR, DPF, and SCR emissions levels), significant downtime reduction (a single kit number delivers every wear component required for an in-frame or out-of-frame overhaul), cost savings of 40–60% compared to purchasing genuine Cummins parts individually, and enhanced durability (many suppliers upgrade ring coatings and bearing materials beyond original equipment standards). This kit restores the ISX15 engine to factory-fresh compression (16.0–18.5:1 ratio), oil pressure (30–70 psi hot running), fuel economy (185–200 g/kWh), and emissions compliance, extending engine life by another 15,000–20,000 operating hours or 500,000–750,000 miles under normal duty.
Core Working Principle
The 5405986 engine rebuild kit works by systematically replacing all major wear-limited components in a worn Cummins ISX15 engine, thereby restoring the original thermodynamic cycle and mechanical precision. The ISX15 is a 6-cylinder, 4-stroke diesel engine featuring a high-pressure common rail fuel system (post-2009) or unit injector system (2002–2009). When the old piston rings lose tension and cylinder liners develop taper and out-of-roundness, combustion gases blow past the rings, causing high crankcase pressure (blow-by) and oil contamination. The new piston and ring assemblies from the 5405986 kit create a near-perfect gas seal: the top compression ring (often coated with chrome-ceramic or diamond-like carbon) seals against the freshly honed liner surface, reducing blow-by from worn-engine levels (often exceeding 150 L/min) to less than 35 L/min at rated power (1800–2100 RPM). The second compression ring provides additional sealing and oil scraping, while the three-piece oil control ring meters lubricating oil to less than 0.1% of fuel consumption. The new cylinder liners restore the original bore diameter (137 mm for ISX15) and geometry, eliminating piston slap and ensuring even heat distribution from the combustion chamber to the coolant. The new main and rod bearings re-establish precise oil clearances (typically 0.065–0.120 mm for mains, 0.048–0.092 mm for rods), maintaining oil pressure within Cummins specifications and preventing crankshaft journal damage from metal-to-metal contact. The new MLS (multi-layer steel) cylinder head gasket seals peak combustion pressures up to 220 bar while separating coolant, oil, and combustion passages; it also maintains proper liner protrusion (0.08–0.15 mm above the block deck). The valve stem seals prevent oil migration past valve guides, eliminating blue smoke on startup and reducing oil consumption. The result is an ISX15 engine that delivers its original rated power (typically 400–600 hp) with restored torque curve, lower emissions, reduced noise, and improved throttle response. The rebuilt engine also reduces soot loading in the EGR system and DPF/SCR aftertreatment, leading to fewer regenerations and longer aftertreatment life.
Main Application Equipment
The 5405986 diesel engine rebuild kit is used for overhauling Cummins ISX15 engines in a vast range of on-highway and off-highway equipment:
Class 8 heavy-duty trucks – Freightliner Cascadia, Peterbilt 579/389, Kenworth T680/T880, Volvo VNL, International LoneStar/ProStar, Western Star 4900/5700, Mack Anthem (with ISX15 option). The ISX15 is the dominant engine in long-haul, regional, and vocational trucking.
Refuse and vocational trucks – Garbage packers, roll-off trucks, concrete mixers, dump trucks, snowplows, and vacuum trucks from manufacturers like Autocar, Mack, Peterbilt, and Kenworth.
Motorcoaches and tour buses – Prevost H-Series, MCI J-Series, Van Hool TD925, and Setra S-Series equipped with ISX15 (typically 450–500 hp ratings).
Fire trucks and emergency vehicles – Large aerial ladder trucks, tankers, and rescue vehicles requiring high horsepower and reliability.
Construction and mining equipment – Heavy excavators (e.g., 90–120 ton class), wheel loaders (10–15 yd³), bulldozers (D9/D10 size), and motor graders (24H/26H size) where OEMs used ISX15 as an option.
Generator sets – Prime and standby gensets rated from 300 kW to 800 kW, common in data centers, hospitals, manufacturing plants, oil & gas fields, and telecom infrastructure.
Agricultural tractors – Large row-crop tractors (e.g., Case IH Quadtrac, New Holland T9 series) and self-propelled sprayers with ISX15 power.
Marine propulsion – Workboats (tugboats, crew boats, supply vessels), patrol boats, yachts, and small ferries with Cummins ISX15 marine ratings (425–550 hp, M3/M4 certifications).
Cranes and drilling rigs – Mobile hydraulic cranes (100–200 ton capacity), oilfield service rigs, and well-servicing units powered by ISX15 diesels.
Compressor and pumping stations – Natural gas compression, water irrigation, and pipeline booster stations.
The ISX15 engine family is one of the most widely produced heavy-duty diesels globally with millions of units in service. The 5405986 rebuild kit is a critical stocking item for any fleet maintenance facility, independent truck repair shop, or industrial engine rebuilder.
Common Failure Symptoms & Repair/Replacement Guidelines
Failure symptoms indicating the need for the 5405986 rebuild kit on a Cummins ISX15 engine:
Excessive blow-by – Visible smoke or pressure pulses from the crankcase breather tube. A manometer reading above 100 L/min at rated speed (1800–2100 RPM) indicates severe ring and liner wear. High blow-by can also cause oil leaks from gaskets and seals, as well as turbocharger oil carryover.
High oil consumption – Exceeding 1 quart (0.95 L) per 500 miles (800 km) or noticeable blue smoke from the exhaust, especially on deceleration (valve stem seals) or constantly (piston rings). Worn ISX15 engines may consume 2–3 quarts per 500 miles.
Low compression – Hard starting, rough idle, lack of power under load, and misfiring. A relative compression test using an electronic service tool (e.g., Insite) will show cylinder contribution imbalance greater than 15%. Cylinder cutout test reveals weak cylinders.
Low oil pressure – Hot idle oil pressure below 12 psi (0.8 bar) and running pressure below 30 psi (2.1 bar) at 1800 RPM. Caused by worn main and rod bearings, oil pump wear, or excessive bearing clearance (typically >0.15 mm for mains after wear).
Knocking or rattling noises – Deep, rhythmic thud from the lower end (main or rod bearing knock) that changes with load; sharper, higher-pitched rap (piston slap or pin knock) that is most audible during cold start and light load. The ISX15 is known for piston cracking in early models (pre-2007), producing a characteristic metallic rattle.
Frequent diesel particulate filter (DPF) regenerations – Excess oil consumption and blow-by contribute to soot and ash loading, causing the DPF to clog faster than normal. The engine may derate or trigger service warnings prematurely.
Coolant loss without external leakage – Head gasket failure allows combustion gases to enter the cooling system, leading to coolant loss, overheating, and potential hydrostatic lock (water in cylinders). A coolant hydrocarbon test will show positive.
Fuel dilution of engine oil – Worn rings allow unburned fuel to pass into the crankcase, thinning the oil, reducing viscosity, and potentially causing bearing damage. Oil analysis will show fuel percentage > 5%.
Oil analysis abnormalities – High iron content (cylinder/liner wear), copper or lead (bearing wear), aluminum (piston or piston ring wear), or silicon (dirt ingestion from poor air filtration). Also, high soot content (blow-by) and viscosity increase.
Repair and replacement points for the 5405986 kit:
Confirm engine model, CPL, and ESN – The 5405986 kit is designed for the Cummins ISX15 (15-liter). However, there are many variants: early ISX with unit injectors (2002–2009), common rail ISX (2010–2017), and different power ratings (400–600 hp). Provide your engine Critical Parts List (CPL) number and Engine Serial Number (ESN) to Rsolid Engine Parts for exact kit matching. Using the wrong piston dish volume or head gasket thickness will cause incorrect compression ratio and potential engine damage.
Decide between in-frame and out-of-frame overhaul – In-frame rebuild is very common for ISX15 in trucks, where the engine remains in the chassis, oil pan is dropped, cylinder head removed, and liners pulled from the top. Out-of-frame rebuild is required if the crankshaft needs grinding (undersize bearings), the block requires line-boring, or if the engine has spun a bearing.
Inspect the cylinder head thoroughly – The ISX15 head is prone to cracking, especially on EGR models (2002–2006). Cracks often appear between the valve seats and injector bore or across the fire deck. Perform magnetic particle inspection (if iron head) or dye penetrant (if cast). Replace the head if any cracks are found. Also check valve stem guide wear (replace if clearance > 0.1 mm) and valve seat recession (re-cut or replace seats).
Cylinder liner installation – ISX15 uses mid-stop wet liners. Clean the liner counterbore in the block meticulously; any debris will cause incorrect protrusion. Lubricate the O-ring grooves and liners with soapy water or approved lubricant (never use oil, which can cause hydraulic lock). Press liners in by hand or with a liner driver. Measure liner protrusion above the block deck using a dial gauge at four points (0°, 90°, 180°, 270°). Specification: 0.08–0.15 mm (0.003–0.006 in). Use shims if available; never sand or grind the liner flange. Incorrect protrusion is the #1 cause of head gasket failure on ISX15.

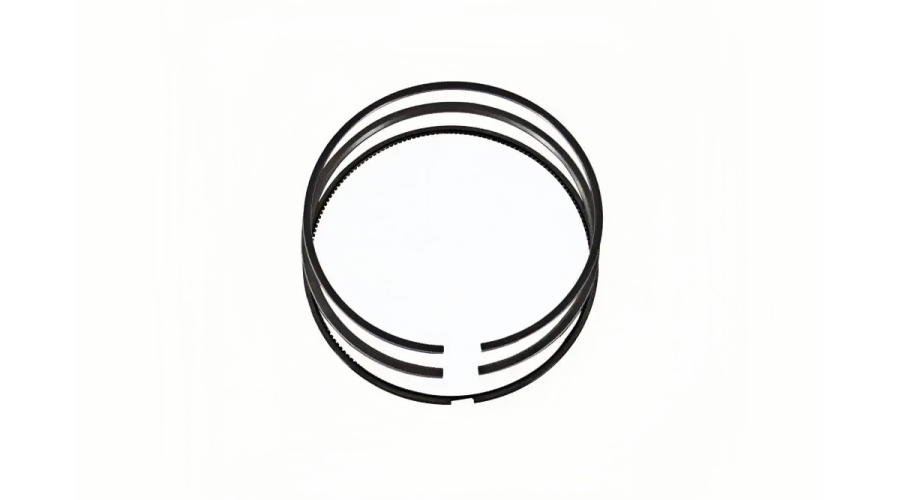

Piston selection and ring gap verification:
Top compression ring: 0.45–0.65 mm (0.018–0.026 in)
Second compression ring: 0.55–0.80 mm (0.022–0.031 in)
Oil ring rails: 0.30–0.55 mm (0.012–0.022 in)

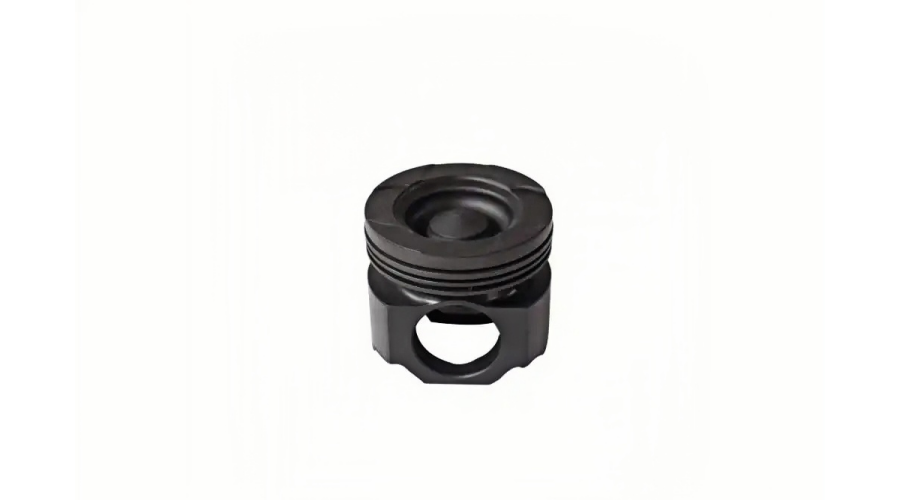

Piston type depends on CPL. Early ISX used articulated two-piece pistons (steel crown + aluminum skirt). Later models use monothermc aluminum or improved steel crown designs. Ensure the 5405986 kit includes the correct piston for your CPL.
Ring end gaps (install ring in liner at bottom of ring travel, measure with feeler gauge):
If gaps are too small, file ring ends carefully with a ring gap tool. Never exceed maximum gap.
Piston cooling jets (oil squirters) – Before installing pistons, inspect all six injection nozzles aimed at the underside of the piston crown. They must be unobstructed by carbon or debris and aimed correctly at the piston gallery. Replace any bent or clogged jets. The ISX15 relies heavily on piston cooling for durability; missing or clogged jets will cause piston seizure within hours.
Bearing installation and torque specifications – Use new main and rod bolts (torque-to-yield, not reusable).
Main bearing cap bolts: Apply clean engine oil to threads. Torque sequence: first 115 Nm (85 ft-lb), then +120°. Check that the crankshaft rotates freely after torquing each main cap.
Connecting rod bolts: Lubricate threads and washer faces. Torque to 95 Nm (70 ft-lb), then +90°, then another +90°. After final torque, check that the rod side clearance is within 0.20–0.45 mm.
Bearing clearance verification (optional but recommended): Use plastigauge to confirm clearance. Main: 0.065–0.120 mm (0.0026–0.0047 in); Rod: 0.048–0.092 mm (0.0019–0.0036 in). If out of spec, consider undersize bearings.

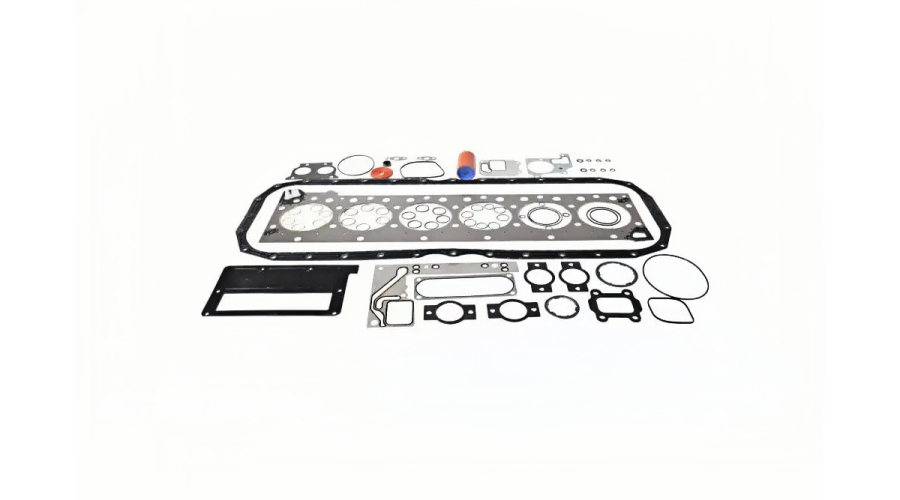

Head gasket installation – Use a new MLS (multi-layer steel) head gasket. Ensure head and block surfaces are absolutely clean and flat (check with straightedge: warpage < 0.08 mm over 300 mm, < 0.15 mm total). Do not use any sealant or copper spray on MLS gaskets unless specified. Lubricate head bolt threads and underside of bolt heads with light engine oil. Torque sequence (Cummins ISX standard):
Step 1: 100 Nm (74 ft-lb)
Step 2: 150 Nm (111 ft-lb)
Step 3: 270 Nm (199 ft-lb)
Step 4: +90° (quarter turn)
Tighten in correct spiral sequence from center outward. Re-check final torque angle.
After assembly and before start-up:
Prime the oil system: Disable fuel injection (unplug injector harness or use starter with emergency stop button). Crank the engine in 15-second bursts with 30-second cool-down periods until the oil pressure gauge registers (typically 30–45 seconds of total cranking). This prevents dry starts.
Fill the coolant system and bleed air. Check for any external leaks at oil filter, coolant connections, and fuel lines.
Start the engine and immediately check for noises. Some piston slap may be audible on cold start but should diminish as the engine warms. Any severe knocking requires immediate shutdown.
Run at 600–800 RPM idle for 5 minutes, then increase to 1000–1200 RPM for another 10 minutes, checking for oil pressure (should be > 30 psi hot idle for fresh bearings).
Break-in procedure – For truck applications:
Avoid full throttle for the first 500 miles (800 km).
Vary engine speed; do not maintain constant RPM for long periods.
Keep loads moderate (50–75% of rated capacity) for the first few hours.
After the first 100 operating hours or 5,000 miles, change engine oil and filter. Also retorque head bolts (if specified) and check for any developed leaks.
For generator or industrial applications, perform a stepped load test: 25% load for 1 hour, 50% for 2 hours, 75% for 2 hours, then 100% load. Monitor blow-by and oil consumption.
Why Choose Rsolid Engine Parts for the 5405986 Diesel Engine Rebuild Kit
Rsolid Engine Parts (www.rinjector.com) is a premier global supplier of the 5405986 rebuild kit for Cummins ISX15 engines. With a focus on quality, accuracy, and customer support, Rsolid provides significant advantages for repair shops, fleet owners, and industrial engine rebuilders:

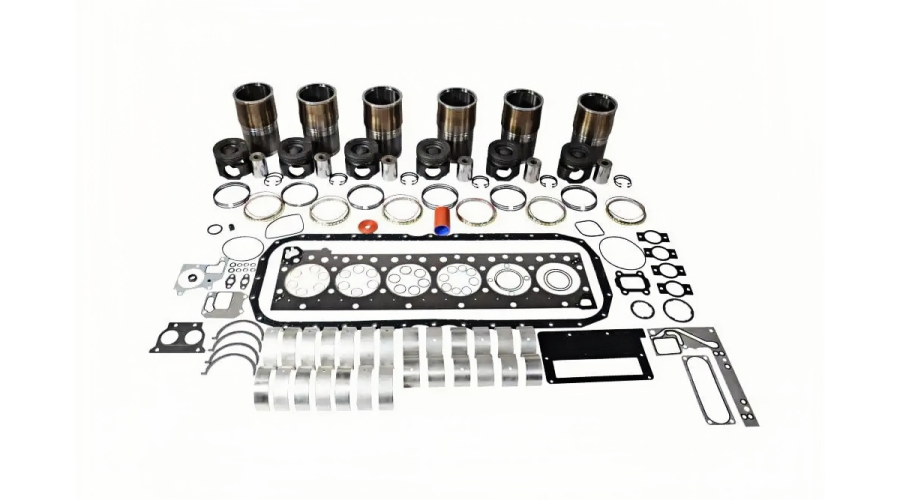

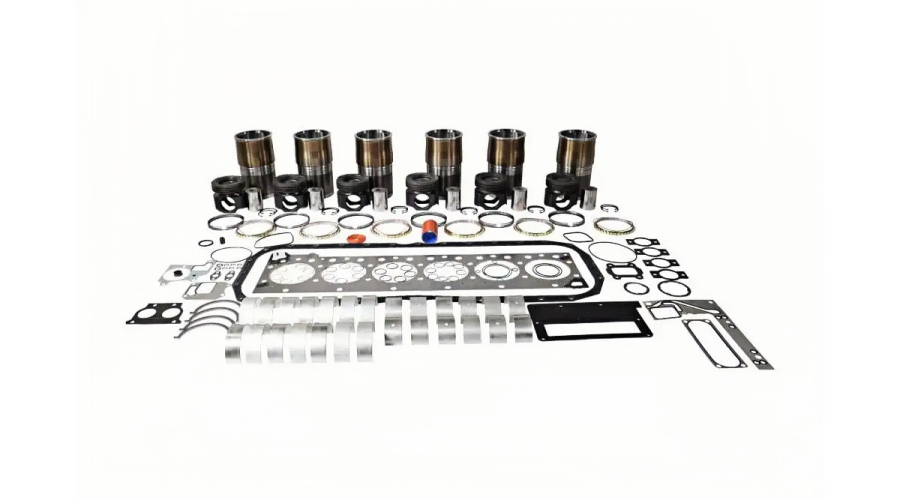

Complete, ready-to-install kits – The 5405986 kit is meticulously assembled to include every gasket, seal, bearing, piston, liner, O-ring, and small part needed for a full ISX15 overhaul. No hidden extras or last-minute shopping trips. All components are matched to your engine’s CPL.
OE-grade or better quality – All pistons are sourced from ISO-certified forges (e.g., MAHLE, Federal-Mogul, or equivalent aftermarket with proven durability). Cylinder liners are induction-hardened and plateau-honed to OEM spec. Bearings come from King, Clevite, or OEM-approved suppliers. MLS head gaskets feature improved embossed bead design for superior sealing.
Exact application matching – Before shipping, Rsolid’s technical team verifies your Cummins CPL number and engine serial number (ESN) to ensure the kit contains the correct piston dish volume, ring groove configuration, and head gasket thickness. This prevents the common mistake of using wrong compression ratio or liner protrusion mismatches that lead to premature failure.
Enhanced components – Many 5405986 kits from Rsolid include upgraded ring coatings (e.g., chrome-ceramic or PVD for top ring) and bearing overlay materials (lead-indium for better corrosion resistance) that exceed original Cummins specifications, providing longer service life.
Fleet and workshop friendly packaging – Kits are organized into labeled sub-packets (e.g., “piston assemblies,” “bearing set,” “gaskets,” “seals”) to simplify inventory control during rebuilds. Head gaskets and bearings are individually protected to prevent damage during transit.
Global stock and rapid delivery – Large inventory of 5405986 kits is maintained in regional warehouses: North America (Houston, Chicago, Los Angeles), Europe (Rotterdam), Asia (Shanghai, Singapore). Standard air freight delivers within 3–7 business days worldwide. Sea freight options for bulk orders (20–40 days). Emergency overnight shipping available for breakdown situations.
Technical support (free) – Rsolid’s diesel engine specialists are available via WhatsApp (+8615975376778) to assist with CPL lookup, diagnosis of engine symptoms, torque sequences, break-in procedures, and troubleshooting. Installation guides and torque spec sheets are provided digitally with every kit.
Competitive wholesale pricing – Save 40–60% compared to Cummins genuine parts. Volume discounts for fleets purchasing multiple kits, professional rebuilders, and international distributors. Custom kitting (including water pumps, oil pumps, injectors, or turbochargers) available upon request.
Warranty – 12 months or 2,000 operating hours (whichever comes first) against manufacturing defects. Rsolid offers free replacement parts for any verified quality issue with photo or video evidence. No-hassle claims process.
To order the 5405986 diesel engine rebuild kit for your Cummins ISX15, contact Rsolid Engine Parts today via WhatsApp: +8615975376778 or visit www.rinjector.com. Please provide your engine Cummins CPL (Critical Parts List) number and Engine Serial Number (ESN) for accurate configuration. Bulk inquiries and long-term supply agreements are welcome.
