Engine Rebuild Kit for Caterpillar C12 Diesel Engine – Complete In‑Frame Overhaul Solution
1. Basic Specifications & Key Parameters
The engine rebuild kit for the Caterpillar C12 diesel engine is a complete in‑frame overhaul solution designed for this rugged 12‑liter, inline 6‑cylinder engine. The C12 is known for its excellent power density and fuel efficiency, widely used in heavy‑duty trucks, construction equipment, and industrial applications. A quality rebuild kit restores the engine to factory specifications without removing it from the chassis.
Base Engine Specifications (Caterpillar C12):
Displacement: 12.0 L (732 cu in)
Bore × Stroke: 130 mm × 150 mm (5.12″ × 5.91″)
Cylinder configuration: Inline 6‑cylinder, 4‑stroke, turbocharged & aftercooled
Fuel system: HEUI (Hydraulically actuated Electronic Unit Injection) – electronic
Compression ratio (stock): 16.0:1 – 16.5:1 (depending on rating)
Power range: 310 – 410 hp (230 – 306 kW) in truck applications; up to 450 hp in industrial

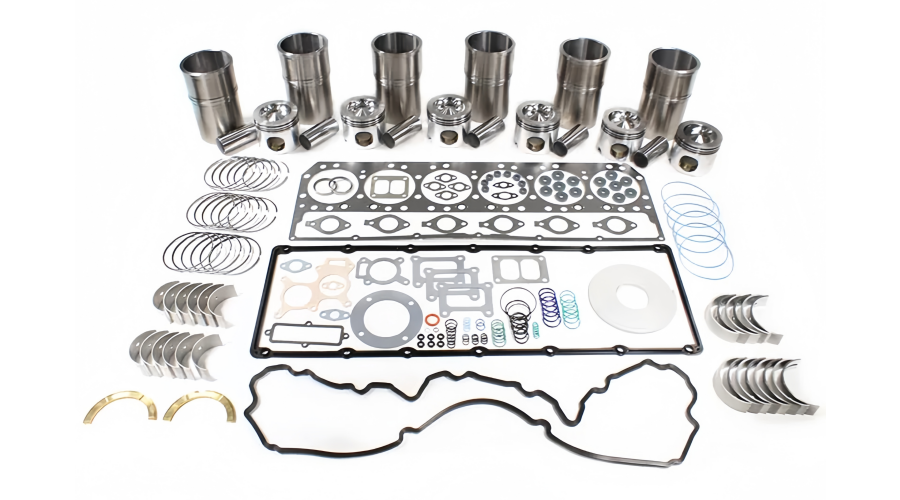

What a Typical C12 In‑Frame Rebuild Kit Includes:

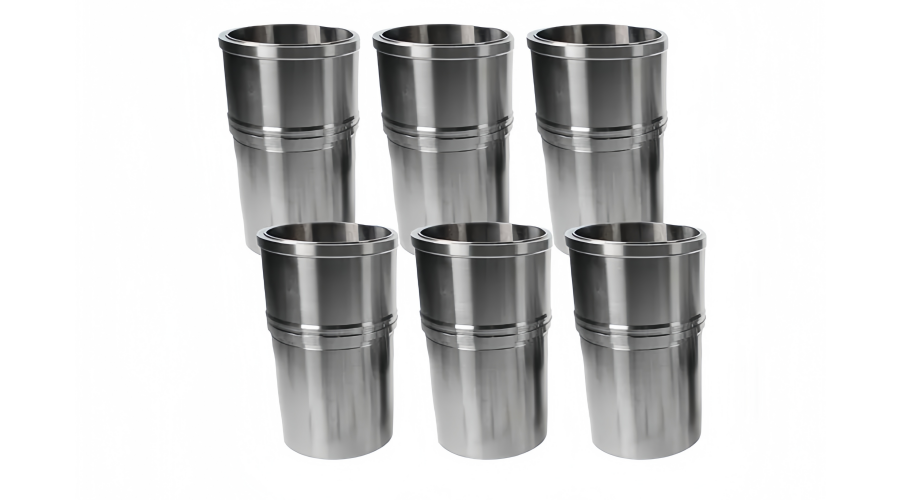

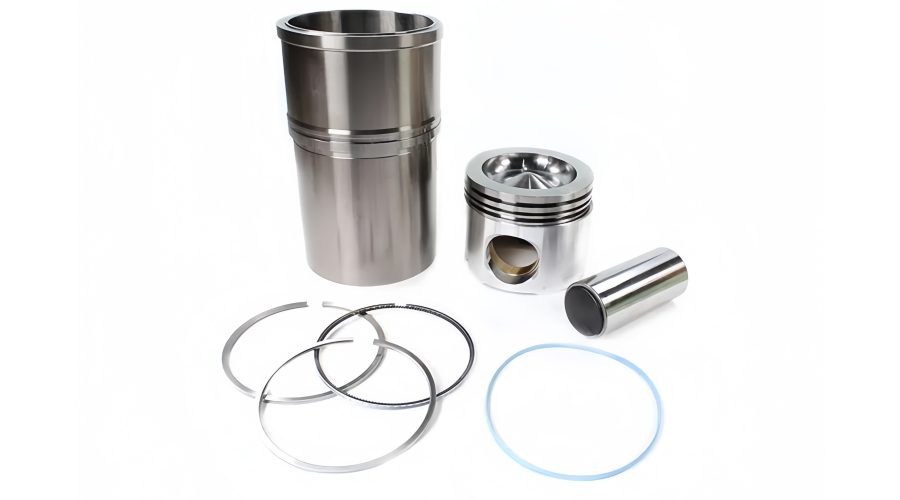

6 x wet‑type cylinder liners (centrifugally cast gray iron, induction‑hardened bore, plateau cross‑hatch finish)

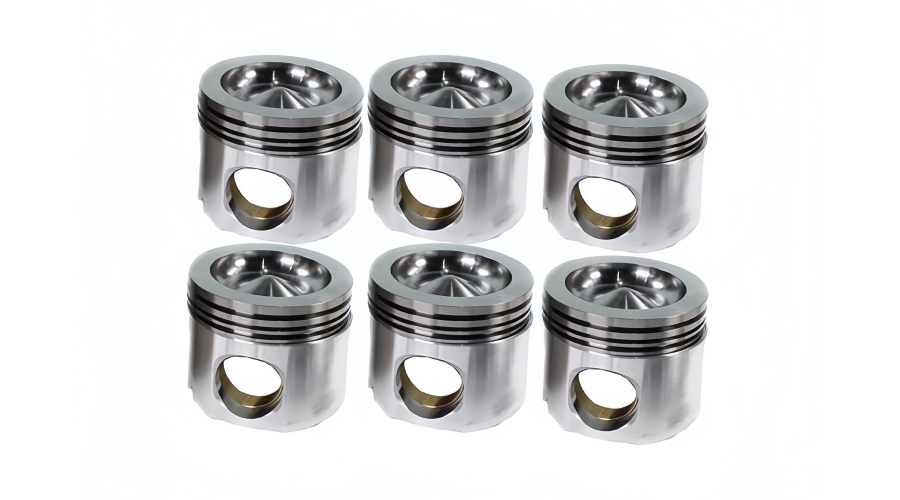

6 x forged steel or aluminum pistons (steel for high‑output versions, aluminum with cooling gallery for standard)

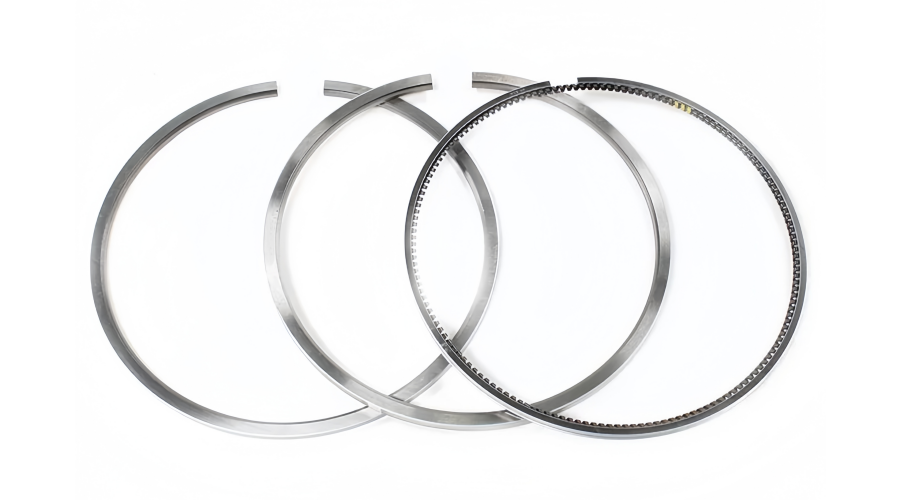

6 x piston ring sets (plasma moly or chrome‑ceramic top ring, tapered second ring, 3‑piece steel oil ring)
Piston pins and retaining rings

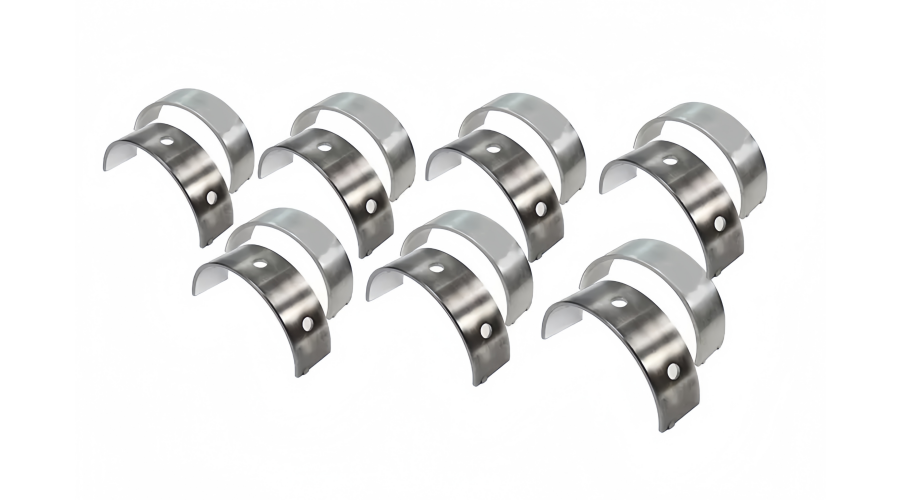

Main bearings (tri‑metal – steel back, copper‑lead, tin‑babbitt) – standard or undersize

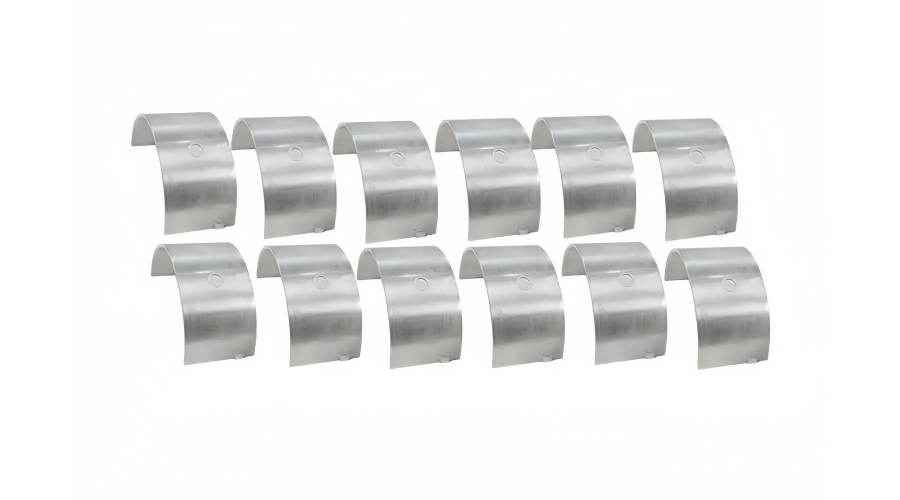

Connecting rod bearings (tri‑metal)
Thrust washers and camshaft bearings

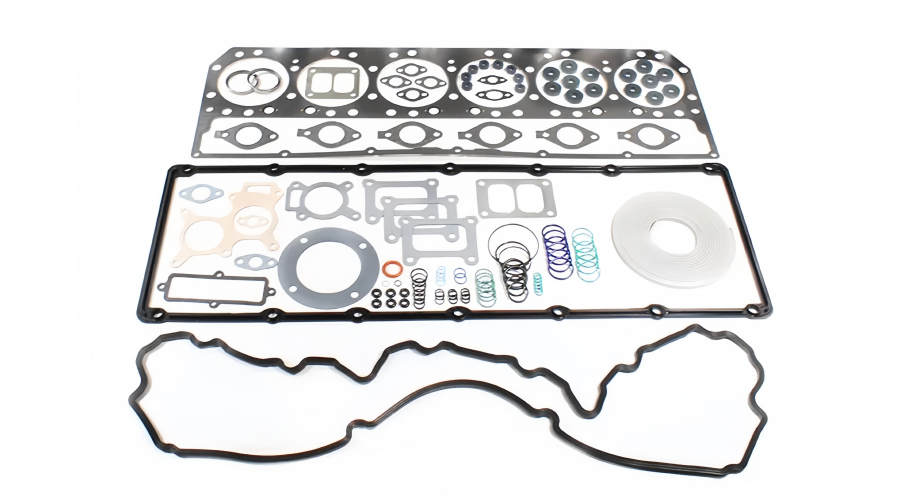

Full upper & lower gasket set – MLS (multi‑layer steel) head gasket, valve cover, oil pan, intake/exhaust manifold, turbocharger, timing cover, water pump seals, all O‑rings, HEUI injector seals, copper washers, front & rear crankshaft seals
Piston cooling jets (where applicable)
Valve stem seals
Connecting rod bolts (torque‑to‑yield – must be replaced)
Important Notes:
The C12 engine is often confused with the C11 and C13 – verify your engine serial number prefix (e.g., C12–###, 9NS, 2KS, B5E, C5E, etc.) before ordering.
Some C12 variants use steel pistons instead of aluminum. Rsolid Engine Parts can supply the correct type based on your engine AR (arrangement) number.
Bearing oversizes available: standard, 0.010″, 0.020″, 0.030″.
2. Compatible Vehicles & Equipment
The Caterpillar C12 diesel engine is found in a wide range of heavy‑duty applications. A rebuild kit is suitable for any of the following that use the C12 engine:
Heavy‑Duty On‑Highway Trucks
Peterbilt 378, 379, 385, 386, 387 (C12 option)
Kenworth T600, T800, W900 (C12 powered)
Freightliner Century, Columbia, Classic (C12 available)
International 9900i, 9400i (with C12)
Western Star 4900, 6900 (C12 option)
Construction Equipment
Caterpillar excavators (330C, 336C, 345C – some use C12)
Caterpillar wheel loaders (966G, 970F, 972G, 980G – some variants)
Caterpillar motor graders (16G, 16H, 24H – certain models)
Caterpillar bulldozers (D7R, D8R, D8T – some use C12)
Caterpillar off‑highway trucks (769D, 771D, 773D – some use C12)
Industrial & Stationary
Generator sets (200–400 kW range, C12 industrial engines)
Industrial pumps, compressors, crushers, and drill rigs
Marine propulsion (small to medium workboats)
Buses & Coaches
Agricultural
Verify your engine serial number prefix – Common C12 prefixes: 9NS, 2KS, 4MK, 5MK, 8YF, B5E, C5E, KCA, KCB, etc. Contact Rsolid Engine Parts with your engine serial number for exact fitment.
3. Performance Advantages & Functional Improvements
Installing a complete engine rebuild kit for the Caterpillar C12 delivers significant performance and reliability gains:
✅ Restored Compression & Full Power Recovery
New cylinder liners, pistons, and rings seal combustion gases completely. Compression returns to factory spec (typically 380–480 psi depending on compression ratio). The engine regains its rated 310–410 horsepower and corresponding torque – no more power loss on grades or under heavy loads.
❌ Elimination of Blow‑by
Worn rings and polished liners cause excessive crankcase pressure. New plasma‑moly or chrome‑ceramic rings reduce blow‑by to near zero. You will see no more vapor from the oil fill tube or breather, and oil leaks from seals will stop.
⛽ Drastically Reduced Oil Consumption
A worn C12 can burn 1 quart of oil every 100–200 miles or 50–100 hours. After a quality rebuild, oil consumption drops to less than 1 quart per 500 miles (or 0.5 quart per 100 hours). Blue exhaust smoke disappears, and you no longer need frequent top‑ups.
📈 Improved Fuel Economy
Restored compression and proper combustion chamber sealing increase thermal efficiency by 10–15%. Many owners report fuel savings of 0.5–1.0 mpg in truck applications, quickly paying for the rebuild kit.
🔧 Healthy Oil Pressure
New main and rod bearings restore oil clearances (typically 0.002–0.004″). Hot idle oil pressure rises from a concerning 10–15 psi to a robust 25–35 psi. At working RPM (1,800–2,100), pressure returns to 50–70 psi – protecting the turbo, HEUI pump, camshaft, and crankshaft.
🔇 Smooth & Quiet Operation
New pistons, rings, bearings, and gaskets eliminate knocking, rapping, and uneven running. The C12 runs with a steady, balanced cadence – reducing operator fatigue and cab vibration.
⏳ Extended Service Life
A proper in‑frame rebuild using a high‑quality kit can extend the life of your Caterpillar C12 by 10,000–15,000 operating hours or 400,000–600,000 miles in on‑highway use, depending on maintenance and operating conditions.
🛠️ HEUI System Compatibility
The kit includes high‑quality injector seals, O‑rings, and gaskets specifically designed for the HEUI fuel system. Proper sealing prevents high‑pressure oil leaks and ensures consistent injection pressure, which is critical for C12 performance.
Rsolid Engine Parts – Your Trusted Supplier for Caterpillar C12 Rebuild Kits
Rsolid Engine Parts is a leading global supplier of diesel engine rebuild kits, fuel injectors, turbochargers, and heavy‑duty components. Our engine rebuild kits for the Caterpillar C12 are manufactured to meet or exceed original equipment specifications, offering exceptional value for truck fleets, owner‑operators, construction companies, and rebuild shops.
Why Choose Rsolid Engine Parts?
OEM Quality – All components are sourced from ISO‑9001 certified factories that supply to major OEMs. Each part is dimensionally verified against Caterpillar engineering standards.
Complete Kits – Every kit is assembled, inspected, and counted before shipment – no missing gaskets, seals, or bearings. You receive exactly what you need for a full in‑frame rebuild.
Perfect Fitment Guarantee – We verify engine serial numbers (9NS, 2KS, B5E, C5E, etc.) and arrangement numbers to ensure 100% compatibility. If it doesn’t fit, we will replace it.
Flexible Options – Standard and oversize bearing sets (0.010″, 0.020″, 0.030″) available. Steel or aluminum pistons available based on engine specification.
Fast Worldwide Shipping – Our large inventory is ready for immediate dispatch, minimizing your equipment downtime.
Expert Technical Support – Our team includes experienced Caterpillar diesel mechanics who can assist with installation, torque specifications, HEUI priming procedures, and troubleshooting.
Competitive Pricing – Direct sourcing cuts out middlemen, passing significant savings to you.
Contact Rsolid Engine Parts today:
Request a free quote, check stock availability, or get professional installation advice. Keep your Caterpillar C12 running stronger, cleaner, and more efficiently with Rsolid Engine Parts.
