Engine Reconstruction and Overhaul Kit for Caterpillar 3306 Diesel Engine – Complete Restoration of Power and Reliability
Advanced Structural Features and Performance Advantages

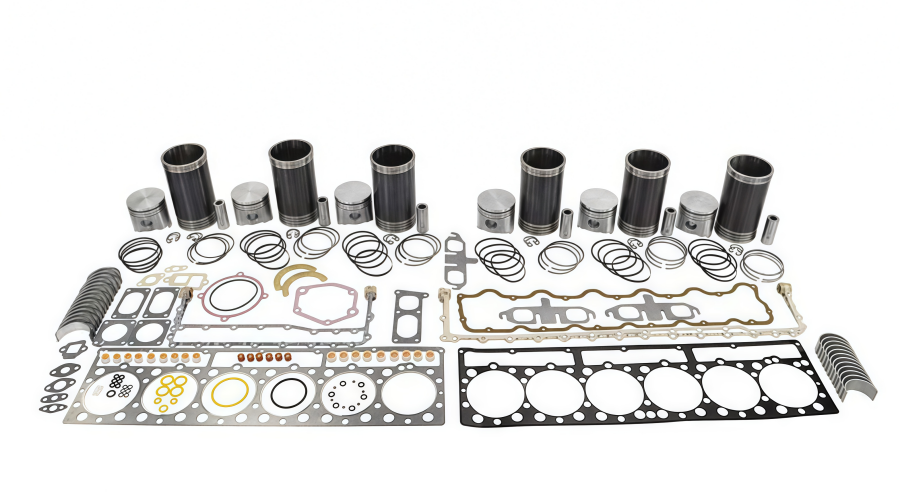

The engine reconstruction and overhaul kit for the Caterpillar 3306 diesel engine is a complete, premium-quality solution designed to restore this legendary 6-cylinder, 10.5-liter engine to factory-fresh condition. The 3306 is one of Caterpillar’s most successful and durable engines, used worldwide in construction, industrial, marine, and generator applications. This kit contains all critical internal components required for a full in‑frame or out‑of‑frame rebuild, delivering exceptional value compared to purchasing individual parts or a new engine.

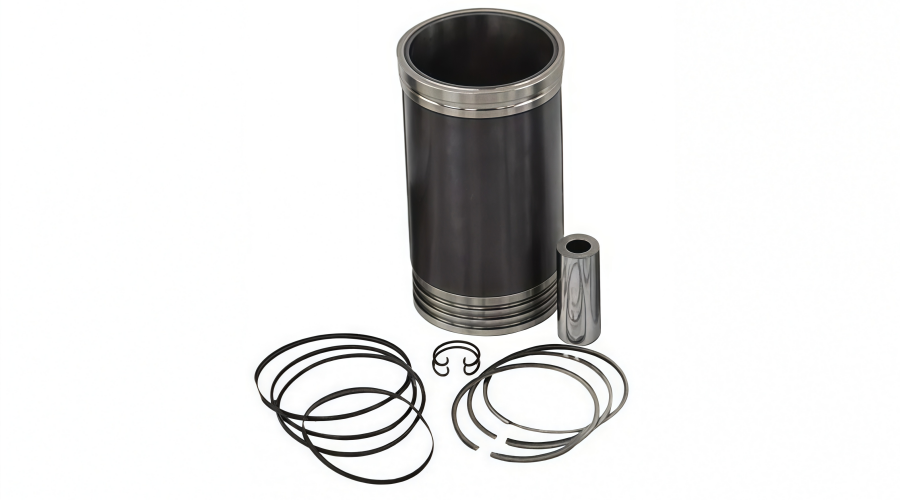

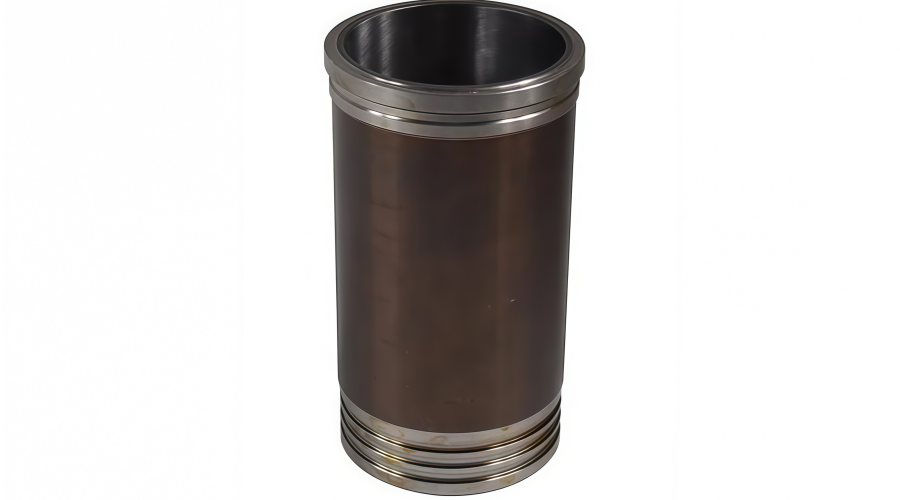

Structurally, the kit includes six high-quality cylinder liners manufactured from centrifugally cast high‑chromium gray iron. Each liner features an induction‑hardened internal bore with a precision plateau‑honed cross‑hatch finish that promotes immediate piston ring seating and maintains optimal oil retention over thousands of operating hours. The liners are of the “wet” type, meaning they are in direct contact with engine coolant; therefore, high‑quality O‑ring seals are included to prevent coolant from leaking into the crankcase or combustion chamber. For engines equipped with “parent bore” blocks (no removable liners), the kit includes oversize pistons and rings instead of liners – verify your engine configuration before ordering.

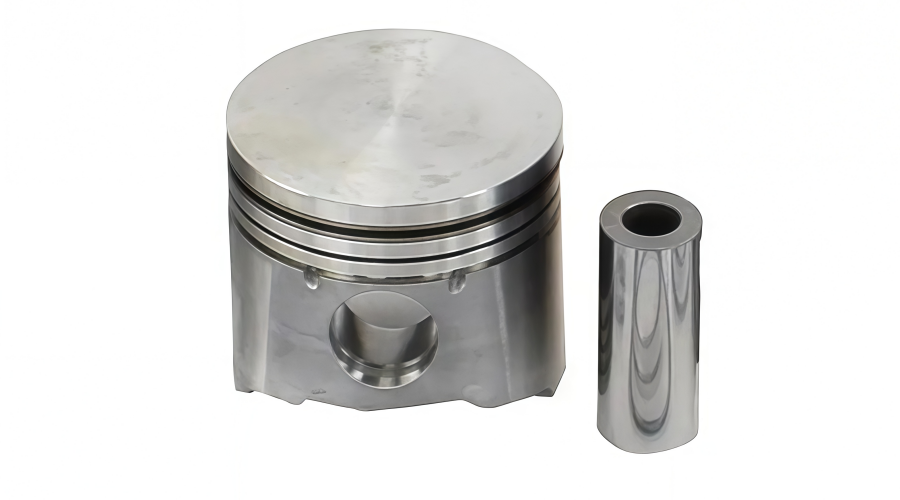

The kit supplies six pistons made from forged aluminum alloy with reinforced ring lands and an optimized combustion bowl that matches the 3306’s direct injection fuel spray pattern. For turbocharged and aftercooled variants (3306T, 3306B), the pistons feature an internal cooling gallery that receives oil from piston cooling jets, dramatically reducing piston crown temperatures and preventing thermal cracking. The piston ring set includes a plasma‑sprayed molybdenum top ring for exceptional scuff resistance, a cast‑iron tapered second ring for oil control, and a three‑piece steel oil control ring assembly with an expander spring. All rings are pre‑gapped to Caterpillar’s original specifications, eliminating the need for manual filing.

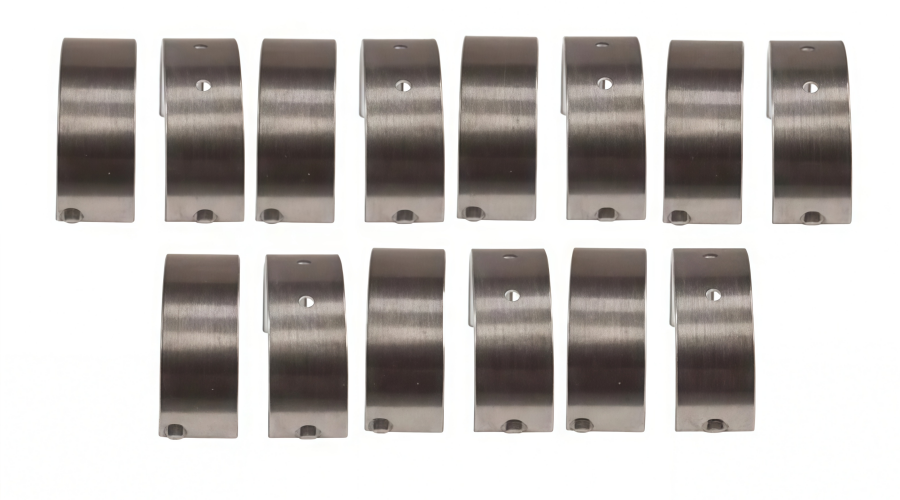

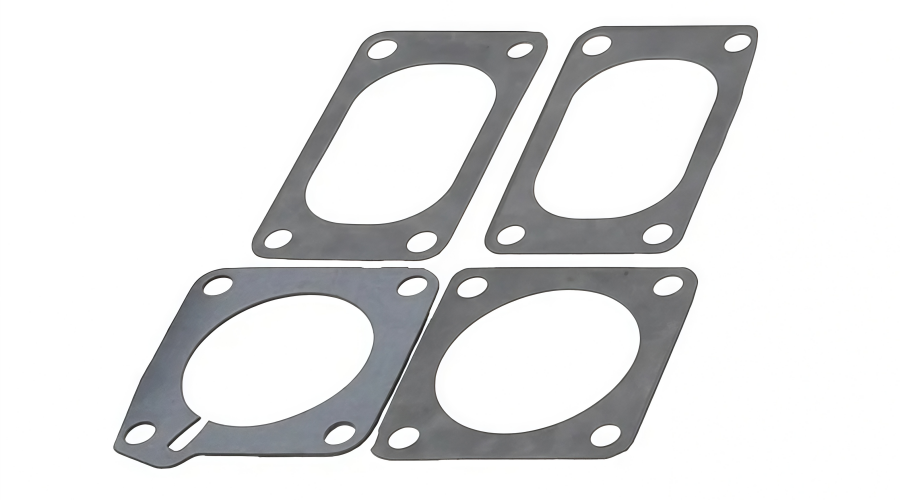

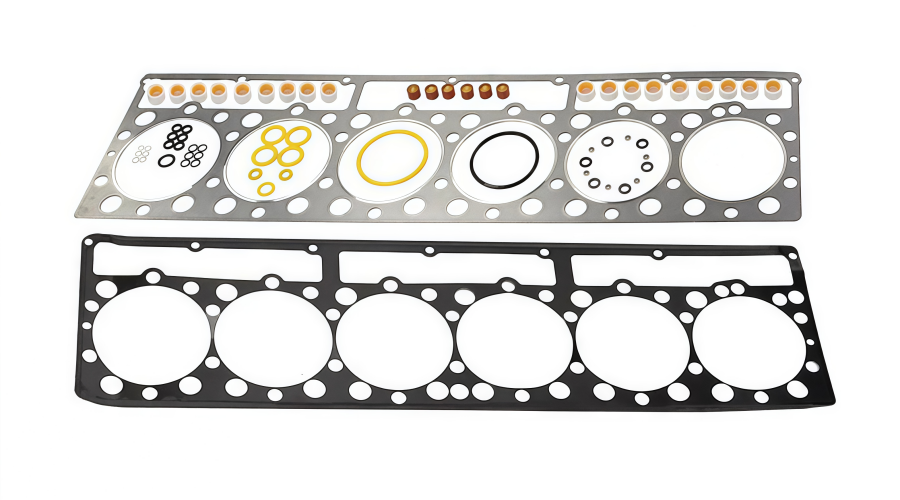

The bearing complement includes a full set of tri‑metal connecting rod bearings and main bearings (steel backing, copper‑lead intermediate layer, and tin‑babbitt overlay). These bearings are precision‑crush ground to OEM clearances and feature an eccentric bore to form a proper oil wedge. Also included are thrust washers for crankshaft end‑play control and camshaft bearings. The full gasket set is comprehensive: a premium multi‑layer steel (MLS) cylinder head gasket designed for the 3306’s high cylinder pressures (up to 2,200 psi), elastomeric valve cover and oil pan gaskets, intake and exhaust manifold gaskets, timing cover seals, water pump gasket, turbocharger mounting gaskets (for turbo versions), and all necessary O‑rings, dowel seals, and copper washers for injector and coolant passages. Many kits also include piston cooling jets, connecting rod bolts (torque‑to‑yield), valve stem seals, and front and rear crankshaft seals.
All components in the 3306 reconstruction kit are sourced from ISO‑9001 certified manufacturers and are dimensionally verified against Caterpillar’s published engineering standards. Rsolid Engine Parts offers both standard and oversize (0.010″, 0.020″, 0.030″) bearing sets and piston options to match crankshafts that have been reground, as well as multiple compression height options for different 3306 configurations. Each kit is carefully inspected, packaged with anti‑corrosion protection, and labeled for easy identification during installation.
Core Working Principle of the 3306 Reconstruction and Overhaul Kit
The Caterpillar 3306 is a 6‑cylinder, 4‑stroke, direct injection diesel engine with a bore of 120.65 mm (4.75 inches) and a stroke of 152.4 mm (6.00 inches), displacing 10.5 liters (638 cubic inches). It is available in naturally aspirated (3306), turbocharged (3306T), and turbocharged‑aftercooled (3306B) configurations, with power outputs ranging from 100 to 300 horsepower depending on application. The engine uses a mechanical inline injection pump (Caterpillar or Robert Bosch) and is renowned for its high torque rise, fuel efficiency, and legendary durability – many 3306 engines log 15,000 to 20,000 hours before requiring a major overhaul.
Over thousands of operating hours – typically 10,000 to 15,000 hours in construction equipment or 15,000+ hours in generator sets – the engine’s internal components wear. The reconstruction kit functions by systematically replacing these critical wear‑limited parts. As the engine runs, the pistons reciprocate within the cylinder liners at speeds up to 2,400 RPM. Combustion pressures reach approximately 1,600 psi (110 bar) in naturally aspirated versions and over 2,200 psi (152 bar) in turbocharged versions.
Over time, the cylinder liners lose their cross‑hatch finish, become polished, or develop wear steps near the top of the ring travel. Piston rings lose radial tension and may become stuck in carbon‑filled grooves, leading to blow‑by (combustion gases past the rings) and oil consumption. Bearings develop fatigue cracks, copper‑lead exposure, and increased clearance, which lowers oil pressure and can cause knocking. The cylinder head gasket may fail due to thermal cycling and high cylinder pressures, resulting in external coolant leaks or internal cross‑contamination between oil and coolant passages.
When an overhaul is performed using this kit, the technician removes the worn components and installs the new parts. New cylinder liners (if applicable) are pressed into the block, and their protrusion above the block deck is measured (typically 0.003–0.007″ or 0.08–0.18 mm) to ensure proper head gasket sealing. New pistons are assembled with fresh rings (ring gaps staggered 60° apart for 6 cylinders), then installed into the liners using a ring compressor. New rod bearings are fitted, and connecting rods are torqued to specification. New main bearings are installed (either by lowering the crankshaft or removing it), and crankshaft end play is checked with new thrust washers. The new MLS cylinder head gasket is placed, the cylinder head is reinstalled, and head bolts are torqued in three stages, often with a final angle torque. All new gaskets and seals are replaced. The result is an engine with restored compression, normalized oil consumption, eliminated blow‑by, and recovered power output – effectively giving the engine a second life of 10,000+ hours.
Common Failure Symptoms and Overhaul Replacement Guidelines
The following symptoms indicate that a Caterpillar 3306 engine requires a full reconstruction and overhaul using this kit:
Excessive Crankcase Blow‑by – Remove the oil fill cap or dipstick while the engine idles. If strong puffs of vapor or smoke emerge, combustion gases are leaking past worn piston rings. Severe blow‑by can pressurize the crankcase, pushing oil out of the breather, past the rear main seal, and causing oil leaks. Measured crankcase pressure above 7–10 inches of water at rated speed is unacceptable. A simple test: place a plastic bag over the oil fill tube; if it inflates rapidly, blow‑by is excessive.
High Oil Consumption (over 1 quart per 50–100 operating hours) – Blue exhaust smoke, frequent topping off (every fuel stop), and oily residue in the air cleaner, charge air cooler, or exhaust indicate worn rings and liners. New rings and liners from the kit will restore oil control.
Loss of Power and Poor Fuel Economy – The engine struggles to maintain RPM under load, such as when climbing a grade with a wheel loader or during heavy excavating. Low compression due to worn rings, liners, or valves reduces torque output. A compression test should show 350–450 psi across all cylinders with no more than 10% variation. A cylinder cut‑out test will identify weak cylinders.
Hard Starting, Especially Cold – Extended cranking times, white smoke during cranking (unburned fuel), or dependence on ether or glow plugs indicates low cranking compression. This is often accompanied by excessive blow‑by during cranking.
Knocking Noises and Low Oil Pressure – A deep, rhythmic knock that worsens with load points to rod or main bearing wear. Low hot oil pressure (below 15 psi at idle or 30 psi at working RPM) confirms excessive bearing clearance. The new bearing set in the kit will restore proper oil pressure (typically 40–60 psi at working RPM).
Coolant in Oil (Milky Oil) or Oil in Coolant – Emulsified oil (looks like chocolate milk) on the dipstick or an oily film in the coolant expansion tank signals a failed cylinder head gasket, cracked liner, or failed liner O‑rings. The MLS head gasket and new liner seals in the kit address this.
Reconstruction and Overhaul Guidelines Using the Kit – Performing a rebuild on a 3306 requires competent mechanical skills and proper tools. The standard procedure for an in‑frame or out‑of‑frame overhaul: Drain all fluids and remove the engine or prepare for in‑frame (remove radiator, oil pan, cylinder head). Remove the cylinder head and inspect for cracks. Remove the oil pan, oil pump, and pick‑up tube. Push pistons and rods out through the top of the block. Remove cylinder liners using a liner puller tool (if applicable). Clean the block deck and cylinder bores thoroughly. Install new liners with proper press fit and liner protrusion (use liner sealant on the lower O‑ring groove). Measure crankshaft journals for ovality and taper; polish or regrind as needed. Select bearing sizes (standard or undersize). Install new main bearings (if keeping crankshaft in place, lower it slightly after removing main caps). Install new camshaft bearings. Assemble new pistons to connecting rods with new pins and rings (lubricate ring lands and stagger ring gaps 60°). Install piston/rod assemblies with new rod bearings, torquing rod bolts to factory specification (e.g., 100–120 ft‑lbs plus angle). Install new main bearings and thrust washers; torque main caps (e.g., 200–250 ft‑lbs depending on bolt size). Install new MLS cylinder head gasket and reinstall cylinder head. Torque head bolts in three stages (e.g., 100→200→300 ft‑lbs for studs, or 85→165 ft‑lbs + 90° for bolts – refer to manual). Replace all gaskets, seals, O‑rings, and cooling jets. Reinstall oil pump, oil pan with new gasket. Fill with break‑in oil (15W‑40 CI‑4 or CK‑4 with high zinc) and fresh coolant. Start the engine and run at 1000–1200 RPM for 5 minutes, checking for oil pressure, coolant leaks, and unusual noises. Allow the engine to warm up, then vary load for the first 50 hours, avoiding prolonged idle or full throttle. Change oil and filter after 50 hours. Rsolid Engine Parts provides a detailed torque specification sheet and installation guide with every kit.
Rsolid Engine Parts – Your Trusted Supplier for Caterpillar 3306 Reconstruction Kits
Rsolid Engine Parts is a premier global supplier of diesel engine reconstruction kits, overhaul kits, fuel injectors, turbochargers, and heavy‑duty components. Our engine reconstruction and overhaul kit for the Caterpillar 3306 is manufactured to meet or exceed original equipment specifications, offering the ideal balance of quality, durability, and affordability for fleet owners, contractors, and rebuild shops.
We source all components from ISO‑9001 certified factories that supply to major OEMs. Every kit is assembled, inspected, and counted by our quality control team before shipment to guarantee completeness and eliminate missing parts. Unlike many aftermarket suppliers who mix components from different origins, Rsolid ensures that all parts in the 3306 kit are fully compatible with each other and with your engine’s specific configuration (natural, turbo, turbo‑aftercooled; wet liner or parent bore; with or without cooling jets). We offer standard and oversize bearing sets, multiple piston heights, and optional upgraded piston ring packs for extended oil drain intervals or higher load applications.
Our inventory is fully stocked for fast worldwide shipping directly to your workshop, mine site, farm, or job site. Our technical support staff includes experienced Caterpillar diesel mechanics who can help verify engine serial numbers, advise on installation steps, and assist with troubleshooting. Visit our website at www.rinjector.com or contact us directly via WhatsApp at +8615975376778 for a free quote, stocking inquiry, or technical assistance. When you choose Rsolid Engine Parts, you choose reliability, performance, and exceptional customer service – keeping your Caterpillar 3306 running stronger for longer.
