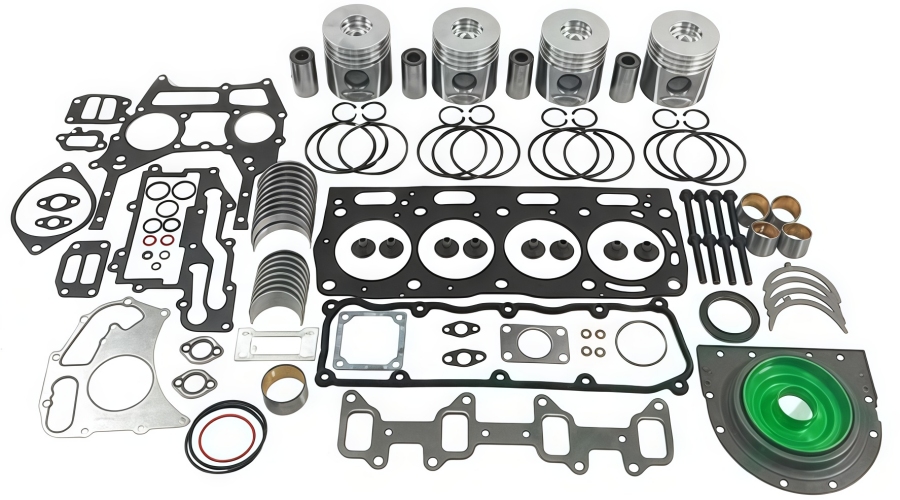

BBK3047 Basic Engine Kit STD for Caterpillar 3044CT Direct Injection Diesel Engine – Reliable Overhaul Solution
Robust Structural Features and Performance Advantages
The BBK3047 Basic Engine Kit STD is a precision-engineered overhaul solution specifically designed for the Caterpillar 3044CT direct injection diesel engine. This standard-size (STD) kit contains all the essential internal components required to perform a complete in-frame or out-of-frame engine rebuild, restoring the engine to factory specifications. The 3044CT is a compact, high-torque 4-cylinder engine widely used in small to medium construction and agricultural equipment, and this kit provides a cost-effective way to extend its service life by thousands of hours.
Structurally, the kit includes four high-quality cylinder liners manufactured from centrifugally cast gray iron with a molybdenum alloy content that enhances wear resistance. Each liner features a precision plateau-honed cross-hatch finish, which optimizes oil retention and accelerates piston ring seating during the break-in period. The liners are induction-hardened on the internal running surface to resist scuffing, abrasion, and cavitation erosion—common failure modes in diesel engines operating under dusty or high-load conditions.
The BBK3047 kit supplies four pistons made from high-silicon eutectic aluminum alloy, which provides excellent thermal conductivity and resistance to thermal fatigue. The piston crowns are machined with a re-entrant combustion bowl geometry specifically matched to the 3044CT’s direct injection fuel system, promoting efficient air‑fuel mixing and complete combustion. Pistons feature reinforced ring lands and, depending on the engine variant, may include an internal cooling gallery that receives oil from piston cooling jets.
The piston ring set consists of a chrome-ceramic or plasma-sprayed molybdenum top ring for exceptional scuff resistance, a cast-iron tapered second ring that assists in oil scraping, and a three-piece steel oil control ring assembly with an expander spring. All rings are pre-gapped to Caterpillar’s original specifications, eliminating the need for manual filing and reducing installation time. The kit also includes new piston pins (wrist pins) and spiral or round-wire retaining rings.
The bearing complement includes a full set of tri-metal connecting rod bearings and main bearings (steel backing, copper-lead intermediate layer, and tin-babbitt overlay). These bearings are precision-crush ground and feature eccentricity to form a proper oil wedge. Thrust washers for controlling crankshaft end play are included, as are camshaft bearings where applicable. The gasket set is comprehensive, featuring a multi-layer steel (MLS) cylinder head gasket, elastomeric valve cover and oil pan gaskets, intake and exhaust manifold gaskets, timing cover seals, water pump gasket, and all necessary O-rings, dowel seals, and copper washers for injector and coolant passages.
All components in the BBK3047 kit are manufactured in ISO-9001 certified facilities and are dimensionally verified to match Caterpillar’s published specifications. Rsolid Engine Parts ensures that every kit is complete, properly packaged with anti-corrosion protection, and ready for immediate installation.
Core Working Principle of the BBK3047 Basic Engine Kit
The Caterpillar 3044CT is a 4-cylinder, 4-stroke, direct injection diesel engine with a bore of 94 mm (3.70 inches) and a stroke of 100 mm (3.94 inches), displacing 2.8 liters (171 cubic inches). The “CT” designation indicates a turbocharged configuration, although naturally aspirated variants exist. The direct injection (DI) fuel system injects fuel directly into the combustion bowl in the piston crown, creating efficient mixing with compressed air.
Over thousands of operating hours – typically 6,000 to 10,000 hours in light to medium duty – the engine’s internal components wear. The BBK3047 kit functions by systematically replacing the critical wear-limited parts that degrade performance. As the engine runs, the pistons reciprocate within the cylinder liners at speeds up to 3,000 RPM. Combustion pressures reach approximately 1,600 psi in naturally aspirated versions and over 2,000 psi in turbocharged engines like the 3044CT.
Worn cylinder liners develop bore polishing, loss of cross-hatch, and sometimes scuffing or scoring. This leads to increased blow-by (combustion gases leaking past the rings) and oil consumption. Piston rings lose radial tension and become stuck in carbon-filled grooves, reducing compression pressure. Bearings experience fatigue, copper-lead exposure, and increased clearance, which lowers oil pressure and can cause knocking. The cylinder head gasket may fail due to thermal cycling and combustion pressure, causing external leaks or internal cross-contamination between oil and coolant passages.
When an overhaul is performed using the BBK3047 kit, the technician removes the old liners, pistons, rings, bearings, and gaskets. New liners are pressed into the block, often requiring measurement of liner protrusion above the block deck to ensure proper head gasket sealing. New pistons are assembled with fresh rings, with ring gaps staggered per Caterpillar procedures. The crankshaft journals are inspected, polished or reground if necessary, and new tri-metal bearings are installed to restore precise oil clearances (typically 0.002–0.003″ for main bearings). The new MLS cylinder head gasket provides superior sealing of combustion pressures and coolant passages, eliminating leaks. After reassembly, the engine has restored compression, normalized oil consumption, reduced blow-by, and recovered power output, delivering like-new performance.
Primary Application Equipment
The Caterpillar 3044CT direct injection diesel engine is found in a variety of compact machinery, particularly in applications where space is limited but reliability and torque are essential. The BBK3047 basic engine kit is required for overhauling these engines when they show signs of wear. Main applications include:
Compact Construction Equipment
Caterpillar backhoe loaders – smaller models such as 416B, 416C, 426B, 428B, 428C, 436B, and 446 (some variants use the 3044 engine)
Caterpillar skid steer loaders – models like 216, 226, 236, 246, 256, 262 (depending on year and configuration)
Caterpillar compact wheel loaders – 906, 908, 910 (early models)
Caterpillar mini hydraulic excavators – 303.5, 304, 304.5, 305 (some variants share the 3044 engine family)
Agricultural Equipment
Small to medium tractors (e.g., Challenger MT200 series, some Massey Ferguson compacts with Cat engines)
Combine headers and self-propelled forage harvesters (auxiliary engines)
Hay rakes, balers, and stationary agricultural machinery
Industrial and Stationary Applications
Generator sets (20–50 kW range, prime or standby)
Light towers (diesel-driven lighting plants)
Industrial pumps (water transfer, dewatering, slurry)
Air compressors (portable screw compressors)
Welding machines (diesel welder-generators)
Material Handling
Rough terrain forklifts (e.g., Caterpillar DP series)
Container stackers and yard tractors (smaller units)
Marine and Other
When ordering the BBK3047 kit, it is essential to confirm the engine serial number prefix and configuration (turbocharged vs. naturally aspirated, with or without piston cooling jets) to ensure compatibility. Common 3044 engine serial prefixes include 5EL, 6GN, 6KS, 8MW, and others. Rsolid Engine Parts can assist with cross-referencing.
Common Failure Symptoms and Overhaul Replacement Guidelines
The following symptoms indicate that a Caterpillar 3044CT engine requires a full overhaul using the BBK3047 Basic Engine Kit:
Excessive Crankcase Blow-by – Remove the oil fill cap or dipstick while the engine idles. If strong puffs of vapor or smoke emerge, combustion gases are leaking past worn piston rings. Severe blow-by can push oil out of breathers and cause seals to leak. Measured crankcase pressure above 5 inches of water at rated speed is unacceptable.
High Oil Consumption – If the engine uses more than 0.5 liters of oil per 100 operating hours (approximately 1 quart per 200 hours), or if blue smoke is visible from the exhaust, the rings and liners are worn. New rings and liners from the BBK3047 kit will restore oil control.
Loss of Power and Slow Response – The engine struggles to maintain RPM under load, such as when digging with a backhoe or driving up an incline. Low compression due to worn rings or liners is the primary cause. A compression test should show 350–450 psi across all cylinders with no more than 10% variation.
Hard Starting, Especially When Cold – Extended cranking times or dependence on ether or glow plugs indicates low cranking compression. This is often accompanied by white smoke during cranking (unburned fuel due to insufficient compression heat).
Knocking Noises and Low Oil Pressure – A deep, rhythmic knock that worsens with load points to rod or main bearing wear. Low hot oil pressure (below 15 psi at idle or 30 psi at working RPM) confirms bearing clearances have exceeded limits. The new bearings in the kit will restore proper oil pressure.
Coolant in Oil (Milky Oil) or Oil in Coolant – Emulsified oil (looks like chocolate milkshake) or an oily film in the radiator expansion tank signals a failed cylinder head gasket or cracked liner. The MLS head gasket and new liner seals included in the kit address this.
Replacement and Overhaul Guidelines Using BBK3047 Kit – Performing an overhaul with this kit requires competent mechanical skills. Standard procedure: Drain fluids and remove the engine or perform an in-frame rebuild if chassis clearance allows. Remove the cylinder head, oil pan, timing cover, and front gear train. Extract pistons and rods, then bearings and crankshaft if necessary. Remove cylinder liners using a puller or press. Inspect the block for cracks and bore distortion. Measure bore out-of-round and taper; if within limits, hone and install new liners using the correct press fit and liner protrusion (typically 0.001–0.004″ above deck). Grind or polish crankshaft and measure journals. Select bearing set (STD or undersize – the BBK3047 is STD only; order separate undersize if needed). Install new camshaft bearings. Assemble pistons to rods using new pins and rings (lubricate and stagger ring gaps 120° apart). Install crankshaft with new main bearings; torque to spec. Install piston/rod assemblies with new rod bearings. Install new head gasket and reinstall cylinder head, torqueing head bolts in three stages to factory specification (typically 30→60→90 ft-lbs plus angle). Replace all gaskets and seals from the kit. After reassembly, add break-in oil (15W-40 CI-4 or CK-4 with high zinc) and fresh coolant. Start the engine and run at 1000 RPM for 5 minutes, checking for leaks and oil pressure. Allow the engine to warm up, then vary load for the first 50 hours, avoiding prolonged idling or full-throttle operation. Change oil and filter after the first 50 hours. Rsolid Engine Parts includes a torque specification sheet with every BBK3047 kit.
