C13101017 Engine Rebuild Kit for Caterpillar C13 Diesel Engine
Structural Features and Advantages

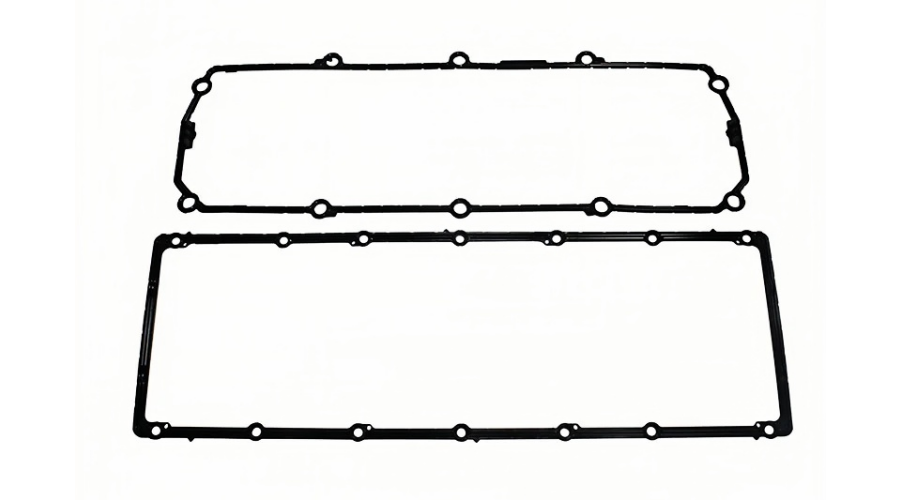

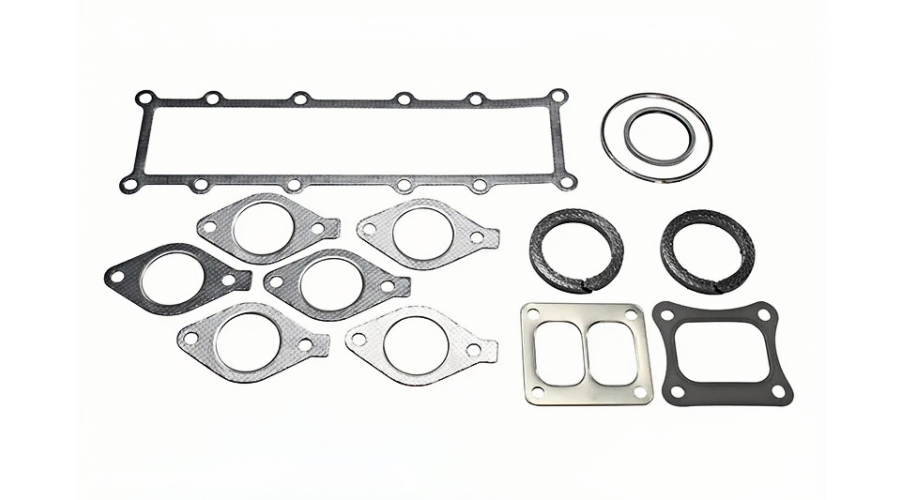

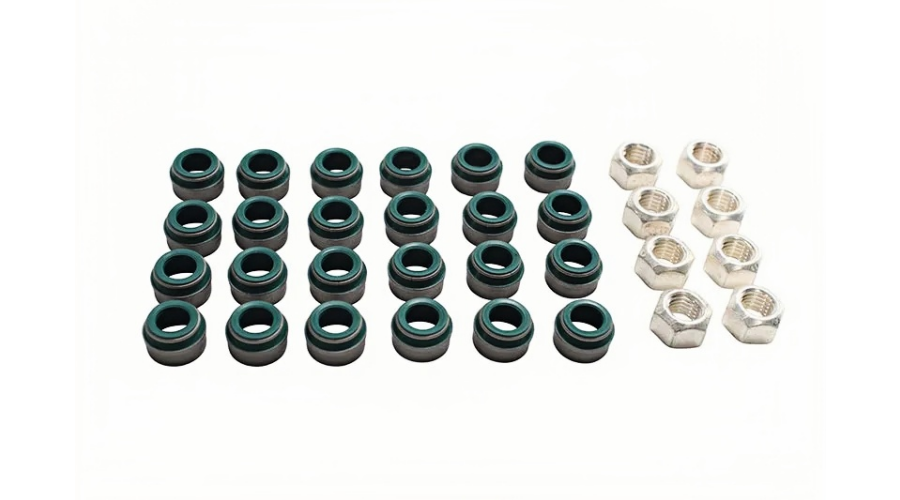

The C13101017 engine rebuild kit is a professional-grade master overhaul solution designed specifically for the Caterpillar C13 heavy-duty diesel engine, a 12.5-liter, 6-cylinder inline powerplant widely used in on-highway trucks, construction equipment, and industrial applications. This comprehensive kit typically includes over 200 precision components: six piston assemblies (complete with forged steel articulated pistons or aluminum pistons depending on emission tier, rings, pins, and circlips), six cylinder liner kits (wet liners with O-rings and upper seals), main bearing set (7 shells including thrust washers), connecting rod bearing set (6 pairs), full gasket set (multi-layer steel cylinder head gasket, valve cover gasket, oil pan gasket, intake and exhaust manifold gaskets, front and rear timing cover gaskets, water pump gaskets, thermostat housing gaskets, all O-rings, and injector seals), full seal set (front and rear crankshaft seals, camshaft seals, auxiliary drive seals), valve stem seals, and essential hardware such as freeze plugs, piston cooling jets (oil squirters) , and often new connecting rod bolts and main cap bolts (torque-to-yield). Structurally, the C13 engine uses either forged aluminum pistons (for ACERT models with EGR) or articulated two-piece pistons (steel crown with aluminum skirt) for later Tier 4 Interim and Final versions, depending on the engine serial number prefix. The pistons feature a re-entrant combustion bowl optimized for Caterpillar’s high-pressure common rail fuel system (HEUI or common rail, depending on year). The cylinder liners are induction-hardened gray iron with a plateau cross-hatch finish (Ra 0.2–0.4 µm) for rapid ring seating and controlled oil consumption. The bearings are tri-metal construction (steel backing, copper-lead intermediate, and tin overlay) capable of withstanding peak cylinder pressures exceeding 200 bar and power outputs up to 470 hp (C13 on-highway ratings) and 525 hp (industrial versions). Key advantages of the C13101017 rebuild kit include: exact OEM compatibility (matches Caterpillar original specifications for C13 engines with serial number prefixes LEE, KCB, LDY, and others), significant cost savings (40–60% lower than genuine Cat parts), reduced downtime (a single part number delivers every wear component for a complete in-frame or out-of-frame overhaul), and upgraded durability (many kits use advanced ring coatings such as chrome-ceramic or nitrided top rings that outlast OEM rings). This kit restores the C13 engine to factory-fresh compression ratio (16.5:1 typical), oil pressure (35–75 psi hot running), fuel economy (190–200 g/kWh), and emissions compliance, extending engine life by another 10,000–15,000 operating hours or 400,000–500,000 miles under normal duty.
Core Working Principle
The C13101017 engine rebuild kit works by systematically replacing all major wear-limited components in a worn Caterpillar C13 engine, thereby restoring the original thermodynamic efficiency and mechanical precision. The C13 engine is a four-stroke, turbocharged, aftercooled diesel that uses either a HEUI (Hydraulic Electronic Unit Injector) system (pre-2007) or a high-pressure common rail (HPCR) system (2007 onwards). Over time, the piston rings lose tension, cylinder liners develop taper and out-of-roundness, bearings wear, and gaskets harden. When the new components from the C13101017 kit are installed, the following restoration occurs: The new piston ring pack – typically consisting of a barrel-faced top compression ring (often coated with chrome-ceramic or nitride), a taper-faced second compression ring, and a three-piece oil control ring – creates a high-integrity gas seal against the freshly honed liner surface. This reduces blow-by from worn-engine levels (often exceeding 120 L/min) to less than 35 L/min at rated speed (1800–2100 RPM), which is within Caterpillar’s new engine specification. The new cylinder liners restore the original bore diameter of 130 mm (5.12 in) for the C13, eliminating piston slap and ensuring even heat transfer from the combustion chamber to the coolant jacket. The new main and rod bearings re-establish precise oil clearances: main bearing clearance typically 0.065–0.125 mm, rod bearing clearance 0.050–0.095 mm. This maintains oil pressure within the 35–75 psi range at operating temperature, preventing crankshaft journal damage and reducing friction. The new MLS (multi-layer steel) cylinder head gasket seals combustion pressures reaching 200 bar, while keeping coolant and oil passages separate. The head gasket also ensures proper liner protrusion (0.06–0.12 mm above block deck). The valve stem seals (included in the gasket set) prevent oil migration past valve guides, eliminating blue smoke on startup and reducing oil consumption. The result is a C13 engine that delivers its original rated power (typically 350–470 hp for on-highway truck ratings, up to 525 hp for industrial) with a smooth idle, no misfire, restored torque curve, and fuel economy returning to baseline. The rebuilt engine also produces lower emissions (reduced PM and NOx) and extends the life of the aftertreatment system (if equipped).
Main Application Equipment
The C13101017 engine rebuild kit is used for overhauling Caterpillar C13 engines across a vast range of heavy-duty applications, including:
Class 8 heavy-duty trucks – Caterpillar CT660, CT680 vocational trucks; also trucks from Peterbilt, Kenworth, Freightliner, International, and Western Star that were factory-equipped with the C13 engine (especially pre-2009 when Cat exited the on-highway market).
Construction machinery – Caterpillar excavators (e.g., 336E, 336F, 340F), wheel loaders (e.g., 966K, 972K, 980K), bulldozers (e.g., D6T, D7E, D8T), motor graders (e.g., 140K, 160K) – many of these used the C13 as a primary power unit.
Articulated dump trucks – Caterpillar 725, 730, 735, 740 series.
Off-highway trucks – Certain Caterpillar 770G, 772G models (depending on market and emissions tier).
Agricultural tractors – Challenger MT700 and MT800 series, where the C13 was offered as a high-horsepower option.
Generator sets – Prime and standby gensets rated from 300 kW to 550 kW, common in data centers, hospitals, telecom facilities, oil and gas fields, and manufacturing plants.
Industrial pumps and compressors – Irrigation pumps, flood control pumps, natural gas compressors, and pipeline booster stations.
Marine propulsion – Small to medium workboats, tugboats, fishing vessels, and yachts with Caterpillar C13 marine ratings (380–500 hp).
Crushing and screening equipment – Mobile crushers and screeners used in quarry and recycling industries.
The Caterpillar C13 engine is known for its durability and high power density. The C13101017 rebuild kit is an essential stocking item for heavy equipment repair shops, truck fleets, and industrial engine rebuilders.
Common Failure Symptoms & Repair/Replacement Guidelines
Failure symptoms indicating the need for the C13101017 rebuild kit on a Caterpillar C13 engine:
Excessive blow-by – Smoke or pressure pulses from the crankcase breather tube. A manometer reading above 80 L/min at rated speed (1800–2100 RPM) indicates severe ring and liner wear. High blow-by also causes oil leaks from seals and can push oil into the air intake system.
High oil consumption – Exceeding 1 quart (0.95 L) per 500 miles (800 km) or noticeable blue smoke from the exhaust, especially on deceleration (worn valve stem seals) or constant (worn rings). A healthy C13 consumes less than 1 quart per 2000 miles.
Low compression – Hard starting (especially cold), rough idle, lack of power under load, cylinder misfire. A relative compression test using Caterpillar Electronic Technician (Cat ET) shows cylinder contribution imbalance greater than 15%. Manual compression test (remove injectors) should show 380–450 psi (26–31 bar) for C13; below 300 psi indicates need for overhaul.
Low oil pressure – Hot idle oil pressure below 10 psi (0.7 bar) and running pressure below 30 psi (2.1 bar) at 1800 RPM. Caused by worn main and rod bearings, worn oil pump, or excessive bearing clearances (main >0.15 mm, rod >0.12 mm).
Knocking noises – Deep, rhythmic knock that changes with engine speed and load (main or rod bearing knock). A sharper rap (piston pin knock) or high-frequency rattle (piston slap) that is most audible during cold start and light load. The C13 is known for piston cracking in high-hour engines, especially early ACERT versions.
Coolant loss without external leak – Combustion gases entering the cooling system through a failed head gasket, causing pressurized coolant loss, overheating, and potential hydrostatic lock (water in cylinders). A coolant hydrocarbon test (combustion leak detector) will show positive.
Fuel dilution of engine oil – Worn rings allow unburned fuel to bypass into the crankcase, thinning the oil and reducing its viscosity. Oil analysis will show fuel percentage > 5% (mass) and a drop in viscosity below 12 cSt at 100°C.
Oil analysis abnormalities – High iron (cylinder liner/ring wear – typically > 200 ppm), copper (bearing wear – > 100 ppm), lead (bearing overlay wear – > 50 ppm), aluminum (piston or ring wear – > 80 ppm), silicon (dirt ingestion from air filter leaks – > 30 ppm). Also, high soot content (> 3% by weight) due to blow-by.
Black smoke under load – Overfueling relative to air charge, which can be caused by low boost (turbocharger issue) but often accompanied by low compression from worn rings. Rule out charge air cooler leaks and turbo before condemning the engine.
Repair and replacement points for the C13101017 kit:
Confirm engine serial number and prefix – The C13 engine has several variants: pre-ACERT (mechanical HEUI), ACERT (with EGR and DPF), Tier 4 Interim (with SCR), and Tier 4 Final. The C13101017 kit is designed for ACERT and Tier 4 C13 engines (typically serial prefixes LEE, KCB, LDY, N3F, etc.). Provide your engine serial number (ESN) and arrangement number to Rsolid Engine Parts for exact verification. Using the wrong piston or gasket can cause incorrect compression ratio or head gasket failure.
Decide between in-frame and out-of-frame overhaul – In-frame rebuild is common for C13 in trucks and some construction equipment where the engine remains in the chassis, cylinder head is removed, liners are pulled from the top, and bearings are replaced from below. Out-of-frame is needed if the crankshaft requires grinding (undersize bearings), the block needs line-boring, or if the engine has spun a bearing or cracked the block.
Inspect the cylinder head thoroughly – The C13 head is prone to cracking, particularly between the valve seats and injector bore, and across the fire deck between cylinders. Remove the head and send it to a machine shop for magnaflux (magnetic particle) or dye penetrant inspection. Cracks longer than 0.5 inch (13 mm) in the fire deck typically require head replacement. Also inspect valve guides (replace if clearance > 0.10 mm) and valve seats (re-cut or replace if recessed). Resurface the head only if warpage exceeds 0.15 mm (0.006 in) – otherwise, use a new MLS gasket without milling.

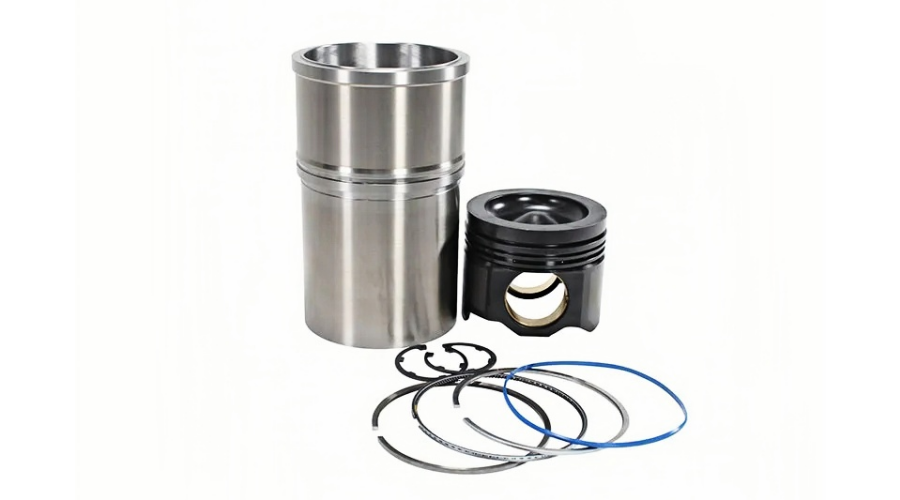

Cylinder liner installation – C13 uses wet liners with O-rings at the bottom and an upper seal ring. Clean the liner counterbore in the block thoroughly. Use a wire brush and compressed air to remove all old gasket material and carbon. Install new O-rings and lubricate with soapy water (not oil, which can cause O-ring roll-out). Press liners in by hand or with a liner installation tool. Measure liner protrusion above the block deck using a dial gauge with a bridge. Specification for C13: 0.06–0.12 mm (0.0024–0.0047 in). No shims are typically used; if protrusion is out of spec, the counterbore may need machining or liners with different flange heights must be sourced. Incorrect protrusion is a common cause of head gasket failure.
Piston selection and ring gap verification:
Top compression ring: 0.45–0.65 mm (0.018–0.026 in)
Second compression ring: 0.50–0.70 mm (0.020–0.028 in)
Oil ring rails: 0.30–0.55 mm (0.012–0.022 in)
Piston type for C13 varies by emissions tier. Early C13 ACERT uses forged aluminum pistons; later models use articulated steel crown + aluminum skirt. Ensure the C13101017 kit includes the correct piston for your engine.
Install piston rings onto the piston using proper ring expander pliers. Do not over-expand.
Ring end gaps (place ring into its respective cylinder liner at the bottom of ring travel – about 100 mm from top, square with a piston, then measure gap with feeler gauge):
If gaps are too small, file the ring ends carefully with a power ring filer or hand file. Never exceed maximum gap; if too large, rings are defective and should be replaced.
Stagger ring gaps 120° apart during installation (do not align gaps).
Piston cooling jets (oil squirters) – Before installing pistons, inspect the oil jets mounted in the block (usually below each cylinder). They direct a stream of oil to the underside of the piston crown. Ensure they are not clogged with carbon or sludge. Replace any bent, missing, or clogged jets. The C13 relies on piston cooling for durability; a missing jet can cause piston seizure within hours.

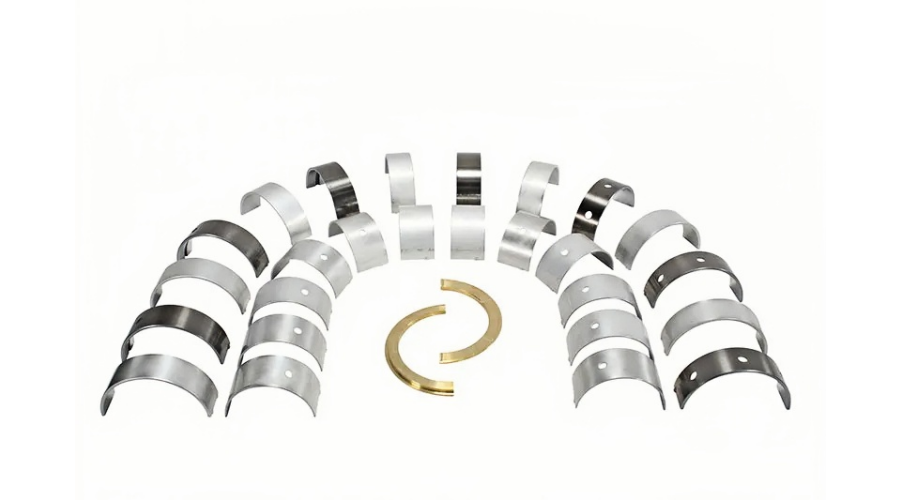

Bearing installation and torque specifications – Use new main and rod bolts (torque-to-yield, not reusable).
Main bearing cap bolts: Clean threads and bolt heads. Apply clean engine oil. Torque in sequence (center outward) to 150 Nm (111 ft-lb), then +90° (angle torque). For specific C13 variants, refer to Caterpillar service manual.
Connecting rod bolts: Torque to 80 Nm (59 ft-lb), then +60°, then +60°. Check rod side clearance (0.20–0.45 mm) after torquing.
Bearing clearance verification (recommended): Use plastigauge on journal and bearing. Main clearance: 0.065–0.125 mm (0.0026–0.0049 in); Rod clearance: 0.050–0.095 mm (0.0020–0.0037 in). If out of spec, consider undersize bearings after grinding the crankshaft.

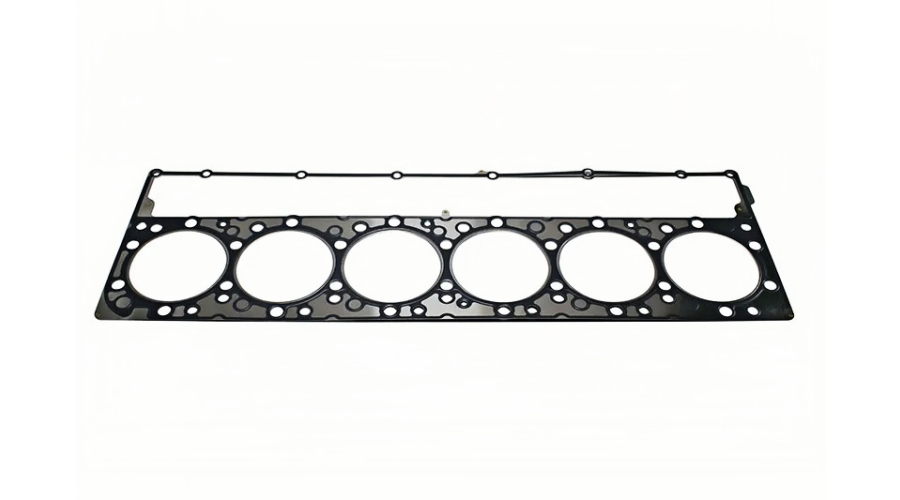

Head gasket installation – Use the new MLS head gasket included in the C13101017 kit. Ensure both head and block surfaces are perfectly clean and dry. Do not apply any sealant, copper spray, or grease – MLS gaskets seal dry. Lubricate head bolt threads and underside of bolt heads with clean engine oil. Torque sequence (spiral from center outward):
Step 1: 70 Nm (52 ft-lb)
Step 2: 150 Nm (111 ft-lb)
Step 3: 300 Nm (221 ft-lb) – check your engine’s specific torque; some C13 have final +90° angle instead of a straight torque.
For ACERT and Tier 4, follow Caterpillar’s latest procedure (available from Rsolid support).
After assembly and before start-up:
Prime the oil system: Disable fuel injection (unplug the injector harness or use the emergency stop switch). Crank the engine in 15-second bursts with 30-second cool-down until oil pressure registers on the gauge (typically after 20–40 seconds total cranking). Do not exceed 60 seconds continuous cranking.
Fill the cooling system with approved Caterpillar ELC (Extended Life Coolant) or equivalent and bleed air from the system.
Double-check all hose connections, oil filter tightness, and fuel line fittings for leaks.
Start the engine and run at 600–800 RPM idle for 5 minutes while checking oil pressure (should be > 30 psi cold, > 12 psi hot idle). Listen for any unusual knocking – a slight piston slap is acceptable and will diminish as rings seat; any heavy knock requires immediate shutdown.
Break-in procedure – For truck applications:
Avoid prolonged low-speed idling (causes ring glazing). Drive the vehicle as soon as oil pressure stabilizes.
For the first 500 miles (800 km), avoid full throttle and maximum RPM. Vary engine speed; do not use cruise control.
Keep loads moderate (50–75% of GCWR) for the first few hours.
After the first 100 operating hours or 5,000 miles (8,000 km), change oil and filter. Also perform a blow-by measurement to ensure it is below 40 L/min.
For generator applications, perform a step-load test: 25% load for 1 hour, 50% for 2 hours, 75% for 2 hours, then ramp to full load. Monitor oil consumption and blow-by.
After break-in, switch to the recommended oil grade (15W-40 conventional or 10W-30 synthetic blend, API CK-4 for pre-DPF engines, CJ-4 for DPF-equipped engines).
Why Choose Rsolid Engine Parts for the C13101017 Engine Rebuild Kit
Rsolid Engine Parts (www.rinjector.com) is a leading global supplier of the C13101017 engine rebuild kit for Caterpillar C13 engines. With extensive experience in heavy-duty diesel parts, Rsolid offers exceptional value and reliability:

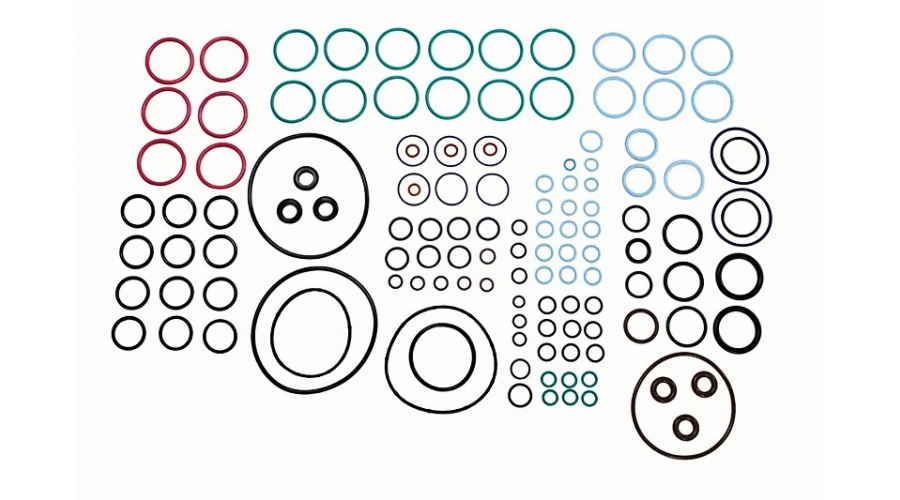

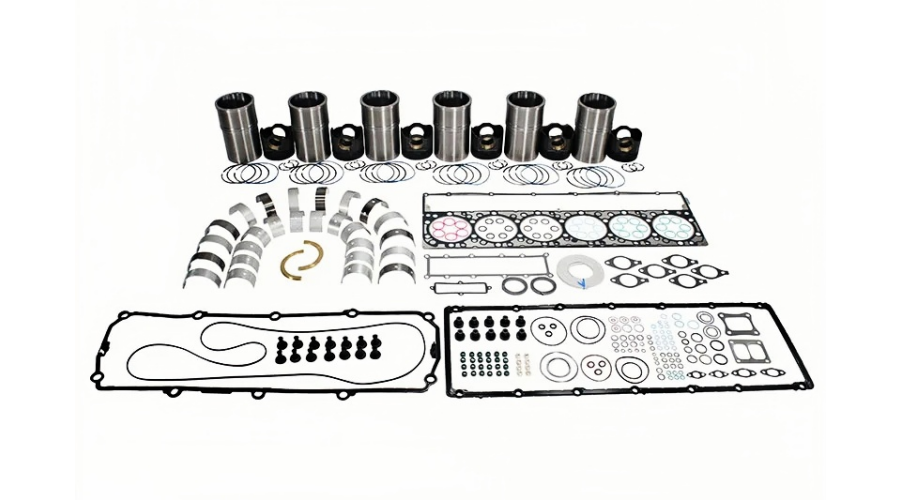

Complete, ready-to-install kits – The C13101017 kit includes every gasket, seal, bearing, piston, liner, O-ring, and small part needed for a full C13 overhaul. No missing components, no last-minute trips to the dealer. All parts are matched to your engine’s configuration.
OEM-grade or better quality – Pistons are forged or cast to original equipment specifications using high-quality aluminum or steel. Rings feature advanced coatings (chrome-ceramic, PVD, or nitrided) that exceed original wear resistance. Liners are induction-hardened to 55–62 HRC and plateau-honed. Bearings from King, Clevite, or Federal-Mogul provide tri-metal performance. MLS head gaskets are manufactured with embossed beads and high-temperature coatings.
Exact application matching – Before shipping, Rsolid’s technical team verifies your engine serial number (ESN) and arrangement number to ensure correct piston dish volume, ring type, liner O-ring configuration, and head gasket thickness. This prevents costly mismatches that could cause low compression or head gasket failure.
Upgraded components – Many C13101017 kits from Rsolid include upgraded ring materials (e.g., ductile iron top ring with nitrided surface) and bearing overlay (lead-indium for improved corrosion resistance) that extend service life beyond original Caterpillar specifications.
Protective packaging – Kits are organized in heavy-duty boxes with foam dividers and labeled sub-packs. Head gaskets are shipped flat (not folded) in reinforced cardboard sleeves. Bearings are wax-coated to prevent corrosion during sea or air freight.
Global stock and rapid delivery – Large inventory of C13101017 kits maintained in warehouses: North America (Houston, Chicago, Atlanta), Europe (Rotterdam), Middle East (Dubai), Asia (Shanghai, Singapore). Standard air freight delivers within 3–7 business days. Sea freight for bulk orders (20–40 days). Emergency overnight shipping available.
Free technical support – Rsolid’s diesel specialists are available via WhatsApp (+8615975376778) to help you identify your C13 variant, interpret oil analysis reports, diagnose failure symptoms, and provide torque sequences, liner protrusion guidelines, and break-in procedures. Digital installation manuals included.
Competitive pricing – Save 40–60% versus genuine Caterpillar parts. Volume discounts for fleets purchasing 3+ kits, professional rebuilders, and international distributors. Custom kitting (including water pump, oil pump, thermostat, injectors, or turbocharger) available.
Warranty – 12 months or 2,000 operating hours (whichever comes first) against manufacturing defects. Free replacement for any defective component verified by photo or video. No hidden fees or complicated return processes.
To order the C13101017 engine rebuild kit for your Caterpillar C13 engine, contact Rsolid Engine Parts today via WhatsApp: +8615975376778 or visit www.rinjector.com. Please provide your engine serial number (ESN) and arrangement number for accurate kit configuration. Bulk inquiries, long-term supply agreements, and expedited shipping options are available.
