23536685 Inframe Engine Rebuild Kit for Detroit Diesel Series 60 (12.7L / 14.0L)
Structural Features and Advantages

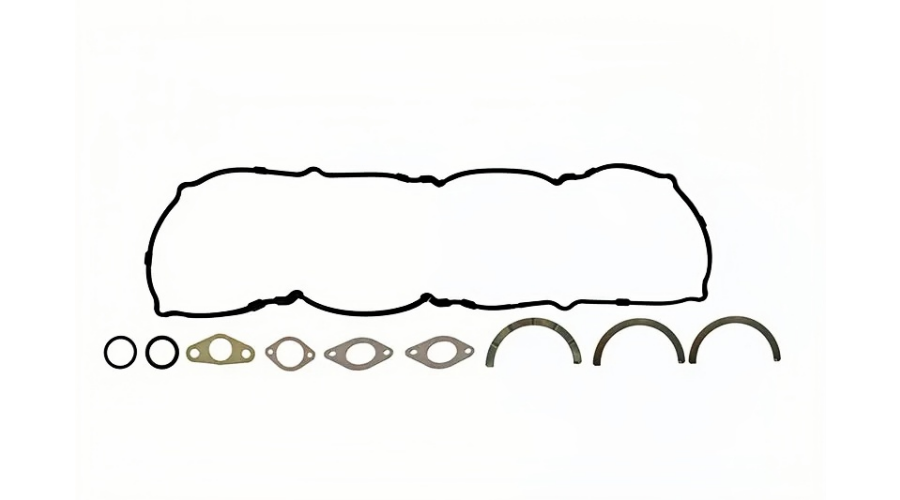

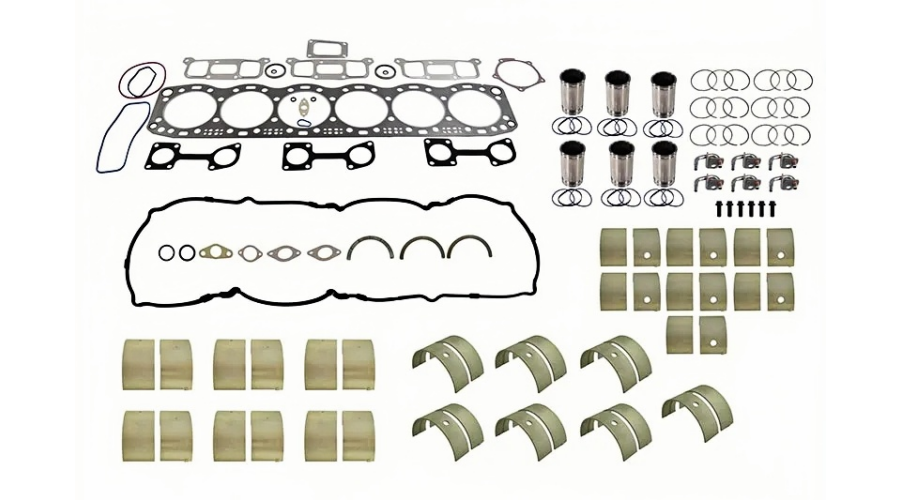

The 23536685 inframe engine rebuild kit is a master overhaul solution specifically designed for the Detroit Diesel Series 60 engine, available in both 12.7L and 14.0L displacements. This "inframe" kit is optimized for in‑chassis rebuilding, allowing mechanics to restore the engine to factory specifications without removing the engine from the vehicle or equipment. The kit typically includes over 200 precision components: six piston assemblies (complete with forged aluminum pistons, premium ring packs, wrist pins, and circlips), six cylinder liner kits (wet liners with O‑rings and upper seals), main bearing set (7 shells including thrust washers), connecting rod bearing set (6 pairs), full gasket set (MLS cylinder head gasket, valve cover gasket, oil pan gasket, intake and exhaust manifold gaskets, front and rear timing cover gaskets, water pump gaskets, thermostat housing gaskets, all O‑rings, and injector seals), full seal set (front and rear crankshaft seals, camshaft seals, auxiliary drive seals), valve stem seals, and essential hardware such as freeze plugs, piston cooling jets (oil squirters) , and often new main bearing cap bolts and connecting rod bolts (torque‑to‑yield). Structurally, the pistons are forged from high‑silicon aluminum alloy (typically 4032 or 2618) featuring an anodized top ring groove and a re‑entrant combustion bowl optimized for the Series 60’s electronic unit injector (EUI) combustion system. The cylinder liners are induction‑hardened or flame‑hardened gray iron with a plateau cross‑hatch finish (Ra 0.2–0.4 µm), providing excellent oil retention and immediate ring seating. The bearings are tri‑metal construction (steel backing, copper‑lead intermediate layer, and lead‑tin overlay) capable of withstanding peak cylinder pressures up to 180 bar and power outputs up to 500 hp. Key advantages of the 23536685 inframe kit include: engine‑in‑chassis rebuild capability (reduces downtime and labor costs by eliminating engine removal), exact OEM compatibility (matches Detroit Diesel original specifications for Series 60 12.7L and many 14.0L variants), cost savings of 40–60% compared to genuine Detroit parts, comprehensive inclusion (no need to source additional seals or gaskets), and upgraded ring coatings (many kits include chrome‑ceramic or plasma‑moly top rings that outlast OEM parts). This kit restores the Series 60 engine to factory‑fresh compression (16.0:1 or 17.5:1 depending on rating), oil pressure (35–75 psi hot running), fuel economy (185–195 g/kWh), and emissions compliance, extending engine life by another 500,000–600,000 miles or 12,000–15,000 operating hours.
Core Working Principle
The 23536685 inframe engine rebuild kit works by replacing all major wear‑limited components while the engine remains in the chassis, thereby restoring the thermodynamic and mechanical performance of the Detroit Diesel Series 60. The Series 60 is a four‑stroke, turbocharged, aftercooled diesel with an electronic unit injector (EUI) system. Over hundreds of thousands of miles, the piston rings lose tension, cylinder liners wear oval and taper, bearings develop excessive clearance, and gaskets harden and leak. During an inframe overhaul using the 23536685 kit, the technician removes the cylinder head, oil pan, and connecting rod access covers, then pulls the old pistons and liners from the top while the crankshaft remains in place (supported by the main bearings). The new pistons and ring packs are installed into the fresh cylinder liners, which have been honed to a precise cross‑hatch pattern. The top compression ring (often coated with chrome or plasma‑moly) seals against the liner, reducing blow‑by from worn‑engine levels (often > 100 L/min) to below 30 L/min at rated speed. The second compression ring provides additional gas sealing and scrapes excess oil downward, while the three‑piece oil control ring meters lubricant to less than 0.1% of fuel consumption. The new main and rod bearings re‑establish the original oil clearances: main bearing clearance 0.058–0.118 mm, rod bearing clearance 0.043–0.089 mm. Proper clearance ensures a stable hydrodynamic oil film, maintaining oil pressure and preventing crankshaft journal damage. The new MLS (multi‑layer steel) cylinder head gasket seals combustion pressures that peak above 170 bar, while also maintaining the critical liner protrusion (0.05–0.10 mm above block deck). The new valve stem seals (included in the gasket set) stop oil migration past the valve guides, eliminating blue smoke on startup. Once the inframe rebuild is complete, the engine delivers its original power (typically 350–470 hp for truck ratings, up to 550 hp for marine/industrial) with smooth idle, no misfire, restored torque curve, and fuel consumption returning to baseline. Because the engine was not removed from the chassis, alignment of the drivetrain remains undisturbed, and overall downtime is reduced by 30–40% compared to an out‑of‑frame overhaul.
Main Application Equipment
The 23536685 inframe engine rebuild kit is used for overhauling Detroit Diesel Series 60 engines (both 12.7L and 14.0L) in a wide range of equipment where in‑chassis rebuild is preferred to minimize downtime:
Class 8 heavy‑duty trucks – Freightliner (Century, Columbia, Cascadia, Classic), Peterbilt (379, 387, 388, 389), Kenworth (T600, T800, T2000, W900), Volvo (VNL, VNM), International (9000i, 9900i, ProStar with Series 60 option), Western Star (4900, 5700), Mack (CH, CX, Vision). Inframe rebuild is the standard method for over‑the‑road trucks.
Refuse and vocational trucks – Garbage packers, roll‑off trucks, concrete mixers, dump trucks, snowplows, vacuum trucks from Autocar, Mack, Peterbilt, Kenworth.
Motorcoaches and buses – Prevost (H3‑41, H3‑45, X3‑45), MCI (J4500, D4500), Setra, Van Hool, and transit buses from New Flyer, Gillig, Nova Bus.
RVs and luxury motorhomes – Fleetwood, Monaco, Tiffin, Newmar, American Coach diesel pushers (often 400–450 hp ratings).
Fire trucks and emergency vehicles – Aerial ladder trucks, tankers, pumpers, rescue vehicles with Series 60 power.
Construction and mining equipment – Large excavators, wheel loaders, bulldozers, motor graders where Series 60 was OEM‑installed.
Generator sets – Prime and standby gensets rated 200–550 kW, used in data centers, hospitals, telecom, oil/gas, manufacturing.
Marine propulsion – Tugboats, fishing vessels, small ferries, patrol boats, yachts (marine Series 60 400–550 hp).
Pumping and compression stations – Irrigation pumps, flood control, natural gas compressors, pipeline boosters.
The Series 60 engine family is legendary for its reliability and long service life. The 23536685 inframe kit is essential for fleets that prefer to rebuild engines in‑frame to avoid removing the engine from the chassis, saving time and money.
Common Failure Symptoms & Repair/Replacement Guidelines
Failure symptoms indicating the need for the 23536685 inframe rebuild kit on a Detroit Diesel Series 60:
Excessive blow‑by – Smoke or pressure pulses from the crankcase breather. A manometer reading > 80 L/min at rated speed (1800–2100 RPM) signals severe ring/liner wear. High blow‑by also pushes oil out of seals and breathers.
High oil consumption – More than 1 quart per 500 miles (0.95 L per 800 km) with blue smoke on deceleration (valve seals) or constant (rings). Healthy Series 60 consumes < 1 quart per 2000 miles.
Low compression – Hard starting (especially cold), rough idle, lack of power, misfire. Relative compression test using DDDL (Detroit Diesel Diagnostic Link) shows cylinder contribution imbalance > 15%. A manual compression test (injectors removed) should be 380–460 psi (26–32 bar); below 300 psi requires overhaul.
Low oil pressure – Hot idle below 10 psi (0.7 bar) and running pressure below 30 psi (2.1 bar) at 1800 RPM. Caused by worn main/rod bearings or excessive clearance (main >0.15 mm, rod >0.12 mm).
Knocking noises – Deep rhythmic knock (bearing knock) that changes with load; higher‑pitched rap (piston slap or pin knock) audible during cold start and light load. Series 60 pistons can crack at high mileage, producing a metallic ticking.
Coolant loss without external leak – Failed head gasket pressurizes cooling system, causing coolant loss, overheating, and possible hydrostatic lock. A combustion leak detector (blue to yellow/green) confirms.
Fuel dilution of oil – Worn rings allow fuel into crankcase, thinning oil. Oil analysis shows fuel > 5% and viscosity drop below 12 cSt at 100°C.
Oil analysis abnormalities – High iron (> 200 ppm – cylinder/liner wear), copper (> 100 ppm – bearings), lead (> 50 ppm – bearing overlay), aluminum (> 80 ppm – piston wear), silicon (> 30 ppm – dirt ingestion), soot > 3% (blow‑by).
Black smoke under load – Overfueling relative to air charge, often combined with low compression. Rule out turbo and charge air cooler leaks first.
Repair and replacement points for the 23536685 inframe kit:
Verify engine model and displacement – The 23536685 kit fits most Detroit Diesel Series 60 12.7L and some 14.0L variants. Provide your engine serial number (ESN) and DDEC version (II, III, IV, V, VI) to Rsolid Engine Parts for exact matching. Do not use on older mechanical unit injector (MUI) engines unless confirmed.
Prepare for in‑frame overhaul – The vehicle or equipment remains stationary. Drain oil and coolant. Remove the cylinder head, oil pan, timing cover (if needed), and connecting rod caps. The crankshaft stays in place supported by the main bearings. Clean the block deck, liner counterbores, and oil pan rail thoroughly.
Cylinder head inspection – Remove the head and send to a machine shop for magnaflux or dye penetrant inspection. Cracks between valve seats/injector bore or across the fire deck typically require head replacement. Check valve guides (clearance >0.10 mm → replace), valve seats (re‑cut or replace if recessed). Resurface only if warpage >0.15 mm – otherwise use new MLS gasket without milling.

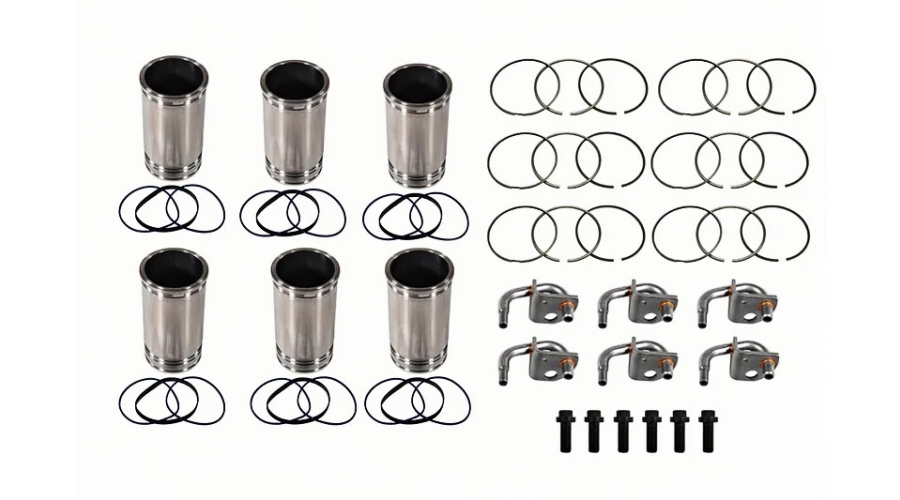

Cylinder liner installation – Remove old liners (use a liner puller). Clean counterbores with a wire brush and compressed air. Install new O‑rings and seals, lubricate with soapy water (never oil). Press new liners in by hand or with a driver tool. Measure liner protrusion using a dial gauge and bridge: 0.05–0.10 mm (0.002–0.004 in) for most Series 60. No shims usually needed; if out of spec, counterbore may need machining. Incorrect protrusion is the #1 cause of head gasket failure.
Piston ring gap verification – Install rings on pistons using proper expander pliers. Place each ring into its respective liner at the bottom of ring travel, square it with a piston, measure gap with feeler gauge:
Top compression ring: 0.45–0.65 mm (0.018–0.026 in)
Second compression ring: 0.55–0.75 mm (0.022–0.030 in)
Oil ring rails: 0.30–0.55 mm (0.012–0.022 in)
If gaps are too small, file ring ends carefully. Never exceed max gap.
Stagger ring gaps 120° apart during installation.
Piston cooling jets – Inspect the oil squirters (mounted on main bearing caps or block). They must be unobstructed and correctly aimed at the piston underside. Replace any bent, clogged, or missing jets. Series 60 relies on piston cooling for durability.

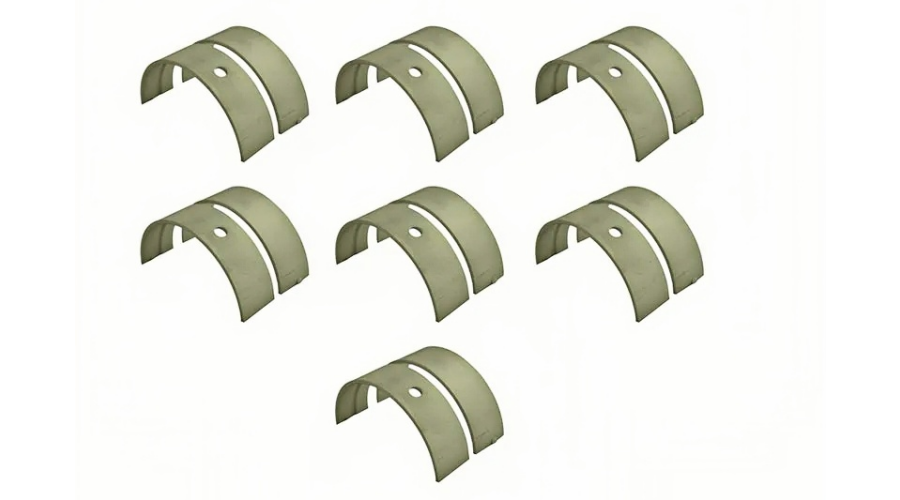

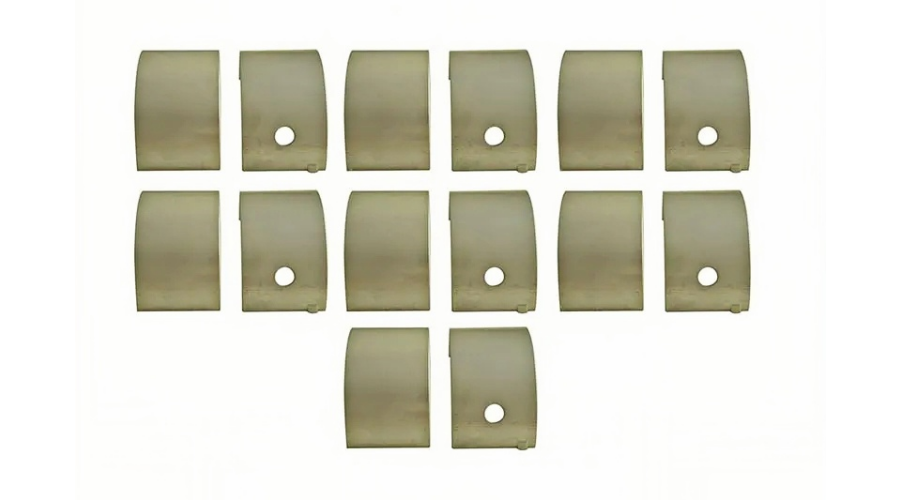

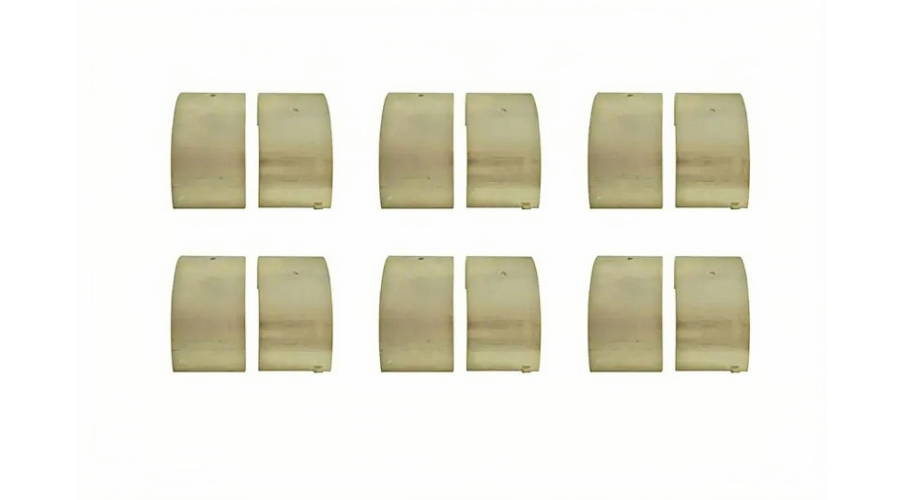

Bearing installation – Remove old bearings from main caps and connecting rods. Clean journals with lint‑free cloth. Apply plastigauge to check clearance (recommended). Install new bearings and torque new bolts (torque‑to‑yield, not reusable):

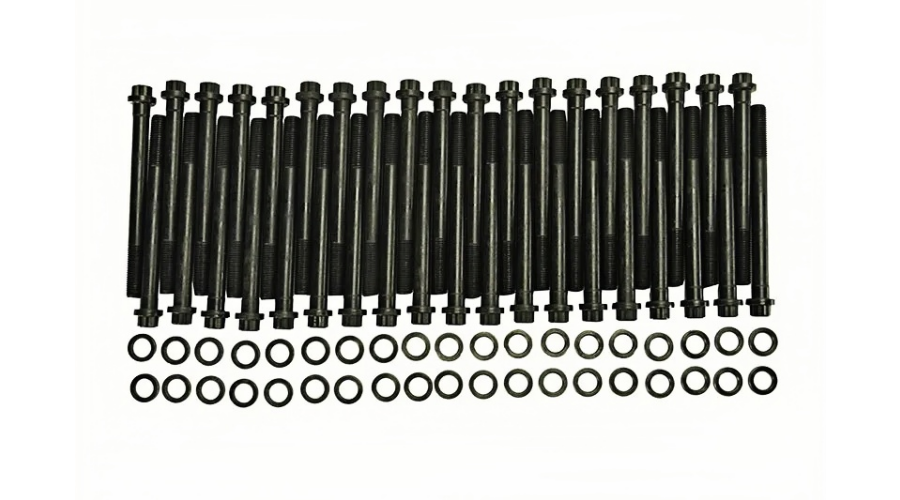

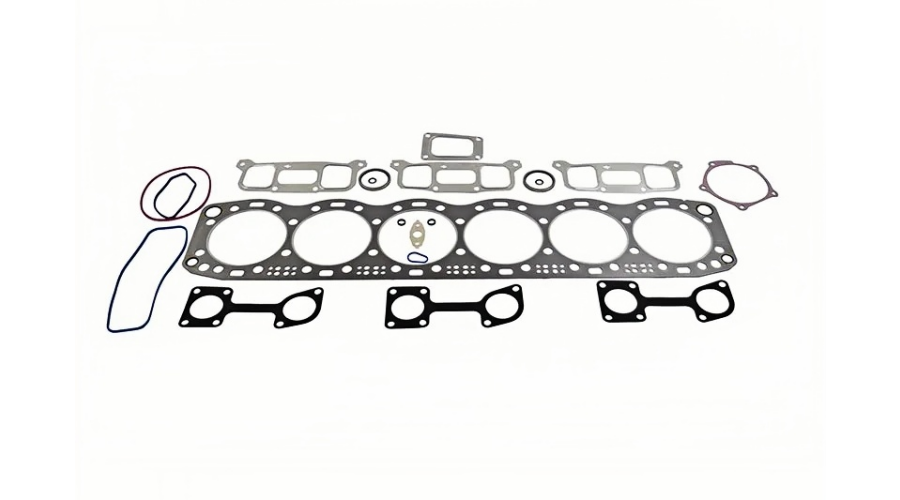

Head gasket and cylinder head installation – Clean both surfaces completely. Do not use sealant on MLS gasket. Lubricate head bolt threads and undersides with clean oil. Torque sequence (spiral from center):
Step 1: 70 Nm (52 ft‑lb)
Step 2: 150 Nm (111 ft‑lb)
Step 3: 270 Nm (199 ft‑lb) – note some specs say 180 Nm then +90°; confirm with your engine model.
For DDEC V/VI, follow latest Detroit procedure.
After assembly (pre‑start) – Prime oil system: disable fuel (unplug injector harness or use emergency stop). Crank engine in 15‑second bursts with 30‑second cool‑down until oil pressure gauge registers (20–40 seconds total cranking). Fill cooling system and bleed air. Start engine, idle at 600–800 RPM, check for leaks and oil pressure (cold > 30 psi). Listen for unusual knock; slight piston slap is normal and will diminish within minutes.
Break‑in procedure (in‑frame rebuild) – For trucks: avoid long idle; drive gently for first 500 miles (800 km). Vary engine speed, no full throttle, keep loads moderate (50–75% of GCWR). After 100 hours or 5,000 miles, change oil and filter. For generators: step load 25%→50%→75%→100% gradually, monitor blow‑by and oil consumption.
Why Choose Rsolid Engine Parts for the 23536685 Inframe Rebuild Kit
Rsolid Engine Parts (www.rinjector.com) is a trusted global supplier of the 23536685 inframe engine rebuild kit for Detroit Diesel Series 60 engines. With a focus on quality, accuracy, and customer support, Rsolid delivers outstanding value:
Complete inframe‑specific kit – The 23536685 kit includes everything needed for an in‑chassis rebuild: pistons, liners, bearings, gaskets, seals, and hardware. No missing parts, no extra sourcing.
OEM‑grade or better quality – Pistons from ISO‑certified forges (MAHLE, Federal‑Mogul or equivalent). Rings with advanced coatings (chrome‑ceramic, nitrided top ring). Liners induction‑hardened and plateau‑honed to OEM spec. Tri‑metal bearings from King, Clevite, or Federal‑Mogul. MLS head gaskets with embossed sealing beads.
Exact application matching – Rsolid verifies your engine serial number (ESN) and DDEC rating to ensure correct piston dish volume, ring type, liner O‑ring configuration, and gasket thickness. Prevents costly mismatches.
Upgraded components – Many kits include improved ring coatings and bearing overlay materials that outlast genuine Detroit parts, extending service life.
Protective packaging – Kits organized in heavy‑duty boxes with labeled sub‑packs. Head gaskets shipped flat (not folded). Bearings wax‑coated to prevent corrosion.
Global stock and fast delivery – Large inventory in North America (Houston, Chicago, Atlanta), Europe (Rotterdam), Middle East (Dubai), Asia (Shanghai, Singapore). Air freight 3–7 days; sea freight 20–40 days. Overnight shipping available for emergencies.
Free technical support – Rsolid’s diesel specialists available via WhatsApp (+8615975376778) for ESN verification, torque specs, liner protrusion guidance, and break‑in advice. Digital installation manuals included.
Competitive pricing – Save 40–60% vs. genuine Detroit parts. Volume discounts for fleets (3+ kits), rebuild shops, and distributors. Custom kitting available (add water pump, oil pump, injectors, turbo, etc.).
Warranty – 12 months or 2,000 operating hours against manufacturing defects. Free replacement for any defective part verified by photo/video.
Order the 23536685 inframe engine rebuild kit for your Detroit Diesel Series 60 today. Contact Rsolid Engine Parts via WhatsApp: +8615975376778 or visit www.rinjector.com. Provide your engine serial number (ESN) for accurate kit configuration. Fleet discounts and expedited shipping options available.
