C15101010 Engine Rebuild Kit for Caterpillar C15 / 3406E Diesel Engine

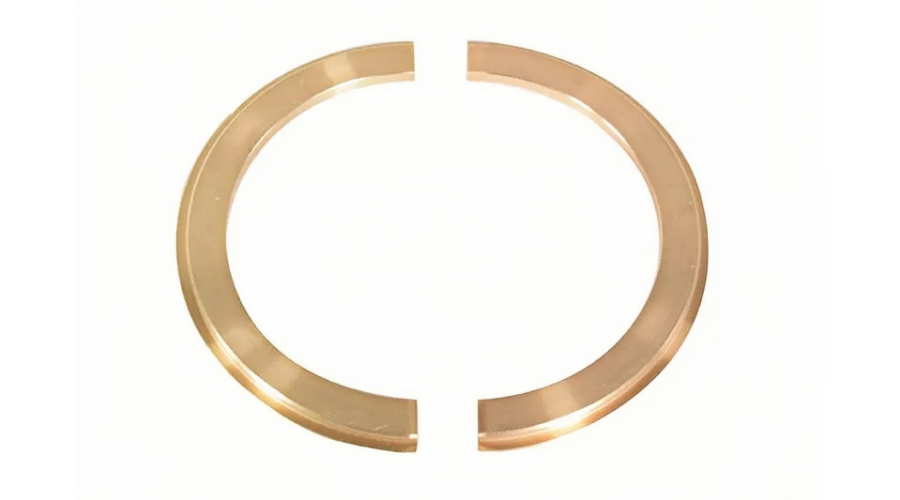

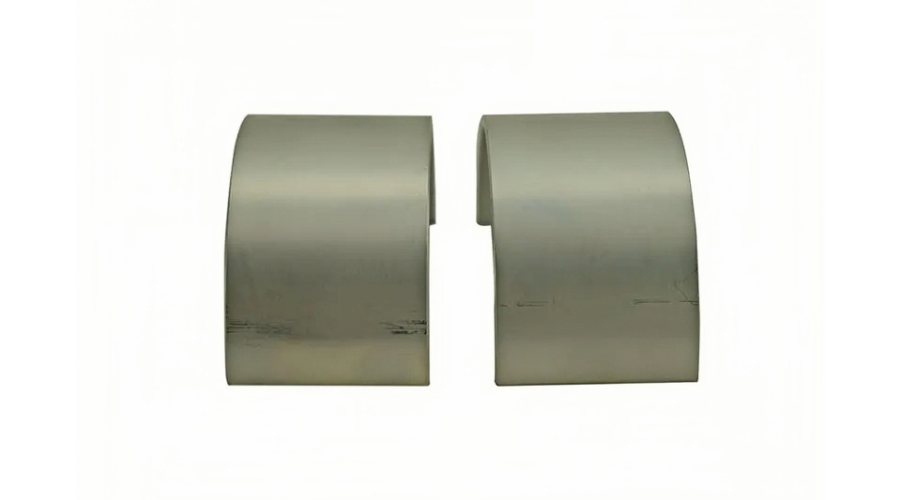

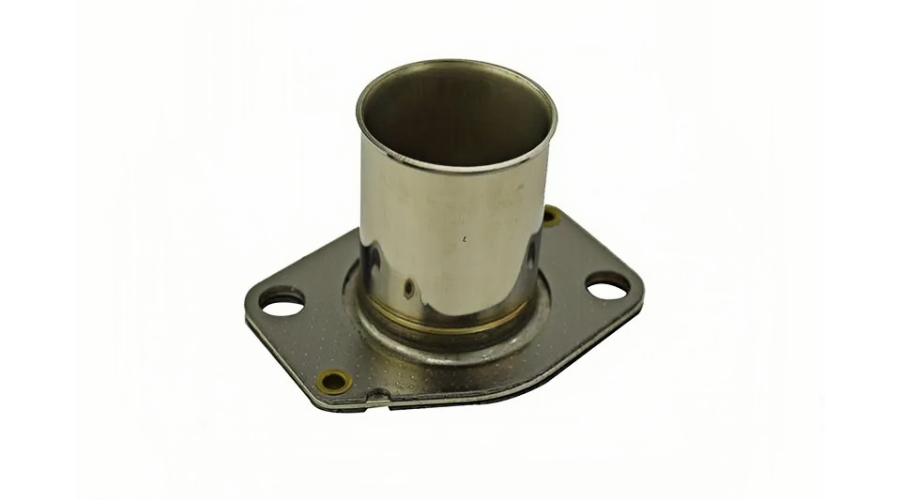

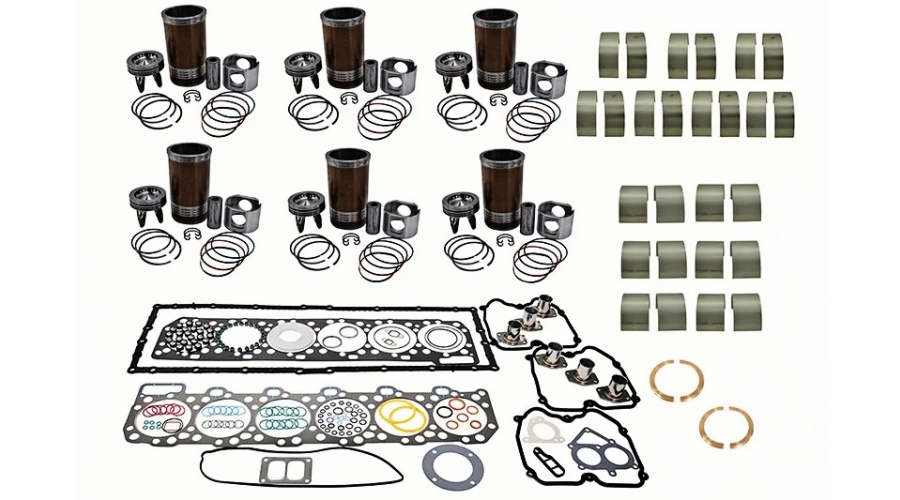

Structural Features and Advantages
The C15101010 engine rebuild kit is a comprehensive master overhaul solution engineered for the Caterpillar C15 and 3406E diesel engines – two of the most iconic and widely used heavy-duty engines in Caterpillar’s history. The 3406E (produced from the late 1980s to early 2000s) and its successor, the C15 (2000s onward), share the same 15.2-liter displacement, 6-cylinder inline architecture, and many core components. This kit typically includes over 200 precision parts: six piston assemblies (complete with forged aluminum or articulated steel pistons, premium ring packs, wrist pins, and circlips), six cylinder liner kits (wet liners with O-rings and seals), main bearing set (7 shells including thrust washers), connecting rod bearing set (6 pairs), full gasket set (multi-layer steel cylinder head gasket, valve cover gasket, oil pan gasket, intake and exhaust manifold gaskets, front and rear timing cover gaskets, water pump gaskets, thermostat housing gaskets, all O-rings, and injector seals), full seal set (front and rear crankshaft seals, camshaft seals, auxiliary drive seals), valve stem seals, and essential hardware such as freeze plugs, piston cooling jets (oil squirters) , and often new connecting rod bolts and main cap bolts (torque-to-yield). Structurally, the pistons are forged aluminum alloy (4032 or 2618) for most 3406E and early C15 engines, while later C15 ACERT engines may use articulated two-piece pistons (steel crown with aluminum skirt). All feature a re-entrant combustion bowl optimized for Caterpillar’s fuel systems: mechanical unit injection (3406E) or HEUI / common rail (C15). The cylinder liners are induction-hardened or flame-hardened gray iron with a plateau cross-hatch finish (Ra 0.2–0.4 µm), providing excellent oil retention and immediate ring seating. The bearings are tri-metal construction (steel backing, copper-lead intermediate layer, and lead-tin overlay) capable of withstanding peak cylinder pressures exceeding 200 bar and power outputs up to 600+ hp (C15). Key advantages of the C15101010 rebuild kit include: dual compatibility (fits both 3406E mechanical/electronic and C15 ACERT variants with proper verification), significant cost savings (40–60% less than genuine Cat parts), reduced downtime (a single part number delivers every wear component for a complete inframe or out-of-frame overhaul), and upgraded durability (many kits feature advanced ring coatings such as chrome-ceramic or nitrided top rings that outlast OEM components). This kit restores the engine to factory-fresh compression ratio (15.5:1 to 16.5:1 depending on rating), oil pressure (35–75 psi hot running), fuel economy (185–195 g/kWh), and emissions compliance, extending engine life by another 12,000–15,000 operating hours or 500,000–700,000 miles under normal duty.
Core Working Principle
The C15101010 engine rebuild kit works by systematically replacing all major wear-limited components in a worn Caterpillar 3406E or C15 engine, thereby restoring the original thermodynamic efficiency and mechanical precision. Both engines are 4-stroke, turbocharged, aftercooled diesels. The 3406E uses an electronic unit injector (EUI) system (or mechanical unit injection on very early versions), while the C15 may use HEUI (Hydraulic Electronic Unit Injector) or high-pressure common rail depending on the year. Over time, piston rings lose tension, cylinder liners develop taper and out-of-roundness, bearings wear, and gaskets harden. When the new components from the C15101010 kit are installed, the following restoration occurs: The new piston ring pack – typically consisting of a barrel-faced top compression ring (often coated with chrome-ceramic or plasma-moly), a taper-faced second compression ring, and a three-piece oil control ring – creates a high-integrity gas seal against the freshly honed liner surface. This reduces blow-by from worn-engine levels (often exceeding 150 L/min) to less than 35 L/min at rated speed (1800–2100 RPM), which is within Caterpillar’s new engine specification. The new cylinder liners restore the original bore diameter of 137.2 mm (5.4 in) for both engines, eliminating piston slap and ensuring even heat transfer from the combustion chamber to the coolant jacket. The new main and rod bearings re-establish precise oil clearances: main bearing clearance typically 0.065–0.130 mm, rod bearing clearance 0.050–0.095 mm. This maintains oil pressure within the 35–75 psi range at operating temperature, preventing crankshaft journal damage and reducing friction. The new MLS (multi-layer steel) cylinder head gasket seals combustion pressures reaching 200+ bar, while keeping coolant and oil passages separate. The head gasket also ensures proper liner protrusion (0.08–0.15 mm above block deck). The valve stem seals (included in the gasket set) prevent oil migration past valve guides, eliminating blue smoke on startup and reducing oil consumption. The result is a 3406E or C15 engine that delivers its original rated power (typically 340–550 hp for 3406E, 435–600+ hp for C15) with a smooth idle, no misfire, restored torque curve, and fuel economy returning to baseline. The rebuilt engine also produces lower emissions and extends the life of aftertreatment systems (if equipped on later C15 ACERT).
Main Application Equipment
The C15101010 engine rebuild kit is used for overhauling Caterpillar 3406E and C15 engines across a vast range of heavy-duty applications:
Class 8 heavy-duty trucks – Peterbilt (379, 387, 389), Kenworth (T600, T800, W900), Freightliner (Classic, Century, Columbia, Cascadia), Western Star (4900, 5700), International (9000 series) – the 3406E and C15 dominated owner-operator and fleet trucks for decades.
Construction machinery – Caterpillar excavators (e.g., 345B, 345C, 349D, 349E), wheel loaders (e.g., 980G, 980H, 988G), bulldozers (e.g., D8R, D8T, D9R, D9T), motor graders (e.g., 16H, 16M, 24H).
Articulated dump trucks – Caterpillar 740, 745, 740B, 745C models.
Off-highway trucks – Caterpillar 769D, 771D, 773D, 775D, 777D (depending on engine option).
Agricultural tractors – Challenger MT800 series, Caterpillar Challenger (some models used 3406E/C15).
Generator sets – Prime and standby gensets rated from 300 kW to 600+ kW, common in data centers, hospitals, oil & gas fields, and manufacturing plants.
Marine propulsion – Tugboats, fishing vessels, small ferries, workboats, and yachts with Caterpillar 3406E/C15 marine ratings (340–575 hp).
Pumping and compression stations – Irrigation pumps, flood control pumps, natural gas compressors, pipeline booster stations.
Crushing and screening equipment – Mobile crushers and screeners in quarry and recycling industries.
The 3406E and C15 are legendary for their durability, power, and rebuildability. The C15101010 rebuild kit is an essential stocking item for any heavy equipment repair shop, truck fleet, or industrial engine rebuilder.
Common Failure Symptoms & Repair/Replacement Guidelines
Failure symptoms indicating the need for the C15101010 rebuild kit on a Caterpillar 3406E or C15 engine:
Excessive blow-by – Smoke or pressure pulses from the crankcase breather tube. A manometer reading above 100 L/min at rated speed (1800–2100 RPM) indicates severe ring and liner wear. High blow-by also causes oil leaks from seals and can push oil into the air intake system, leading to turbocharger oil carryover.
High oil consumption – Exceeding 1 quart (0.95 L) per 500 miles (800 km) or noticeable blue smoke from the exhaust, especially on deceleration (worn valve stem seals) or constant (worn rings). A healthy 3406E/C15 consumes less than 1 quart per 2000 miles.
Low compression – Hard starting (especially cold), rough idle, lack of power under load, cylinder misfire. A relative compression test using Caterpillar Electronic Technician (Cat ET) shows cylinder contribution imbalance greater than 15%. Manual compression test (remove injectors) should show 380–450 psi (26–31 bar); below 300 psi indicates need for overhaul.
Low oil pressure – Hot idle oil pressure below 10 psi (0.7 bar) and running pressure below 30 psi (2.1 bar) at 1800 RPM. Caused by worn main and rod bearings, worn oil pump, or excessive bearing clearances (main >0.15 mm, rod >0.12 mm).
Knocking noises – Deep, rhythmic knock that changes with engine speed and load (main or rod bearing knock). A sharper rap (piston pin knock) or high-frequency rattle (piston slap) that is most audible during cold start and light load. The 3406E/C15 can develop piston cracking in high-mileage engines, especially under heavy load.
Coolant loss without external leak – Combustion gases entering the cooling system through a failed head gasket, causing pressurized coolant loss, overheating, and potential hydrostatic lock (water in cylinders). A coolant hydrocarbon test (combustion leak detector) will turn from blue to yellow/green.
Fuel dilution of engine oil – Worn rings allow unburned fuel to bypass into the crankcase, thinning the oil and reducing its viscosity. Oil analysis will show fuel percentage > 5% (mass) and a drop in viscosity below 12 cSt at 100°C.
Oil analysis abnormalities – High iron (cylinder liner/ring wear – typically > 200 ppm), copper (bearing wear – > 100 ppm), lead (bearing overlay wear – > 50 ppm), aluminum (piston or ring wear – > 80 ppm), silicon (dirt ingestion from air filter leaks – > 30 ppm). Also, high soot content (> 3% by weight) due to blow-by.
Black smoke under load – Overfueling relative to air charge, which can be caused by low boost (turbocharger issue) but often accompanied by low compression from worn rings. Rule out charge air cooler leaks and turbo before condemning the engine.
Repair and replacement points for the C15101010 kit:
Confirm engine model and serial number – The C15101010 kit fits Caterpillar 3406E (mechanical or electronic unit injection) and C15 (including C15 ACERT and C15 with common rail). However, there are differences in piston type, ring pack, and head gasket. Provide your engine serial number (ESN) and arrangement number to Rsolid Engine Parts for exact verification. Using the wrong piston can cause incorrect compression ratio or valve-piston interference.
Decide between in-frame and out-of-frame overhaul – In-frame rebuild is very common for 3406E/C15 in trucks, where the engine remains in the chassis, cylinder head is removed, liners are pulled from the top, and bearings are replaced from below. Out-of-frame is needed if the crankshaft requires grinding (undersize bearings), the block needs line-boring, or if the engine has spun a bearing or cracked the block.
Inspect the cylinder head thoroughly – The 3406E/C15 head is prone to cracking, particularly between the valve seats and injector bore, and across the fire deck between cylinders. Remove the head and send it to a machine shop for magnaflux (magnetic particle) or dye penetrant inspection. Cracks longer than 0.5 inch (13 mm) in the fire deck typically require head replacement. Also inspect valve guides (replace if clearance > 0.10 mm) and valve seats (re-cut or replace if recessed). Resurface the head only if warpage exceeds 0.15 mm (0.006 in) – otherwise, use a new MLS gasket without milling. The C15 ACERT head has additional cooling passages; ensure compatibility.

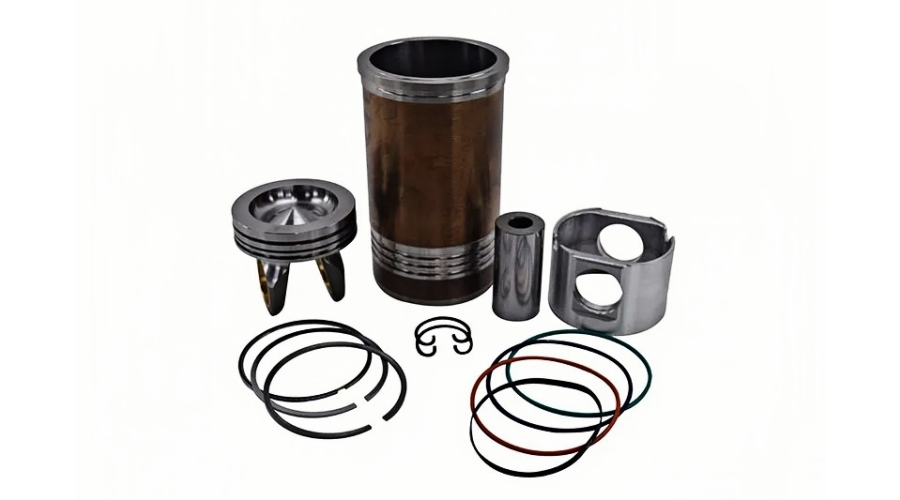

Cylinder liner installation – Both engines use wet liners with O-rings at the bottom and an upper seal ring. Clean the liner counterbore in the block thoroughly. Use a wire brush and compressed air to remove all old gasket material and carbon. Install new O-rings and lubricate with soapy water (not oil, which can cause O-ring roll-out). Press liners in by hand or with a liner installation tool. Measure liner protrusion above the block deck using a dial gauge with a bridge. Specification for 3406E/C15: 0.08–0.15 mm (0.003–0.006 in). No shims are typically used; if protrusion is out of spec, the counterbore may need machining or liners with different flange heights must be sourced. Incorrect protrusion is a common cause of head gasket failure.

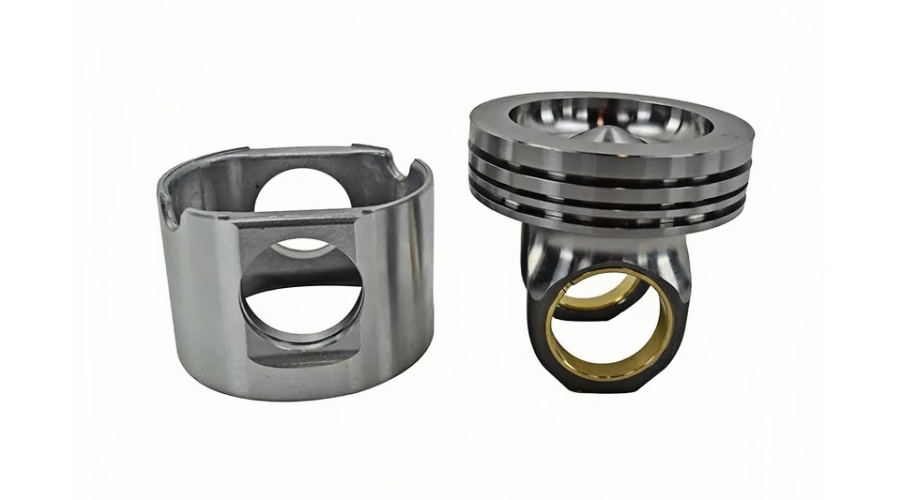

Piston selection and ring gap verification:
Top compression ring: 0.45–0.65 mm (0.018–0.026 in)
Second compression ring: 0.50–0.75 mm (0.020–0.030 in)
Oil ring rails: 0.30–0.55 mm (0.012–0.022 in)
Piston type: Most 3406E use forged aluminum; some C15 ACERT use articulated steel crown + aluminum skirt. Ensure the C15101010 kit matches your engine.
Install piston rings onto the piston using proper ring expander pliers. Do not over-expand.
Ring end gaps (place ring into its respective cylinder liner at the bottom of ring travel – about 100 mm from top, square with a piston, then measure gap with feeler gauge):
If gaps are too small, file the ring ends carefully with a power ring filer or hand file. Never exceed maximum gap; if too large, rings are defective and should be replaced.
Stagger ring gaps 120° apart during installation (do not align gaps).
Piston cooling jets (oil squirters) – Before installing pistons, inspect the oil jets mounted in the block (usually below each cylinder). They direct a stream of oil to the underside of the piston crown. Ensure they are not clogged with carbon or sludge. Replace any bent, missing, or clogged jets. Both engines rely heavily on piston cooling; a missing jet can cause piston seizure within hours, especially on high-output C15.

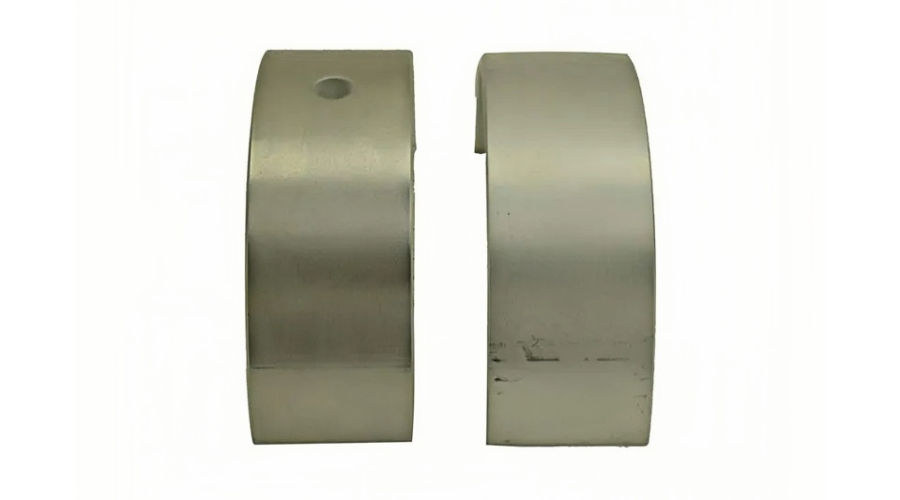

Bearing installation and torque specifications – Use new main and rod bolts (torque-to-yield, not reusable).
Main bearing cap bolts: Clean threads and bolt heads. Apply clean engine oil. Torque in sequence (center outward) to 180 Nm (133 ft-lb) for 3406E, then +90°. For C15, spec may be 150 Nm + 120° – verify with service manual or Rsolid support.
Connecting rod bolts: Torque to 110 Nm (81 ft-lb) for 3406E, then +60°, then +60°. For C15, some use 95 Nm + 90° + 90°. Check rod side clearance (0.20–0.45 mm) after torquing.
Bearing clearance verification (recommended): Use plastigauge on journal and bearing. Main clearance: 0.065–0.130 mm (0.0026–0.0051 in); Rod clearance: 0.050–0.095 mm (0.0020–0.0037 in). If out of spec, consider undersize bearings after grinding the crankshaft.

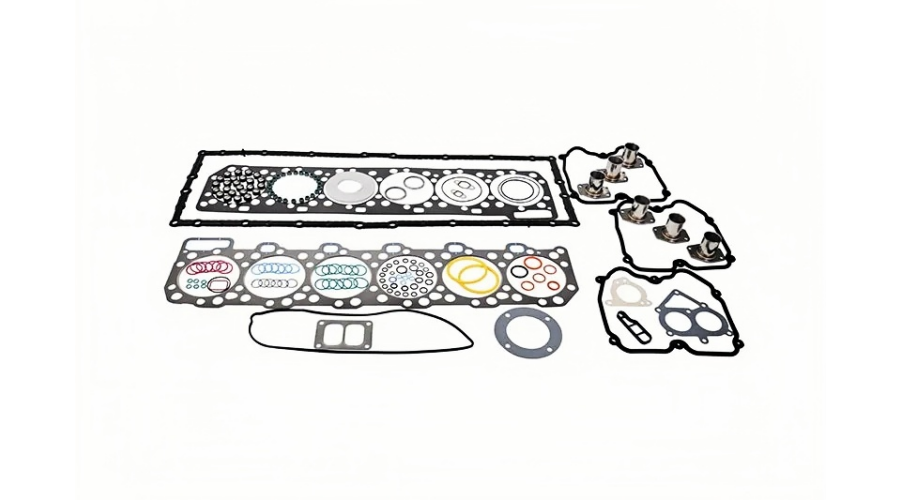

Head gasket installation – Use the new MLS head gasket included in the C15101010 kit. Ensure both head and block surfaces are perfectly clean and dry. Do not apply any sealant, copper spray, or grease – MLS gaskets seal dry. Lubricate head bolt threads and underside of bolt heads with clean engine oil. Torque sequence (spiral from center outward) for typical 3406E/C15:
Step 1: 70 Nm (52 ft-lb)
Step 2: 150 Nm (111 ft-lb)
Step 3: 270 Nm (199 ft-lb) + 90° (or follow Cat’s 3-step + angle procedure).
For C15 ACERT, follow specific torque values (available from Rsolid).
After assembly and before start-up:
Prime the oil system: Disable fuel injection (unplug the injector harness or use the emergency stop switch). Crank the engine in 15-second bursts with 30-second cool-down until oil pressure registers on the gauge (typically after 20–40 seconds total cranking). Do not exceed 60 seconds continuous cranking.
Fill the cooling system with approved Caterpillar ELC (Extended Life Coolant) or equivalent and bleed air.
Double-check all hose connections, oil filter tightness, and fuel line fittings for leaks.
Start the engine and run at 600–800 RPM idle for 5 minutes while checking oil pressure (should be > 30 psi cold, > 12 psi hot idle). Listen for any unusual knocking – a slight piston slap is acceptable and will diminish as rings seat; any heavy knock requires immediate shutdown.
Break-in procedure – For truck applications:
Avoid prolonged low-speed idling (causes ring glazing). Drive the vehicle as soon as oil pressure stabilizes.
For the first 500 miles (800 km), avoid full throttle and maximum RPM. Vary engine speed; do not use cruise control.
Keep loads moderate (50–75% of GCWR) for the first few hours.
After the first 100 operating hours or 5,000 miles (8,000 km), change oil and filter. Also perform a blow-by measurement to ensure it is below 40 L/min.
For generator and industrial applications, perform a step-load test: 25% load for 1 hour, 50% for 2 hours, 75% for 2 hours, then ramp to full load. Monitor oil consumption and blow-by.
After break-in, switch to the recommended oil grade (15W-40 conventional, API CI-4+ or CJ-4, depending on engine year and aftertreatment).
Why Choose Rsolid Engine Parts for the C15101010 Engine Rebuild Kit
Rsolid Engine Parts (www.rinjector.com) is a premier global supplier of the C15101010 engine rebuild kit for Caterpillar 3406E and C15 engines. With extensive experience in heavy-duty diesel parts, Rsolid delivers exceptional value and reliability:
Complete, ready-to-install kits – The C15101010 kit includes every gasket, seal, bearing, piston, liner, O-ring, and small part needed for a full 3406E or C15 overhaul. No missing components, no last-minute trips to the dealer. All parts are matched to your engine’s configuration.
OEM-grade or better quality – Pistons are forged to original equipment specifications using high-quality aluminum or steel. Rings feature advanced coatings (chrome-ceramic, PVD, or nitrided) that exceed original wear resistance. Liners are induction-hardened to 55–62 HRC and plateau-honed. Bearings from King, Clevite, or Federal-Mogul provide tri-metal performance. MLS head gaskets are manufactured with embossed beads and high-temperature coatings.
Exact application matching – Before shipping, Rsolid’s technical team verifies your engine serial number (ESN) and arrangement number to ensure correct piston dish volume, ring type, liner O-ring configuration, and head gasket thickness. This prevents costly mismatches that could cause low compression, head gasket failure, or valve-piston interference.
Upgraded components – Many C15101010 kits from Rsolid include upgraded ring materials (e.g., ductile iron top ring with nitrided surface) and bearing overlay (lead-indium for improved corrosion resistance) that extend service life beyond original Caterpillar specifications.
Protective packaging – Kits are organized in heavy-duty boxes with foam dividers and labeled sub-packs. Head gaskets are shipped flat (not folded) in reinforced cardboard sleeves. Bearings are wax-coated to prevent corrosion during sea or air freight.
Global stock and rapid delivery – Large inventory of C15101010 kits maintained in warehouses: North America (Houston, Chicago, Atlanta), Europe (Rotterdam), Middle East (Dubai), Asia (Shanghai, Singapore). Standard air freight delivers within 3–7 business days. Sea freight for bulk orders (20–40 days). Emergency overnight shipping available.
Free technical support – Rsolid’s diesel specialists are available via WhatsApp (+8615975376778) to help you identify your 3406E or C15 variant, interpret oil analysis reports, diagnose failure symptoms, and provide torque sequences, liner protrusion guidelines, and break-in procedures. Digital installation manuals included.
Competitive pricing – Save 40–60% versus genuine Caterpillar parts. Volume discounts for fleets purchasing 3+ kits, professional rebuilders, and international distributors. Custom kitting (including water pump, oil pump, thermostat, injectors, or turbocharger) available.
Warranty – 12 months or 2,000 operating hours (whichever comes first) against manufacturing defects. Free replacement for any defective component verified by photo or video. No hidden fees or complicated return processes.
To order the C15101010 engine rebuild kit for your Caterpillar 3406E or C15 engine, contact Rsolid Engine Parts today via WhatsApp: +8615975376778 or visit www.rinjector.com. Please provide your engine serial number (ESN) and arrangement number for accurate kit configuration. Bulk inquiries, long-term supply agreements, and expedited shipping options are available.
