The engine rebuild kit for the Caterpillar 3054 diesel engine is a complete overhaul solution designed for this popular 4-cylinder, direct-injection, naturally aspirated or turbocharged powerplant. The 3054 engine is part of Caterpillar’s 3000 Series family, known for its compact size, high torque rise, and exceptional durability in agricultural, industrial, and construction applications. A quality rebuild kit contains all the essential components to return the engine to genuine Caterpillar specifications, eliminating guesswork and ensuring parts compatibility.

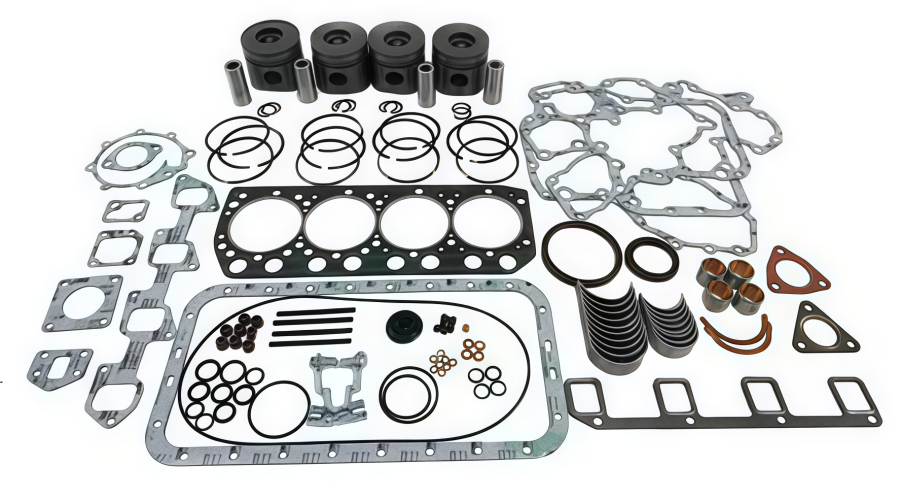

Structurally, the rebuild kit includes four complete cylinder packs. Each pack features a centrifugally cast, high-chromium gray iron cylinder liner with a precision plateau-honed finish. The liners are induction-hardened on the internal bore surface, providing exceptional resistance to scuffing, abrasion, and cavitation erosion. The pistons are manufactured from high-silicon aluminum alloy, featuring reinforced ring lands and an optimized combustion bowl geometry that matches the 3054’s direct-injection fuel spray pattern. Some variants of the 3054 (such as the turbocharged 3054T) use pistons with internal cooling galleries fed by piston cooling jets.
The piston ring set comprises a chromium-ceramic or plasma-sprayed molybdenum top ring for superior wear resistance, a cast-iron tapered second ring for oil scraping, and a three-piece steel oil control ring with expander spring to minimize oil consumption and friction losses. All rings are pre-gapped to Caterpillar specifications. The kit also includes new piston pins and retaining rings, as well as connecting rod bushings where applicable.
The bearing set includes tri-metal connecting rod bearings and main bearings (steel backing, copper-lead intermediate layer, and tin-babbitt overlay). These bearings are precision-crush ground to exact OEM clearances and feature eccentricity for proper oil wedge formation. Thrust washers for crankshaft end-play control and camshaft bearings (if required) are also supplied. The comprehensive gasket set includes a premium multi-layer steel (MLS) cylinder head gasket, elastomeric valve cover and oil pan gaskets, intake and exhaust manifold gaskets, timing cover seals, water pump gasket, turbocharger mounting gaskets (for turbo versions), and all necessary O-rings, dowel seals, and copper washers for injectors and coolant passages.
For engines equipped with piston cooling jets, the kit may include new jet assemblies and banjo bolts. Rsolid Engine Parts ensures that every rebuild kit is assembled from ISO-certified components, individually inspected, and packaged with anti-corrosion protection.
Core Working Principle of the 3054 Rebuild Kit
The Caterpillar 3054 is a 4-cylinder, 4-stroke, direct-injection diesel engine with a bore of 100 mm (3.94 inches) and a stroke of 127 mm (5.0 inches), displacing 4.0 liters (244 cubic inches). It operates on a naturally aspirated or turbocharged (3054T) configuration with a mechanical inline injection pump. Over thousands of operating hours, the engine’s internal components experience wear that degrades performance. The rebuild kit restores the engine by replacing these worn components.
As the engine runs, the pistons reciprocate within the cylinder liners at speeds up to 2800 RPM. Combustion pressures reach approximately 1,800 psi (124 bar) in naturally aspirated versions and over 2,200 psi (152 bar) in turbocharged versions. Over time, the cross-hatch pattern on the liners wears smooth, reducing oil retention and causing blow-by. Piston rings lose tension, leading to oil consumption and loss of compression. Bearings develop microscopic fatigue cracks and copper-lead exposure, which increases oil clearance, reduces oil pressure, and can cause knocking. The cylinder head gasket may fail due to thermal cycling, leading to coolant or compression leaks.
When a rebuild is performed using the kit, the worn liners are removed and new ones pressed in. New pistons with fresh rings are installed, restoring compression and oil control. The crankshaft journals are inspected, polished or reground as needed, and new main and rod bearings are fitted to restore precise oil clearances. New camshaft bearings (if included) and a new head gasket ensure that valve timing and combustion sealing are correct. All gaskets and seals are replaced, eliminating leaks. The result is an engine with restored power output, lower oil consumption, reduced blow-by, improved cold starting, and significantly extended service life.
Primary Application Equipment
The Caterpillar 3054 diesel engine is used in a wide range of equipment across multiple industries. Rebuild kits are commonly required for the following applications:
Agricultural Machinery
Caterpillar Challenger tractors (small chassis models)
Massey Ferguson tractors (some models use Perkins engines, but Cat 3054 is also found in certain combines and sprayers)
Combine harvesters (e.g., Caterpillar Lexion smaller models)
Hay balers and forage harvesters
Construction Equipment
Caterpillar backhoe loaders (e.g., 416, 426, 428, 436, 446 series – many use the 3054 or 3054T)
Caterpillar skid steer loaders (e.g., 216, 226, 236, 246, 256, 262 – various 3000-series engines)
Caterpillar compact wheel loaders (e.g., 906, 908)
Caterpillar telehandlers (TH series)
Small excavators (e.g., 303.5, 304, 305 – some variants use 3054 derivatives)
Industrial Equipment
Generator sets (standby and prime power, typical outputs 30–80 kW)
Industrial pumps (water, sewage, slurry)
Air compressors (portable and stationary)
Welding machines (diesel-driven welders)
Material Handling
Marine
The 3054 engine is also known as the Perkins 1000 Series (Perkins 1004-40) in many applications, as Caterpillar and Perkins shared engine platforms. When ordering a rebuild kit, it is critical to confirm the engine serial number prefix (e.g., 4HF, 5KC, 6N6, 7ZF, 8RD, etc.) to ensure correct fitment of liners, pistons, and gaskets.
Common Failure Symptoms and Rebuild Replacement Guidelines
The following symptoms indicate a Caterpillar 3054 engine requires a full rebuild using an engine rebuild kit:
High Oil Consumption (over 0.5 liters per 100 operating hours) — Visible blue exhaust smoke, frequent topping up, and oily deposits in the air cleaner or exhaust indicate worn rings and liners. A rebuild kit with new rings and liners restores oil control.
Blow-by (Crankcase Pressure) — Remove the oil fill cap while idling. If heavy vapor or puffs of air escape, the piston rings are not sealing. Excessive blow-by can cause engine oil leaks from gaskets and seals. More than 5 inches of water column of crankcase pressure at rated speed is unacceptable.
Loss of Power and Poor Acceleration — The engine struggles to reach rated RPM under load, especially noticeable in backhoe loaders during digging or in generator sets when load is applied. Low compression due to worn rings, liners, or valves is the cause. A compression test should show 350–450 psi on all cylinders; variation greater than 10% indicates problems.
Hard Starting, Especially Cold — Extended cranking times or the need for starting aids suggests low cranking compression. Worn rings and liners, plus potentially leaky head gaskets, reduce compression.
Knocking or Rapping Noises — Deep metallic knocking that worsens under load points to worn rod or main bearings. Low oil pressure (below 20 psi at operating RPM) is another indicator. The bearing set in the rebuild kit will resolve this.
Coolant in Oil (Milky Appearance) or Oil in Coolant — Failed cylinder head gasket, cracked liner, or cavitation erosion of liners causes cross-contamination. The MLS head gasket and new liner seals in the kit address this issue.
Rebuild Replacement Guidelines — Rebuilding a Caterpillar 3054 engine using a full rebuild kit requires mechanic skills and proper tools. The process typically involves: drain all fluids and remove the engine (or perform in-frame if access allows). Remove cylinder head, oil pan, timing cover, and front gear train. Pull connecting rods and pistons. Remove cylinder liners using a puller. Inspect the cylinder block for cracks or damage. Measure bore for out-of-round; if acceptable, hone and install new liners with proper press fit and liner protrusion (typically 0.002–0.005″ above block deck). Grind or polish crankshaft as needed; measure journals and select bearing sizes (standard, 0.010″, 0.020″, 0.030″ undersize). Install new camshaft bearings. Assemble pistons to rods with new pins and rings. Install crankshaft with new main bearings; torque to spec. Install piston/rod assemblies with new rod bearings. Install new cylinder head gasket and cylinder head, torquing bolts in three stages to factory specification. Replace all gaskets and seals from the kit. After reassembly, fill with break-in oil (CI-4 or CK-4 15W-40) and fresh coolant. Start the engine and run at 1000–1200 RPM for 5 minutes, checking for leaks. Then vary loads for the first 50 hours, avoiding prolonged idle or full throttle. Change oil and filter after 50 hours. Rsolid Engine Parts provides detailed torque charts and sequence diagrams with every kit.
