4376179 Engine Rebuild Kit for Cummins ISX Diesel Engine
Structural Features and Advantages

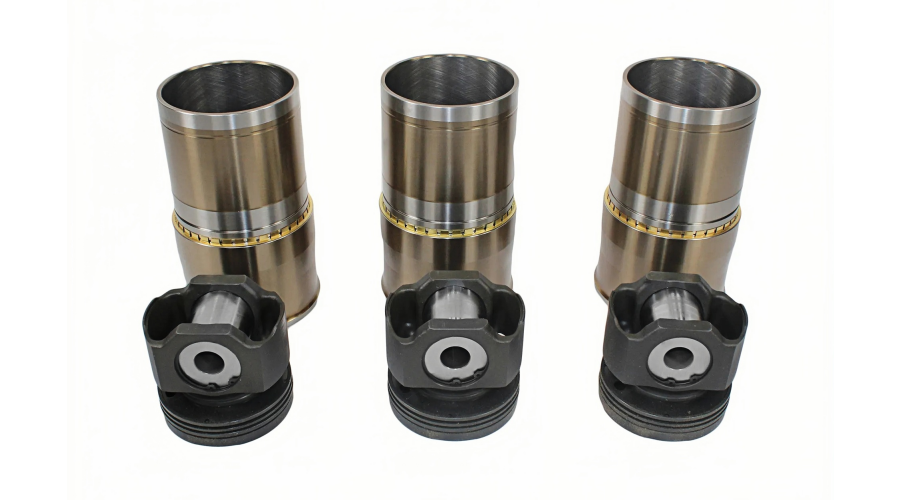

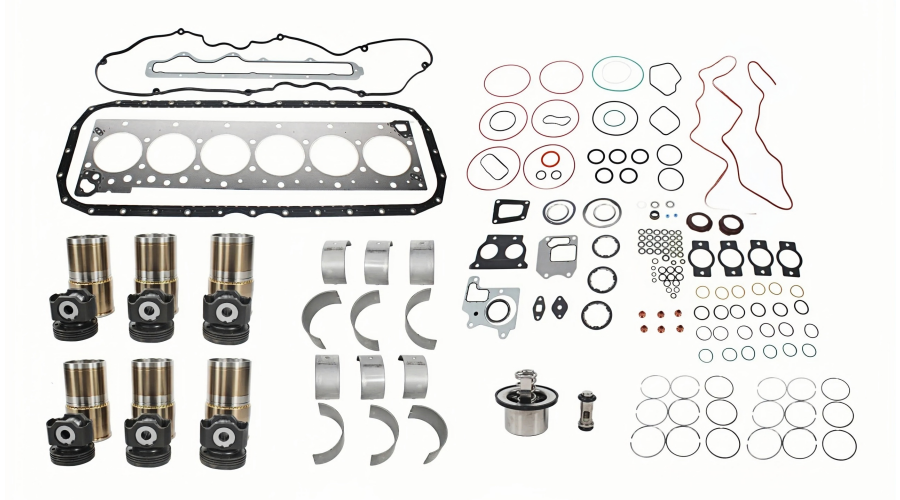

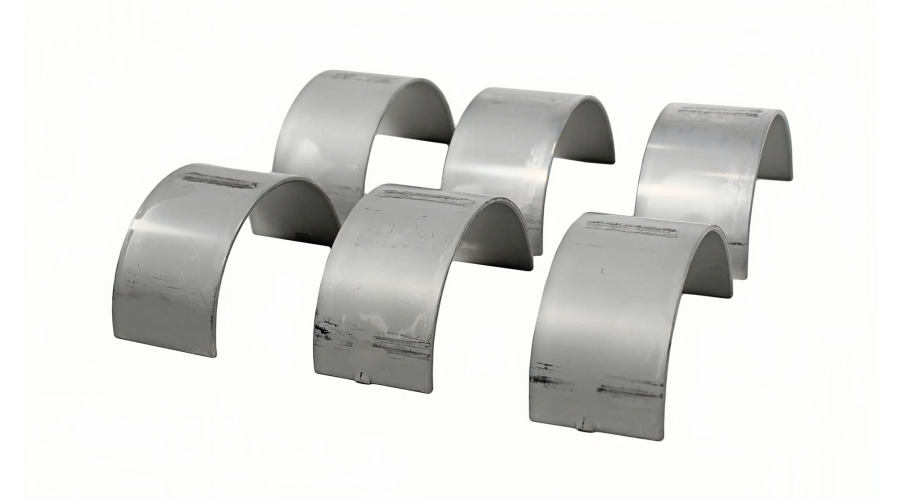

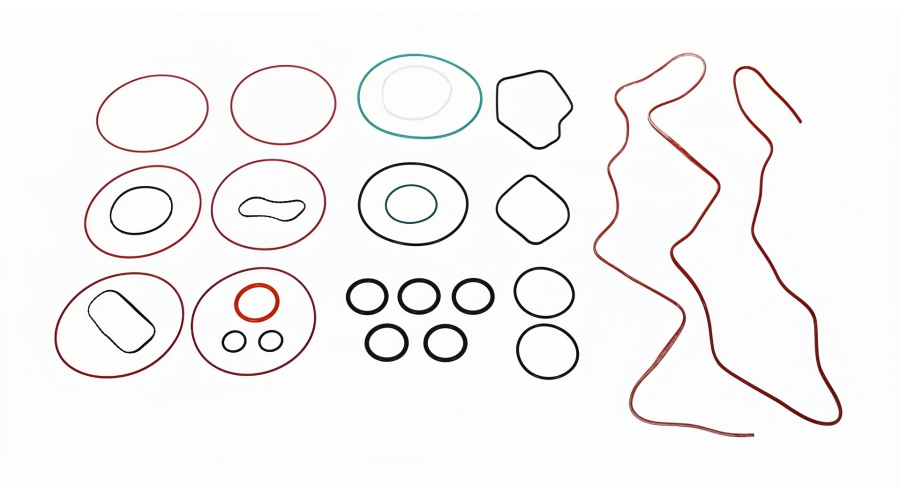

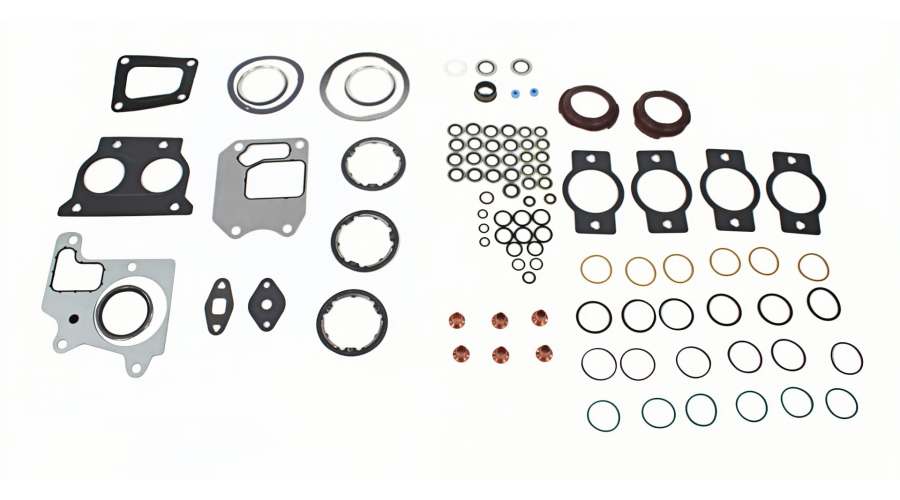

The 4376179 engine rebuild kit is a premium master overhaul solution engineered for the Cummins ISX series heavy-duty diesel engines, specifically the ISX11.9 and ISX15 (15-liter) variants that dominate North American Class 8 trucking. This comprehensive kit typically includes over 250 components: six piston assemblies (complete with articulated or monothermc pistons, rings, pins, and retainers), six cylinder liner kits (wet liners with O-rings), main bearing set (7 shells including thrust washers), connecting rod bearing set (6 pairs), full gasket set (cylinder head gasket, valve cover gasket, oil pan gasket, intake and exhaust manifold gaskets, front and rear timing cover gaskets, water pump gaskets, and all O-rings including injector seals), full seal set (front and rear crankshaft seals, camshaft seals, and accessory drive seals), valve stem seals, and often freeze plugs, piston cooling jets, and head dowels. Structurally, the pistons are articulated two-piece designs (forged steel crown and aluminum skirt) on many ISX15 applications, providing superior thermal resistance and reduced weight. On other variants, monothermc aluminum pistons with anodized top ring grooves are used. The cylinder liners are induction-hardened gray iron with a cross-hatched plateau finish (Ra 0.2–0.4 µm) and feature a mid-stop design for precise seating. The bearings utilize tri-metal construction (steel backing, copper-lead, and tin overlay) capable of withstanding peak cylinder pressures exceeding 220 bar on high-output ISX engines (up to 600 hp). Key advantages of the 4376179 rebuild kit include: OEM-grade compatibility (meets Cummins original specifications for ISX from early EGR (2002–2006), DPF (2007–2010), to SCR (2011–2017) models), significant downtime reduction (one kit provides every wear component needed for an in-frame overhaul), and cost savings of 40–60% compared to purchasing genuine Cummins parts separately. This kit restores the ISX to factory compression, oil pressure, fuel economy, and emissions compliance, extending engine life by another 15,000–20,000 operating hours.
Core Working Principle
The 4376179 engine rebuild kit restores the Cummins ISX engine’s thermodynamic cycle and mechanical integrity by replacing all major wear-limited components. The ISX employs a high-pressure common rail fuel system (or earlier unit injector systems), and its piston bowls are precisely shaped to create a re-entrant combustion chamber that promotes rapid air-fuel mixing. When the new piston and ring assemblies are installed, the top compression ring (often a diamond-like carbon or chrome-ceramic coated) seals against the fresh liner surface, reducing blow-by from worn-engine levels (often exceeding 150 L/min) to less than 35 L/min at rated power. The new cylinder liners restore the original bore geometry (137 mm for ISX15, 126 mm for ISX11.9) and provide a smooth, uniform surface for ring rotation and oil control. The new main and rod bearings rebuild the oil film clearance (typically 0.065–0.120 mm for mains, 0.048–0.092 mm for rods), maintaining oil pressure between 30 and 70 psi at operating temperature and preventing crankshaft journal damage. The new MLS (multi-layer steel) cylinder head gasket seals combustion pressures up to 220 bar while keeping coolant and oil passages separate; it also maintains proper liner protrusion (0.08–0.15 mm above block deck). The valve stem seals prevent oil from seeping past valve guides, eliminating blue smoke on startup. The result is an ISX engine that delivers its original rated power (typically 400–600 hp) with fuel consumption returning to baseline (around 185–200 g/kWh) and emissions fully functional (EGR coolers and DPF/SCR systems work correctly with reduced soot loading). The rebuilt engine also benefits from reduced internal friction, leading to improved throttle response and longer component life.
Main Application Equipment
The 4376179 engine rebuild kit is used for overhauling Cummins ISX engines across a vast range of heavy-duty on-highway and off-highway applications:
Class 8 heavy-duty trucks – Freightliner Cascadia, Peterbilt 579/389, Kenworth T680/T880, Volvo VNL, International LoneStar/ProStar, Western Star 4900, Mack Anthem (with ISX option). The ISX is the most common engine in North American long-haul fleets.
Refuse and vocational trucks – Mack, Autocar, Peterbilt, and others with ISX power for garbage collection, concrete mixers, dump trucks, and snowplows.
Motorcoaches and buses – Prevost, MCI, Van Hool touring coaches; transit buses from New Flyer, Gillig, and Nova Bus.
Construction and mining equipment – Heavy excavators, wheel loaders, bulldozers, and motor graders (some OEMs used ISX as a power option).
Generator sets – Prime and standby gensets rated from 300 kW to 800 kW, common at data centers, hospitals, manufacturing plants, and oil/gas facilities.
Agricultural tractors – Large row-crop tractors and combines where Cummins ISX engines were installed (e.g., Case IH, New Holland).
Marine propulsion – Workboats, patrol boats, yachts, and small ferries with Cummins ISX marine ratings (425–550 hp).
Crane and drilling equipment – Mobile cranes and oilfield drilling rigs powered by ISX diesels.
The ISX engine family (introduced in 2002, succeeded by the X15 around 2017) is one of the most widely produced heavy-duty engines globally. The 4376179 rebuild kit is essential for keeping millions of these engines on the road and in the field beyond their first life.
Common Failure Symptoms & Repair/Replacement Guidelines
Failure symptoms indicating the need for the 4376179 rebuild kit on a Cummins ISX engine:
Excessive blow-by – Smoke or pressure venting from the crankcase breather. A manometer reading > 100 L/min at rated speed (1800–2100 RPM) indicates severe ring/liner wear. The ISX is sensitive to blow-by; high levels can cause oil leaks and compressor oil carryover.
High oil consumption – Exceeding 1 quart per 500 miles (0.95 L per 800 km) or noticeable blue smoke from the exhaust, especially on deceleration. Frequent oil top-offs between changes.
Low compression – Hard starting, rough idle, lack of power under load. Compression test (relative compression using electronic service tool) reveals cylinder contribution imbalance greater than 10–15%. Cylinder cutout test shows which cylinders are weak.
Low oil pressure – Hot idle oil pressure below 12 psi (0.8 bar) and running pressure below 30 psi (2.1 bar) at rated RPM. Caused by worn main and rod bearings, oil pump wear, or excessive bearing clearance.
Knocking noises – Deep, rhythmic knock from the lower end (bearing knock) or sharper rap (piston slap or pin knock). The ISX is known for piston cracking in earlier generations (pre-2007), and failing pistons produce a characteristic “clatter.”
Frequent regens or DPF blockage – Excess oil consumption and blow-by contribute to ash loading and soot accumulation, causing the DPF to clog faster than normal. High oil consumption is a common reason for DPF issues.
Coolant loss without visible external leak – Head gasket failure allows combustion gases to pressurize the cooling system, leading to coolant loss, overheating, and potential hydrostatic lock (water in cylinders).
Oil analysis warnings – High iron (cylinder/liner), copper (bearings), aluminum (piston), or silicon (dirt) in used oil samples. Also, viscosity increase from fuel dilution (caused by poor ring seal).
Repair and replacement points for the 4376179 kit:
Confirm engine model and year – The ISX comes in 11.9L and 15L versions; the 4376179 is typically for the ISX15 (15L) . Also verify if the engine has dual overhead cams (DOHC – most ISX) and which injector type: common rail (post-2009) or unit injector (2002–2009). Gasket sets differ. Provide your engine serial number (ESN) or CPL (Critical Parts List) number to Rsolid Engine Parts for accurate matching.
Decide between in-frame and out-of-frame – In-frame rebuild is very common for ISX in trucks, where the engine remains in the chassis, the oil pan is dropped, and crankshaft is accessed from below. Out-of-frame is needed if the block requires machining or crankshaft grinding.
Inspect the cylinder head – The ISX head is prone to cracking between valve seats and injector bore, especially on EGR models (2002–2006). Perform magnetic particle or pressure test. Replace the head if cracks are found. Also check for valve guide wear and seat recession.

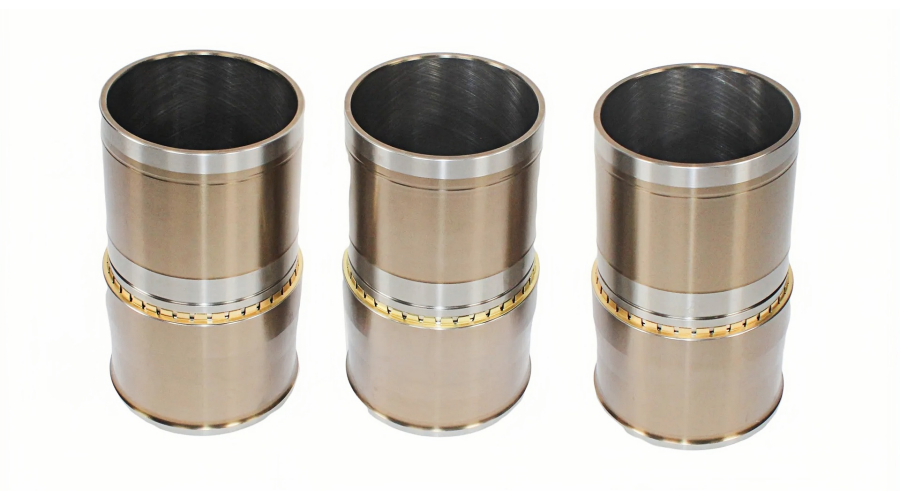

Cylinder liner installation – ISX uses mid-stop liners. Ensure the liner counterbore in the block is clean and free of corrosion. Lubricate O-rings with soapy water. Check liner protrusion (0.05–0.12 mm) using a dial gauge. Use shims only if specified. Incorrect protrusion will cause head gasket failure.

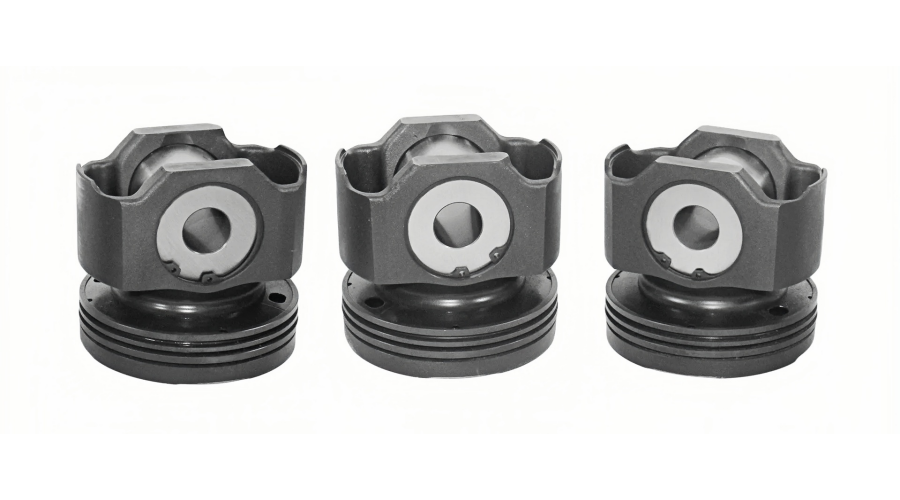

Piston selection – Early ISX pistons (two-piece articulated) are prone to cracking. Many rebuilders upgrade to later monothermc aluminum pistons or improved steel crown designs. Verify piston part number compatibility with your CPL. The 4376179 kit should include the correct piston type.
Ring gap verification (installed in liner at bottom of travel):
Top compression ring: 0.45–0.65 mm (0.018–0.026 in)
Second compression ring: 0.55–0.80 mm (0.022–0.031 in)
Oil ring rails: 0.30–0.55 mm (0.012–0.022 in)
Piston cooling jets – Before installing pistons, inspect the oil squirters (nozzles) aimed at the piston underside. They must be unobstructed and aimed at the piston gallery. Replace any damaged or missing jet. The ISX relies heavily on piston cooling for durability.
Bearing torque specifications (use new bolts for both main and rod; ISX uses torque-to-yield):
Main bearing cap bolts: 115 Nm (85 ft-lb) + 120° (follow sequence)
Connecting rod bolts: 95 Nm (70 ft-lb) + 90° + 90°
Note: Replace connecting rod bolts every time. Measure bolt stretch if specified.

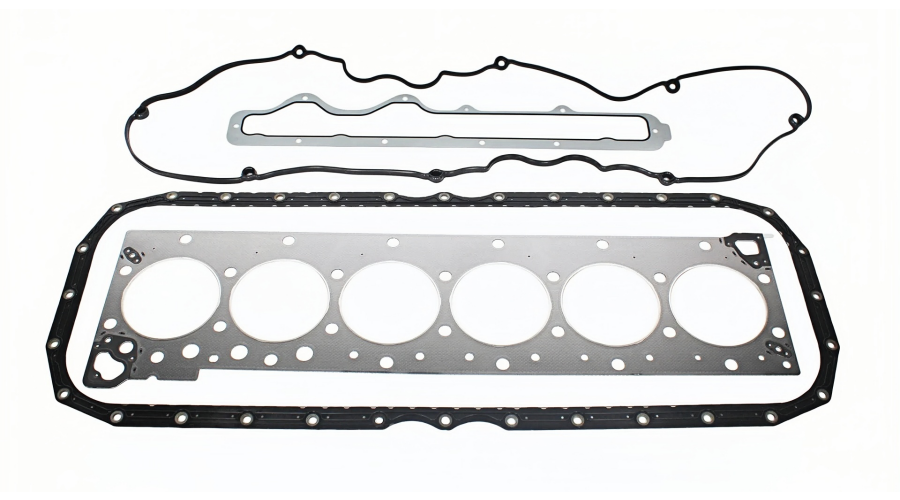

Head gasket installation – Use a new MLS head gasket. Ensure head and block surfaces are flat (warpage < 0.08 mm over 300 mm). Do not use any sealant unless specified. Lubricate threads with clean engine oil. Torque sequence: 100 Nm, 150 Nm, 270 Nm, then + 90° in increments.
After assembly – Prime the oil system: disable fuel (unplug injector harness or use starter with stop button), crank engine in 15-second bursts with 30-second cooldown until oil pressure registers on gauge. Then start and idle at 600–800 RPM for 5 minutes, checking for leaks. Listen for unusual knocking – a slight piston “slap” may occur until rings seat.
Break-in procedure – Load engine gradually: 25% load for 30 min, 50% for 1 hour, 75% for 1 hour, then full load. Avoid prolonged low-load idling. For truck applications, avoid full throttle for the first 500 miles (800 km) and vary engine speed. Change engine oil and filter after the first 100 hours or 5,000 miles (whichever comes first).
Why Choose Rsolid Engine Parts for the 4376179 Engine Rebuild Kit
Rsolid Engine Parts (www.rinjector.com) is a leading aftermarket supplier of the 4376179 engine rebuild kit for Cummins ISX diesels. With rigorous quality control and deep expertise in heavy-duty engine components, Rsolid provides significant benefits to repair shops and fleet operators:
Complete, no-surprises kits – The 4376179 kit includes every gasket, seal, bearing, piston, liner, and small part needed for a full ISX overhaul. No need to purchase additional components or hardware.
OE-grade quality or better – Pistons from reputable forges (Federal-Mogul, MAHLE, or equivalent), liners with induction-hardened bores, bearings from King or Clevite, MLS head gaskets with improved embossed sealing beads. All components are backed by material certificates.
Exact CPL/ESN matching – Rsolid’s technical team verifies your engine’s Critical Parts List (CPL) or serial number before shipping, ensuring correct piston dish volume, ring groove dimensions, and head gasket thickness. This prevents costly mis-match errors.
Fleet-friendly packaging – Kits are organized by component type, labeled, and packed in heavy-duty boxes to withstand international shipping. Critical items (head gasket, bearings) are individually protected.
Global stock and fast delivery – Large inventory in North America (Houston, Chicago), Europe (Rotterdam), and Asia (Shanghai, Singapore). Standard air freight 3–7 days; sea freight 20–40 days for bulk orders. Emergency overnight shipping available.
Technical support – Free diagnosis assistance via WhatsApp before purchase. Installation torque sheets, ring gap tables, and liner protrusion guides provided digitally. Rsolid’s diesel specialists help you avoid common ISX rebuild mistakes (e.g., incorrect liner protrusion, missing piston cooling jets).
Competitive pricing – Save 40–60% versus Cummins genuine parts. Volume discounts for high-volume rebuilders, truck fleets, and international distributors. Custom kitting (e.g., including water pump, oil pump, or injectors) available on request.
Warranty – 12 months or 2,000 operating hours (whichever first) against manufacturing defects. Rsolid offers fast replacement for any defective component with photo/ video evidence.
To order the 4376179 engine rebuild kit for your Cummins ISX, contact Rsolid Engine Parts via WhatsApp: +8615975376778 or visit www.rinjector.com. For accurate kit configuration, please provide your engine serial number (ESN) or CPL. Discounts available for fleets purchasing multiple kits.
